Description


Planet Audio brand icon

Authorized dealer

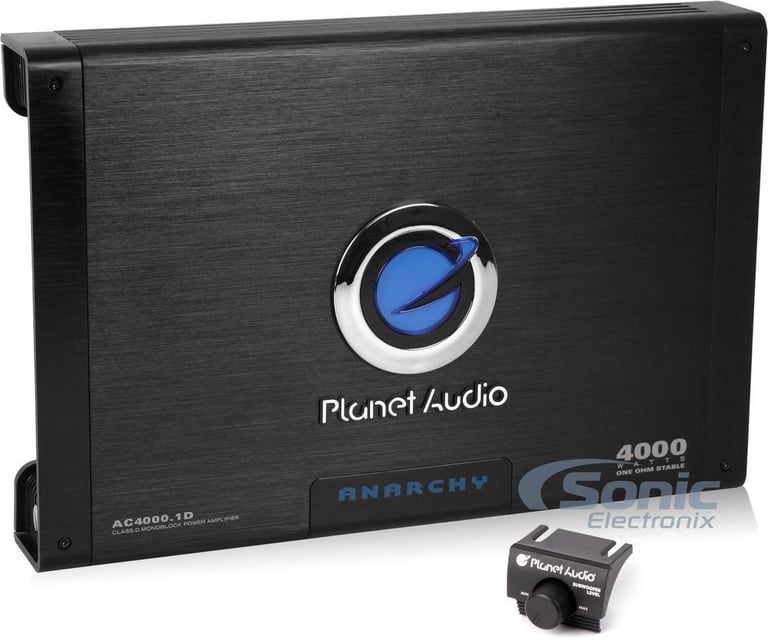

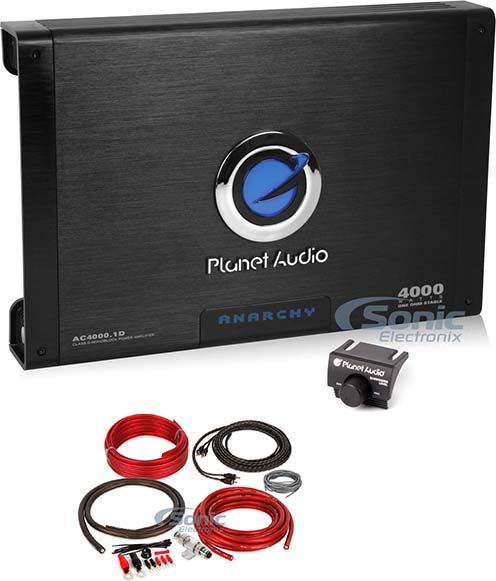

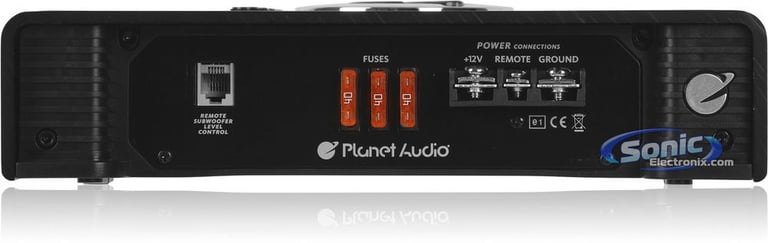

Planet Audio AC4000.1D

4000W Max Anarchy Series Class D Monoblock Power Amplifier
Quantity: 1

Planet Audio Authorized Dealer

Product Features:

  • Anarchy Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1500 watts x 1 chan.
    • 2 ohm: 2000 watts x 1 chan.
    • 1 ohm: 2800 watts x 1 chan.
  • Max power output:
    • 1 ohm: 4000 watts x 1 chan.
  • Pulse width modulated MOSFET power supply

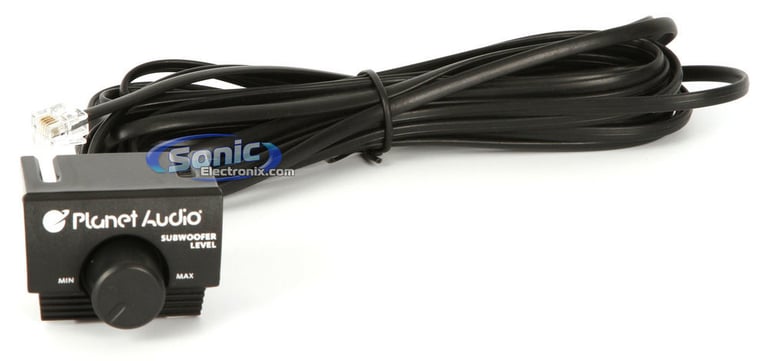

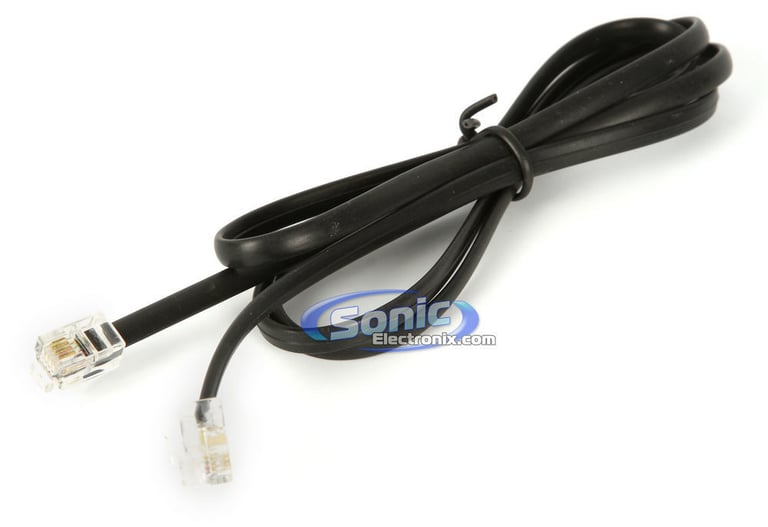

  • Convenient remote subwoofer control
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost 0 to +18 dB
  • Chrome-plated connections enhance durability
  • Variable low pass crossovers
  • Illuminated logo
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Low level high inputs
  • Heavy-duty set-screw terminals
  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Variable low-pass filter: 50 - 150 Hz, 24 dB/octave)
  • Subsonic filter: 15-40 Hz
  • Phase Shift: Switchable 0-180°
  • Signal-to-Noise Ratio: 105 dB
  • Frequency response: 20-250 Hz
  • Strapping capabilities allow user to strap two amps together for twice the power using included DataLink cable (2 ohm only)
  • Dimensions: 15"L x 10"W x 2-3/16"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty
  • Planet Audio AC4000.1D owner’s manual

    Belva BAK42BK

    4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
    Quantity: 1

    Product Details:

    • 4 Gauge 2-Channel Complete Amplifier Installation Kit
    • Designed for car audio systems up to 1200 watts RMS
    • Made from 100% Copper-Clad Aluminum (CCA)
    • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
    • Full spec power and speaker wire meet or exceed American Wire Gauge standards
    • RCA Interconnect Cable
    • Twisted-pair construction provides protection against interference
    • Split-tip silver-plated ends offer high-quality performance
    • Molded ends equipped with colored channel identifiers for easy recognition
    • Includes an assortment of wire termination hardware and cable ties
    • Authorized Internet Dealer
    • 1-year Manufacturer's Warranty

    Kit includes:

    1. 17 ft. Gray 4 gauge power wire

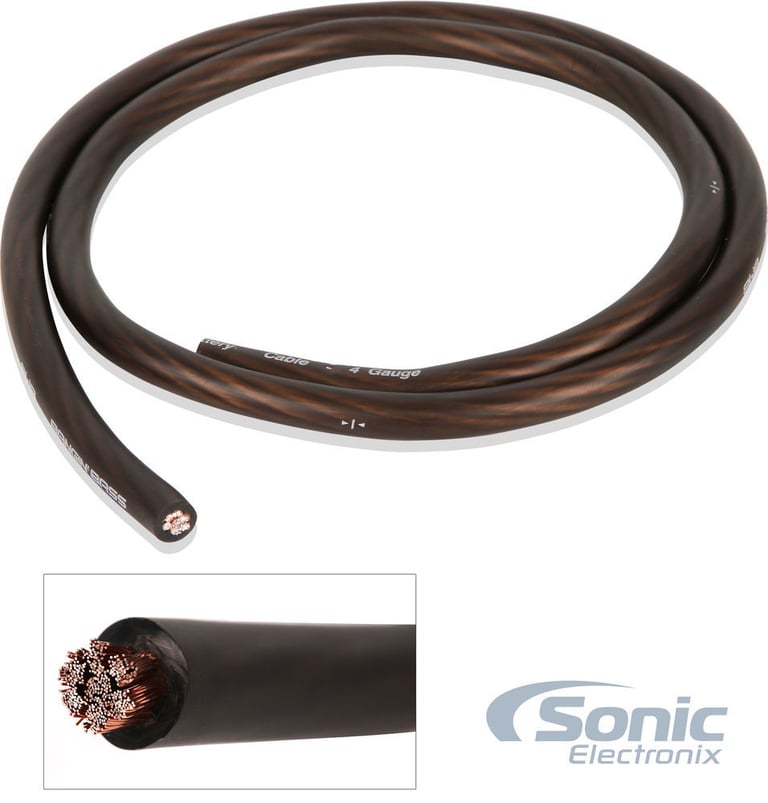

    2. 3 ft. Black 4 gauge ground wire

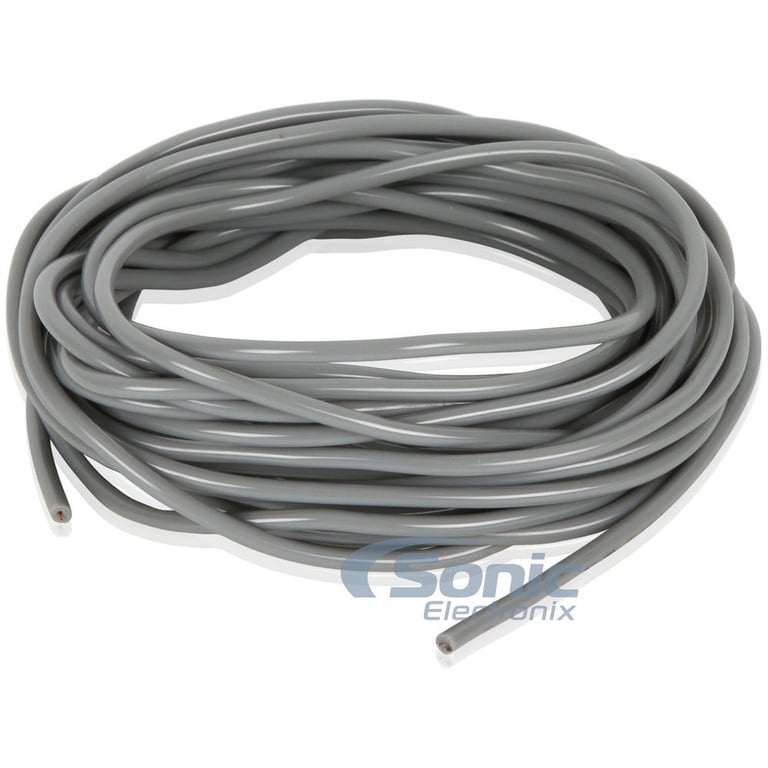

    3. 17 ft. Gray 18 gauge remote lead wire

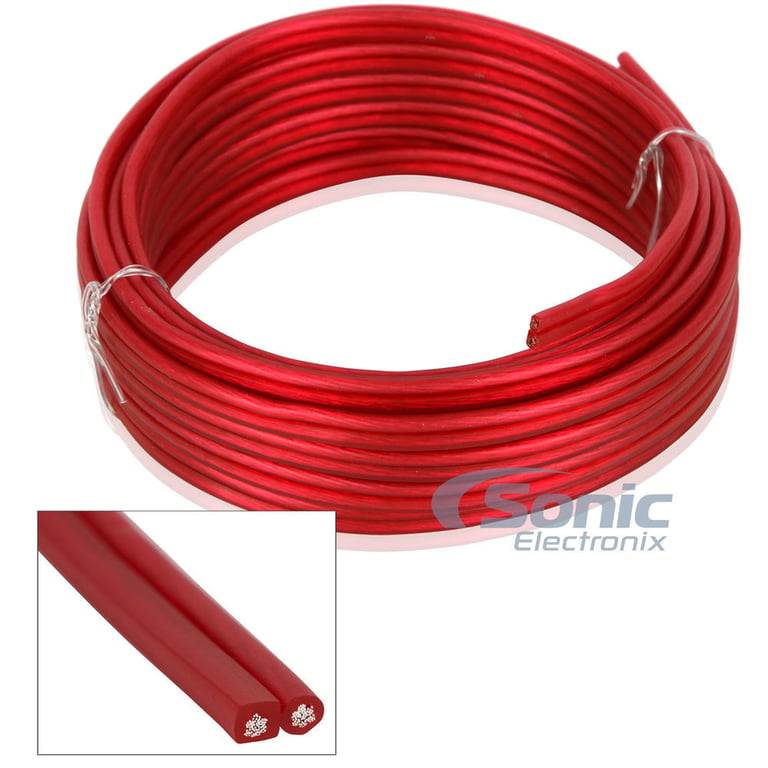

    4. 20 ft. 16 gauge speaker wire
    5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

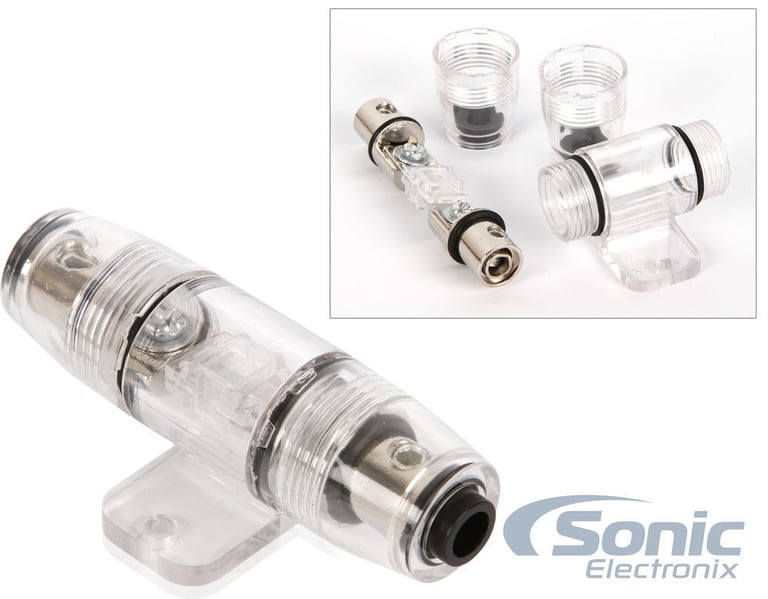

    6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
    7. One Black rubber firewall grommet
    8. Two 4 Gauge Chrome Plated ring terminals
    9. Five 16 Gauge Spade terminal
    10. One 18 Gauge Red butt connectors
    11. Ten 4" Black zip ties

    Loading...
    SB-F-EXPED4G/10TW1 main

    JL Audio Stealthbox® SB-F-EXPED4G/10TW1

    Custom-Fit Loaded 10" Subwoofer Enclosure for select 2018-2024 Expedition and Expedition Max

    $1,449.99

    DMH-1800NEX main

    Pioneer DMH-1800NEX

    6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

    59
    -19.05%

    $339.99

    List price $420.00

    Limited time!
    46CSC654 main

    Kicker CSC65 (46CSC654)

    600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

    254
    -33.36%

    $79.96

    List price $119.99

    Limited time!
    46CSC6934 main

    Kicker CSC693 (46CSC6934)

    900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

    40
    -30.02%

    $111.96

    List price $159.99

    UTE-73BT main

    Alpine UTE-73BT

    Single DIN Digital Media Receiver with Bluetooth

    44
    -16.69%

    $149.95

    List price $180.00

    Club 322F main

    JBL Club 322F (SPKCB322FAM)

    150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

    1
    -27.29%

    $79.95

    List price $109.95

    Limited time!
    Club 622 main

    JBL Club 622

    360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

    5
    -28.58%

    $99.95

    List price $139.95

    CV15BT main

    Cerwin-Vega CV15BT

    Single Din Digital Media Receiver with Bluetooth

    3
    DB652 main

    Polk Audio DB652 (DB 652)

    600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

    214
    -9.16%

    $109.00

    List price $119.99

    43DSC6504 main

    Kicker DSC650 (43DSC6504)

    480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

    72
    -10.53%

    $84.99

    List price $94.99


    Best selling similar products

    MBQBRO-STG6-OEM-1 small

    MB Quart MBQBRO-STG6-OEM-1

    • Six Speaker Audio Upgrade System
    • Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
    • Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
    • Designed for OEM Base model audio systems or aftermarket source units
    • System is designed to withstand harsh outdoor environments
    • Plug and Play design for easy installation
    • Comes with all necessary mounting and installation hardware

    $1444.99

    List price $1899.99

    MBQBRO-STG6A-1 small

    MB Quart MBQBRO-STG6A-1

    • Six Speaker Audio Upgrade System
    • Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
    • Includes PAC module for OEM B&O audio systems
    • Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
    • Designed for OEM B&O audio systems
    • System is designed to withstand harsh outdoor environments
    • Plug and Play design for easy installation
    • Comes with all necessary mounting and installation hardware

    $1869.99

    List price $2399.99

    R2-1200X1, XKIT42 small

    Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

    • 400 Watts RMS x 1 @ 4 ohm
    • 800 Watts RMS x 1 @ 2 ohm
    • 1200 Watts RMS x 1 @ 1 ohm
    • CEA-2006 Compliant
    • R.L.C. Remote Level Control
    • Includes Amplifier Wiring Kit

    (149)

    $530.20

    List price $593.98

    NPKG212_65_69_STG1VKIT small

    NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

    • 12" Loaded Dual Subwoofer Enclosure with Amplifier
    • 500 watts RMS
    • Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs
    • Wired Remote Bass Level Control
    • Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

    (267)

    $495.93

    List price $688.43

    NPKG212_65_X2_STG1VKIT small

    NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

    • 12" Loaded Dual Subwoofer Enclosure with Amplifier
    • 500 watts RMS
    • Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs
    • Wired Remote Bass Level Control
    • Includes 6.5 Co-axial Speaker and Damping Kits

    (261)

    $486.93

    List price $677.43

    VCW84_NDA12001_XKIT42 small

    NVX VCW84v3 + NDA12001 + XKIT42

    • Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
    • 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
    • XKIT42 Complete 4 AWG Amplifier Wiring Kit
    • 1-year Warranty from the Original Purchase Date

    (153)

    $619.96

    List price $791.96

    51HS10_BAK82_2NK small

    Kicker HS10 (51HS10) w/ Free Amp Install Kit

    • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
    • Convenient wired remote for independent bass level control
    • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
    • Premium polyurethane foam can insulator sleeve koozie with black logo
    • Complete bass solution includes compact powered subwoofer and installation hardware

    (99)

    $319.99

    List price $489.96

    QB10SPA_65_X2_STG1VKIT small

    NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

    • 10" Amplified Loaded Subwoofer System
    • 350 watts RMS
    • Built-In Class D Amplifier
    • Variable Bass Boost
    • Speaker-Level Inputs
    • Wired Remote Bass Level Control
    • Includes 6.5(2) Co-axial Speaker and Damping Kits

    (250)

    $311.43

    List price $533.42

    BAK42BK,R500X1D small

    Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

    • R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
    • BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

    (80)

    $309.99

    List price $369.98

    BAK42,R500X1D small

    Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

    • RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
    • Total RMS Power: 500W
    • CEA-2006 Compliant
    • Remote PLC (Punch Level Control) Included
    • Efficient Class-D circuit topology
    • 4 Gauge Power Amplifier Installation Kit
    • Ideal for Systems Up to 650 Watts
    • Premium Power and Ground Wire Provides Optimal Power Transfer
    • 2-Channel Twisted RCA Cables

    (73)

    $309.99

    List price $369.98

    Specifications & Details


    Power Specifications - Full Range Channels
    RMS Power @ 4 ohms
    1500 watts x 1 channel
    RMS Power @ 2 ohms
    2000 watts x 1 channel
    RMS Power @ 1 ohm
    2800 watts x 1 channel
    Amplifier Specifications
    Amplifier Class
    D
    Number of Channels
    1 - Mono
    Total Peak Power Output
    4000 watts
    Total RMS Power Output
    2800 watts
    Maximum Input Gauge Size
    1/0 AWG
    Minimum Impedance Unbridged
    1 ohm
    Minimum Impedance Bridged
    Not Bridgeable
    Speaker Level Inputs
    Yes
    Preamp Outputs
    No
    Built-in Crossover
    Low-Pass (LP)
    Subsonic Filter
    15 - 40 Hz
    Signal-to-Noise Ratio
    105 dB
    Bass Boost
    0 - 18 dB
    Remote bass/level controller
    Yes
    CEA-2031 Compliant
    No
    Amplifier Kit Specifications
    Number of Amplifiers Supported
    1
    Power/Ground Wire Size
    4 gauge
    Power Wire Length
    17 feet
    Ground Wire Length
    3 feet
    Speaker Wire Included
    Yes
    Speaker Wire Length
    20 feet
    Remote Wire Length
    17 feet
    Interconnect (RCA) Signal Cables Included
    2 Channel
    Fuse Holder
    ANL
    Fuse Size
    80A
    Distribution Block Included
    No
    Warranty and Return Policy
    Parts Warranty Duration
    6 years
    Labor Warranty Duration
    6 years
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    BAK42BK,AC4000.1D

    Weight:

    15.60lbs

    Internal SKU:

    ac40001d_bak42

    Internal Product ID:

    158087

    Customer Ratings & Reviews


    Planet Audio AC4000.1D 4000W Mono Car Amplifier + Amp Kit + Remote thumbnail image

    5 star
    78%
    4 star
    13%
    3 star
    8%
    2 star
    0%
    1 star
    1%



    Durability
    4.6
    Value
    4.9
    Features
    4.6
    Design
    4.8
    Usability
    4.7

    Customer Reviews

    Sort by:

    Loading...

    Quality Product

    The following review is for BAK42BK, which is a part of the bundle you are viewing.

    Works very well with my Rockford Fosgate sub system in my car.

    By Ronald on December 11, 2014

    135 found this helpful


    good deal!

    The following review is for BAK42BK, which is a part of the bundle you are viewing.

    Pretty decent value for the price. Worked out great, thanks.

    By Brett on January 29, 2015

    130 found this helpful


    Usable

    The following review is for BAK42BK, which is a part of the bundle you are viewing.

    The wiring has done me right so far but the only thing I don't like is the speaker wires. You have to carefully split it so the wire doesn't show. Other than that minor thing everything was great and a great value!

    By tyler on November 18, 2014

    126 found this helpful


    price is right

    The following review is for BAK42BK, which is a part of the bundle you are viewing.

    the price is right for this setup. the ground wire and the power wire are to big for my amp but i made them fit. better to have to much than not enough so if i upgrade to a larger amp it will be fine.

    By Mark on November 13, 2014

    123 found this helpful


    Accessories for product

    The following review is for BAK42BK, which is a part of the bundle you are viewing.

    Just what I needed and made installation so much easier. Thanks

    By Susie on February 9, 2015

    113 found this helpful


    awesome products

    The following review is for BAK42BK, which is a part of the bundle you are viewing.

    I run 2 12inch audiobahn exursions on this amp and it pushes them very well. The size is perfect not to big and fits right unerneath the seat or small space. The best part is it stays pretty cool even after running most the day.

    By CJ on March 22, 2015

    108 found this helpful


    good wires

    The following review is for BAK42BK, which is a part of the bundle you are viewing.

    I like the wire kit I got with my amp it seems to be holding up goo it handles the power of the amp I got but I would of gave it 5 stars all the way around but I wold of like the ground at less 2 more feet for good use but over all its a nice kit

    By jay on March 8, 2015

    100 found this helpful


    Good stuff

    The following review is for BAK42BK, which is a part of the bundle you are viewing.

    Great product last a long time good value for the money.

    By Brandon on December 7, 2014

    106 found this helpful


    Cable

    The following review is for BAK42BK, which is a part of the bundle you are viewing.

    Good product fast shipping awsome seller... keep up the good work.....

    By Rondell on November 9, 2015

    84 found this helpful


    Perfect kit

    The following review is for BAK42BK, which is a part of the bundle you are viewing.

    Comes with everything you need. Works good with my 800w system

    By Chad on May 14, 2020 Checkmark Icon Verified purchase

    69 found this helpful




    BXi2010D-RB_TS-W3002D4 small

    7000W Complete Hifonics + Pioneer Bass Package

    Hifonics Brutus BXi2010D Amplifier + 2 Pioneer TS-W3002D4 12" Subs + 1/0 GA Amp Kit + Sub Enclosure

    (139)

    $536.84

    List price $1809.95

    Related Searches


    Save up to 10 different vehicles in your garage
    Vehicle
    Store
    Delete

    2018 Ford Expedition

    2008 Chrysler Aspen

    2010 Ford Ranger

    2014 Volkswagen Golf

    1998 Ford Mustang

    1999 Mercury Tracer

    2013 Ford Flex

    2015 Toyota RAV4

    2011 Nissan Murano

    2010 GMC Canyon

    Add vehicle Clear all vehicles
    Where to find vehicle info
    Are you sure you want to clear your garage?
    This action cannot be undone. Confirm
    This page was not designed for products.
    If you continue, you will be redirected to a category customized for your vehicle. Continue
    Loading...
    Identify your vehicle and submodel details
    • Owner's manual
    • Vehicle's insurance card
    • Vehicle registration
    • Vehicle produced after 2005: Inside driver's side door
    • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
    Car Info Side Door Icon
    Vehicle Registration Icon
    Vehicle Insurance Icon

    Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

    • You see only parts engineered for your exact vehicle
    • You avoid incompatible radios, speakers, or wiring
    • Installation is smoother, faster, and frustration-free
    • You get the correct accessories the first time

    Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
