Name: NVX VAD10004 ( Open Box Complete)
Brand: NVX
SKU: ls-vad10004-obc8
Price: 215.99 USD
Availability: Discontinued

by NVX

About
Specs & Details
Reviews
Add-ons
Related Searches

NVX VAD10004 ( Open Box Complete) Image 1 — NVX VAD10004 ( Open Box Complete)

NVX VAD10004 ( Open Box Complete) Image 2 — NVX VAD10004 ( Open Box Complete)

NVX VAD10004 ( Open Box Complete) Image 3 — NVX VAD10004 ( Open Box Complete)

NVX VAD10004 ( Open Box Complete) Image 4 — NVX VAD10004 ( Open Box Complete)

NVX VAD10004 ( Open Box Complete) Image 5 — NVX VAD10004 ( Open Box Complete)

NVX VAD10004 ( Open Box Complete) Image 6 — NVX VAD10004 ( Open Box Complete)

NVX VAD10004 ( Open Box Complete) Image 7 — NVX VAD10004 ( Open Box Complete)

NVX VAD10004 ( Open Box Complete) Image 8 — NVX VAD10004 ( Open Box Complete)

NVX VAD10004 ( Open Box Complete) Image 9 — NVX VAD10004 ( Open Box Complete)

NVX VAD10004 ( Open Box Complete) Image 10 — NVX VAD10004 ( Open Box Complete)

Product highlights

• RMS: 150 x 4 @ 4 ohm, 250W x 4 @ 2 ohm, Bridged 500W x 2 @ 4 ohm
• Total RMS Power: 1000W
• CEA-2006 Compliant
• Efficient Full Range Class D Design
• Dimensions: 12.1"W x 5.4"D x 2.0H

Learn more about the ls-vad10004-obc8

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Good Condition:
A Good Open Box used product shows wear from consistent use, but it remains in good condition and works perfectly. It may be marked, have identifying markings on it, or show other signs of previous use or installation. Original packaging, paperwork or protective wrapping may be missing or not included in its entirety. Warranty details are included in the item description or comments.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, may be missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.

Marine Certified Full Range Class D 4-Channel Amplifier
CEA-2006 Compliant
Peak Power Rating: 2000 Watts
RMS Power Rating:

4 ohm: 150 watts x 4 chan.
2 ohm: 250 watts x 4 chan.
Bridged, 4 ohm: 500 x 2 chan.

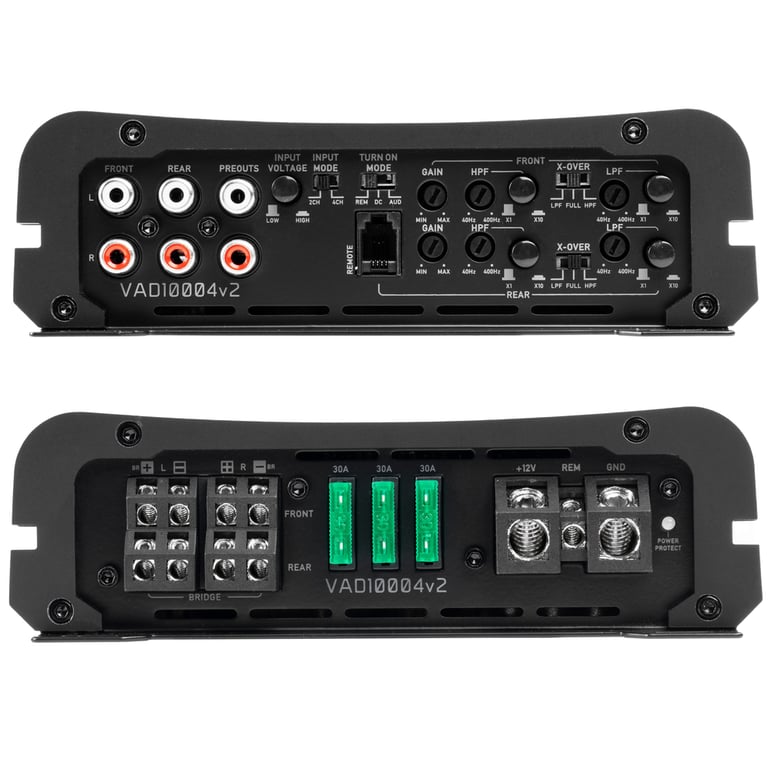

LED power (blue) and protect (red) indicators
Conformal Coated Marine grade circuit board
Heavy duty aluminum alloy heat-sink
Platinum-plated RCA level inputs
Platinum-plated screw terminals
Preamp RCA outputs to daisy chain multiple amps
2 or 4 channel operation
3-way protection circuitry (thermal, overload, and speaker short protection)
Selectable crossover modes: FULL / HPF / LPF
Variable high-pass filter: 40 - 500 Hz, 12 dB/octave
Variable low-pass filter: 40 - 500 Hz, 12 dB/octave
Frequency Range : 20 - 20KHz
Input Sensitivity: 200mV-6V
Total Harmonic Distortion: <0.3%
Fuse Rating: 30A x 3
Power Wire Gauge: 4 AWG
Speaker Wire Gauge: 8 AWG
Dimensions: 12.1"W x 5.4"D x 2.0"H
Authorized Internet Dealer
30 Day Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

150 watts x 4 channel

RMS Power @ 2 ohms

250 watts x 4 channel

Bridged RMS Power

500 watts x 2 channel

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

300 watts x 4 channel

Peak Power @ 2 ohms

500 watts x 4 channel

Bridged Peak/Max Power

1000 watts x 2 channel

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total Peak Power Output

2000 watts

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.3%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

40 - 500 Hz

Low-Pass Crossover Frequency

40 - 500 Hz

Signal-to-Noise Ratio

105 dB

Fuse Rating

30A x 3

Sonic Certified Amplifier

Yes

Amp Bluetooth Connectivity

Hi-Res Certified

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
