Name: JL Audio G-MAX R/B
Brand: JL Audio
SKU: LS-gmax-RB
Price: 264.99 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

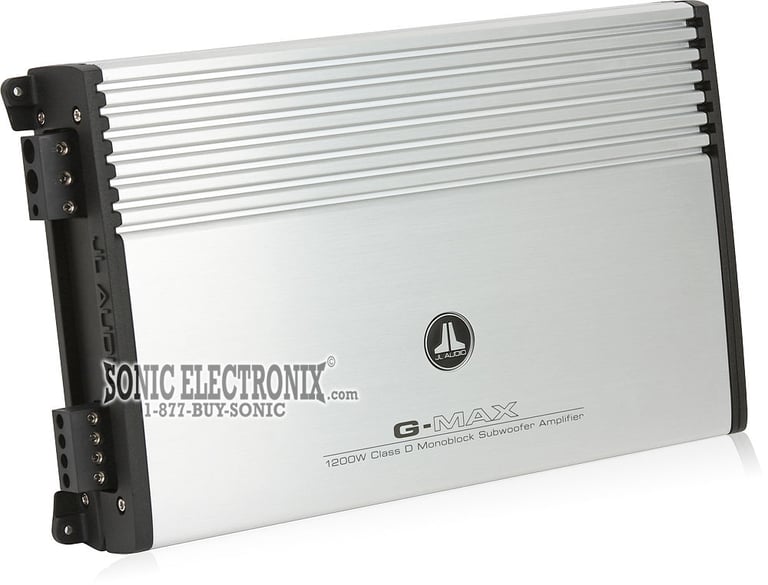

JL Audio G-MAX R/B Image 1 — JL Audio G-MAX R/B

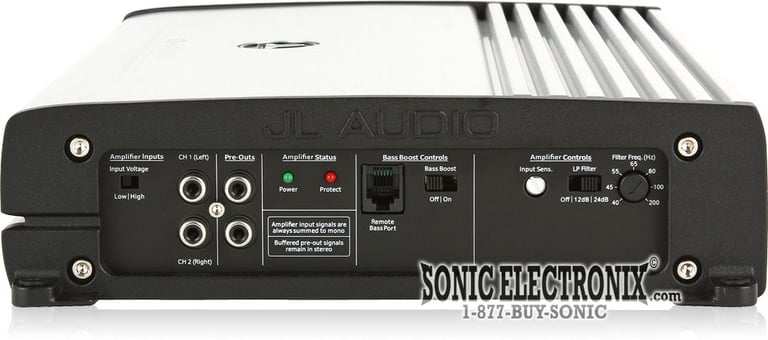

JL Audio G-MAX R/B Image 2 — JL Audio G-MAX R/B

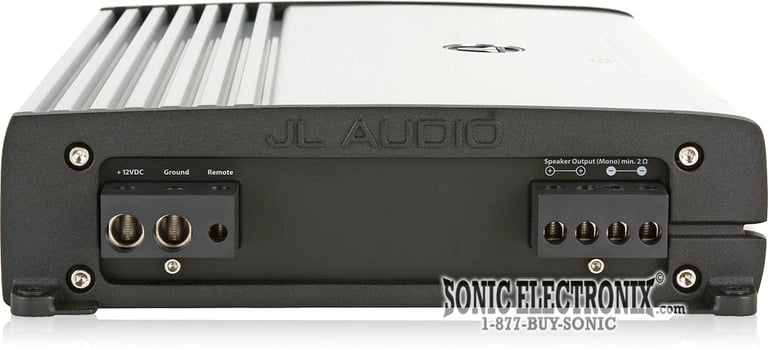

JL Audio G-MAX R/B Image 3 — JL Audio G-MAX R/B

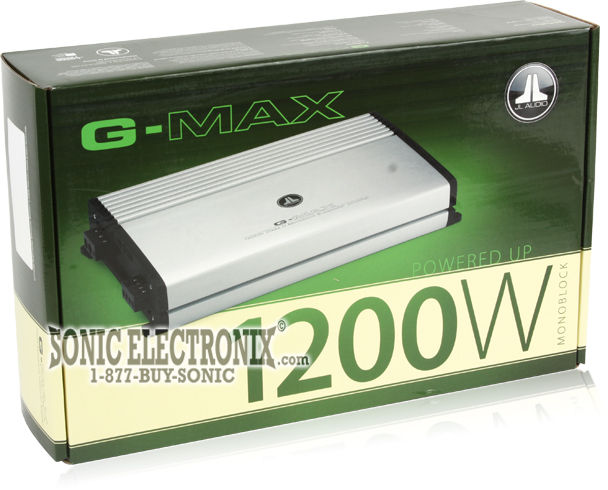

JL Audio G-MAX R/B Image 4 — JL Audio G-MAX R/B

Product videos

Product highlights

G-Series Single-Channel Monoblock Class D Car Amplifier • Power Rating @ 14.4V or 12.5V • 1200W x 1 Chan. 2 ohm • 600W x 1 Chan. @ 4 ohm • Bass Boost • Differential-balanced input topology • Pass-Through Preamps

Learn more about the LS-gmax-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

The G-Series amplifiers are the real value amplifiers from JL Audio. With the emphasis on quality and not just on the price, The G-Series amplifiers give you the greatest performance for your money.

The G-Max amplifier uses technology that is often seen in the higher end amplifiers. It features differential-balanced inputs, exceptional signal processing sections, an unique “never quit” rollback protection circuit, and JL Audio's super-clean, patented amplifier circuits. With all this great technology, the G-Max is a high-end amplifier for a middle-end price.

G-Series Single-Channel Monoblock Class D Car Amplifier
RMS Power Rating @ 14.4 V:

4 ohm: 600 watts x 1 chan.
2 ohm: 1200 watts x 1 chan.

RMS Power Rating @ 12.5 V:

4 ohm: 450 watts x 1 chan.
2 ohm: 900 watts x 1 chan.

Conventional unregulated power supply
Power and protection LED indicators
+6 dB fixed frequency bass boost/EQ
Differential-balanced input topology for superior noise immunity
Optional bass remote with the purchase of the RBC-1
RCA jack inputs
Pass-through preamp RCA outputs
High-damping class D circuit with discrete control circuitry
Damping Factor:

>500 @ 4 ohm / 50 Hz
>250 @ 2 ohm / 50 Hz

Heavy duty aluminum alloy heatsink for maximum heat dissipation
RCA level inputs
Screw terminals
Variable low-pass filter (40-200 Hz, 12 or 24 dB/octave)
Frequency response: 10-250 Hz
Dimensions: 15-3/4"L x 9-1/4"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90 Day Repair Only warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

600 watts x 1 channel

RMS Power @ 2 ohms

1200 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.1%

Speaker Level Inputs

Preamp Outputs

Mono output

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 200 Hz

Signal-to-Noise Ratio

90 dB

Bass Boost

0 - 6 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio RBC-1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
