See all parts that fit your 2013 M56

(2) JBL CX1200 + Sealed Subwoofer Box + Monoblock Amplifier + Amp kit

(2) JBL CX1200 + Sealed Subwoofer Box + Monoblock Amplifier + Amp kit

JBL
Shop all JBL
highlight-star-icon

• 1000 Watts Max
• 250 Watts RMS
• Polypropylene Woofer Cone
• Foam Surround
• Steel Frame Basket
• Single Voice Coil

Learn more about the cx1200_mdfd12_rfk10_da301l

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Description


JBL brand icon

Authorized dealer

Low Frequency Response

Hear the bass you've been missing with an exceptional frequency response of 35 HZ - 200 Hz. The CX Series subwoofers deliver the full range of low end response.

Reliability You Can Trust

JBL speakers are held to the same specifications as automakers and are subjected to extreme conditions that would break lesser speakers. They're frozen, baked, shaked and blasted with ultraviolet light. They're even driven at full power for days to make sure your audio investment lasts for years no matter where your travels take you.

Mountains

JBL CS1214

250W 12" CS Series Single 4 Ohm Subwoofer
Quantity: 2

General Features:

  • 12" CS Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Recommended power range: 100 - 250 watts RMS
  • Impedance: 4 ohm
  • High excursion, high BL motor
  • Polypropylene Cone
  • Rubber Surround
  • 1-1/2" Voice coil
  • Frequency response: 35-200 Hz
  • Resonance Frequency (Fs): 28 Hz
  • Top-mount depth: 6-1/16"
  • Sensitivity: 90dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Tips for Installing the your subwoofer

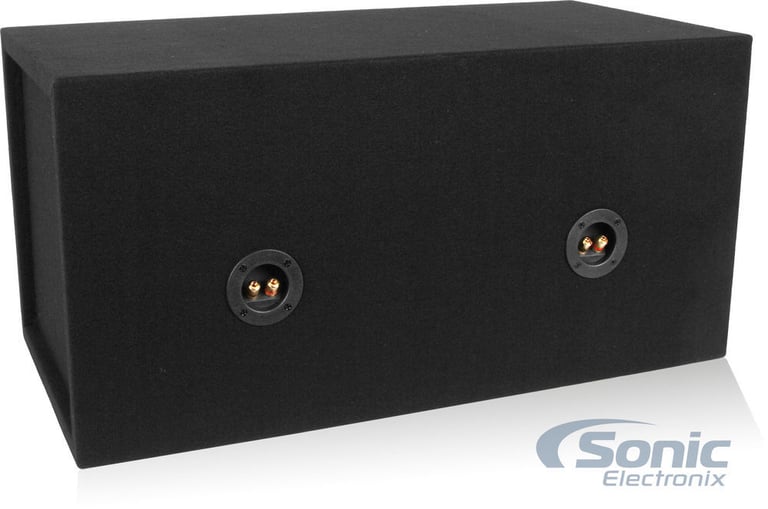

Dual 12" 3/4 MDF Sealed Subwoofer Enclosure (Belva MDFD12)

Dual 12-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/Polyfil (2.46 cu ft Airspace - 12SQB)
Quantity: 1

Belva Subwoofer Boxes with Polyfill and 3/4-inch MDF

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

Belva Subwoofer Boxes are CARB Phase 2 Compliant

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

Belva MDF 3/4-inch Thickness

Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

Belva MDF 3/4-inch Thickness

General Features:

  • Dual Sealed 12" Enclosure
  • Internal box volume: 2.5 cubic ft. total air space - 1.25 cubic ft. per chamber.
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • 2 Separate chambers allowing each subwoofer its own air space
  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 28" Wide, 14" Depth, 14" Height
  • 30 Day return policy


Rockford Fosgate RFK10 10 Gauge Amp Kit

10 AWG Amplifier Power Installation Kit
Quantity: 1

General Features:

  • 10 Gauge Amplifier Power Installation Kit
  • Designed specifically for car audio systems up to 300 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • AGU Fuse holder offers ideal protection for high powered systems
  • True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Package Includes:

  1. 17ft. 10-Gauge power cable
  2. 3ft. 10-Gauge ground wire
  3. ATC fuse holder and fuse
  4. 20ft. Remote wire
  5. 25 Amp fuse
  6. Cable Ties
  7. Butt connectors
  8. Spade Terminals
  9. Firewall Grommet

Check out the Rockford Fosgate RFK10 Owner's Manual

Dual DA301L (Great for Powersports, UTV, ATV, Motorcycles)

700W Peak (350W RMS) Ultra Compact Low Profile Series Series Class-D Digital Monoblock 2-Ohm Stable Amplifier (Made in Korea)
Quantity: 1


General Features:

  • Digital Low Profile Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 1 chan.
    • 2 ohm: 350 watts x 1 chan.
  • Max power output: 700 watts
  • Made in Korea
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • High and low auto input sensitivity adjustment
  • Speaker-level (high-level) inputs with auto turn-on
  • Surface Mount Design Technology
  • 4-way protection circuitry
  • Variable gain control
  • Input sensitivity: 250mV - 6V
  • Frequency Response: 10 - 250 Hz
  • Total Harmonic Distortion (THD): <0.5%
  • Signal to Noise Ration: 80dB
  • Variable low-pass filter: 35 - 250 Hz, 12 dB/octave
  • Subsonic filter: 10 - 50 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
  • Fuse Rating: 30A x 1
  • 10 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 3"W x 5.9"L x 1.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Subwoofer Specifications
Series
CX
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
250 watts
Peak Power Handling
1000 watts
Woofer Surround
Foam
Woofer Composition
Polypropylene
Sensitivity
92 dB
Frequency Response
25 - 2000 Hz
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

CX1200 MDFD12 RFK10 DA301L

Weight:

61.00lbs

Internal SKU:

cx1200_mdfd12_rfk10_da301l

Internal Product ID:

165133

Customer Ratings & Reviews


(2) JBL CX1200 + Sealed Subwoofer Box + Monoblock Amplifier + Amp kit thumbnail image

5 star
77%
4 star
17%
3 star
4%
2 star
1%
1 star
0%



Durability
4.8
Value
4.9
Features
4.7
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Good Box

The following review is for MDFD12, which is a part of the bundle you are viewing.

Great box does well with my subs would buy again

By Dennis on May 4, 2012

147 found this helpful


Heavy Duty!

The following review is for MDFD12, which is a part of the bundle you are viewing.

I would recommend this product for the guy's out there that are serious about their music. If you got good, high quality subs, then this box will make them perform to your sub's max output with out worry of blowing up your box.

By Scott on February 3, 2014

140 found this helpful


good box

The following review is for MDFD12, which is a part of the bundle you are viewing.

I bought this box for 2 12" kicker cvx subs 750 watts a piece its a great closed box for them especially stuffed 1/4 with pillow stuffing.. looks real good to.. quick shipping

By gage on February 6, 2011

136 found this helpful


good value

The following review is for MDFD12, which is a part of the bundle you are viewing.

product worked for my new hifonics subs. that will be a winter system for my ride so i don't have to keep my main subs in all year round. i really like it mostly because its has black carpeting.

By bigmike on August 10, 2010

133 found this helpful


The Box that Rocks

The following review is for MDFD12, which is a part of the bundle you are viewing.

Appears to be fairly well built. Arrived with a little dent and a tear but its too little to bother with. Sounds nice but doesn't hit as deep as I would have liked. Small size however, leaves me some room for a couple of bags of groceries. Three stars for durability since I've only owned this for about a month.

By Kevin on November 1, 2014

133 found this helpful


Amazing Enclosure, Even Better Price.

The following review is for MDFD12, which is a part of the bundle you are viewing.

Ordered this as my first enclosure, put two 12" subs in it and I haven't found a box that hits as hard and as clean as this one has. Will definitely buy from SonicElectronix again for my car audio needs.

By Arron-O-Suarus... on February 16, 2012

126 found this helpful


great box

The following review is for MDFD12, which is a part of the bundle you are viewing.

Very sturdy well built. Allows maximum bang. Great price under $60

By Dylan on January 5, 2015

128 found this helpful


Fast and easy great buy

The following review is for MDFD12, which is a part of the bundle you are viewing.

I got my complete set up: 12" kicker subs box 1000watt Mbquart amp and amp kit. I have always installed my own equipment, I found it helpful that they have videos that covered some of the product they carry. There are a few shop's in Texas like Best buy and Custom Sounds that offer equipment. But the professionalism of the knowledgeable staff the price and the reliability made it clear that I wanted to do business with them.

By Robert on January 3, 2014

129 found this helpful


solid sealed box!!!

The following review is for MDFD12, which is a part of the bundle you are viewing.

Cant beat the price. But it is really very good box. I put two 12" hifonic,also bought from here, with a 2 channel 1000 watt amp.It really shook my rearview mirror in my '97 towncar. My brother loved it so we put it in his '92 prelude.Wow!!! You can hear him before you see him. Great buy!!!

By Jasun on October 8, 2013

126 found this helpful


Its a box

The following review is for MDFD12, which is a part of the bundle you are viewing.

have kicker 12, they sound alright have some loose paneling in my car, so I'm having trouble getting the clarity I want. over all its a box and it works.

By Jonathan on April 4, 2013

130 found this helpful




WF2520_BB15002v2_1TRUCK10 small

Clarion 300W Behind The Seat Bass Package

300W 10" WF Series Shallow Mount Single 4 Ohm Subwoofer and 600W RMS Class A/B Bridgeable 2-Channel Amplifier

$174.32

List price $379.93

P1-650.2_TS-W304R_MDFS12_BAK82 small

Bass Package: 1300W Pioneer 12" Subwoofer + Crunch Amplifier

Complete Bass Package: Pioneer TS-W304R 12" Subwoofer + Crunch P1-650.2 + Speaker Box + Wiring Kit

(1)

$159.99

List price $339.92

TN12-04, PD15001, BAK42 small

(2) MTX Terminator TN12-04 12” 800w Car Audio Subwoofers+Mono Amplifier+Amp Kit

400W Peak (200W RMS) 12" Terminator Series Single 4 ohm Subwoofer Package

(97)

$289.99

List price $499.96

No picture

Crunch 1800W Amplifier + 12" 2300W Subwoofer (2 Pack) + Enclosure Box + Amp kit

1800W Peak (900W RMS) Powerzone Series Class-AB 2-Channel 2-Ohm Stable Amplifier Package

(203)

$355.91

List price $679.95

(2) 3510-04,PD 2100.1,BBSW167,BAK42BK,MDFD10 small

(2) MTX 3510-04 10" 1000w Car Subwoofers+Sealed Sub Box+Mono Amplifier+Amp Kit

500W Peak (250W RMS) 10" 35 Series Single 4 Ohm Subwoofer Package

(241)

$379.95

List price $644.86

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Infiniti M56

1998 Audi A8

1984 Mercury Colony Park

2000 Infiniti Q45

2010 Lexus HS250h

2012 Mitsubishi Lancer Sportback

2012 Jeep Liberty

2010 Acura RDX

2001 Acura RL

2020 Tesla Model 3

Vehicle
Store
Delete

2003 Harley Davidson FLHT/I Electra Glide Standard

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
