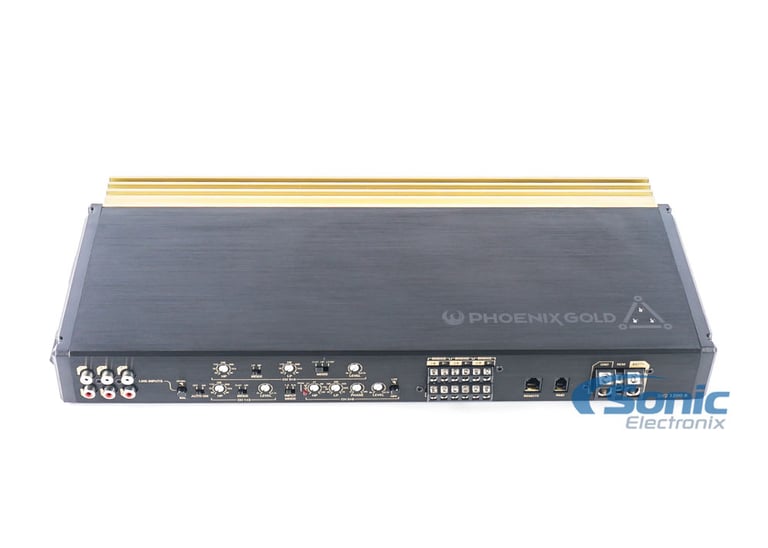

Phoenix Gold SX2 1200.6 (SX212006)

1200W 6 Channel System Amplifier

Phoenix Gold
Shop all Phoenix Gold
highlight-star-icon

• 1200W RMS 6 Channel Amplifier
• Variable phase output
• Strappable

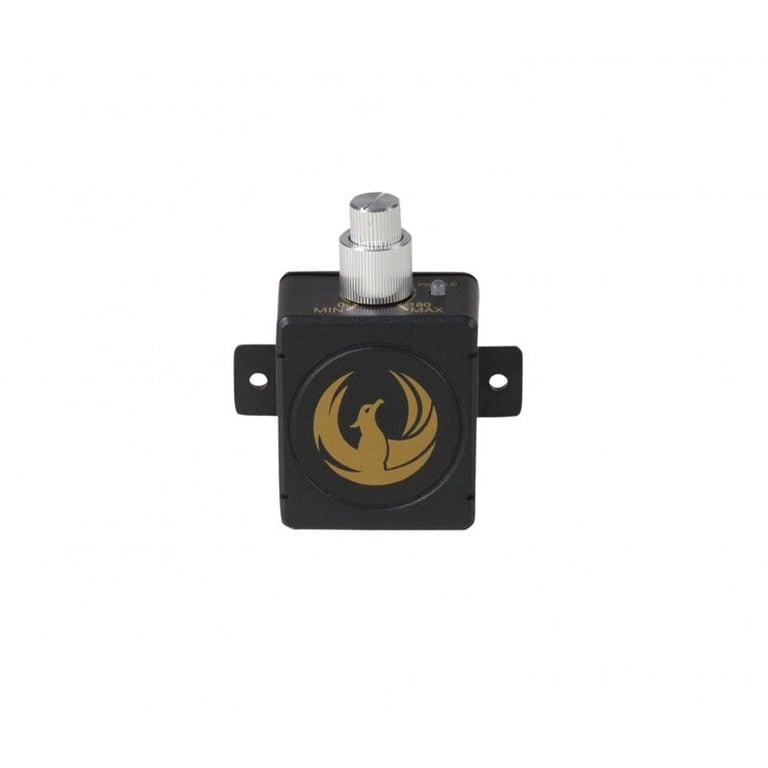

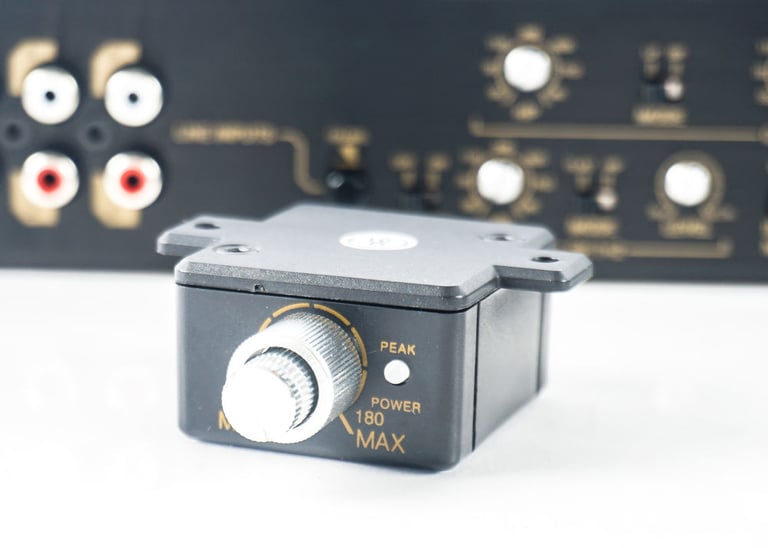

• Remote bass and phase controller with Bass Shift® (RBPC)
• Switchable balanced or unbalanced inputs
• Power/Ground Wire Size: 4GA

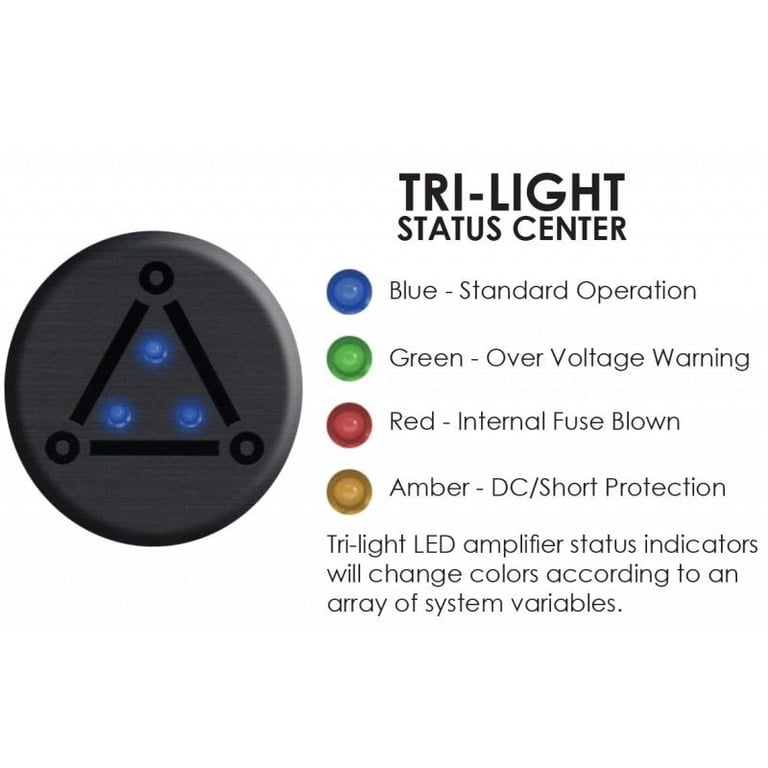

• Tri-light LED amplifier status indicators

Learn more about the sx212006

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Description

Phoenix Gold

Authorized dealer

General Features:

  • SX Series 2 1200W 6 Channel Class D Amplifier
  • RMS Power Rating:
    • 1Ω: 1-4 N/A, 5-6 250W x 2
    • 2Ω: 200W x 6
    • 4Ω: 150W x 6
    • Bridged 4Ω: 300W x 2
    • Bridged 2Ω: 1-4 N/A, 5+6 500W x 1
  • Bridgeable: Yes
  • Total RMS Power (Sum of rated power): 1300W

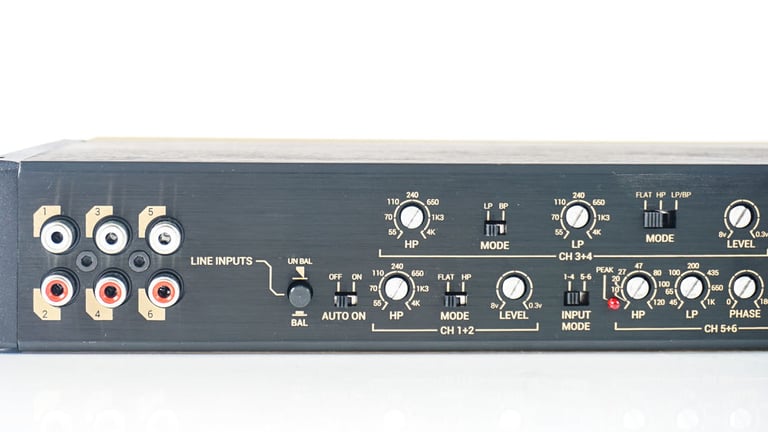

  • Crossover Control, Linkwitz-Riley: FLAT/HP/LP/BP
    • 55Hz - 4kHz @ 12dB/Oct
    • Channels 5/6 only: HP 10Hz - 120Hz (subsonic)
    • LP 45Hz - 1K @ 12dB/Oct
  • Remote Bass and Phase Control (RBPC) with BASS SHIFT® : Yes
  • Signal Output: N/A
  • Input Selection: Switchable Balanced/Unbalanced | 300mV-8v Unbalanced / 600mV-16v Balanced
  • Frequency Response: 10Hz- 39kHz @ +/-3.0dB
  • Signal to Noise Ratio: 81.4dB
  • Efficiency: 88%
  • Auto-Turn On: Yes
  • Damping Factor: Greater than 200
  • Crossover Range: 55Hz to 4kHz
  • Bass Boost 40Hz EQ 0-6dB boost @ 40Hz: Yes
  • Variable Phase Adjustment: 0 - 180°
  • Power Supply Type: Double Tier with Onboard Thermal Management
  • Audio Precision Quality Control Verification
  • RMD ready – Remote monitoring display port (RMD sold separately)
  • Auto-turn on circuit (defeatable) helps when connecting to an OEM system that does not offer a Remote turn-on lead to activate the amplifier
  • Tri-light LED amplifier status indicators with short circuit, thermal and voltage protection

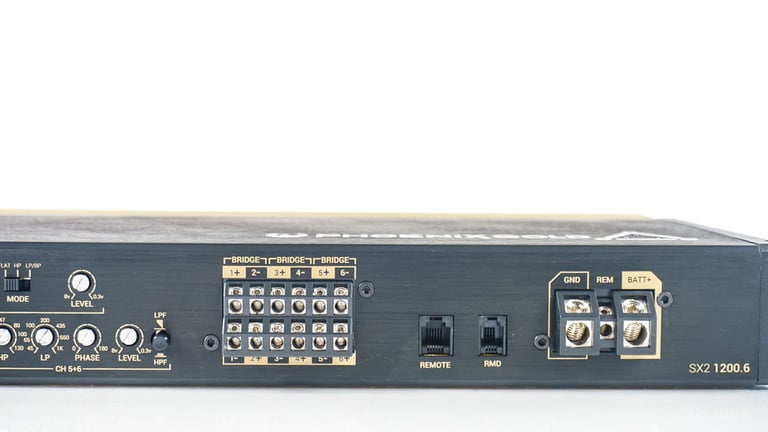

  • 4-gauge power and ground wiring is recommended for installation. Contact our Sales team for information regarding a discount on select amplifier kits when purchased together with this amplifier
  • Speaker connections are labeled +/- and will accept up to 10GA wire. Minimum speaker impedance is 1Ω
  • Recommended Fusing: 70A
  • Dimensions (L x W x H): 19.25” x 8.5” x 2” - 489mm x 216mm x 51mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Check out the Phoenix Gold SX2 1200.6 Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 6 channel
RMS Power @ 2 ohms
200 watts x 6 channel
RMS Power @ 1 ohm
250 watts x 2 channel
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
6-Channel
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
2 ohms
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Band-Pass (BP)
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Subsonic
High-Pass Crossover Frequency
55 - 4000 Hz
Low-Pass Crossover Frequency
45 - 1000 Hz
Subsonic Filter
10 - 120 Hz
Signal-to-Noise Ratio
81.4 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 2
Total Fuse Rating
70A
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No

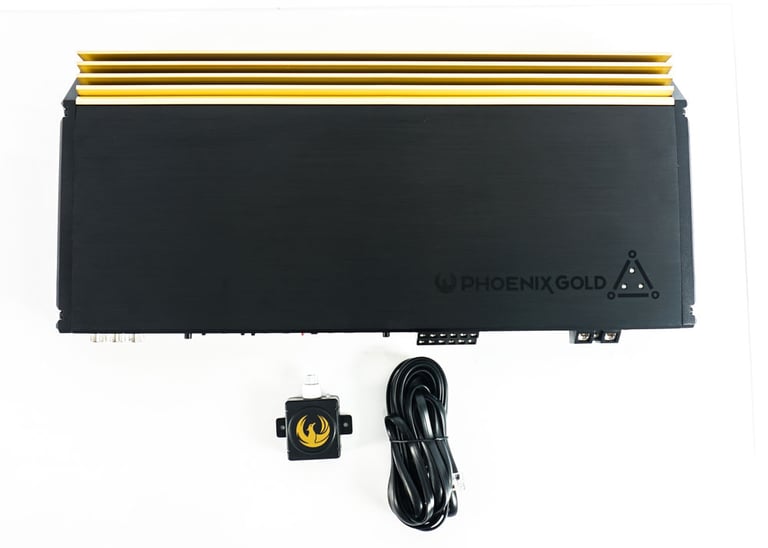

What is in the box?
Paperwork
Power certification
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Phoenix Gold

Model Number:

SX21200.6

Weight:

13.50lbs

Internal SKU:

sx212006

Internal Product ID:

165317
