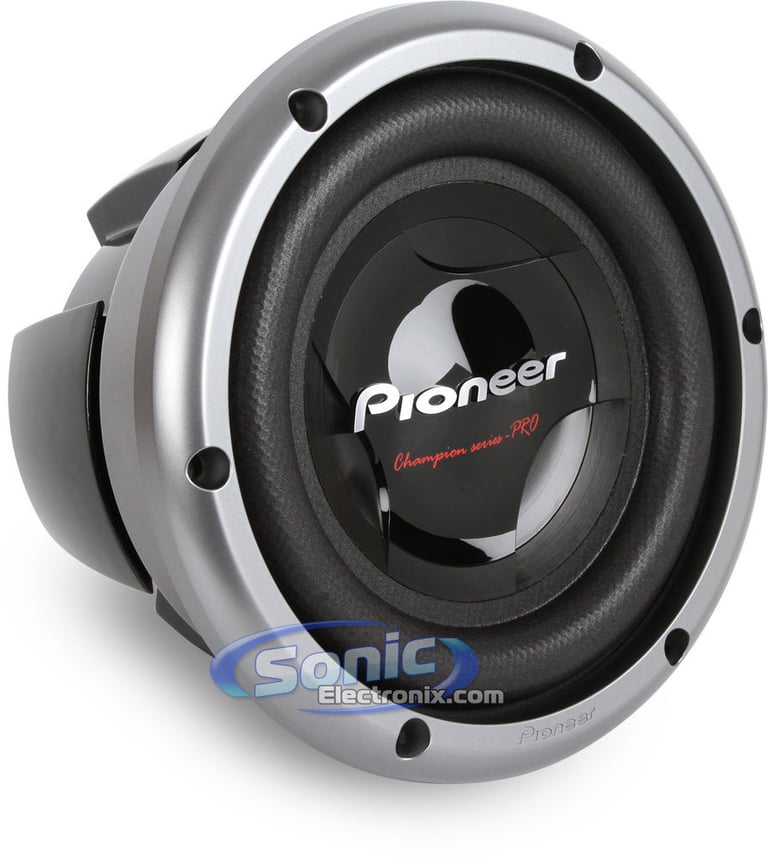

Pioneer Premier TS-W2502D2

10" Dual 2 ohm Champion PRO Series Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 3000W Peak
• 800W RMS
• Dual 2 Ohm
• Basalt/Carbon Fiber Reinforced IMPP Cone
• Fiber Woven Radial with Honeycomb Cloth Surround
• Double Stacked (85oz) Magnet

Learn more about the tsw2502d2

We apologize

This item has been discontinued


Loading...
72-5512 main

Metra 72-5512

Install New Speakers in select 1990-2006 vehicles from Ford, Mercury, Mazda

26
-26.68%

$10.99

List price $14.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$99.99

List price $119.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

43DSC6804 main

Kicker DSC680 (43DSC6804)

400W Peak (100W RMS) 6x8” DS Series 2 Way Coaxial 4-ohm Car Speakers

13
-10.53%

$84.99

List price $94.99

Limited time!
Kappa 683XF main

Infinity Kappa 683XF (INFSPKKA683XFAM)

600W Peak (200W RMS) 6x8" Kappa Series 2-Way Coaxial 3-ohm Car Speakers

3
-32.13%

$223.95

List price $329.95

H765C main

Cerwin Vega H765C

800W Peak (120W RMS) 6.5" HED Series 2-Way 4-ohm Component Speaker System

17
-16.67%

$129.99

List price $155.99

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Hifonics ZS5768CX

500W Peak (180W RMS) 5x7" / 6x8” Zeus Series 4-ohm Coaxial Speakers

4
-18.92%

$29.99

List price $36.99

Product Highlights


• 3000W Peak
• 800W RMS
• Dual 2 Ohm
• Basalt/Carbon Fiber Reinforced IMPP Cone
• Fiber Woven Radial with Honeycomb Cloth Surround
• Double Stacked (85oz) Magnet

Description


Pioneer brand icon

Authorized dealer

Champion Series PRO: Powerful by Design

Introducing the series that changed the way Pioneer makes subwoofers: The Pioneer Champion PRO Series. The patented technologies behind the PRO series of subwoofers bridge the gap between quality bass and an affordable price. They feature an air suspension system that creates a spring-like effect and a compressed air chamber within the subwoofer. The result is powerful, deep bass. They are developed to utilize the air space surrounding the subwoofer so that they can be installed in smaller boxes, yet still retain that solid low bass. For the Champion PRO series of subwoofer, Pioneer uses high-grade materials that will last a long time. The wide-roll 3-layer fiber radial surround improves the power handling of the sub, while reduces the distortion. At the bottom of the chassis sits two double-stacked magnets to provide excellent power and response. The Pioneer Champion PRO series delivers incredible booming bass that is loud, powerful, and accurate.

Subwoofer Features:

  • 10" Dual 2 ohm Champion PRO Series Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 800 watts
  • Impedance: Dual 2 ohm

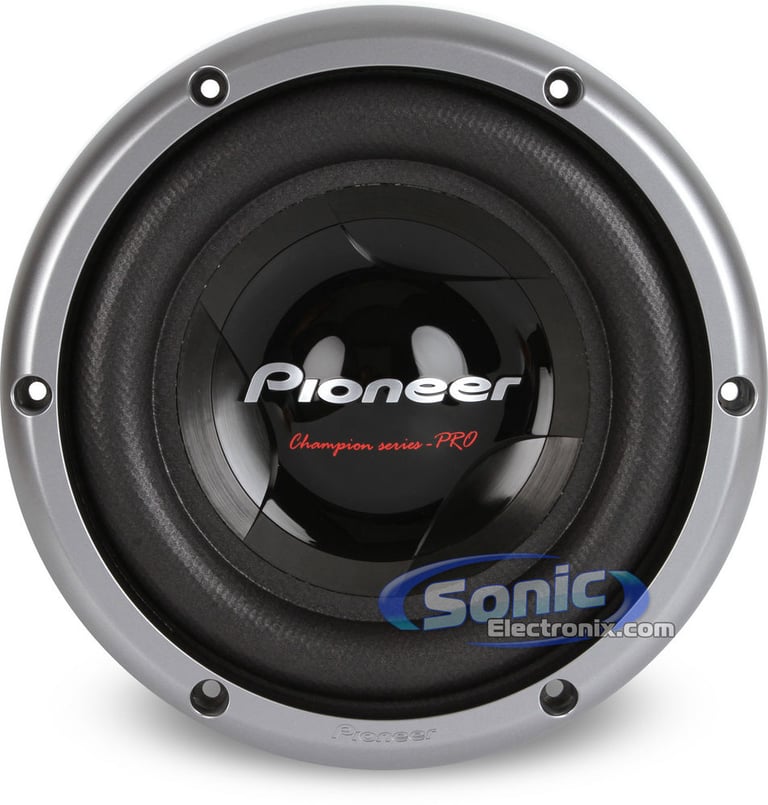

  • Interlaced basalt/carbon fiber reinforced IMPP cone

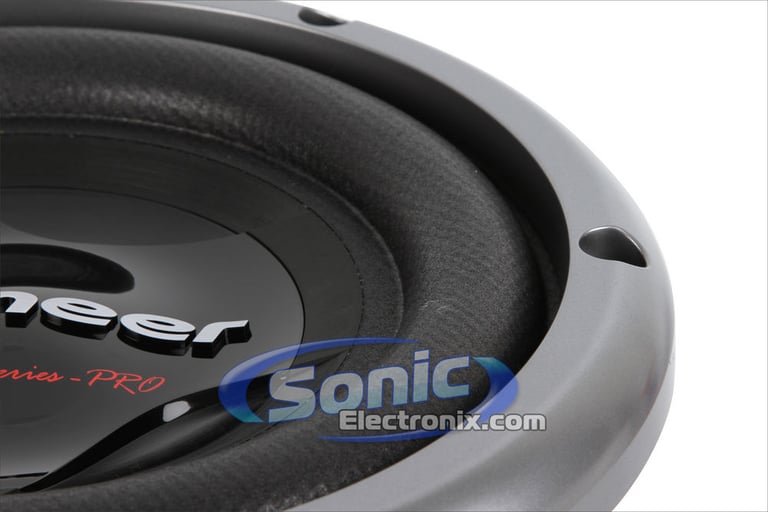

  • Wide-roll, 3-layer fiber woven radial with honeycomb cloth surround
  • Copper voice coil wire
  • Phenol resin coated glass cloth voice coil bobbin
  • Dual 4-layer, long voice coil

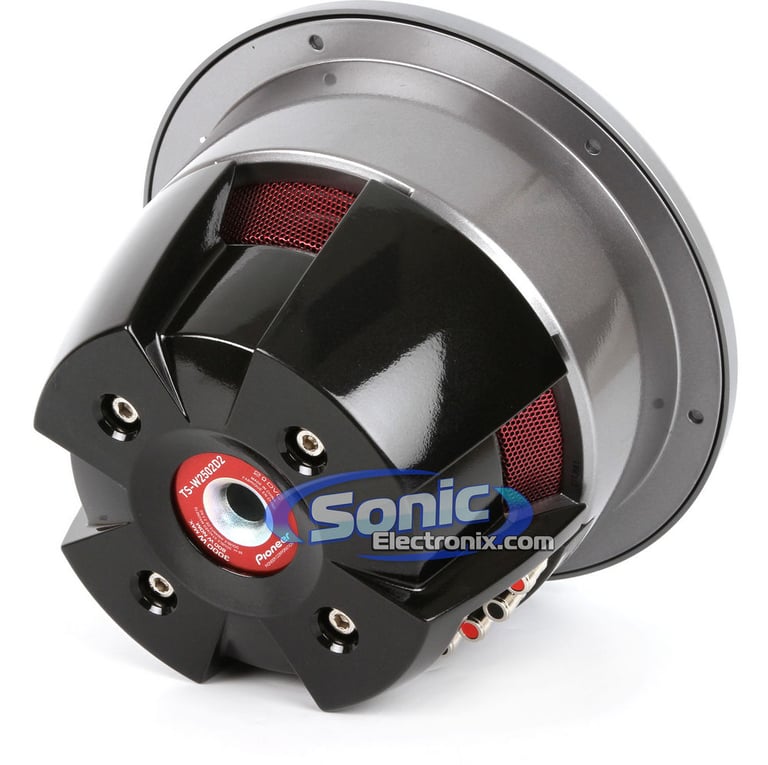

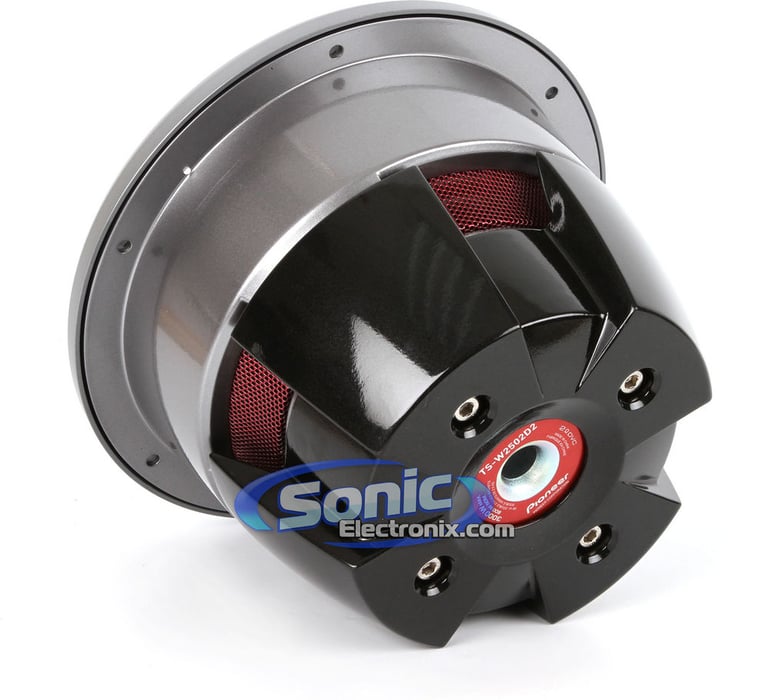

  • Double stacked (85oz) magnet
  • Frequency response: 20-150 Hz
  • Sensitivity: 89 dB
  • Aluminum die-cast rigid chassis basket design

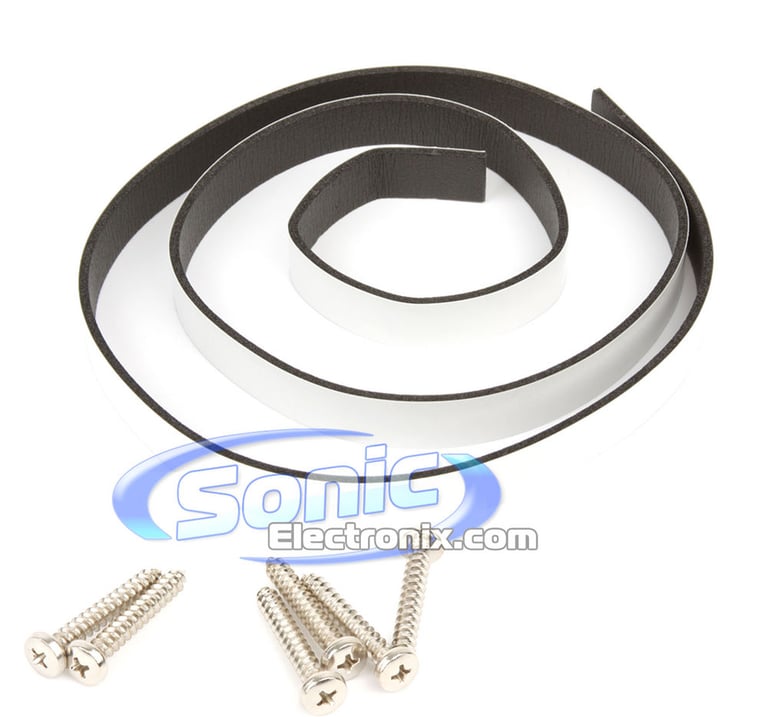

  • 1-Piece rubber gasket

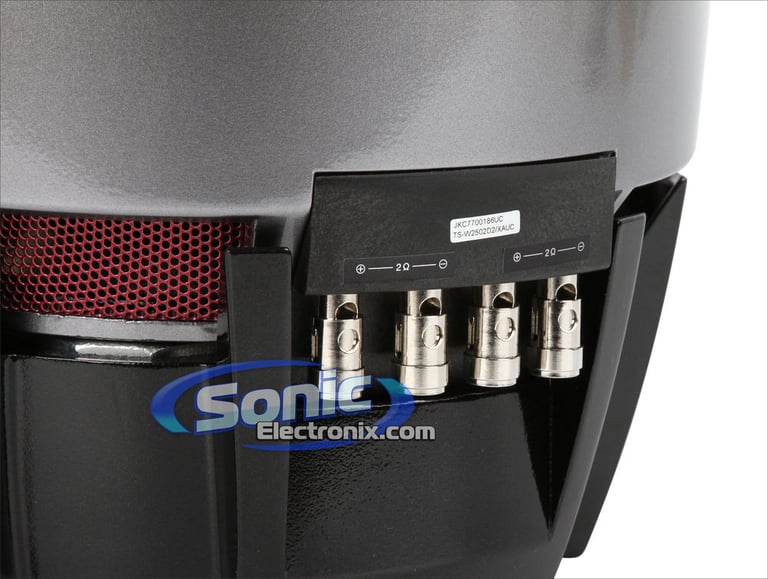

  • Integrated single-sided silver compression terminals wire terminals
  • Mounting Depth: 6-5/8"
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-W2502D2 thumbnail
(newest, current model)
Pioneer TS-W2501D2 thumbnail
(previous model, replaced by Pioneer Premier TS-W2502D2)
Pioneer TS-W2502SPL thumbnail
(previous model, replaced by Pioneer Premier TS-W2501D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer Premier TS-W2502D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer Premier TS-W2502D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer Premier TS-W2502D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Pioneer Premier TS-W2502D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

Specifications & Details


Subwoofer Specifications
Series
Champion PRO Series
Subwoofer Size
10"
Peak Power Handling
3000 watts
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 150 Hz
Sensitivity
89 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Fiber
Woofer Surround
Wide-Roll 3-Layer Fiber Radial
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.35 cubic feet
Maximum Sealed Box Volume
0.70 cubic feet
Minimum Ported Box Volume
0.6 cubic feet
Maximum Ported Box Volume
1.2 cubic feet
Top-Mount Depth (Mounting Depth)
6-5/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W2502D2

Weight:

21.00lbs

Internal SKU:

tsw2502d2

Internal Product ID:

16663

Product and How-to Videos


  • Pioneer Champion Pro Car Subwoofer (TSW2502)
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Pioneer Premier TS-W2502D2 thumbnail image

5 star
74%
4 star
18%
3 star
7%
2 star
0%
1 star
2%



Durability
4.6
Value
4.8
Features
4.6
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Big Boom Big Bang for buck

I was looking to replace two old school (mix and match) 10"s with one 10" but it needed to handle plenty of power. After looking at so many subs and factoring the cost I decided to go with Pioneer 800rms sub.
I initially had this hooked up to an RE Audio dts 1001.1 which supposedly dishes out 800rms at 1ohm. Well, that wasn't the case with my experience.
So now I have a Pioneer amp that does 1200rms at 1ohm load hooked up to this sub and holy sh///t. This things hits hard for only 1 10" sub.
I have it in a 1cft ported box. My cars weak electrical system coudln't handle the demand of the amp and sub so I did the big 3 and bought an extra battery.
I definitely do not regret investing in this sub. My coworker has two 12'" kicker cvrs and after he heard my Pioneer, he admitted that my setup was almost louder than his.
Anyway, my biggest advice if you plan on buying this sub is: do not skimp on the amp. Make sure it can deliver TRUE 800rms or more watts. This sub is the biggest bang for your buck you'll find anywhere on the internet. Local shops don't even come close to Sonics prices.

By JM on March 30, 2013

19 found this helpful


Great Sub

I bought one 10" put it in a ported box. Sounds great! Great sub would recommend to all.

By jp on November 8, 2011

19 found this helpful


Great Subs

These subs hit pretty hard inside my soft top wrangler. They sound great in a sealed box but definitely more deep bass in a vented box. You cant for wrong with pioneer.

By Richard on February 13, 2013

18 found this helpful


amazing for the money

I had 2 of these on a 3500 watt boss amp with a 3.5 farad boss cap. an 5.2 cubic foot box. needed a 6 cubic foot box bad. these subs are off the chain. never had any problems for 9 or 10 months besides blowin the box apart twice. dont get a pre-fab box with these. get somethin made good

By rich$ on September 1, 2012

18 found this helpful


Awesome

These subs pound hard for the price. I highly recommend if your'e on a budget to invest in these subs.

By Benjamin on January 5, 2014

15 found this helpful


pioneer ts-w2502d2 kicking bass

i have two 10 inch pioneer premiers in a ported box and a JL audio 1000.1 j2 amp and it kicks so bass out i owned one JL w7 13 1/2 but it poped so i need some bass

By matt on January 7, 2013

15 found this helpful


pioneer ts-w2502d2 kicking bass

i have two 10 inch pioneer premiers in a ported box and a JL audio 1000.1 j2 amp and it kicks so bass out i owned one JL w7 13 1/2 but it poped so i need some bass

By matt on January 7, 2013

17 found this helpful


Solid, Quality build

This Pioneer sub was not my first choice. I also own RE subs which I have broken in yet for give a comparison. I am running these, 2x Pioneers and they do very well powered by Rockford Fosgate T1500bdcp wired for 2 ohms.

By Marc on November 10, 2013

14 found this helpful


Sub is okay

Sub has a clean sound, never put it in a ported box ;(
handles power like a champ!
I would recommend!
CHECK wire diagrams or it will smell horrible fast

By blake on October 14, 2013

15 found this helpful


This Sub slaps Bass

Great Sub for the Price Hits hard . Sounds like a 12 inch sub but really its a 10 its great thanks Sonic Electronix

By Elijah on April 22, 2013

15 found this helpful




09-P2D410 small

Rockford Fosgate Punch P2D410 Open Box

Open Box, 10" Dual 4 ohms Punch Stage 2 Subwoofer

$69.99

List price $169.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1983 Pontiac Firebird

2004 Infiniti FX45

1996 Ford Explorer

1991 Ford E Series

1975 Chevrolet Impala

2006 Chevrolet TrailBlazer EXT

2022 Ram 2500

2021 Chrysler Pacifica Hybrid

2003 Cadillac DeVille

2001 Chrysler Prowler

Vehicle
Store
Delete

2013 Can-Am Commander 1000

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
