Rockford Fosgate M400-4D 400 Watt 4-Channel Class-D Amplifier Amp (2 Pack)

Rockford Fosgate M400-4D 400 Watt 4-Channel Class-D Amplifier Amp (2 Pack)

highlight-star-icon

• 4 ohm: 75 watts x 4 chan.
• 2 ohm: 100 watts x 4 chan.
• Bridged, 4 ohm: 200 watts x 2 chan.
• CEA-2006 compliant amplifier
• CE Compliant
• UV resistant and Salt-fog marine protection
• Cast aluminum heatsink
• Tri-stage protection covers thermal, over-current and short circuits
• Marine grade two part epoxy coating on circuit boards
• Marine grade stainless steel hardware
• Preamp RCA outputs to daisy chain multiple amps

Learn more about the m4004d_2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
91970 main

Select Increments Centra-Pod (91970)

Custom-fit speaker enclosures for select 1976-1995 CJ7 and Wrangler

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

59
-11.77%

$74.99

List price $84.99

R1525X2 main

Rockford Fosgate Prime R1525X2

160W Peak (80W RMS) 5.25" Prime Series 2 Way Coaxial 4-ohm Speakers

21

Description


Rockford Fosgate brand icon

Authorized dealer

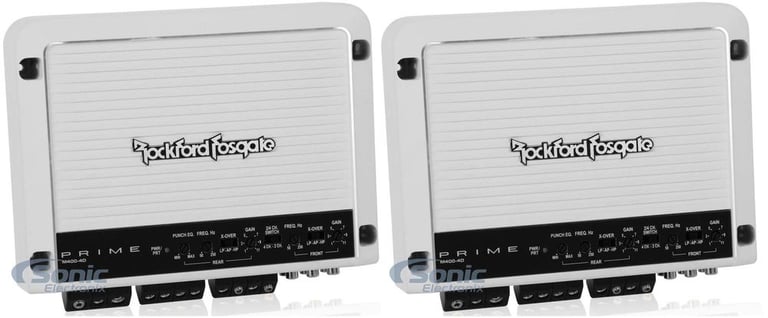

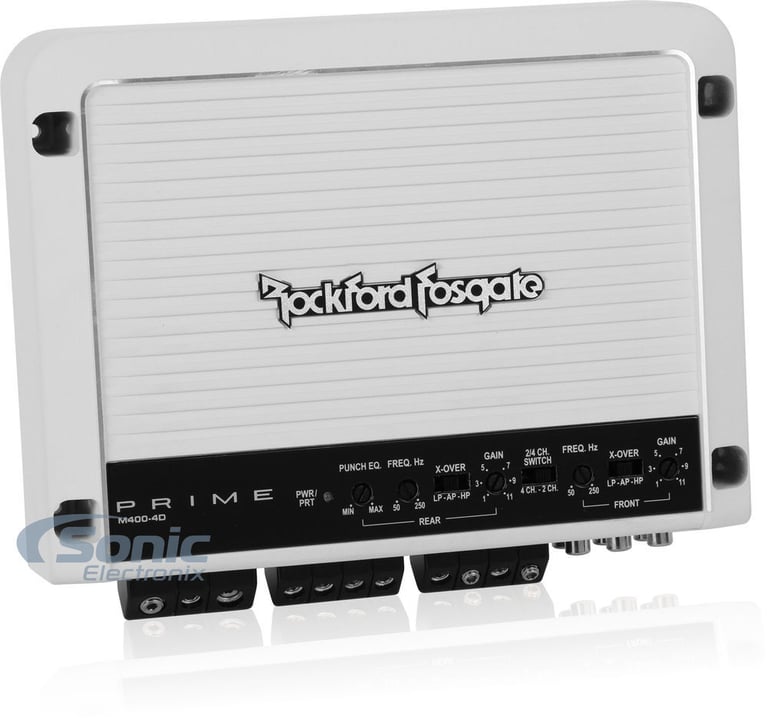

Rockford Fosgate M400-4D

400W RMS Prime Series 4-Channel Full Range Class D Marine Amplifier
Quantity: 2

General Features:







  • 4-Channel Prime Series Full Range Class D Marine Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Dynamic Power:
    • 4 ohm: 79 watts x 4 chan.
    • 2 ohm: 138 watts x 4 chan.
    • Bridged, 4 ohm: 255 watts x 2 chan.
  • CEA-2006 compliant amplifier
  • CE Compliant
  • UV resistant and Salt-fog marine protection
  • Pulse Width Modulated MOSFET power supply
  • LED power (blue) and protect (red) indicators
  • Cast aluminum heatsink
  • Tri-stage protection covers thermal, over-current and short circuits
  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware

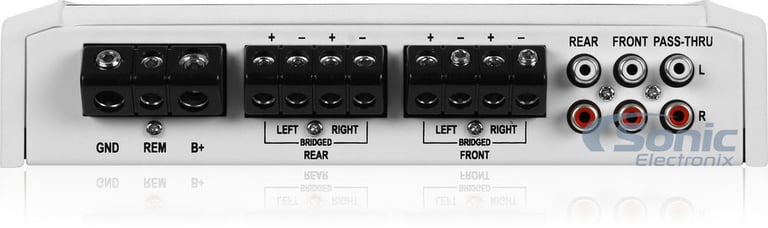

  • Preamp RCA outputs to daisy chain multiple amps
  • Soft start turn-on
  • 4/2 Input Switch, sends signal to rear channels w/ only front channel inputs
  • Preamp RCA output to daisy chain multiple amps
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity: 150mV - 4V
  • Frequency Response: 20 - 20,000 Hz
  • Efficiency (average): 80% @ 4-Ohm
  • Total Harmonic Distortion (THD): <1.0%

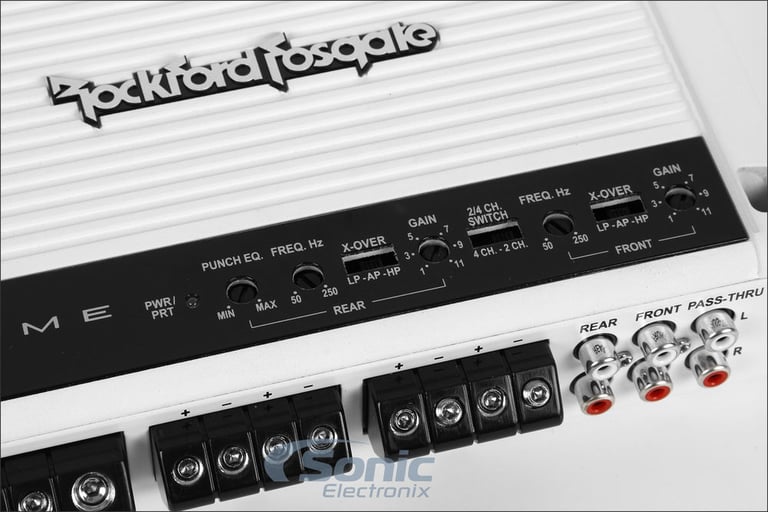

  • Punch EQ: 0 - +18dB boost @ 45Hz.
  • 12dB/octave Butterworth crossover (selectable)
  • Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Recommended Fuse Rating: 40A x 1 inline (not included)
  • Speaker Wire Gauge: 12 AWG - 18 AWG
  • Power Wire Gauge: 4 AWG - 8 AWG
  • 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 6-7/10"W x 9-1/10"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Rockford Fosgate M400-4D 2 Pack thumbnail
(newest, current model)
Rockford Fosgate M600-4D thumbnail
(previous model, replaced by Rockford Fosgate M400-4D 400 Watt 4-Channel Class-D Amplifier Amp (2 Pack))

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
21576KA main

Select Increments Intra-Pod (21576KA)

Custom-fit center console with 8" Kicker subwoofer and Amplifier for select 1976-2006 vehicles from Jeep

108
-10.71%

$749.93

List price $839.92

21576K main

Select Increments Intra-Pod (21576K)

Custom-fit center console subwoofer enclosure with 8" Kicker Subwoofer for select 1976-1995 CJ7 and Wrangler and Scrambler

1

$549.94

List price $569.94

63092KA main

Select Increments Sono-Pod (63092KA)

Custom-fit subwoofer enclosure with 10" Kicker Subwoofer and 400W Monoblock

109
-13.64%

$569.93

List price $659.92

63092K main

Select Increments Sono-Pod (63092k)

Custom-fit enclosure with 10" Kicker subwoofer for

2
-5.13%

$369.94

List price $389.94

46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-16.67%

$99.99

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(54)

$189.99

List price $239.99

VAD8402v2 small

NVX VAD8402 v2 (VAD8402v2)

• 300 watts x 2 channel @ 4 ohm
• 420 watts x 2 channel @ 2 ohm
• Bridged: 840 watts x 1 channel @ 4 ohm
• Total RMS Power: 840 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$229.99

List price $275.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Series
Prime Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
40A X 1 In-Line Fuse Recommended
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M400-4D 2 Pack

Weight:

11.00lbs

Internal SKU:

m4004d_2

Internal Product ID:

166653
