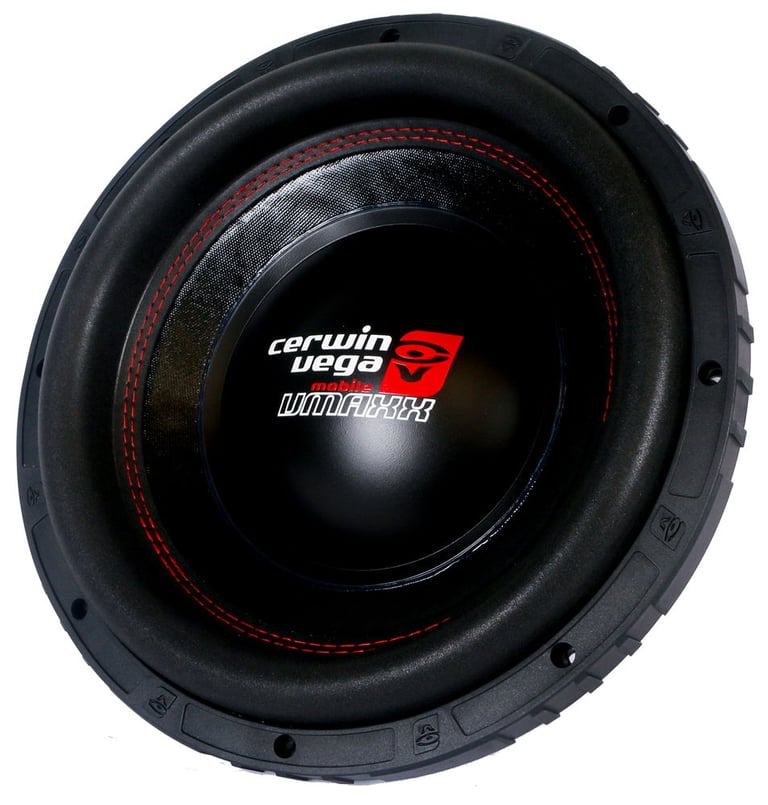

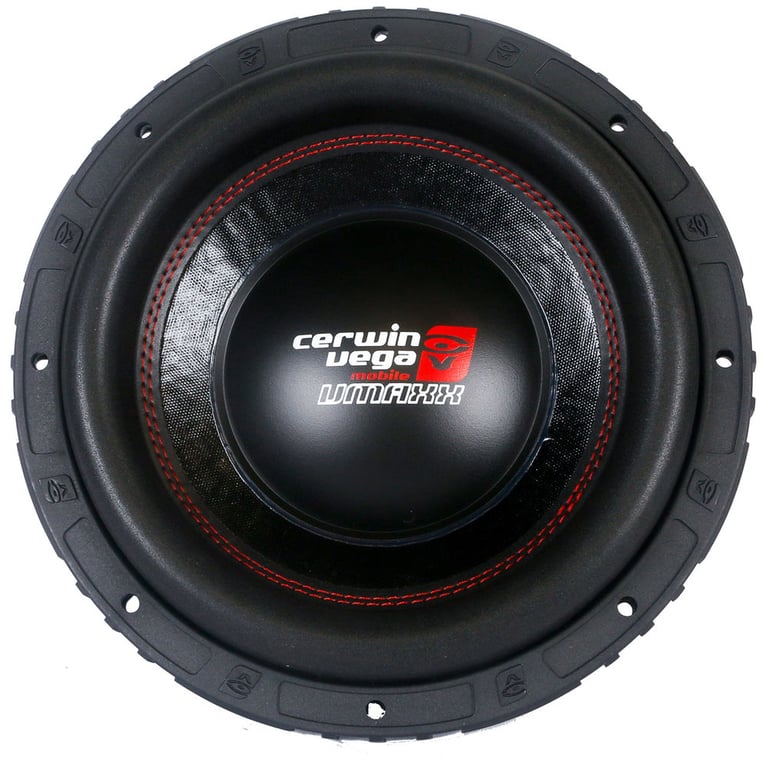

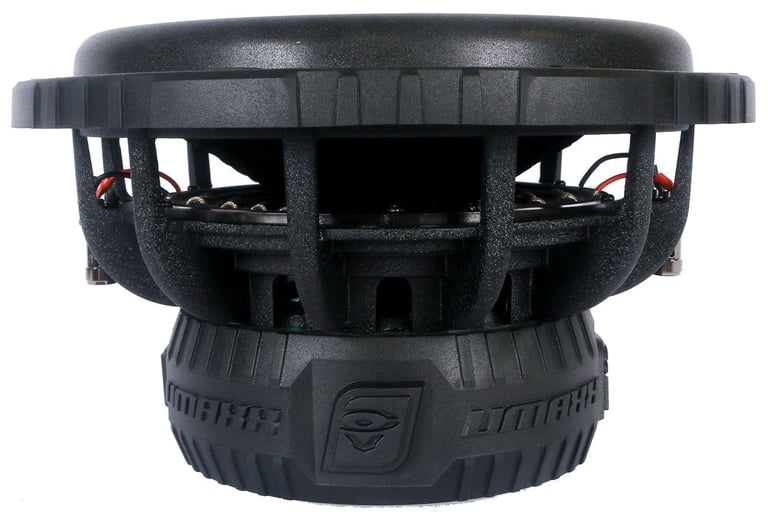

Cerwin Vega VMAX10D2 (VMAXX10D2)

1500W Peak (750W RMS) 10” VMAX Series Dual 2-ohm High-Performance Subwoofer

Cerwin-Vega
Shop all Cerwin-Vega
highlight-star-icon

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Treated Semi-Pressed Pulped Cone
• Impedance: Dual 2 ohm
• Mount depth: 5.39"
• Sensitivity: 83.3 dB

Learn more about the vmaxx10d2

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

GM02B main

Scosche GM02B Wiring Harness

Install a new car stereo in select 1986-2005 vehicles from Chevrolet, Pontiac, GMC

246
-11.57%

$7.95

List price $8.99

82-3043 main

Metra 82-3043

5-1/4" - 6-1/2" Front Speaker Adapter Bracket for select 1994-2004 vehicles from GMC, Chevrolet, Isuzu

2
-43.76%

$17.99

List price $31.99

70-1858-1 main

Metra 70-1858-1 Wiring Harness

Install a New Car Stereo in select 1987-2008 vehicles from GMC, Chevrolet, Pontiac

-35.02%

$12.99

List price $19.99

99-3045 main

Metra 99-3045

Single DIN or Double DIN Stereo Dash Kit for select 1994-1997 vehicles from GMC, Chevrolet, Oldsmobile (Black)

12
-42.87%

$19.99

List price $34.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC464 main

Kicker CSC46 (46CSC464)

300W Peak (100W RMS) 4x6” CS Series 2 Way Coaxial 4-ohm Speakers

15
-29.45%

$59.96

List price $84.99

FRING46 main

NVX FRING46

Universal 4x6" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

1
-45.02%

$10.99

List price $19.99

Description


Cerwin-Vega brand icon

Authorized dealer

Product Details:

  • 10" Dual 2 ohm VMAX Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 800 watts
  • Treated Semi-Pressed Pulped Cone
  • Heavy Industrial Strength Aluminum Cast Frame
  • Elevated Motor Structure For Increased Cooling
  • Oversized Spider
  • Oversized Polished Black Chrome Terminals
  • Shorting Ring for lower Distortion
  • Polished Bumped Backplate
  • Klippel Optimized Motor/Suspension Symmetry
  • 2.5" High Temperature Black Coated Voice coil
  • 15 mm Xmax
  • Resonance Frequency (Fs): 32.6 Hz
  • Sensitivity: 83.3 dB
  • Sealed box volume: 1.0 cubic feet
  • Ported box volume: 1.25 cubic feet
  • Top-mount depth: 5.39"
  • Cutout diameter: 9.47"
  • CTA-2031 Compliant: No
  • Authorized Internet Dealer
  • Protective subwoofer grille: No
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin Vega VMAX10D2 (VMAXX10D2) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin Vega VMAX10D2 (VMAXX10D2) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin Vega VMAX10D2 (VMAXX10D2) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Cerwin Vega VMAX10D2 (VMAXX10D2) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
VMAX Series
Subwoofer Size
10"
Peak Power Handling
1600 watts
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Black Coated
Voice Coil Diameter
2.5"
Sensitivity
83.3 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Treated Semi-Pressed Pulped
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5.39"
Cutout Diameter
9.47"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.6 Hz
Equivalent Compliance (Vas)
24.6 liters
Total Speaker Q Value (Qts)
0.56
Electrical Q Value (Qes)
0.61
Electrical Resistance of Voice Coil (Re)
2/4 ohm
Mechanical Q Value (Qms)
6.73
