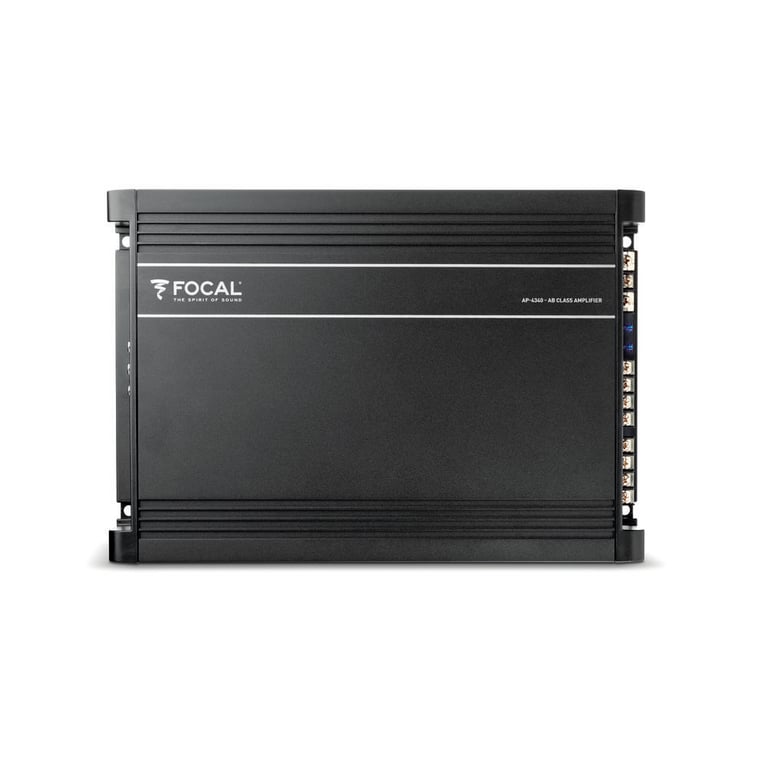

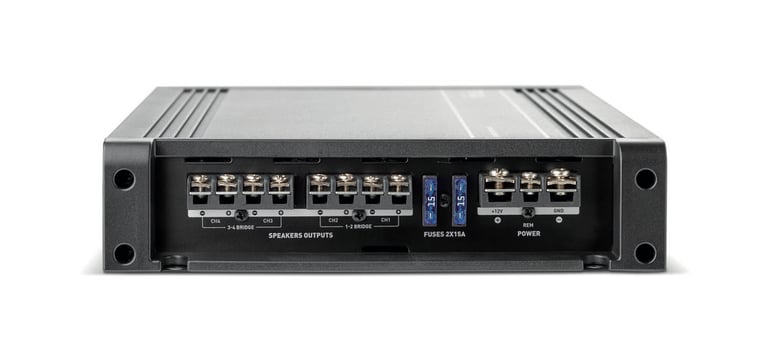

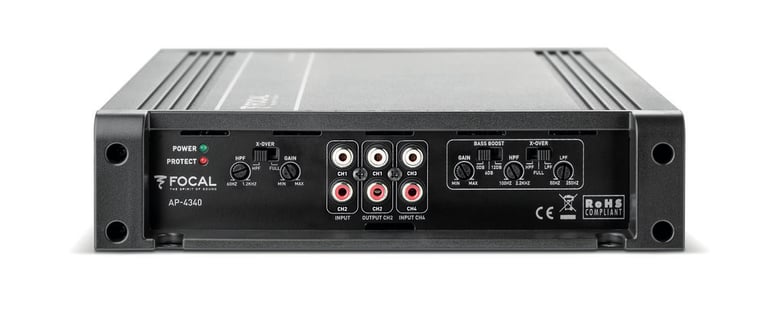

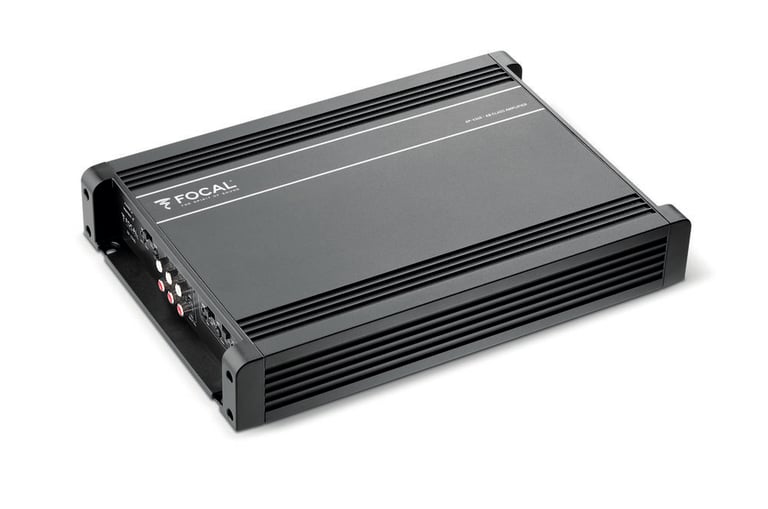

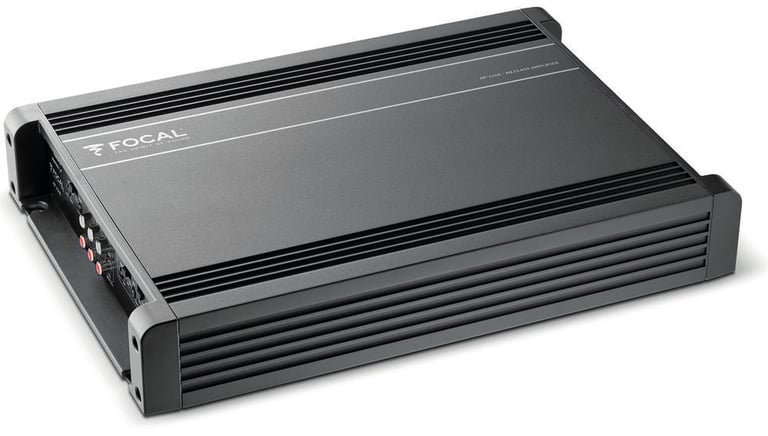

Focal AuditorAP4340 | Class-AB 4-Channel Amplifier

Focal AuditorAP4340 (Auditor AP4340)

Auditor Line Class-AB 4-Channel Amplifier (4 x 75w)

Auditor Line Class-AB 4-Channel Amplifier (4 x 75w)

• Auditor Line Class-AB 4-Channel Amplifier
• Can be used in three modes
• 70 watts RMS x 4 at 4 ohms, 190 watts RMS x 2 at 4 ohms
• Bandwidth: 10Hz - 30kHz
• Frequency response: 10-30,000 Hz

SAVE when you bundle with select amp wiring kits:
Click Here to View Bundles!

5.0

(1)
List price $280.00
Save: $55.01

$224.99

In Stock. Only 2 Left! with warranty
vip-image
Thanks , You Pay:
Order within 17 hrs 58 mins to ship 6/15

Qualifies for free 2-day shipping

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Focal

Authorized dealer

Product Details:

  • Auditor Line Class-AB 4-Channel Amplifier
  • RMS Power Output:
    • 70 Watts x 4 @ 4 ohms
    • 95 Watts x 4 @ 2 ohms
    • 190 Watts x 2 @ 4 ohms (bridged mode)
  • CEA-2006 compliant
  • Bandwidth: 10Hz - 30kHz
  • THD: 0.06%
  • Channel separation: 45dB
  • Low level input sensitivity: 160mV
  • High-pass crossover (channel 1-2): 60Hz to 1.2kHz
  • Low-pass crossover (channel 3-4): 50 to 250Hz
  • Frequency response: 10-30,000 Hz
  • Full-range mode: Yes
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9-5/16"D x 13-5/16"W x 2-3/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 4 channels
RMS Power @ 2 ohms
95 watts x 4 channels
Bridged RMS Power
190 watts x 2 channels
Amplifier Specifications
Amplifier Series
Marine Certified
No
Amplifier Class
AB
Number of Channels
4
Total RMS Power Output
380 watts
Maximum Input Gauge Size
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.06%
Speaker Level Inputs
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Channel Separation
45 dB
Bass/Gain Remote
No
Fan Cooled
No
Fuse Rating
15A x 2
Total Fuse Rating
30
Strappable
No
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Mounting screws (4)
Washers (4)
Four spare fuses
Other Accessory #1
Focal
Paperwork
User manual
Quick start guide
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
