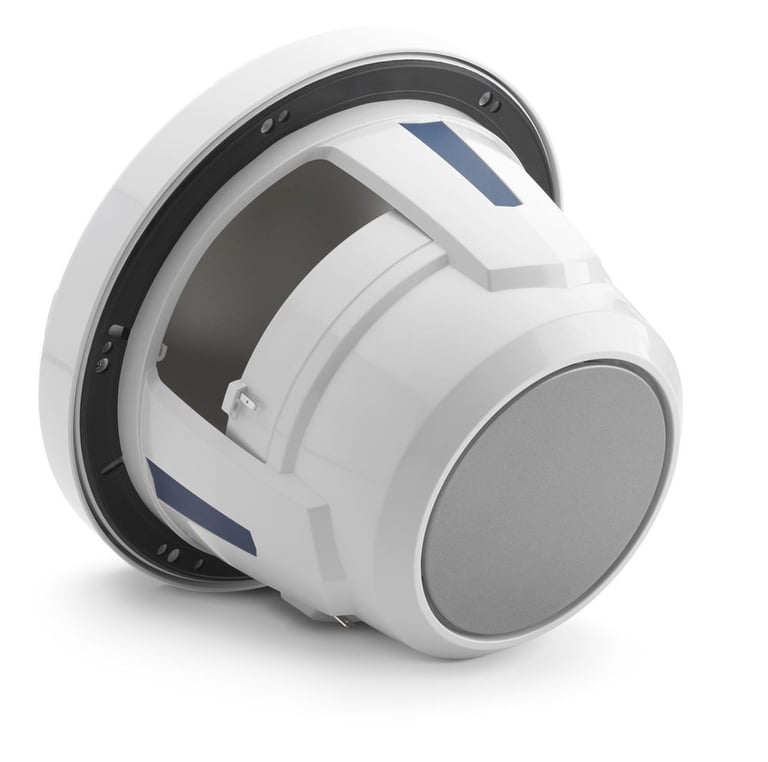

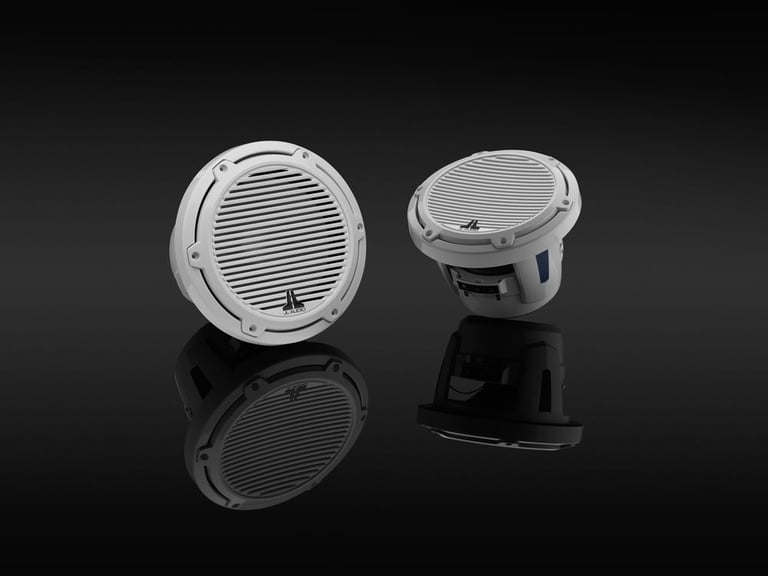

JL Audio M6-8IB-C-GwGw-4

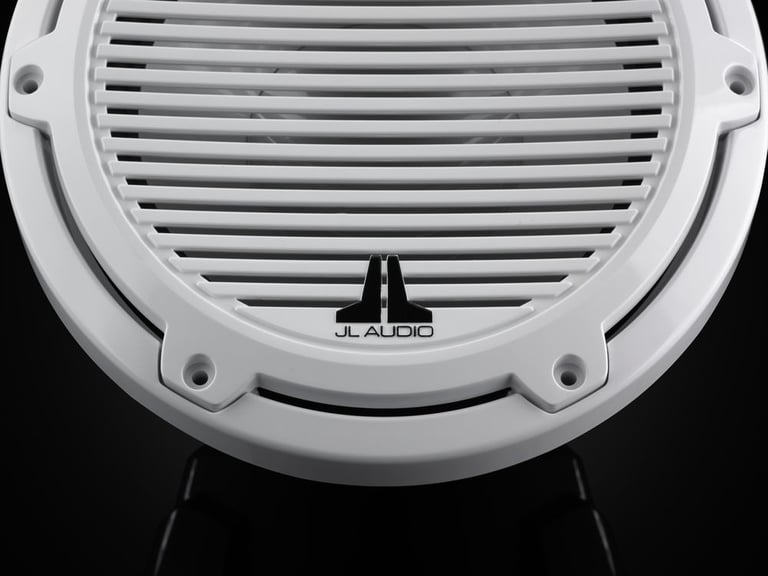

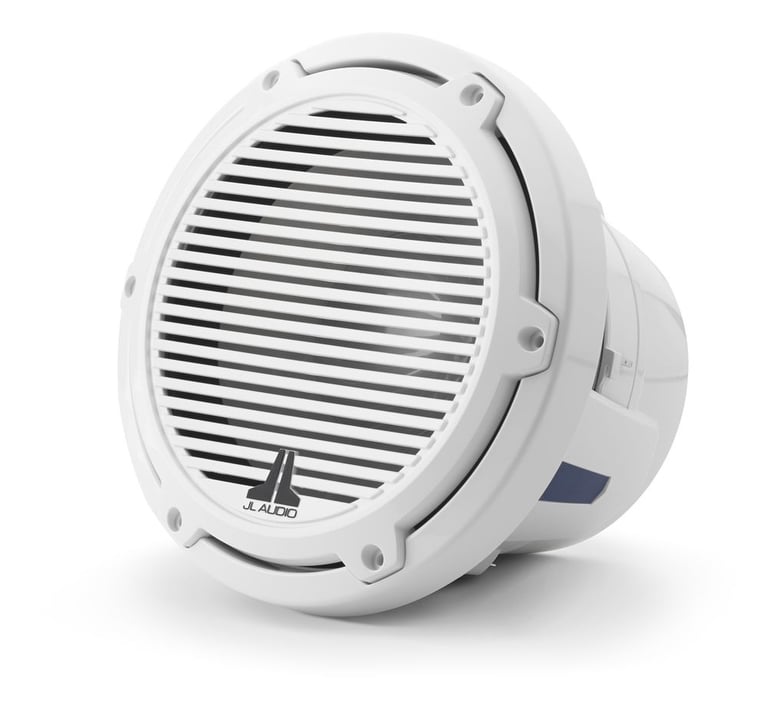

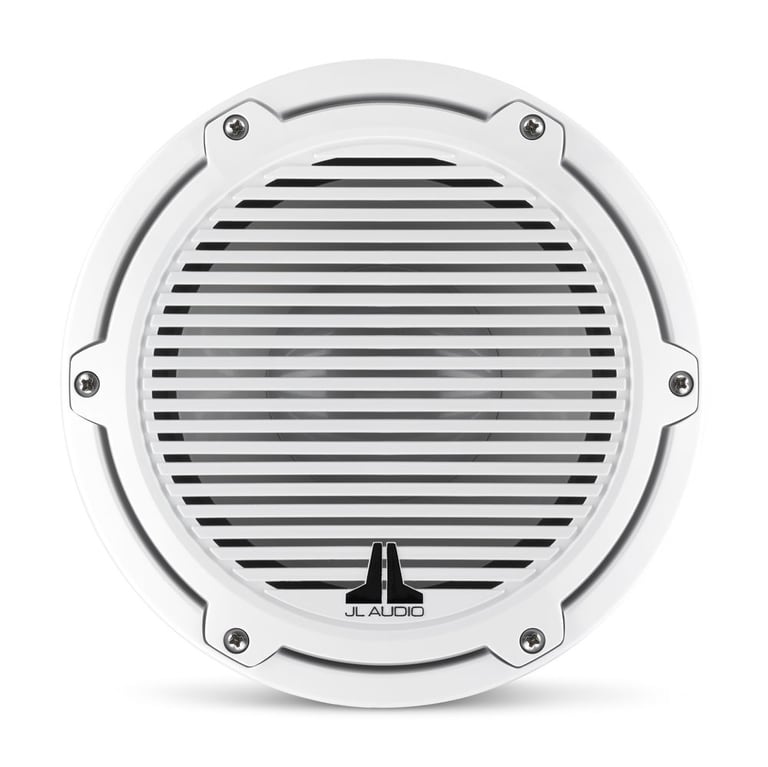

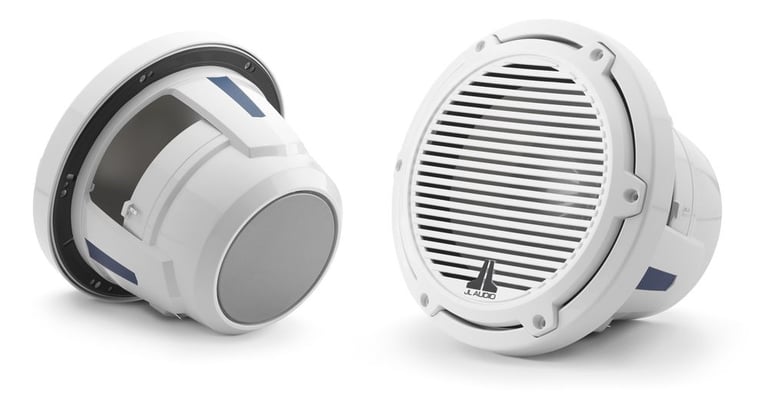

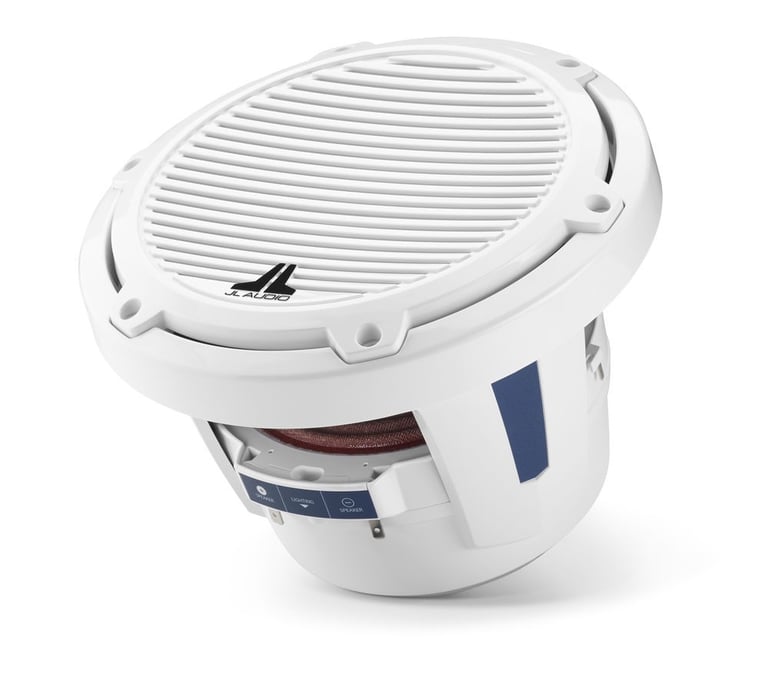

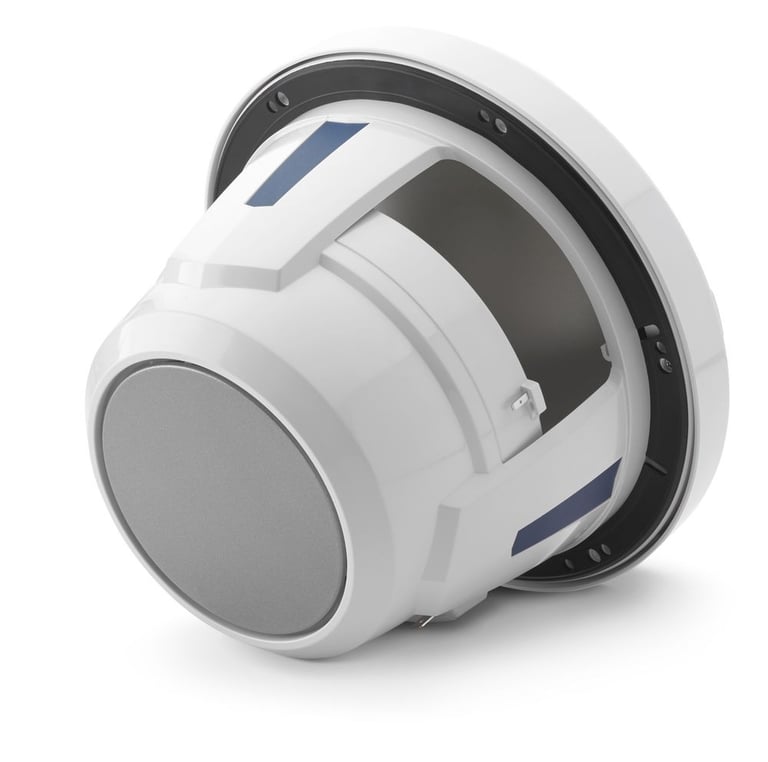

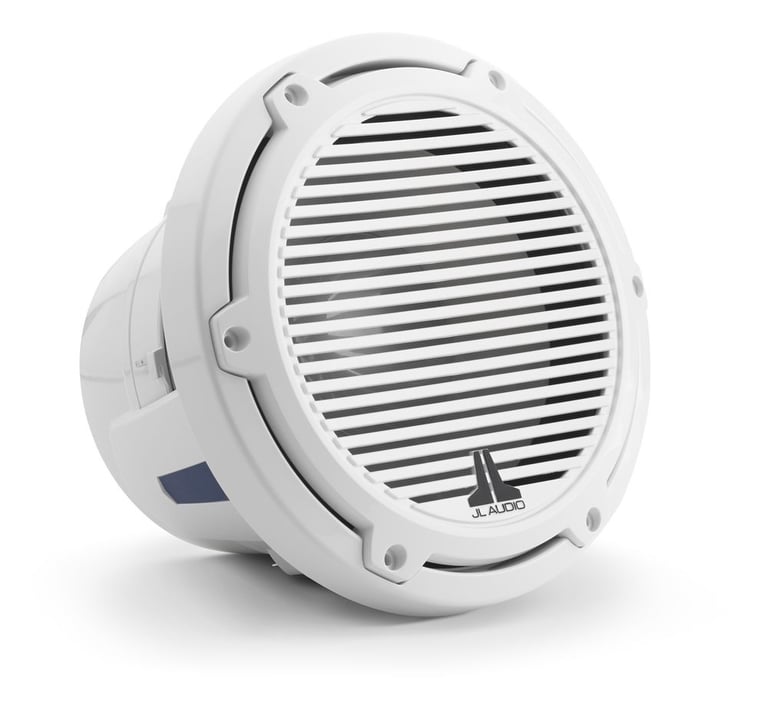

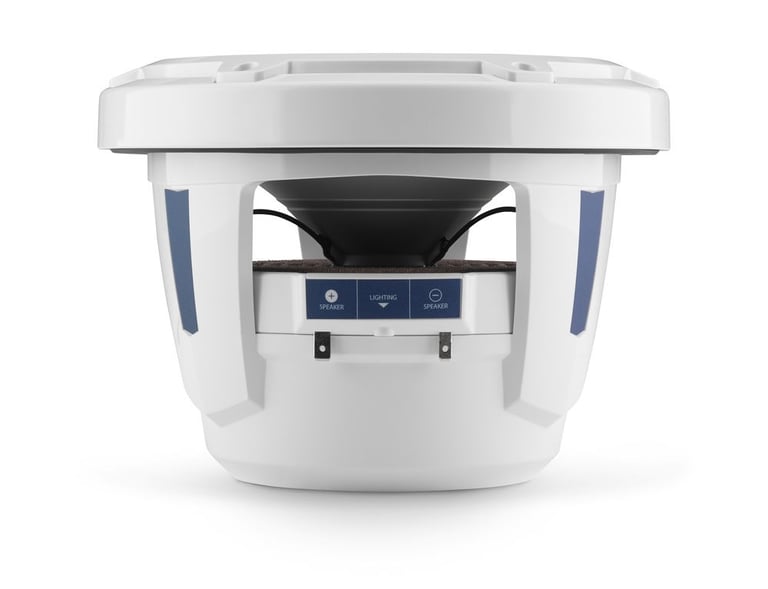

M6 8" Marine Subwoofer (200 W, 4 Ω) Gloss White Trim Ring, Gloss White Classic Grille

JL Audio
Shop all JL Audio
Limited time!
highlight-star-icon

• 8" Marine Subwoofer
Power: 200 W RMS 4 Ohm
• Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system
• Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds

Learn more about the m68ibcgwgw4
Was $329.99 Details
Save $33

$296.99

with warranty

Thanks , You Pay:

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one m68ibcgwgw4.

Set your vehicle or Return to product page
Dollar Icon
Price Drop, Instant Savings Already Applied!
shipping truck icon
FREE 3-day shipping to VA. Get it Wed, Apr. 5
Quantity
In Stock
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision


protection

Add an extended warranty

allStateProtection
3-years for

For over 22 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


JL Audio

Authorized dealer


General Features:

  • Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure.
  • Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.
  • The M6-8IB is best used with amplifier power in the 50W - 200W range and is optimized to operate with a large volume of air behind it (at least 1.5 cu. ft. / 42.5 l).
  • Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Power Handling

  • Continuous Power Handling (RMS): 200 W
  • Recommended Amplifier Power (RMS): 50 - 200 W
  • System Efficiency: 86.7 dB @ 1 W / 1 m
  • System Nominal Impedance: 4Ω

Specs

  • Nominal Diameter: 8.0 in / 200 mm
  • Overall Diameter: 8.80 in / 224 mm
  • Bolt Hole Circle Diameter: 7.97 in / 202 mm
  • Frontal Grilles Protrusion*: 1.45 in / 37 mm
  • Mounting Hole Diameter: 7.375 in / 187 mm
  • Mounting Depth: 5.00 in / 127 mm
  • Driver Displacement: 0.033 cu ft / 0.93 L
  • Net Weight: 8.70 lbs / 3.90 kg

Materials Used:

  • Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated with UV inhibitors for marine duty.
  • Marine-grade, synthetic fiber spiders with progressive roll designs to withstand high humidity.
  • Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion.
  • Gold-plated, marine-grade brass connection terminals
  • Marine-grade stainless steel mounting hardware is included.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Subwoofer Wiring Guide


    Wiring Guide to Wire 1 JL Audio M6-8IB-C-GwGw-4 Subwoofer

    Mono Amp

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 JL Audio M6-8IB-C-GwGw-4 Subwoofers

    Mono Amp

    2 Channel Amp

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 JL Audio M6-8IB-C-GwGw-4 Subwoofers

    4 Channel Amp

    Wiring Guide to Wire 4 JL Audio M6-8IB-C-GwGw-4 Subwoofers

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp

    2 Channel Amp - Bridged

    4 Channel Amp

    Specifications & Details


    Subwoofer Specifications
    Subwoofer Size
    8"
    Peak Power Handling
    400 watts
    RMS Power Handling
    200 watts
    Voice Coil(s)
    Single
    Impedance (Per Voice Coil)
    4 ohms
    Frequency Response
    Not Specified By Manufacturer
    Sensitivity
    86.7 dB
    Xmax (millimeters)
    14 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    White
    Woofer Composition
    Polypropylene-Mica
    Woofer Surround
    Synthetic Rubber
    Subwoofer Grille
    Yes - Included
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Minimum Sealed Box Volume
    2 cubic feet
    Minimum Ported Box Volume
    1.5 cubic feet
    Top-Mount Depth (Mounting Depth)
    5"
    Cutout Diameter
    8.8"
    Shallow Mount Installation
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    M6-8IB-C-GwGw-4

    Weight:

    9.95lbs

    Internal SKU:

    m68ibcgwgw4

    Internal Product ID:

    172493
