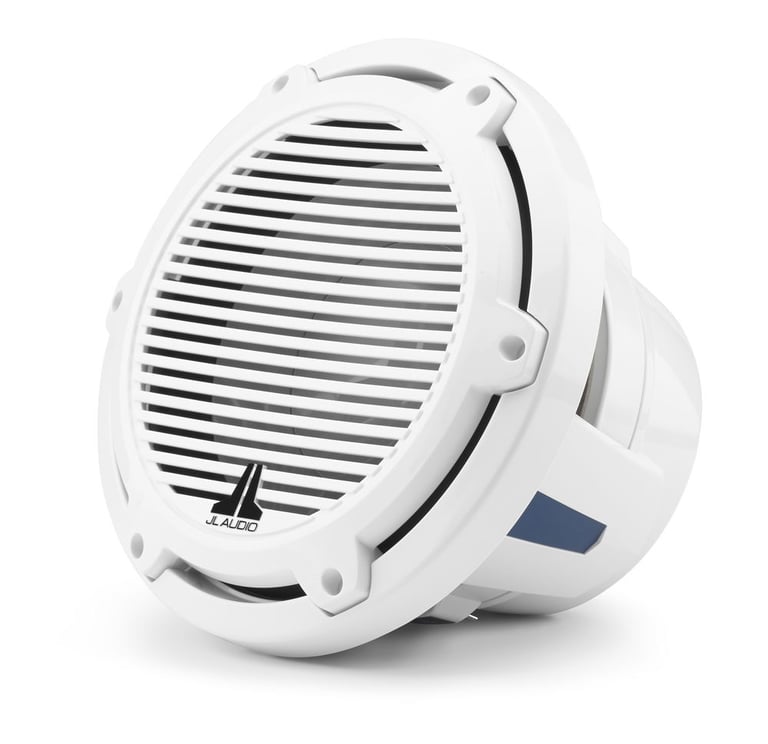

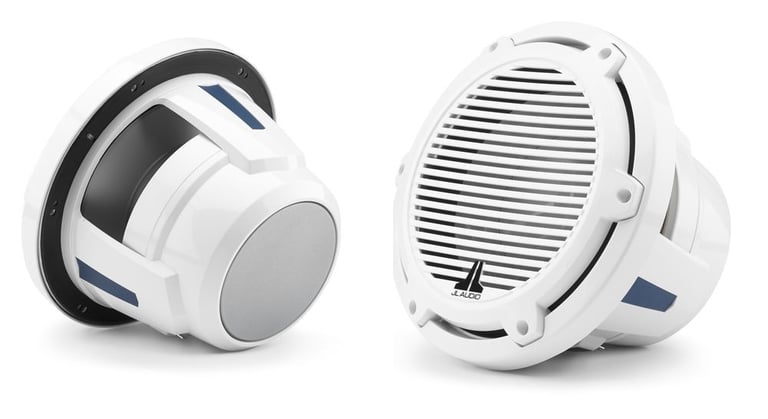

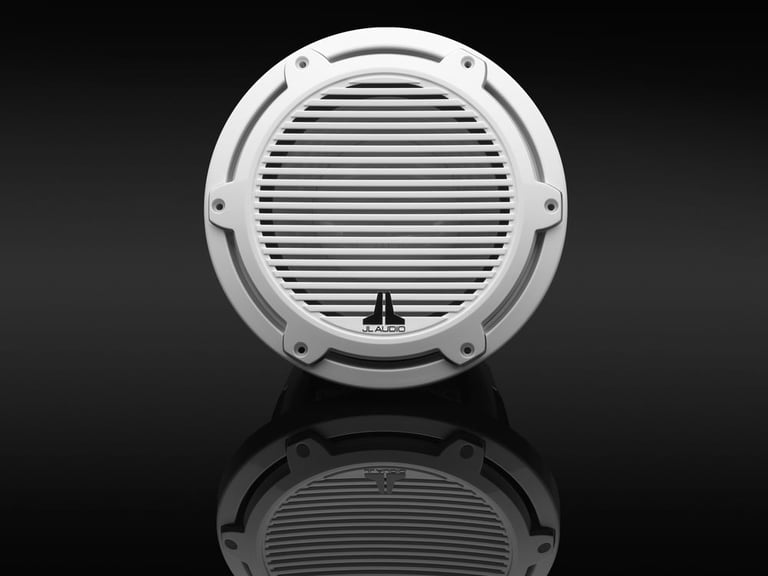

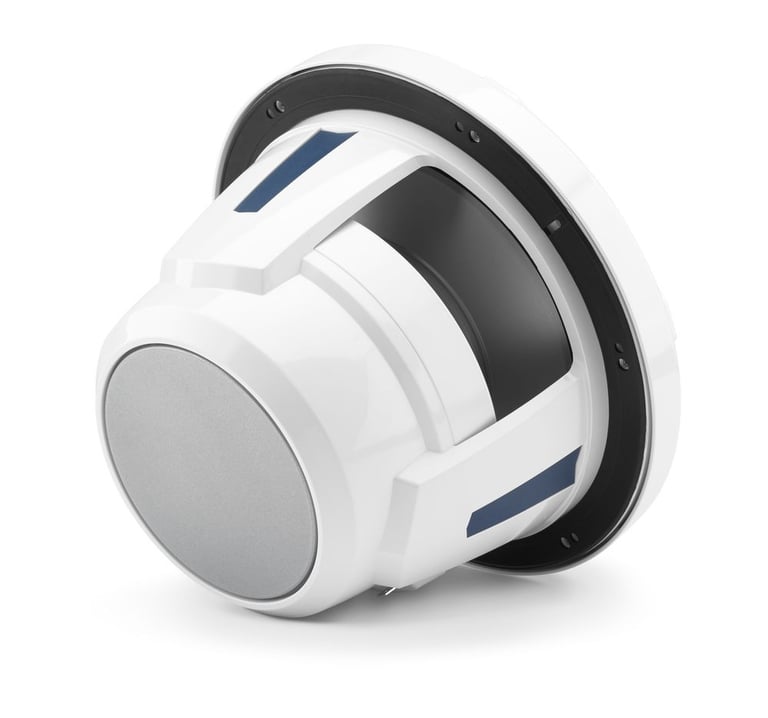

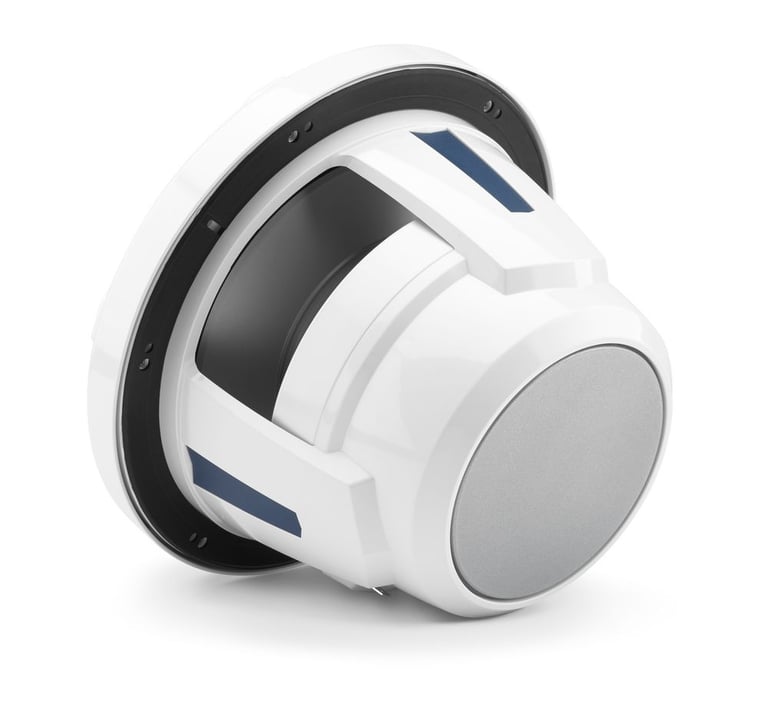

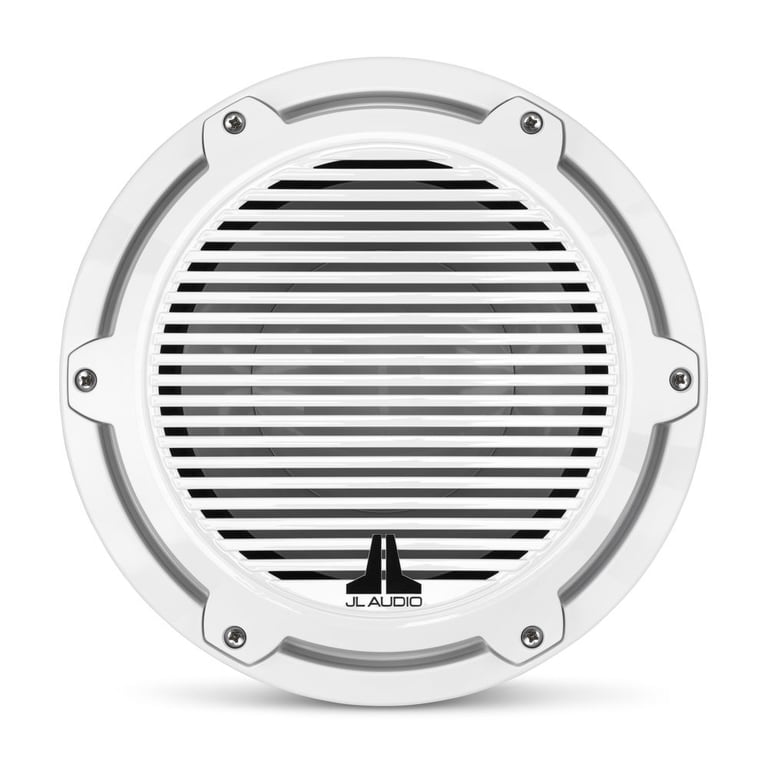

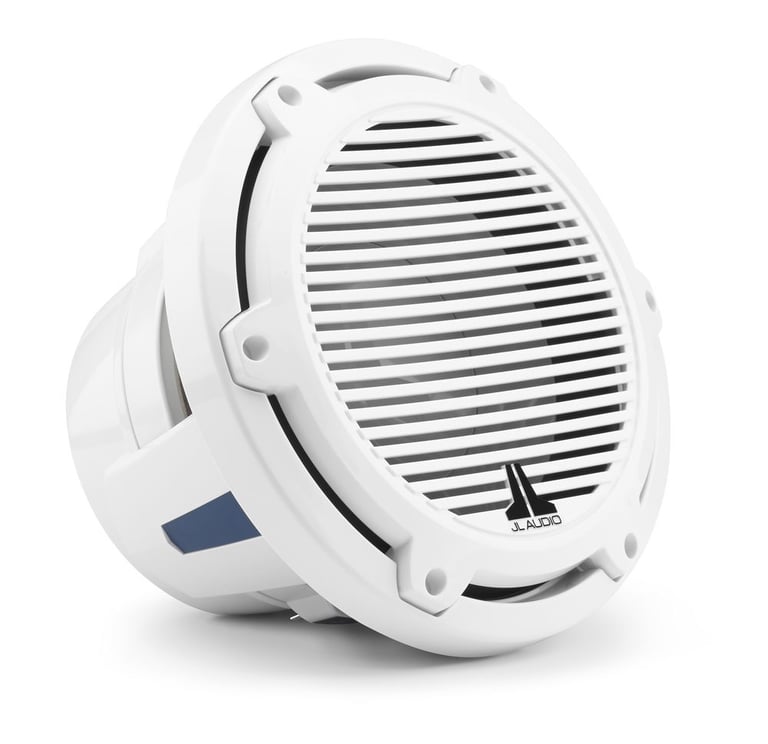

JL Audio M6-10IB-C-GwGw-4

General Features:

• Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure.
• Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.
• The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l).
• Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Power Handling

• Continuous Power Handling (RMS): 250 W
• Recommended Amplifier Power (RMS): 75 - 250 W
• System Efficiency: 86.1 dB @ 1 W / 1 m
• System Nominal Impedance: 4Ω

Specs

• Nominal Diameter: 10.0 in / 250 mm
• Overall Diameter: 10.75 in / 273 mm
• Bolt Hole Circle Diameter: 9.70 in / 247 mm
• Frontal Grilles Protrusion*: 1.66 in / 42 mm
• Mounting Hole Diameter: 8.875 in / 225 mm
• Mounting Depth: 5.90 in / 150 mm
• Driver Displacement: 0.052 cu ft / 1.47 L
• Net Weight: 8.70 lbs / 3.90 kg

Materials Used:

• Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated with UV inhibitors for marine duty.
• Marine-grade, synthetic fiber spiders with progressive roll designs to withstand high humidity.
• Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion.

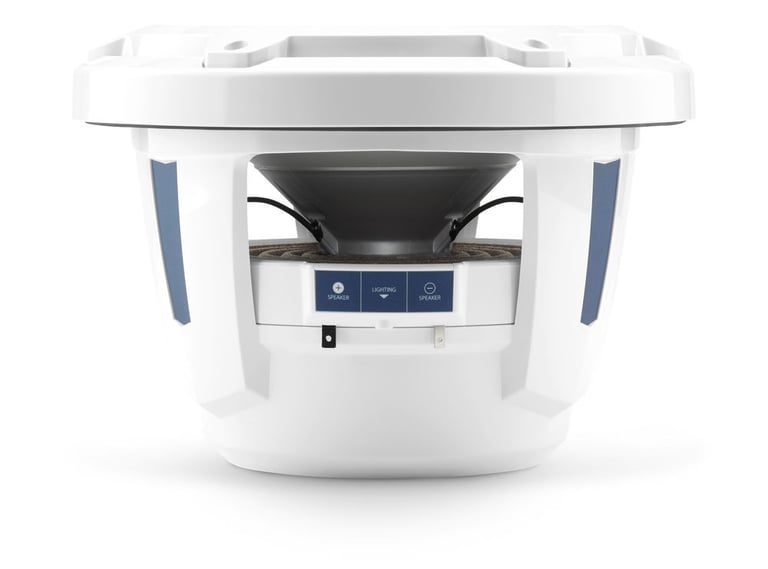

• Gold-plated, marine-grade brass connection terminals
• Marine-grade stainless steel mounting hardware is included.
