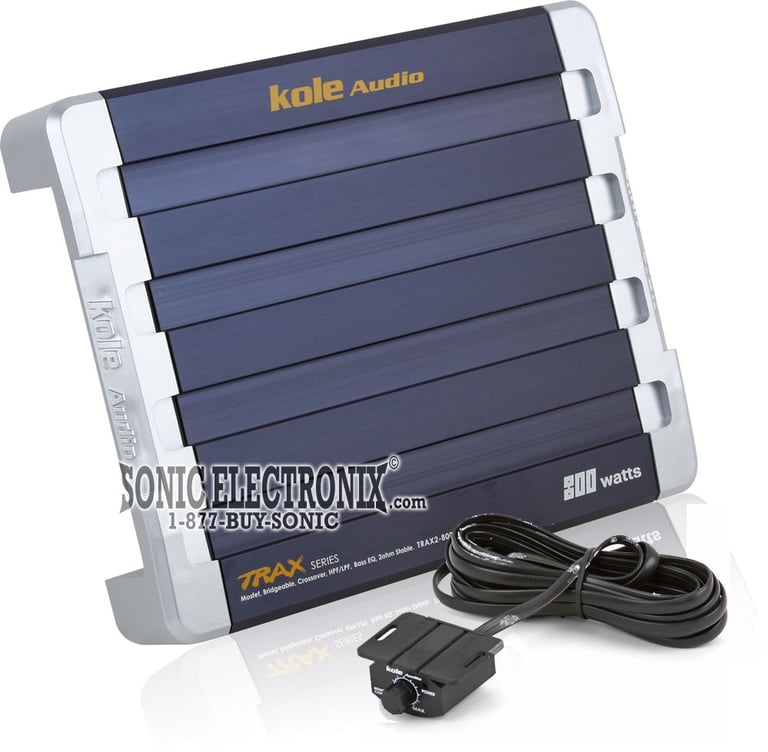

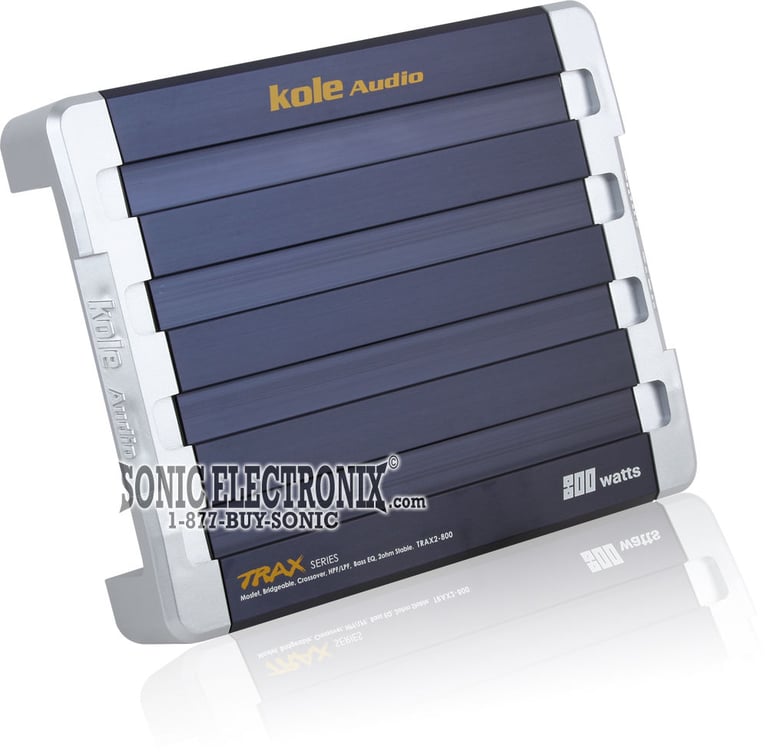

Kole Audio TRAX 2-800 (TRAX2-800)

800W Max, TRAX Series2-Channel Amplifier

Product videos
highlight-star-icon

TRAX Series • 2-Channel Car Amplifier • 150 Watts x2 @ 4 Ohm • 180 Watts x2 @ 2 Ohm • 360 Watts x1 4 Ohm • 800 Watts Max • Tri-Mode Capable • LED Indicators • Midnight Blue Anodized Finish • MOSFET Power Supply •

Learn more about the trax2800

We apologize

This item has been discontinued


Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

AXABH-CH2 main

Axxess AXABH-CH2

Amplifier Bypass Harness for select 2007-2021 vehicles from Ram, Dodge, Jeep

2
-11.77%

$29.99

List price $33.99

51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

95-6518B main

Metra 95-6518B

Double DIN Stereo Dash Kit and Harness for select 2013-2022 vehicles from Ram, Jeep, Chrysler

15
-44.75%

$20.99

List price $37.99

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

19
-28.59%

$9.99

List price $13.99

VWA4B main

Scosche VWA4B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2000-2026 vehicles from Audi, Chevrolet, Volkswagen

11
-17.73%

$12.99

List price $15.79

HRN-SR-CH3 main

iDataLink Maestro HRN-SR-CH3 Wiring Harness

Install a New Car Stereo in select 2013-2023 vehicles from Ram, Jeep, Fiat (Requires ADS-MSR module)

3
-21.06%

$29.99

List price $37.99

CDK656 main

American International CDK656

Single DIN or Double DIN Stereo Dash Kit for select 2013-2018 1500 and 2500 and Cherokee

6
-66.69%

$17.99

List price $54.00

99-6527B main

Metra 99-6527B Dash Kit

Single DIN or Double DIN Stereo Dash Kit and Harness for select 2013-2017 1500 and 3500 and 2500

1
-50.29%

$339.99

List price $683.99

RP4-CH21 main

PAC RadioPro RP4-CH21

Radio Replacement Interface with Steering Wheel Control Retention for select 2013-2018 vehicles from Ram, Jeep, Dodge

2
-53.30%

$176.99

List price $379.00

Product Highlights


TRAX Series • 2-Channel Car Amplifier • 150 Watts x2 @ 4 Ohm • 180 Watts x2 @ 2 Ohm • 360 Watts x1 4 Ohm • 800 Watts Max • Tri-Mode Capable • LED Indicators • Midnight Blue Anodized Finish • MOSFET Power Supply •

Description


Kole Audio brand icon

Authorized dealer

  • TRAX Series 2-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 180 watts x 2 chan.
    • Bridged, 4 ohm: 360 watts x 1 chan.
  • Max power output: 800 watts x 1 chan.
  • MOSFET power supply

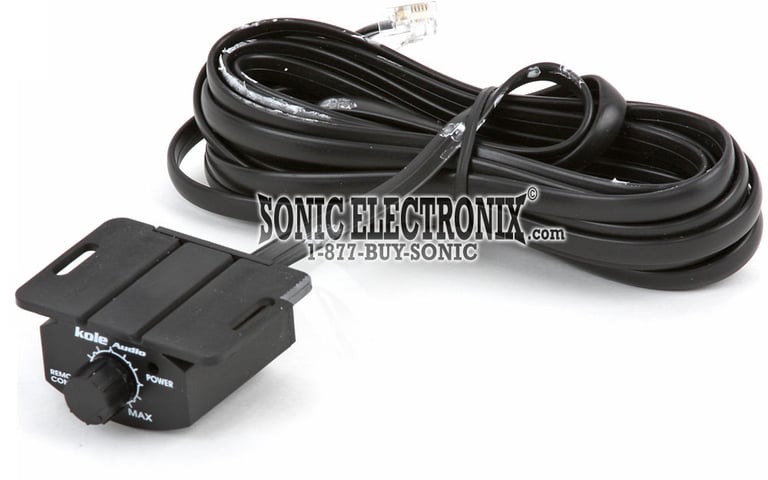

  • Wired remote bass level control included
  • LED power indicators
  • Variable Bass Boost: 0-24dB at 45Hz
  • Midnight blue anodized finish with silver end caps
  • Pulse width modulation circuitry
  • Three-way protection circuitry (short, thermal and overload)
  • Preamp RCA outputs
  • Tri-mode capable
  • Selectable variable 12dB Hi/Full/Low pass crossovers
  • High-pass filter (50-500 Hz)
  • Low-pass filter (30-500 Hz)
  • Subsonic filter (12 dB at 30-175 Hz)
  • Frequency Response: 10-30,000 Hz
  • Low Level Input Sensitivity: 200mV - 3V
  • Dimensions: 12-1/4L x 10"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

DRQC20AC-TN main

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

select 2002-2018 vehicles from Ram, Dodge Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure

2
SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

DRQC20C-TN main

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

Two 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure for select 2002-2018 vehicles from Ram, Dodge

51KTDL7T102 main

Kicker 51KTDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2024 vehicles from Ram

-10.53%

$849.99

List price $949.99

LVE-DOD-RAMQCCG3-D12S main

NVX Loaded BOOST Box - 2002-2018 Ram Quad, Crew Cab - LVE-DOD-RAMQCCG3-D12S

For select 2002-2018 1500 and Ram 1500 Quad and Crew Cab - Dual 12" 800W RMS Loaded BOOST Sealed Truck Enclosure

-18.98%

$349.99

List price $431.99

SB-D-QDRAM/10W3v3 main

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

1

$1,249.99

LVE-DOD-RAMQCCG3-S10S main

NVX Loaded BOOST Box - 2002-2018 Ram Quad, Crew Cab - LVE-DOD-RAMQCCG3-S10S

For select 2002-2018 1500 and Ram 1500 Quad and Crew Cab - Single 10" 350W RMS Loaded BOOST Sealed Truck Enclosure

-20.64%

$199.99

List price $251.99

LVE-DOD-RAMQCCG3-D10S main

NVX Loaded BOOST Box - 2002-2018 Ram Quad, Crew Cab - LVE-DOD-RAMQCCG3-D10S

For select 2002-2018 1500 and Ram 1500 Quad and Crew Cab - Dual 10" 700W RMS Loaded BOOST Sealed Truck Enclosure

-19.12%

$329.99

List price $407.99

51KR_46CXA_RCT_XK42_NK_49K main

Kicker KRDL7T10 Sub Enclosure + CXA1200.1 Amp + Remote w/ Free Amp Install Kit

1000W RMS Dual 10" Sealed Truck Enclosure, 1200W RMS Class D Monoblock Amp, Wired Bass Remote, 4 Gauge OFC Amp Kit, and 2 Koozies

158
-18.40%

$1,290.01

List price $1580.93


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
180 watts x 2 channel
Bridged RMS Power
360 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
360 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.02%
Speaker Level Inputs
No
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
30 - 500 Hz
Subsonic Filter
30 - 175 Hz
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 24 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TRAX2-800

Weight:

11.00lbs

Internal SKU:

trax2800

Internal Product ID:

17376
