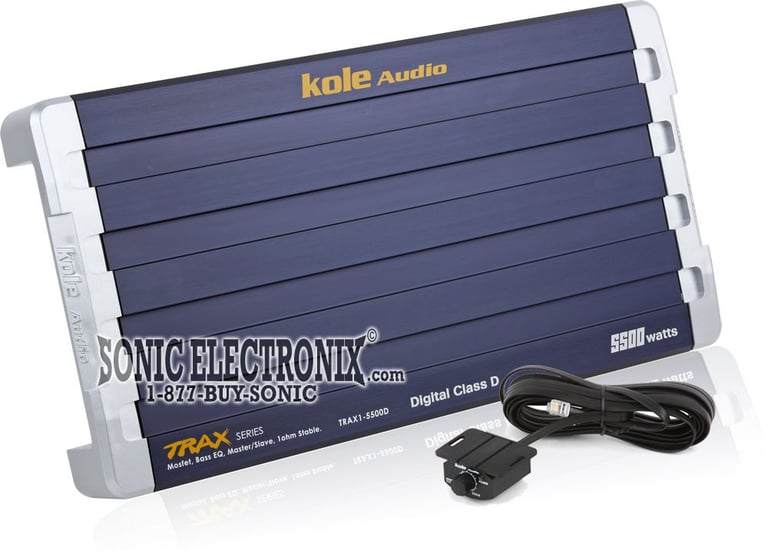

Kole Audio TRAX1-5500D (TRAX 1-5500D)

5500W Max, TRAX Series Class D Digital Monoblock Amplifier

Product videos
highlight-star-icon

TRAX Series Class D Digital Monoblock Amplifier • 1700W x 1 chan. @ 1 ohm • 2500W x 1 chan. @ 2 ohm • 3200W x 1 chan. @ 4 ohm • 5500W Max • PWM Power Supply • Midnight Blue Finish • Three-Way Protection •

Learn more about the trax15500d

We apologize

This item has been discontinued

Product Highlights


TRAX Series Class D Digital Monoblock Amplifier • 1700W x 1 chan. @ 1 ohm • 2500W x 1 chan. @ 2 ohm • 3200W x 1 chan. @ 4 ohm • 5500W Max • PWM Power Supply • Midnight Blue Finish • Three-Way Protection •

Description


Kole Audio brand icon

Authorized dealer

  • TRAX Series Class D Digital Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1700 watts x 1 chan.
    • 2 ohm: 2500 watts x 1 chan.
    • 1 ohm: 3200 watts x 1 chan.
  • Max power output: 5500 watts x 1 chan.
  • Regulated PWM Power Supply

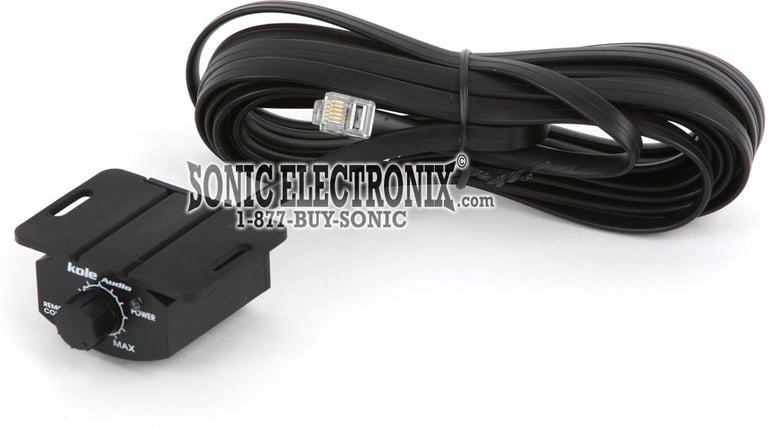

  • Wired remote bass level control included.
  • LED power indicators
  • Bass Boost: 0-18 dB at 45 Hz
  • Midnight blue anodized finish with silver end caps
  • High-speed digital circuitry
  • Three-way protection circuitry (short, thermal and overload)
  • Bridged synchronization (strap amps together for double power!)

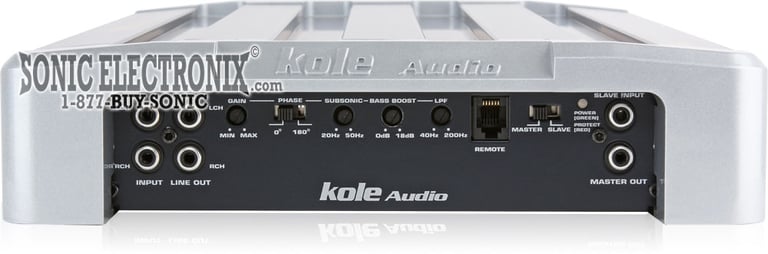

  • Pre-amp outputs
  • 1800 Phase switch
  • Variable low-pass filter (40-200 Hz, 12 dB/octave)
  • Variable subsonic filter (12 dB at 20-50 Hz)
  • Frequency response: 15-150 Hz
  • Low Level Inputs: 200mV-6V
  • Dimensions: 20-1/2L x 10W x 2-1/4H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Kole Audio TRAX1-5500D thumbnail
(newest, current model)
Kole Audio KX1-5500D thumbnail
(previous model, replaced by Kole Audio TRAX1-5500D (TRAX 1-5500D))

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1700 watts x 1 channel
RMS Power @ 2 ohms
2500 watts x 1 channel
RMS Power @ 1 ohm
3200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5500 watts
Total RMS Power Output
3200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
.5%
Speaker Level Inputs
No
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 200 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes

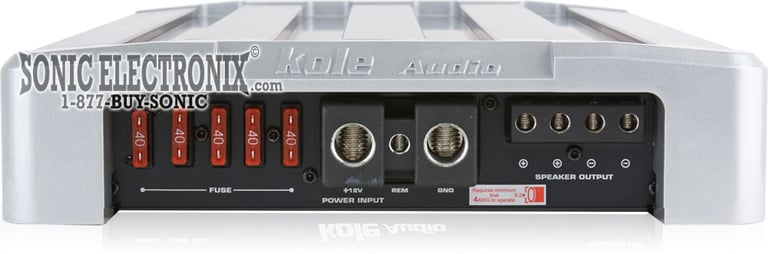

Fuse Rating
40A x 5
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TRAX1-5500D

Weight:

15.00lbs

Internal SKU:

trax15500d

Internal Product ID:

17388
