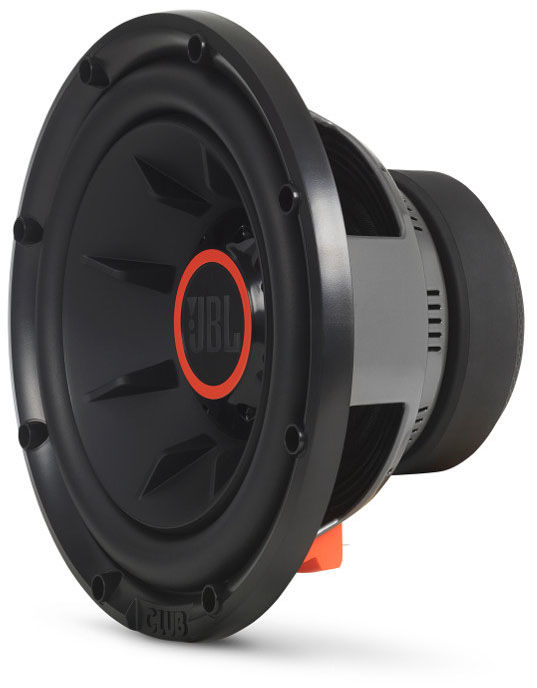

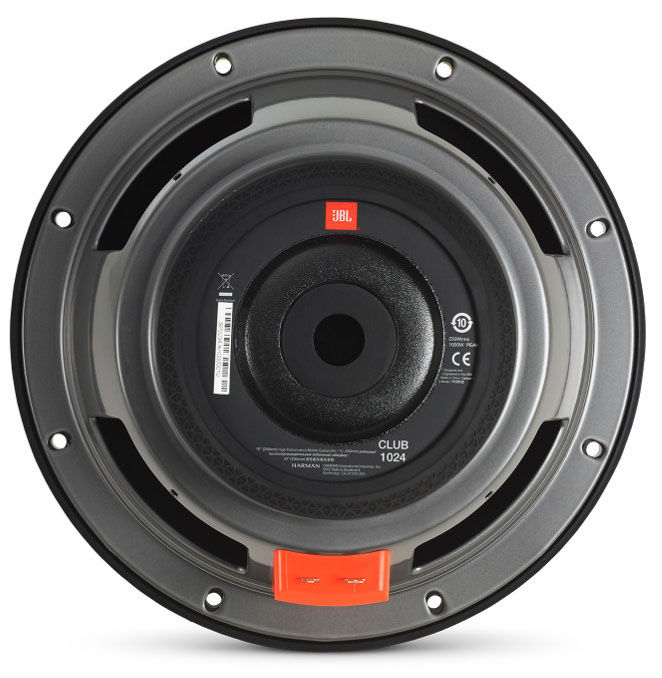

Name: ** DO NOT USE - DUPLICATE ** JBL Club 1024AM (Club 1024)
Brand: JBL
SKU: donotuse-club1024am
Price: 119.95 USD
Availability: Discontinued

by JBL

About
Wiring Guide
Specs & Details
Reviews
Add-ons
Similar Products
Related Searches

Product highlights

• 1000 Watts Max
• 250 Watts RMS
• Polypropylene Cone
• Rubber Surround
• Selectable 2 or 4 ohm Impedance
• 2" Voice Coil

Learn more about the donotuse-club1024am

Description

Authorized dealer

General Features:

10" Selectable 2 or 4 ohm Club Series Subwoofer
Power Handling:

Peak: 1000 watts
RMS: 250 watts

Polypropylene cone
Rubber surround
Selectable Smart Impedance (SSI) allows you to select 2 or 4 ohm resistance, giving you more flexibility in your installation
Simple switch for selecting resistance
Quick-disconnect compatible terminals
2" voice coil
Single-stacked magnet
Top-mount depth: 5-5/8"
Cutout diameter: 9"
Frequency Response: 30- 175 Hz
Sensitivity: 92dB
Resonance Frequency (Fs): 29.9 or 30.7 (depending on 2 or 4 ohm configuration)
Authorized Internet Dealer
1-year Manufacturer's Warranty

Priced Individually

PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

	DO NOT USE - DUPLICATE JBL Club 1024AM (Club 1024) (newest, current model)
	JBL Club 1024 (CLUB1024AM) (previous model, replaced by DO NOT USE - DUPLICATE JBL Club 1024AM (Club 1024))
	JBL S2-1024 Toggle between 2-Ohm & 4-Ohm Impedance! (previous model, replaced by JBL Club 1024 (CLUB1024AM))
	JBL GT5-10 (previous model, replaced by JBL S2-1024 Toggle between 2-Ohm & 4-Ohm Impedance!)

Subwoofer Wiring Guide

Wiring Guide to Wire 1 ** DO NOT USE - DUPLICATE ** JBL Club 1024AM (Club 1024) Subwoofer

Mono Amp

Wiring Guide to Wire 2 ** DO NOT USE - DUPLICATE ** JBL Club 1024AM (Club 1024) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 ** DO NOT USE - DUPLICATE ** JBL Club 1024AM (Club 1024) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 ** DO NOT USE - DUPLICATE ** JBL Club 1024AM (Club 1024) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details

Subwoofer Specifications

Series

Club

Subwoofer Size

10"

Peak Power Handling

1000 watts

RMS Power Handling

250 watts

Voice Coil(s)

Single

Impedance (Per Voice Coil)

2 or 4 ohms

Voice Coil Diameter

Frequency Response

30 - 175 Hz

Sensitivity

92 dB

Xmax (millimeters)

9.25 mm

Subwoofer Design

Round / Circle

Main Cone Color

Black

Woofer Composition

Polypropylene

Woofer Surround

Rubber

Magnet Structure

Single Stacked

Recommended Enclosure Specifications

Recommended Enclosure Type

Ported / Vented
Sealed

Optimum Sealed Box Volume

.5 cubic feet

Optimum Ported Box Volume

1.5 cubic feet

Top-Mount Depth (Mounting Depth)

5-5/8"

Cutout Diameter

Shallow Mount Installation

Electromechanical Parameters

Free-Air Resonance (Fs)

29.9 or 30.7 Hz

Equivalent Compliance (Vas)

32.3 or 30.6 liters

Total Speaker Q Value (Qts)

.43 or .49

Electrical Q Value (Qes)

.48 or .6

Electrical Resistance of Voice Coil (Re)

2 or 4.3 ohms

Mechanical Q Value (Qms)

4.1 or 2.6

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
