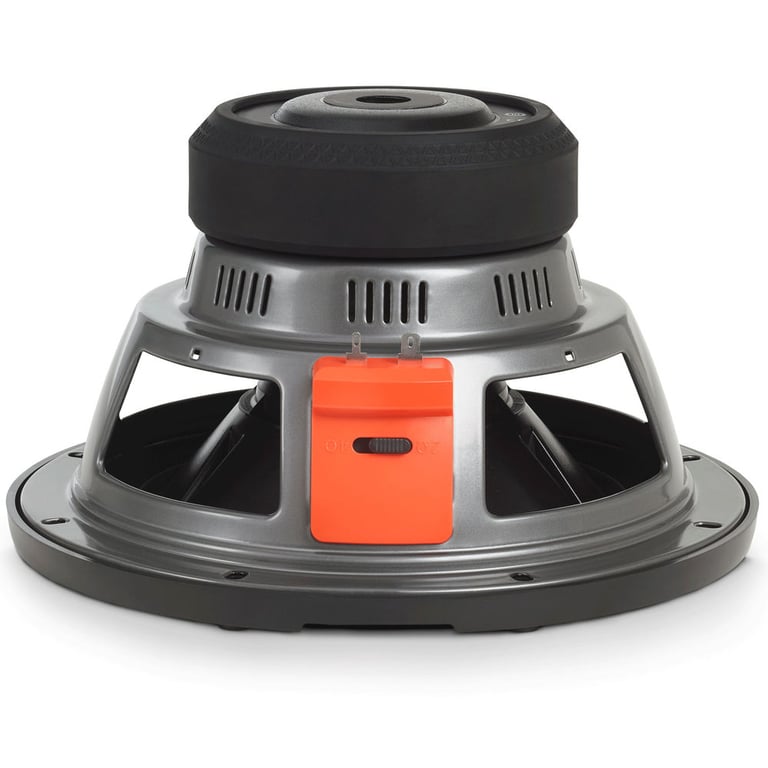

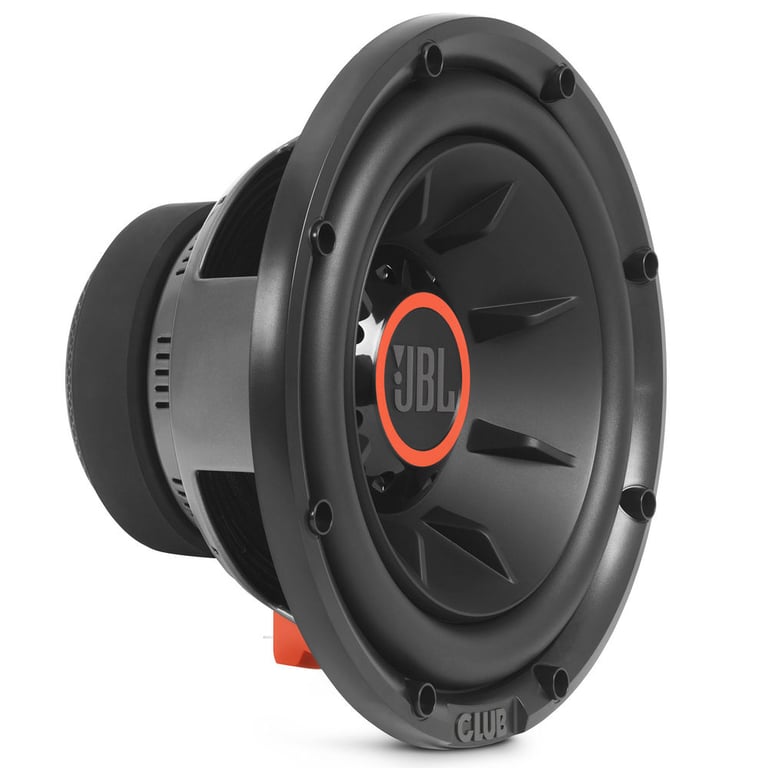

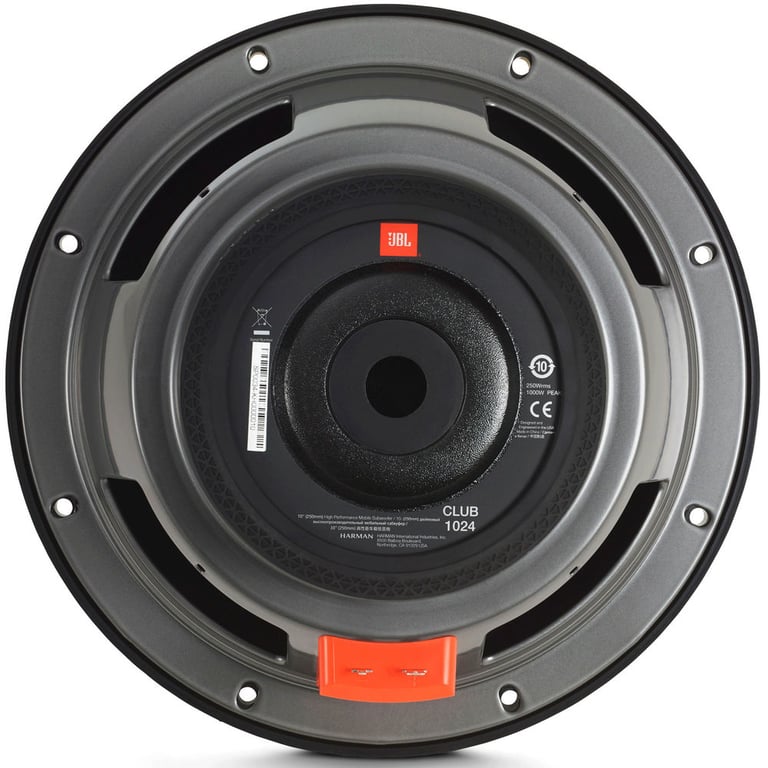

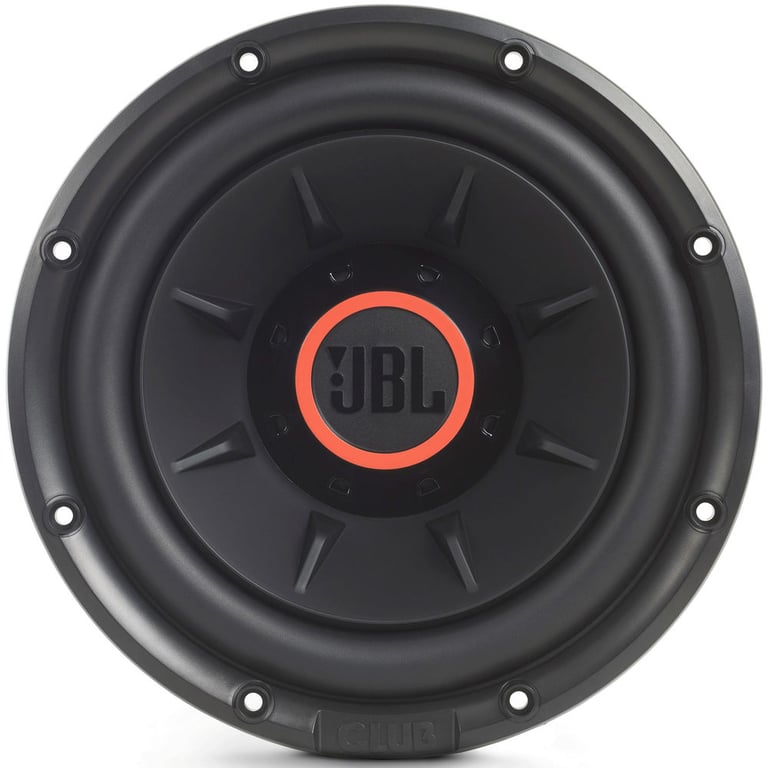

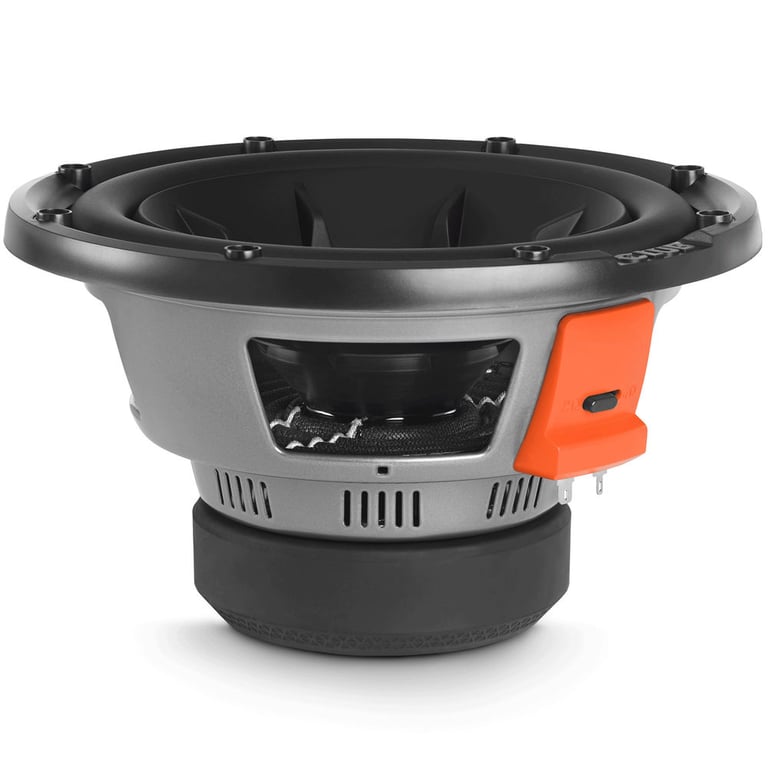

JBL Club 1024 (CLUB1024AM)

1000W Peak (250W RMS) 10" Club Series Single 4-ohm Subwoofer

JBL
Shop all JBL
highlight-star-icon

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 2 or 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5-5/8"
• Sensitivity: 92 dB

Learn more about the club1024am

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

donotuse-club1024am thumbnail

** DO NOT USE - DUPLICATE ** JBL Club 1024AM (Club 1024)

OUR PRICE: $119.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

82-5601 main

Metra 82-5601

5 1/4" Component Speaker to 6" x 8" Adapter Kit for select 1990-2019 vehicles from Ford, Mazda, Mercury

3
-13.64%

$18.99

List price $21.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

15
-25.50%

$298.00

List price $399.99

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

11
-37.63%

$499.00

List price $800.00

Limited time!
DCPA723W main

Dual DCPA723W

7” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto

4
-23.61%

$219.99

List price $287.99

480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17
PRO-X8.4M main

DS18 PRO-X8.4M (Sold Individually)

550W Peak (275W RMS) 8” PRO-X Series Pro Audio Midrange 4-ohm Loudspeaker

Description


JBL brand icon

Authorized dealer


Product Details:

  • 10" Single 2 or 4 ohm Club Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Polypropylene Cone
  • Rubber Surround
  • 9.25 mm Xmax
  • Frequency Response: 30 - 175 Hz
  • Resonance Frequency (Fs): 29.9 or 30.7 Hz
  • Sensitivity: 92 dB
  • Top-mount depth: 5-5/8"
  • Cutout diameter: 9"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Product history:

JBL DO NOT USE Club 1024AM thumbnail
(newest, current model)
JBL JBLCLUB1024AM thumbnail
(previous model, replaced by ** DO NOT USE - DUPLICATE ** JBL Club 1024AM (Club 1024))
JBL S2-1024 thumbnail
(previous model, replaced by JBL Club 1024 (CLUB1024AM))
JBL GT5-10 thumbnail
(previous model, replaced by JBL S2-1024 **Toggle between 2-Ohm & 4-Ohm Impedance!**)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL Club 1024 (CLUB1024AM) Subwoofer

Mono Amp

Wiring Guide to Wire 2 JBL Club 1024 (CLUB1024AM) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL Club 1024 (CLUB1024AM) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL Club 1024 (CLUB1024AM) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Club
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2"
Frequency Response
30 - 175 Hz
Sensitivity
92 dB
Xmax (millimeters)
9.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.5 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-5/8"
Cutout Diameter
9"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.9 or 30.7 Hz
Equivalent Compliance (Vas)
32.3 or 30.6 liters
Total Speaker Q Value (Qts)
.43 or .49
Electrical Q Value (Qes)
.48 or .6
Electrical Resistance of Voice Coil (Re)
2 or 4.3 ohm
Mechanical Q Value (Qms)
4.1 or 2.6
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

JBLCLUB1024AM

Weight:

8.82lbs

Internal SKU:

club1024am

Internal Product ID:

145739

Customer Ratings & Reviews


JBL Club 1024 (CLUB1024AM) thumbnail image

5 star
71%
4 star
25%
3 star
4%
2 star
0%
1 star
0%



Durability
4.7
Value
5
Features
4.7
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Sounds amazing

For this price these 10s sound great I have them running off a jbl club 4505 sub channel and they rock

By Charlie on April 22, 2018 Checkmark Icon Verified purchase

36 found this helpful


a great driver

The following review is for a previous version (GT5-10).

i have owned a set of these subs for a week now and they sound great. clear and loud. there replacements for my infinity dual vc 10", and i think these are a beater built driver. i repair and run live sound systems and jbl is one of the big brand so you know there stuff is gonna be good

By ben -automotive sound systems on June 11, 2009

39 found this helpful


Great budget subwoofer

The following review is for a previous version (GT5-10).

I bought a pair of these for a friend. I installed them the recommended sealed enclosure (.75cuft ea) and they were powered with a 320wrms amplifier. Note that the cut out dimensions in the manual is not correct, its actually a bit smaller.

These subs sound very smooth and can get decently loud. This model excels with jazz, light rock, and adult contemporary music (very smooth) but bottoms out in bass heavy types of music.

Overall, my friend likes the subwoofers a lot, they suit his taste of music and for the money they are definitely worth the money.

On a side note, these subs are pretty cheap looking, not that it has anything to do with performance.

By Vin on May 27, 2010

38 found this helpful


Wonderful budget subwoofer, Very Pleased!

The following review is for a previous version (GT5-10).

I became a car audio junkie relatively recently and while requesting advice on a good budget setup through mainly online car audio formus, I came a across this product. I purchased two of the GT5-10's and a Rockford Fosgate R500-1 Amp. The RMS on these are 275 and the Birthsheet Rated RMS on the R500-1 was 537 at 2 ohms so after wiring the subs parallel, I ended up with an almost perfect match-up. I originally planned to build a custom ported box but due to my lack of tools and carpentry knowledge, I went with a pre-built ported box with 1.2 cubic ft. of airspace per chamber. Install was easy and they look great! They handle the 270ish watts like a pro and sounds awesome! Would definitely recommend!

By satisfiedGT510user on May 20, 2010

36 found this helpful


Great sub for the money!

The following review is for a previous version (GT5-10).

I have 1 10" in a sealed enclosure in my crew cab pickup. It sounds great & hits hard!

By C.J. on April 14, 2014

34 found this helpful


Great Value

The following review is for a previous version (GT5-10).

The product is very good for handling the power . Only problem i had was the gasket around the cone came unglued . It was a easy fix i would purchase again

By Theo on March 26, 2013

32 found this helpful


Best boom for the buck

The following review is for a previous version (GT5-10).

At $90 this sub pounds like subs twice the cost. I have two of these in 3.2 cubes tuned to 30hz with 31.5 sq inches of port area. Plays stupid flat and can handle more than what it's rated, at least mechanically. I have them on about 750wrms and did get them a little stinky once but never bottomed out even on stupid low notes like the new 2 Chainz CD or your pick of any Decaf track.

By srp365 on September 30, 2013

30 found this helpful


Best of a Driver

The following review is for a previous version (S2-1024).

This driver is special because you can select 2ohm or 4ohm with a flick of a switch. The build quality is first rate. Also, this driver is very efficient so it doesn't need a lot of power to drive it. 1 Great driver.

By Frank on December 18, 2016

20 found this helpful


Versital

The following review is for a previous version (S2-1024).

I recommend this for people who might upgrade their amp or who might as another sub

By Michael on March 24, 2017 Checkmark Icon Verified purchase

19 found this helpful


I'm not even mad..

The following review is for a previous version (S2-1024).

for $99.99 this sub was well worth it in my opinion. yeah you could spend more and get a JL or something but this does what it's supposed to, I got noticeably more bass to backup the highs and it's really cutting edge tech that they put into this. good buy

By Coby on June 30, 2016 Checkmark Icon Verified purchase

19 found this helpful




64340103K small

Leatherman 64340103K

Blue Micro Multi-tool

$18.00

List price $31.00

No picture

SeViC Systems VL3DGL Vision Liberty 3

Universal Vehicle Multimedia System - Dark Grey / Large

$699.99

List price $899.99

No picture

Prime Pacific FM706+PPD625

Frank Moller 13 Pc. Aluminum Cookware Set w/ Vented Glass Lids

$135.00

List price $250.00

NSM-7009T small

NESA Vision NSM-7009T

7" Headrest Monitor with Touchscreen

$129.99

List price $299.99

DVD-P190 small

Samsung DVD-P190

Progressive Scan DVD Player with DivX Playback and Remote

$59.99

List price $59.99

COM-708IRC small

Absolute COM-708 (CREAM/BEIGE)

Individual 7.5" TFT-LCD Monitor Loaded in a Universal CREAM/BEIGE Leather Headrest w/ Adjustable Poles

$109.99

List price $219.99

EVP-70H small

Eiger Vision EVP-70H

7" Digital Color Headrest Monitor

$149.99

List price $259.99

ICBM-9143T small

Performance Teknique ICBM-9143T

5.8" Sunvisor & Headrest Color Monitor

$124.99

List price $159.99

BD-P1600 small

Samsung BD-P1600

1080p Blu-Ray Disc and DVD Player with Remote

(3)

$139.99

List price $199.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2009 Ford Edge

2014 Ford Escape

2006 Lincoln Mark LT

1999 Ford Taurus

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
