Name: NVX VADM1 (Open Box Complete)
Brand: NVX
SKU: ls-vadm1-obc8
Price: 159.99 USD
Availability: Discontinued

by NVX

About
Specs & Details
Reviews
Add-ons
Related Searches

Product highlights

• 500 Watt True RMS Output!
• Marine Certified Monoblock Micro Class D Amplifier
• 180W x 1-Chan. @ 4 ohm
• 320W x 1-Chan. @ 2 ohm
• 500W x 1-Chan. @ 1 ohm
• 3-Way System Protection
• 8 Gauge Power and Ground Inputs
• Extremely Small Footp

Learn more about the ls-vadm1-obc8

Description

Authorized dealer

Item Condition - New, Damaged Packaging:

The product is brand new with only the packaging not being in perfect condition. This occurs sometimes because our warehouse teared the box or it was slightly damaged during shipment to our warehouse.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, may be missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.

Introducing the VADM1

An Unbelievable Amount of Power for its Compact Size

Introducing the new VAD M-line of amplifiers. This new line of revolutionarily compact and surprisingly powerful amps will blow you away. This specific VADM1 amplifier has a total RMS power output of 500W all in a chassis not much larger than a dollar bill.

	Best Value!
	NVX VADM1 $$199.99	Rockford Fosgate Punch PBR300X1 $$279.99
# of Channels	Monoblock	Monoblock
Amplifier Class	Class-D	Class-BR
Total Peak Power	1000W	600W
Total RMS Power	500W	300W
Marine Certified
CEA-2006 Compliant
Bass Remote Included
Dimensions	6.8"L x 3.3"W x 1.5"H	6.75"L x 4.25"W x 1.53"H

Big Power From A Small Body

Introducing the NVX VAD M-line - the smallest amplifiers in the VAD Series - but don't let their size fool you, this amplifier is capable of sending up to 500W of true RMS power. Not half bad for an amp roughly the size of a dollar bill.

Water & Weather Resistant

The VAD M-Line includes a conformally coated, marine grade circuit board. This allows this amplifier to be installed in nearly any application. They are great for any car, motorcycle, ATV, UTV, or boat.

Product Details:

Marine Certified 1-Channel Class D Car Amplifier
Peak Power Rating: 1000 Watts
RMS Power Rating:

4 ohm: 180 watts x 1 chan.
2 ohm: 320 watts x 1 chan.
1 ohm: 500 watts x 1 chan.

Cutting edge Micro Class D technology allows amplifier to be extremely compact
LED power (blue) and protect (red) indicators
Conformal Coated Marine grade circuit board
Balanced Differential Inputs, to eliminate noise picked up by signal cables
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Input sensitivity: 0.2V-5V
Variable low-pass filter (50-250 Hz)
Bass Boost: 0 - +18dB boost @ 45Hz
Frequency Range : 20 - 20KHz
Total Harmonic Distortion: <0.3%
CEA-2006 compliant amplifier
Dimensions: 6.8"L x 3.3"W x 1.5"H
Authorized Internet Dealer
30 Day Sonic Electronix Warranty

Product history:

	NVX VADM1 (Open Box Complete) (newest, current model)
	NVX MVPA1 (previous model, replaced by NVX VADM1 (Open Box Complete))

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

180 watts x 1 channel

RMS Power @ 2 ohms

320 watts x 1 channel

RMS Power @ 1 ohm

500 watts x 1 channel

Power Specifications - Subwoofer Channel

Peak Power @ 4 ohm

360 watts x 1 channel

Peak Power @ 2 ohms

640 watts x 1 channel

Peak Power @ 1 ohm

1000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

1000 watts

Total RMS Power Output

500 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

1 ohm

THD at Rated RMS Power

0.3%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

10 - 20 Hz

Signal-to-Noise Ratio

105 dB

Bass Boost

0 - 18 dB

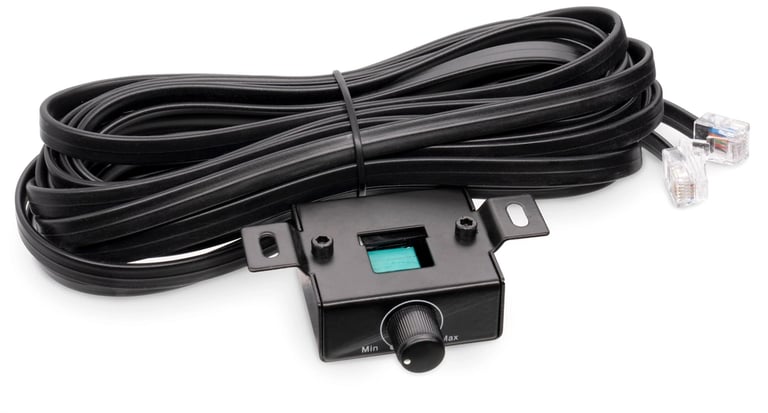

Remote bass/level controller

Yes

Sonic Certified Amplifier

Yes

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
