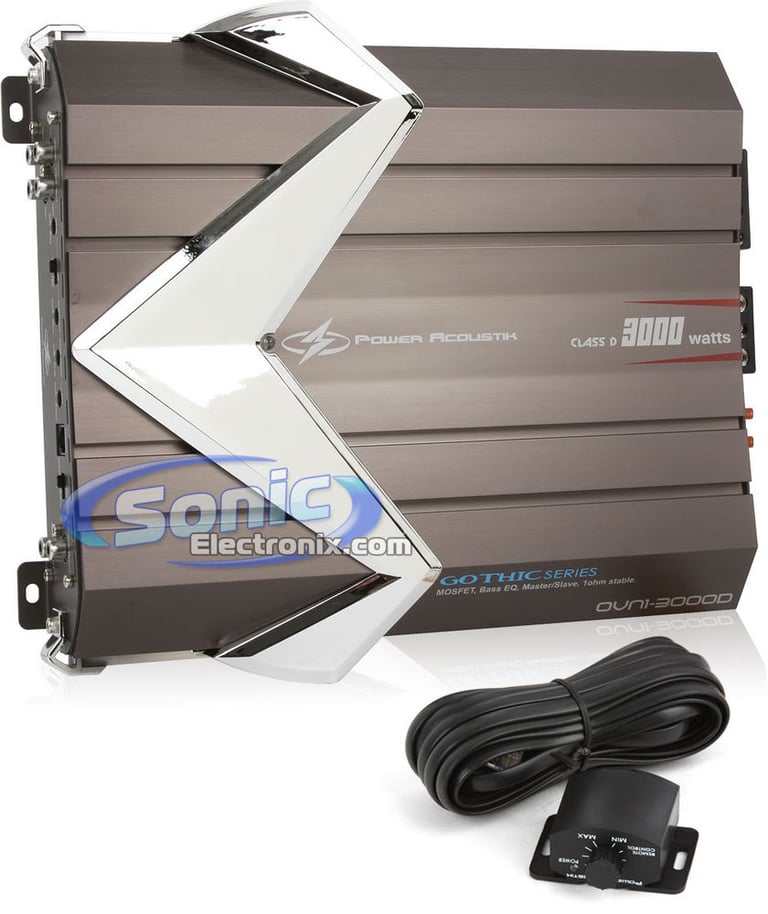

Power Acoustik OVN1-3000D

3000W Max, Class D Monoblock Gothic Series Amplifier

Product videos
highlight-star-icon

Gothic Series Class D Monoblock Car Amplifier • 900W x 1 Chan. @ 4 Ohm • 1300W x 1 Chan. @ 2 Ohm • 1700W x 1 Chan. @ 1 Ohm • Pulse Width Modulation Circuitry • MOSFET Power Supply • Bridged Synchronization

Learn more about the ovn13000d

We apologize

This item has been discontinued


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Product Highlights


Gothic Series Class D Monoblock Car Amplifier • 900W x 1 Chan. @ 4 Ohm • 1300W x 1 Chan. @ 2 Ohm • 1700W x 1 Chan. @ 1 Ohm • Pulse Width Modulation Circuitry • MOSFET Power Supply • Bridged Synchronization

Description


Power Acoustik brand icon

Authorized dealer

  • Gothic Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 900 watts x 1 chan.
    • 2 ohm: 1300 watts x 1 chan.
    • 1 ohm: 1700 watts x 1 chan.
  • Max power output: 3000 watts
  • MOSFET power supply

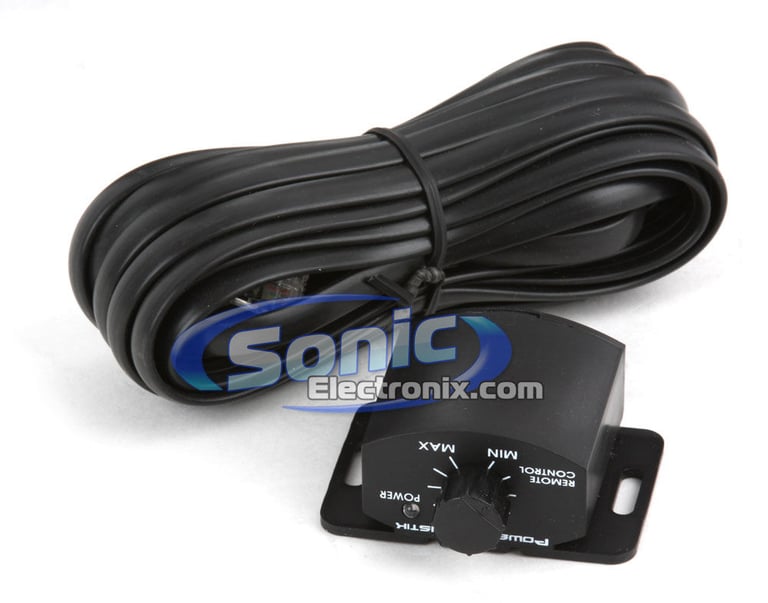

  • Wired remote bass level control included
  • LED power indicators
  • Bass Boost (0-18 dB bass boost at 45 Hz)
  • 180 Degree phase shift
  • Pulse width modulation circuitry
  • Mono channel operation
  • Bridged Synchronization (strap amps together to double power)
  • Preamp RCA outputs
  • 3-Way system protection circuitry (short, thermal and overload)
  • Gunmetal gray anodized finish with chrome accents
  • Heavy duty aluminum alloy heatsink
  • RCA level inputs
  • Screw terminals
  • Low level inputs (200mV-8V)
  • Variable low-pass filter (40-200 Hz, 12 dB/octave)
  • Subsonic Filter (12 dB at 20-50 Hz)
  • Frequency response: 15-150 Hz
  • Dimensions: 12-7/8"L x 10-5/8"W x 3"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Power Acoustik OVN1-3000D thumbnail
(newest, current model)
Power Acoustik OV1-3000D thumbnail
(previous model, replaced by Power Acoustik OVN1-3000D)

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
900 watts x 1 channel
RMS Power @ 2 ohms
1300 watts x 1 channel
RMS Power @ 1 ohm
1700 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3000 watts
Total RMS Power Output
1700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 200 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

OVN1-3000D

Weight:

13.00lbs

Internal SKU:

ovn13000d

Internal Product ID:

17527

Product and How-to Videos


Customer Ratings & Reviews


Power Acoustik OVN1-3000D thumbnail image

5 star
40%
4 star
33%
3 star
0%
2 star
13%
1 star
13%



Durability
3.8
Value
4.1
Features
4
Design
4.5
Usability
4

Customer Reviews

Sort by:

Loading...

beast

I have had one of these amps for years now and not talking 1 or 2. But this amp has pushed my 2 12's L5 solo baric's for about a year now im pushing a four pack of jbl gtos. What some fail to notice is change out your factory wires if ur not at least 13.5v you cant blame any amp or speaker. I take a lot of road trips and play my music for hours selenium horns 4 pack of 12's..I'M LOUD going to get 2 ovn1-5500D next and rock a 4 pack of mofo's cause I LOVE POWER ACOUSTIK....GOTHIC AMPS

By D.R. on October 24, 2011

14 found this helpful


worth every penny

worth every penny!! never runs hot and i have it hooked up to 4 12in pioneer 4 ohm Champion Series Subwoofers...this amp has a lot of power for the price..i would tell any one looking for amp to get it and it wont let u down

By corey on March 1, 2011

12 found this helpful


Great Amplifier

This amp was put to 2 15" Mb Quart rated 700rms each. I was kinda worried at first when we first hooked everything up but then once my speakers broke in this sucker gave it all the power and then some. Hit 145db in competition so yeah that shows this amp is no joke. Nice price and design. A must have!!!

By Mario Jario on September 25, 2009

12 found this helpful


TRUE POWER

I bought this amp from here bout a year ago. all I can say is it really is the best buy up here for the price. I had 2 Diamond d3 15's runnin at 1 ohm with this amp and OMG I bout had a heart attack in my car. Had the box tuned at 28hz and the amp never ran hot, I only turned the gain up to 1/4 of the way and my subs would maxout with like almost 3 inch excursion it was pretty amazing. All I can say is with the price of this amp and quality I highly recommend this product.

Make sure u have plenty of battery power for this amp and maybe an alternator upgrade, because without the right amount of amperage and voltage its not gonna push ur subs like u want it to. Just use ohms law and the PIE formula (for wattage) when figuring out the best way to set up ur system!

By T. WHALEY on December 11, 2010

12 found this helpful


NO THANKS!!!

This is supposed to be 3000 watts?! Ha!!! I had it hooked up to the older model Rockford P3. A 500 watt rms sub. Literally had smoke coming from this amp only 4 days later!!!! All my wires are professionally installed and never had this problem with previous amps. I have a kicker 400.1 hooked up to it now and it bumps harder. Do not recomend this amp to anyone!!!! Save an extra 100 bucks and buy a name brand amp. Do yourself a favor!!!

By Devin on September 10, 2011

11 found this helpful


Bad Amp

I would only recommend this amp if you are using it to power a Power Acoustik Mofo sub. Other than that, I would not recommend it at all. It claims to push 900 watts @ 4 ohms and 1300 watts @ 2 ohms but it really only pushes less than 500 watts @ 4 ohms and about 700 @ 2 ohms.
It was pushing 2 10" type-r subs but burned up after a few months of playing. There was a 4 gauge wire to it, it was wired correctly and it was almost always played while the car was running. It would become warm after long periods of playing, but never hot to the touch. At the time I got it, I didn't know that the specs on the amp were incorrect.

Pros: nice blue led, looked nice, never became hot
Cons: incorrect watt ratings, not durable.

By Basshead on October 29, 2011

9 found this helpful


great value

I have it on 2 15's and it hits real hard.

By smoke on February 12, 2012

6 found this helpful


It's okay....

For the money you really cant beat it. But you get wat u pay for. I have 2 rockford p3 12s. Shallow mount subs in my dodge quad cab. There hooked up 4 ohm. I started off tuning the amp and the gain was turned down pretty low but they werent hitting hard. So i turned it up and up til it was up all the way (3000 watt amp turned up all the way on 2 12s? Hmm) but anyways they sound alright and hit decent. But if i were to do it again id spend the extra money and get an amp with a more popular name on it. Iv had a 750 watt monoblock hooked up to them before and they hit harder. Not very good quality amp.....

By Bond on August 23, 2011

8 found this helpful


Great product for the money!

Good quality amp, nice case, the knobs are a rather frail though so be delicate while making adjustments. That's my only complaint. The inefficiency is about average, the claimed 1200w RMS at 2 ohm's seems a little optimistic but it pushes my two Audiobahn AW121T's (1100w RMS) very nicely with putting too much strain on them. It does get a bit warm, but proper ventillation takes care of that. Overall a great product, especially for the price point.

By Thrasher Chad on July 6, 2011

8 found this helpful


Very solid budget amplifier

this amp has very good features like a wired bass knob, master and slave connections, preouts, all sorts of little gadgets that are up to date. The only problem i could find with this amplifier is that it is a little over rated.... but the amplifier does give out good power levels.

By Brody on November 3, 2010

8 found this helpful
