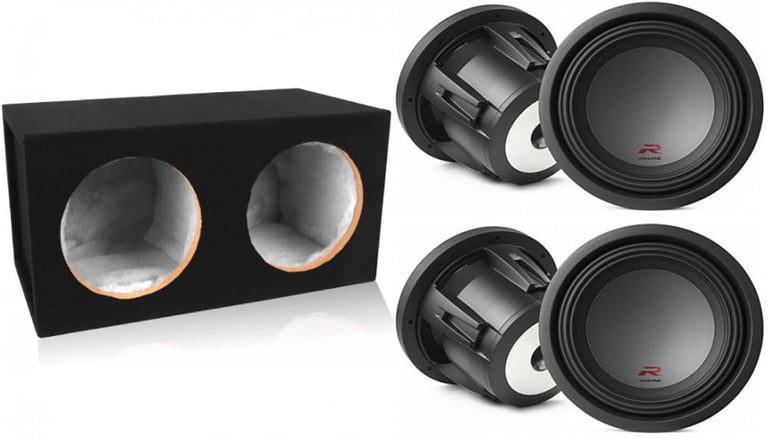

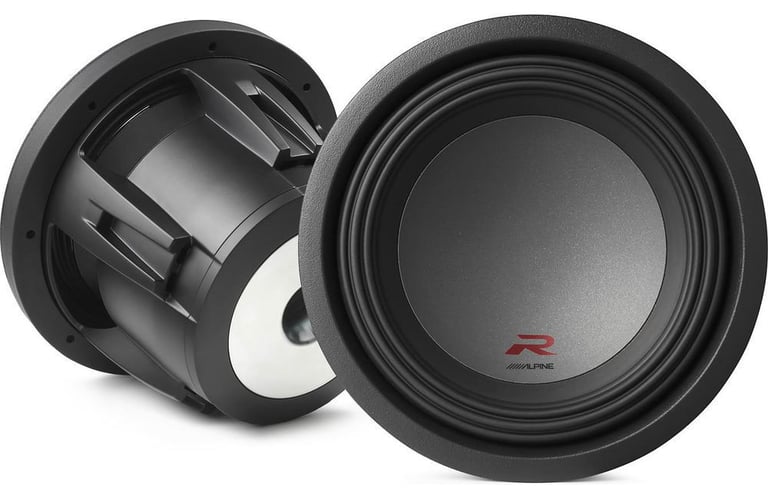

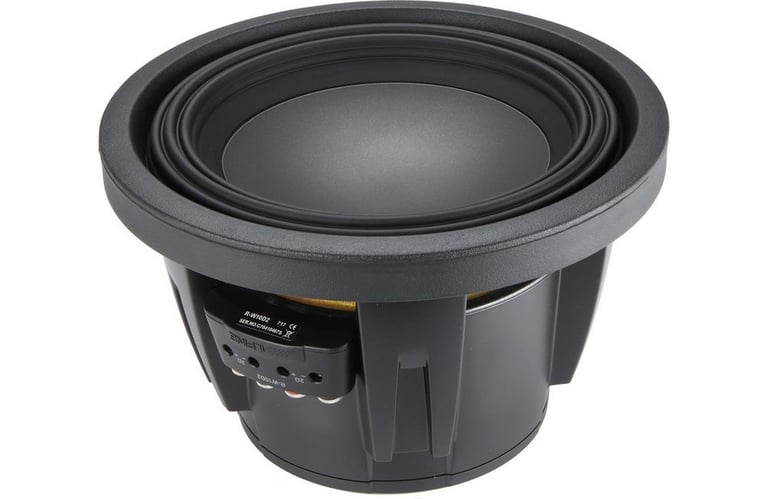

(2) Alpine R-W10D2 Subwoofers with Free Enclosure

2250W Max (750W RMS) 10" R-Series Dual 2-Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 2250W Max
• 750W RMS
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Cast aluminum frame with integral shorting sleeve
• Polypropylene, mica and talc dust cap
• 111 oz. Strontium ferrite segmented magnet

Learn more about the rw10d2x2_mdfd10

We apologize

This item has been discontinued


Loading...
H46 main

Cerwin-Vega H46

300W Peak (100W RMS) 4x6" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$79.99

List price $95.99

T46 main

Earthquake Sound T46

600W Peak 4x6” TNT Series 2-Way Coaxial 4-ohm Car Speakers

1
-19.20%

$79.99

List price $99.00

Limited time!
THUNDER46 main

MTX Audio THUNDER46

160W Peak (80W RMS) 4x6" Thunder Series 2 Way Coaxial 4-ohm Speakers

-20.00%

$79.96

List price $99.95

Limited time!
46CSC464 main

Kicker CSC46 (46CSC464)

300W Peak (100W RMS) 4x6” CS Series 2 Way Coaxial 4-ohm Speakers

15
-29.45%

$59.96

List price $84.99

Limited time!
KFC-4675C main

Kenwood KFC-4675C

120W Peak (40W RMS) 4x6" 2 Way Coaxial 4-ohm Car Speakers

16
-39.84%

$77.00

List price $128.00

NSP46 main

NVX NSP46

300W Peak (100W RMS) 4x6" N-Series 2 Way Coaxial Car Speakers

34
-16.67%

$49.99

List price $59.99

Stage3 6427 main

JBL Stage3 6427 (STAGE36427AM)

350W Peak (70W RMS) 4x6” Stage3 Series 2-way 3-ohm Coaxial Car Speakers

1
-18.19%

$89.95

List price $109.95

DB462 main

Polk Audio DB462 (DB 462)

300W Peak (100W RMS) 4x6” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

7
-9.99%

$90.00

List price $99.99

P1462 main

Rockford Fosgate Punch P1 P1462

140W Peak (70W RMS) 4x6” Punch Series 2 Way Coaxial 4-ohm Speakers

37
43DSC460 main

Kicker DSC460 (43DSC4604)

240W Peak (60W RMS) 4x6" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC4604)

8
-13.34%

$64.99

List price $74.99

Description


Alpine brand icon

Authorized dealer

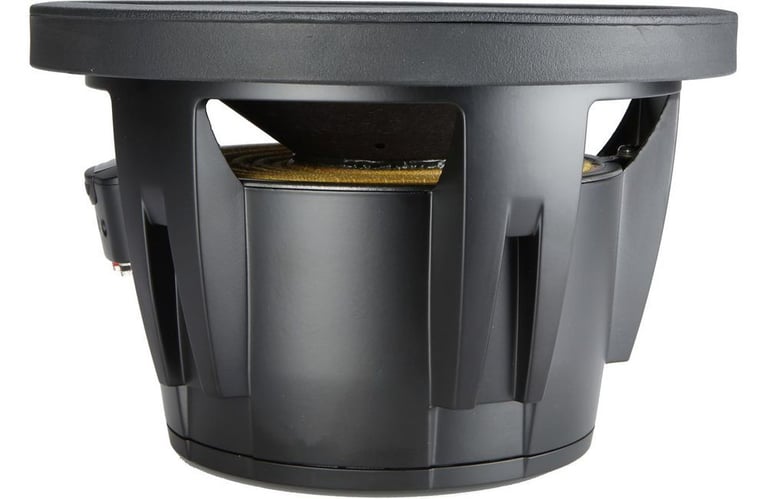

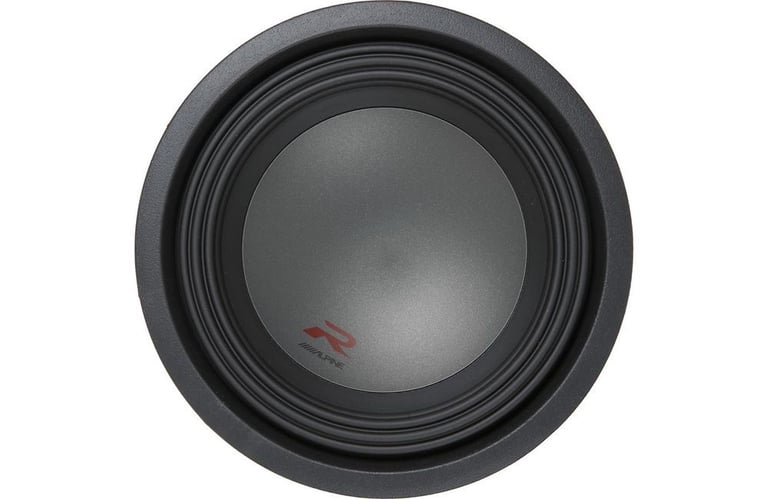

Alpine R-W10D2

2250W Max (750W RMS) 10" R-Series Dual 2-Ohm Car Subwoofer
Quantity: 2

General Features:

  • 10" Dual 2 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Sealed Enclosure Volume: 0.4 - 0.85 ft.3
  • Vented Enclosure Volume: 0.75 - 1.3 ft.3
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve

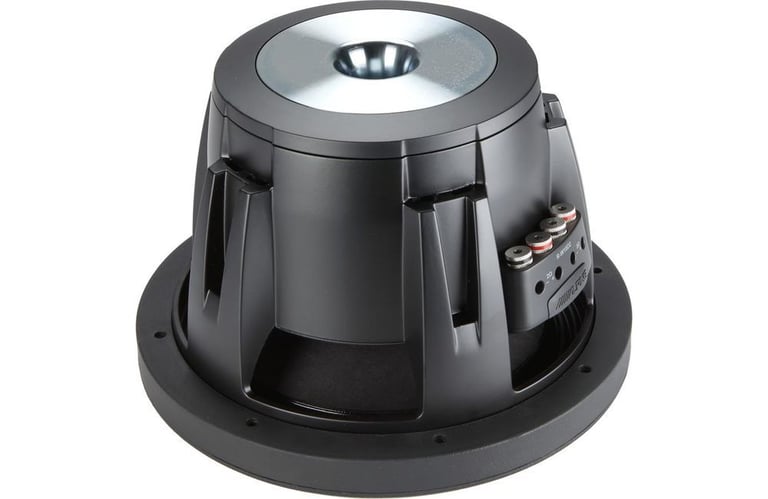

  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 111 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 5-7/8"
  • Cutout diameter: 9-1/16"
  • Frequency Response: 26 - 200Hz
  • Sensitivity: 82.4dB
  • Resonance Frequency (Fs): 30Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually



PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

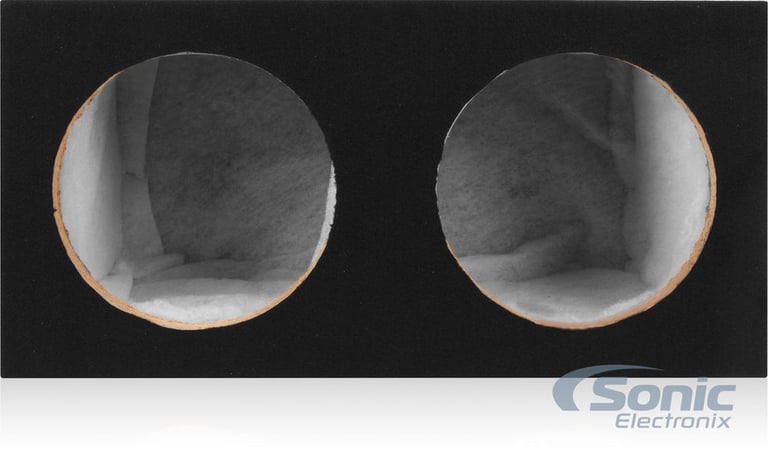

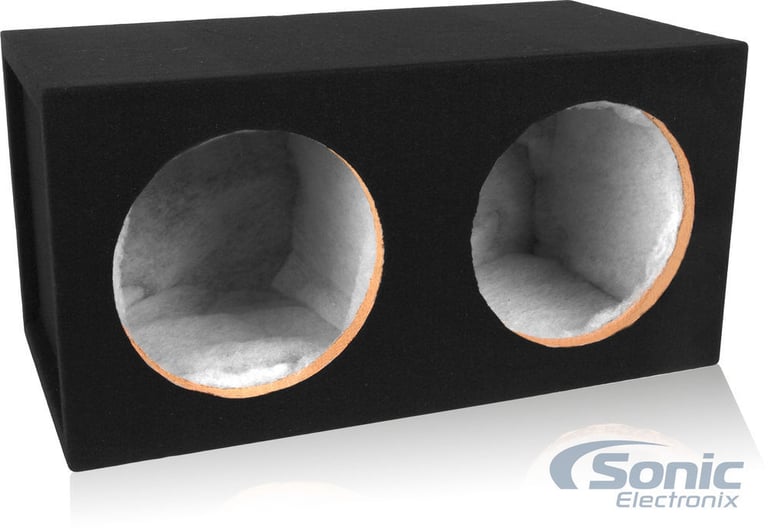

Dual 10" 3/4 MDF Sealed Subwoofer Enclosure (Belva MDFD10)

Dual 10-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.6 cu ft Airspace - 10SQB)
Quantity: 1

General Features:

  • Dual Sealed 10" Enclosure
  • Internal box volume: 1.6 cubic ft. total air space - 0.8 cubic ft. per chamber
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • 2 Separate chambers allowing each subwoofer its own air space

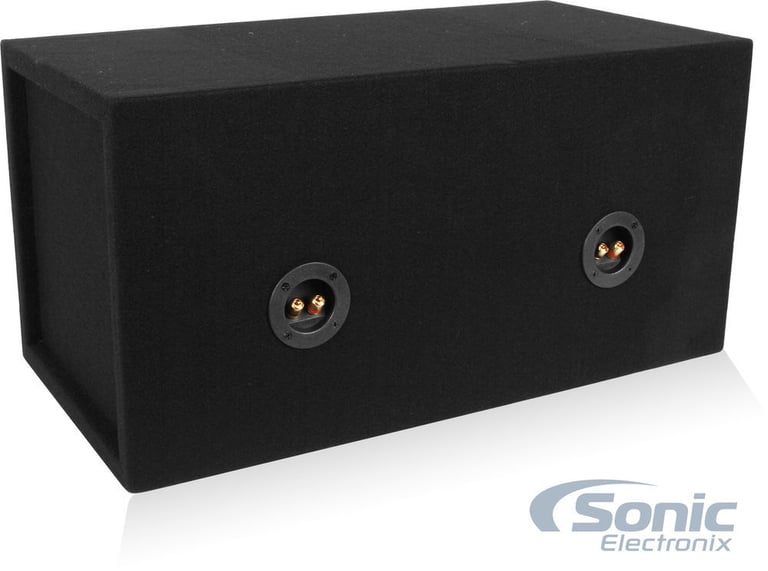

  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 25"L x 12-1/2"D x 12-1/2"H
  • 30 Day return policy

Subwoofer Wiring Guide


Wiring Guide to Wire 1 (2) Alpine R-W10D2 Subwoofers with Free Enclosure Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 (2) Alpine R-W10D2 Subwoofers with Free Enclosure Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 (2) Alpine R-W10D2 Subwoofers with Free Enclosure Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 (2) Alpine R-W10D2 Subwoofers with Free Enclosure Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
10"
Peak Power Handling
2250 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.6"
Frequency Response
26 - 200 Hz
Sensitivity
82.4 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.58 cubic feet
Optimum Ported Box Volume
1.3 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
21 liters
Total Speaker Q Value (Qts)
.47
Electrical Q Value (Qes)
.5
Electrical Resistance of Voice Coil (Re)
1.9 ohm
Mechanical Q Value (Qms)
8.03
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

(2) R-W10D2,MDFD10

Weight:

50.00lbs

Internal SKU:

rw10d2x2_mdfd10

Internal Product ID:

177701
