Name: JL Audio JD400/4 - New (Damaged Packaging, Product A+)
Brand: JL Audio
SKU: jd4004_obc
Price: 284.99 USD
Availability: Discontinued
Rating: 4.8824 (34 reviews)

Shop all JL Audio

by JL Audio

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

JL Audio JD400/4 - New (Damaged Packaging, Product A+) Image 1 — JL Audio JD400/4 - New (Damaged Packaging, Product A+)

JL Audio JD400/4 - New (Damaged Packaging, Product A+) Image 2 — JL Audio JD400/4 - New (Damaged Packaging, Product A+)

JL Audio JD400/4 - New (Damaged Packaging, Product A+) Image 3 — JL Audio JD400/4 - New (Damaged Packaging, Product A+)

JL Audio JD400/4 - New (Damaged Packaging, Product A+) Image 4 — JL Audio JD400/4 - New (Damaged Packaging, Product A+)

JL Audio JD400/4 - New (Damaged Packaging, Product A+) Image 5 — JL Audio JD400/4 - New (Damaged Packaging, Product A+)

Product highlights

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel-Channel Amplifier

Learn more about the jd4004_obc

Description

Authorized dealer

Item Condition - New, Damaged Packaging:

The product is brand new with only the packaging not being in perfect condition. This occurs sometimes because our warehouse teared the box or it was slightly damaged during shipment to our warehouse.

Product Details:

JD Series Class D 2 ohm Stable 4-Channel-Channel Amplifier
RMS Power Rating:

4 ohm: 75 watts x 4 channel
2 ohm: 100 watts x 4 channel
Bridged, 4 ohm: 200 watts x 2 channel

Total power output: 400 watts
3-way protection circuitry (thermal, overload, and speaker short protection)

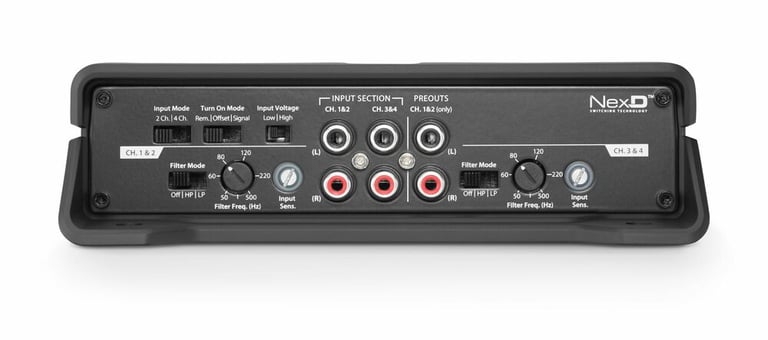

Turn-on Mode Switch: remote, offset, and signal turn-on options
Input Mode Switch: allows the amp to be used in a 2-channel or 4-channel configuration
Input sensitivity:

Low level: 200mV - 2 volts
High level: 800mV - 8 volts

Frequency Response: 12 - 22000 Hz
Total Harmonic Distortion (THD): >1%
Signal to Noise Ratio: 104 dB
Variable high-pass filter: 50 - 500 Hz, 24 dB/octave
Variable low-pass filter: 50 - 500 Hz, 24 dB/octave
4 AWG gauge power and ground wiring is recommended for installation.
Dimensions: 9-7/8" W x 7-1/2" L x 2-1/8" H
Authorized Internet Dealer
1 Year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

100 watts x 4 channel

Bridged RMS Power

200 watts x 2 channel

Amplifier Specifications

Series

JD Series

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

400 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Frequency Response

12 - 22000 Hz

THD at Rated RMS Power

>1%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Signal-to-Noise Ratio

104 dB

Remote bass/level controller

Strappable

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Hi-Res Certified

Low-Level Input Sensitivity

200mV - 2 volts

High-Level Input Sensitivity

800mV - 8 volts

What is in the box?

Paperwork

User manual
Warranty/Registration card

WITB: Amplifiers

Amplifier
Mounting screws (4)
Washers (4)
Allen wrench

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

JL Audio JD400/4 - New (Damaged Packaging, Product A+) thumbnail image

Overall rating distribution

5 star		94%
4 star		0%
3 star		6%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.9
Value		4.9
Features		4.9
Design		4.9
Usability		5

Customer Photos & Videos

Customer Reviews

Sort by:

Installed on 2 cars 1994 Miata and 2005 Scion XB

The following review is for JD400/4, which is a part of the bundle you are viewing.

I installed both amp in both cars and the installation was very easy do to great electrical connectors both cars sound is very good using Pioneer double din touch screen head unit. Sound is very clean and has plenty of power both Amos was installed in the back 94 Miata in the trunk and on the 05 Scion XB also in t h e back. I love the quality of the J&L amps would buy again.

By Marco on March 11, 2023 Checkmark Icon

Verified purchase

90 found this helpful

Report abuse

Amazing sound!

The following review is for JD400/4, which is a part of the bundle you are viewing.

This amp is phenominal. I am blown away with how well it performs. I believe in name brands when it comes to sound, and J/L hit the nail on the head with this one. I am running two subs bridged in two channel mode and it has a punch. QUALITY like this is meant to be heared. I wonder how great it would sound on my 6x9's. Makes me wish i still had my jl1000/1 to pair it with. Thanks sonicelectronics! You made my day.

By Ethan on August 7, 2021 Checkmark Icon

Verified purchase

51 found this helpful

Report abuse

You cannot go wrong with this one.

The following review is for JD400/4, which is a part of the bundle you are viewing.

I had been driving around in my Tundra for 3 years with the stock system. Friend picked my up one day with a proper system installed and I started researching parts the next day. Ended up completely stripping the interior out and upgraded from front to back.
Kenwood DDX9907XR HU, Focal Focal ES 165K components up front, JL coaxes in the rear, JL Audio CS112LG-TW3 Sub powered by a JD500/1 and this amazing little JD400/4 pushing the components and rear fill.
To say I am impressed by this amp is an understatement. JL made setting the gain idiotproof and this will play as loud and clear as my 51 Y/O ears can handle.
Cannot recommend enough.

By Ken on March 3, 2022 Checkmark Icon

Verified purchase

49 found this helpful

Report abuse

Awesome Service

The following review is for JD400/4, which is a part of the bundle you are viewing.

Was able to order a rush order and this amp in a breeze... Travis was so friendly and helpful, will highly recommend Sonic Electronix.

By Cody on August 23, 2020

47 found this helpful

Report abuse

JL Audio JD400/4

The following review is for JD400/4, which is a part of the bundle you are viewing.

Clear sound, very pleased.. Easy install, instructions need to be worked on a little..

By Barton on August 10, 2020 Checkmark Icon

Verified purchase

46 found this helpful

Report abuse

Unbelievable!!!!!!

The following review is for JD400/4, which is a part of the bundle you are viewing.

JL Audio has always been an awesome brand and even better when you can get it at a great price!!! Thank you Sonic Electronix!!!!

By Eddie on October 6, 2022 Checkmark Icon

Verified purchase

45 found this helpful

Report abuse

Very happy!

The following review is for JD400/4, which is a part of the bundle you are viewing.

Paired with my JL C2 650's, this thing rocks! Super easy to install and delivers that JL quality that you know you're always gonna get. For the price, you can't beat this baby!

By Pico on May 23, 2022

45 found this helpful

Report abuse

Looks and Feels Awesome!

The following review is for JD400/4, which is a part of the bundle you are viewing.

Have not installed this amplifier yet, but based on JL's reputation for quality and the look and feel of this amplifier I know it will perform well.

By Roberto on August 3, 2020 Checkmark Icon

Verified purchase

48 found this helpful

Report abuse

Nice amp.

The following review is for JD400/4, which is a part of the bundle you are viewing.

Wow! I'm amazed at how this amp got highs & mids sounding crispy and very detailed. I highly recommend this 4 channel amplifier to anyone who looking for one. And the price is very reasonable as well. Two thumbs!!

By Anthony on May 2, 2022 Checkmark Icon

Verified purchase

44 found this helpful

Report abuse

Immediate Upgrade!

The following review is for JD400/4, which is a part of the bundle you are viewing.

Buy, buy, buy! You get what you pay for. All 400/4 amps are not the same. JL for the win.

By Reyze on May 14, 2023 Checkmark Icon

Verified purchase

43 found this helpful

Report abuse

See all 34 reviews
