Name: Planet Audio MB300.4D
Brand: Planet Audio
SKU: mb3004d
Price: 119.99 USD
Availability: Discontinued

by Planet Audio

About
Specs & Details
Reviews
Add-ons
Similar Products
Related Searches

Product highlights

• Full Range 4-Channel Amp
• Speaker Level Inputs
• Variable High/Low Pass Filters
• Illuminated End Panel Strips

Learn more about the mb3004d

Description

Authorized dealer

General Features:

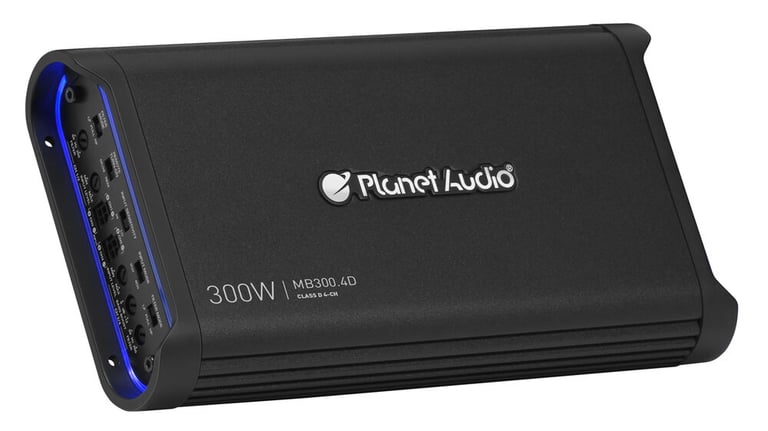

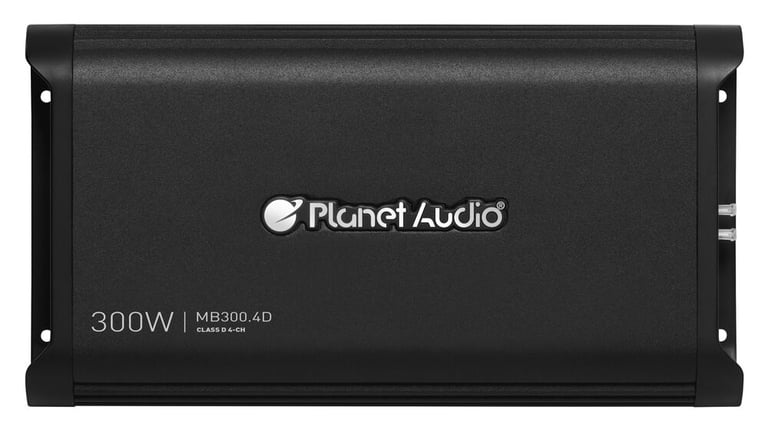

Planet Audio MINI BANG MB300.4D
Class-D Full Range 2-Ohm Stable 4-Channel Amplifier
RMS Power Rating:

4 ohms: 29 watts x 4 chan.
2 ohms: 56 watts x 4 chan.
Bridged, 4 ohms: 113 watts x 2 chan.

Total power output: 300 watts
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Illuminated End Panel Strips
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Frequency Response: 9 - 50 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: 103 dB

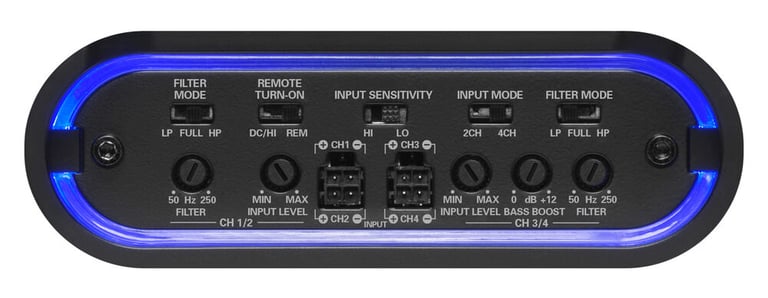

Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
Fuse Rating: 20 A x 2
Dimensions: 5.12"W x 9.5"L x 1.71"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Check out the Planet Audio MB300.4D Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

29 watts x 4 channel

RMS Power @ 2 ohms

56 watts x 4 channel

Bridged RMS Power

113 watts x 2 channel

Amplifier Specifications

Series

MINI BANG Series

Amplifier Class

Number of Channels

4-Channel

Total Peak Power Output

300 watts

Total RMS Power Output

150 watts

Maximum Input Gauge Size

2 AWG

Minimum Impedance Unbridged

4 ohms

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1%

Speaker Level Inputs

Yes - with included adapter

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

103 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

20A x 2

Total Fuse Rating

Strappable

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Hi-Res Certified

What is in the box?

Paperwork

User manual
Warranty/Registration card

WITB: Amplifiers

Amplifier

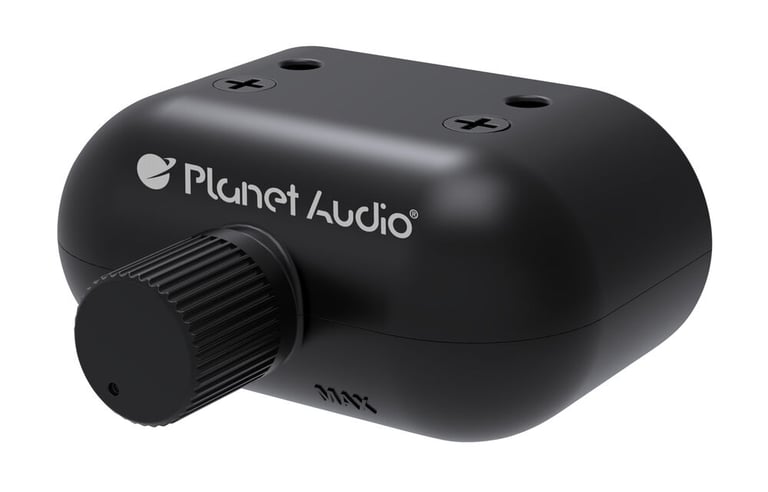

Wired gain knob (wire attached)
Mounting screws (4)
High-level input wiring harness w/ molex connector

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
