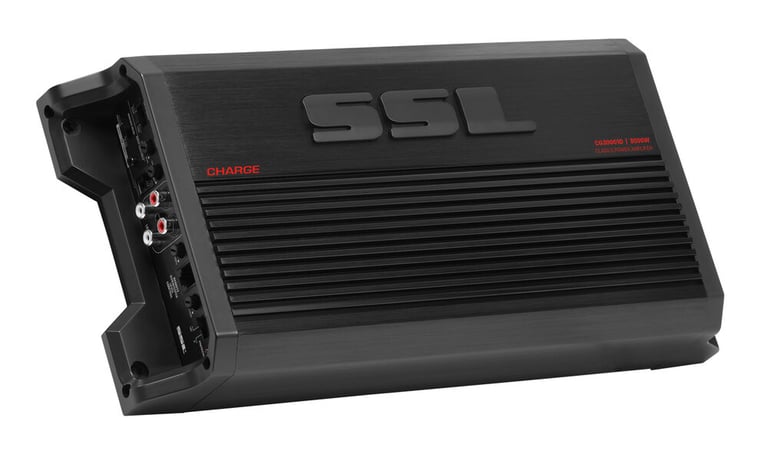

Sound Storm Labs (SSL) CG30001D

3000W Peak (2250W RMS) Charge Series Class-D Monoblock Amplifier with Bass Remote

highlight-star-icon

• 563 watts x 1 channel @ 4 ohms
• 1125 watts x 1 channel @ 2 ohms
• 2250 watts x 1 channel @ 1 ohm
• Total RMS Power: 2250 watts
• Class D 1 ohms Stable Monoblock Amplifier

Learn more about the cg30001d

We apologize

This item has been discontinued

Description


Sound Storm Labs (SSL) brand icon

Authorized dealer

Product Details:

  • Charge Series Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 563 watts x 1 channel
    • 2 ohms: 1125 watts x 1 channel
    • 1 ohm: 2250 watts x 1 channel
    • Strapped Bridged: 4500 watts x 1 channel @ 2 ohms
  • Peak Power Rating:
    • 2 ohms: 1500 watts x 1 channel
    • 1 ohm: 3000 watts x 1 channel
  • Total RMS power output: 2250 watts
  • LED Power/Protect Light

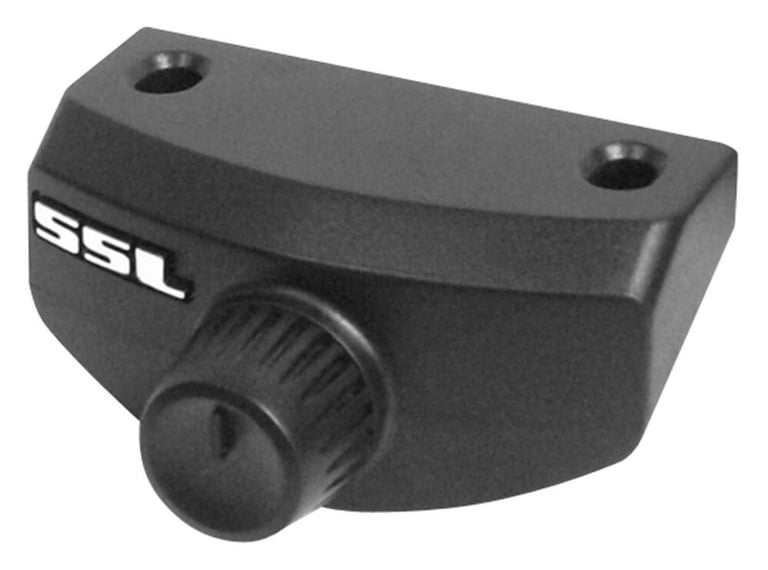

  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • MOSFET PWM (Pulse Width Modulated) Power supply
  • Soft turn-on circuit
  • Nickel plated RCA low level inputs
  • Nickel plated speaker and power terminals
  • Black anodized heatsink
  • DataLink circuitry
  • Switchable phase control: 0 to 180°
  • Input sensitivity:
    • Low level: 100mV - 2 volts
    • High level: 2V - 8 volts
  • Frequency Response: 15 - 250 Hz
  • Total Harmonic Distortion (THD): <0.01%
  • Signal to Noise Ratio: >100 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Subsonic filter: 15 - 40 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 70A
  • 1/0 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 13.7" L x 6.5" W x 2.52" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: CG30001D

Check out the Sound Storm Labs CG30001D Owner's Manual

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Speaker Level Inputs
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
563 watts x 1 channel
RMS Power @ 2 ohms
1125 watts x 1 channel
RMS Power @ 1 ohm
2250 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 2 ohms
1500 watts x 1 channel
Peak Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Series
Charge Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3000 watts
Total RMS Power Output
2250 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
2 ohms
Frequency Response
15 - 250 Hz
THD at Rated RMS Power
<0.01%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 2
Total Fuse Rating
70
Strappable
Yes
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
100mV - 2 volts
High-Level Input Sensitivity
2V - 8 volts
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Mounting screws (4)
High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CG30001D

Weight:

7.45lbs

Internal SKU:

cg30001d

Internal Product ID:

179773
