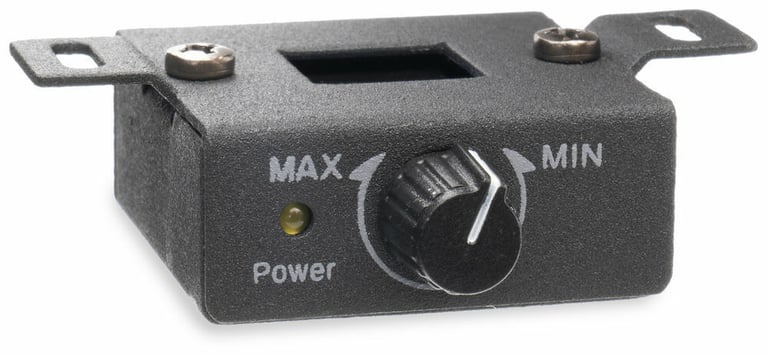

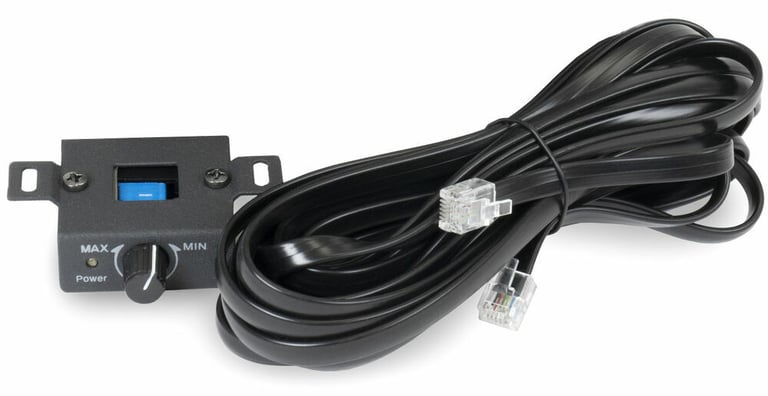

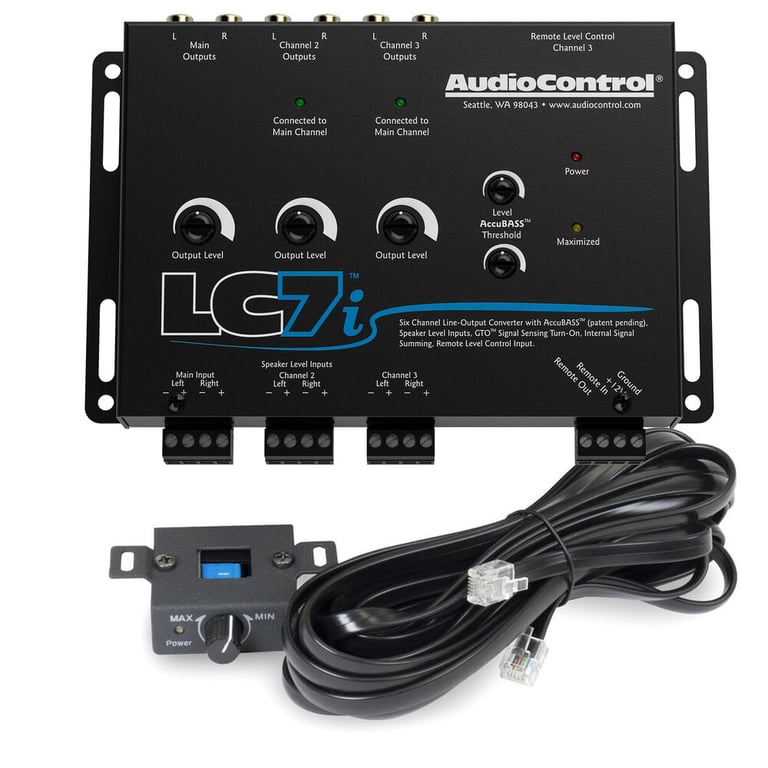

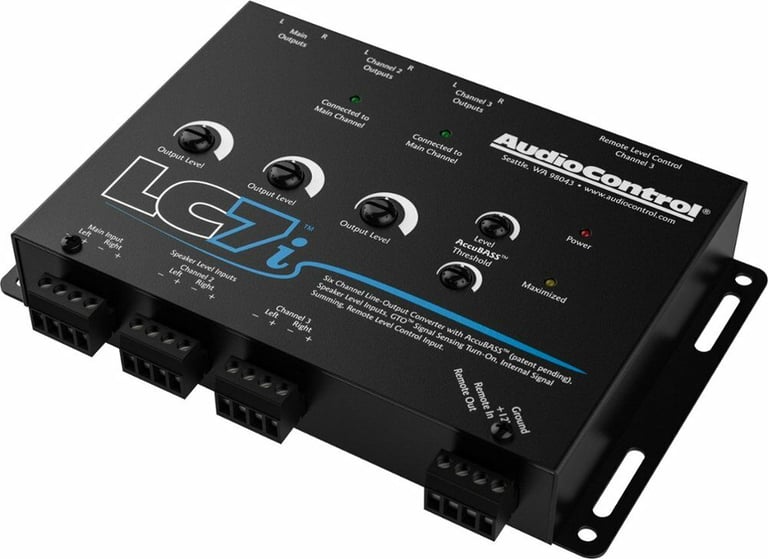

AudioControl LC7i - Black + Free NVX Complete Bass Knob

6-Channel LOC with AccuBASS + NVX XCR1

highlight-star-icon

• Six Channel Line Output Converter with AccuBASS
• Six Channels Of Active Speaker Level Inputs – Accepts Up To 400 Watts Per Channel
• AccuBASS Circuitry
• GTO Circuit – Powers Up The Lc7i When It Detects Signal On The Speaker Level Input

Learn more about the lc7i-black_xcr1

We apologize

This item has been discontinued

Description


AudioControl brand icon

Authorized dealer


For over two decades, AudioControl has been designing and manufacturing award-winning autosound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems. Nothing sounds better than an awesome recording played back on a kickbutt system. Unfortunately, the acoustics of your vehicle can take away from your systems performance. While AudioControl products do not change the laws of physics (although they act like they do), autosound enthusiasts have long known that AudioControl products "make good stereo sound better".

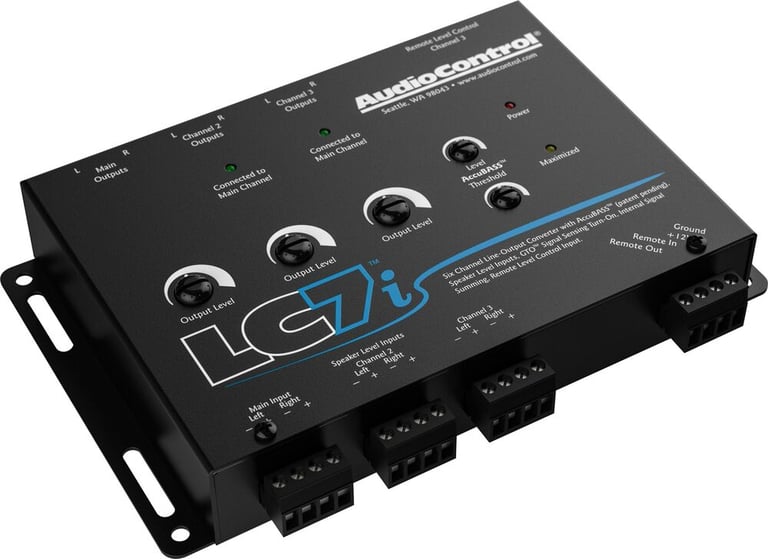

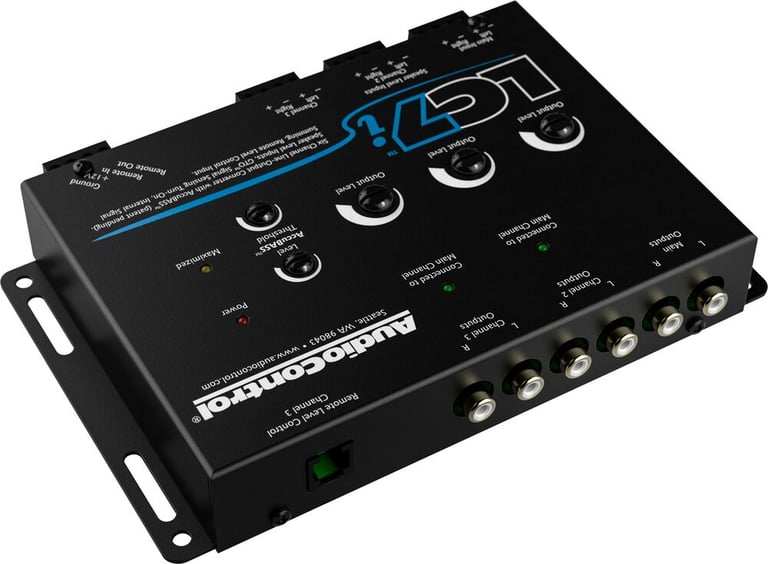

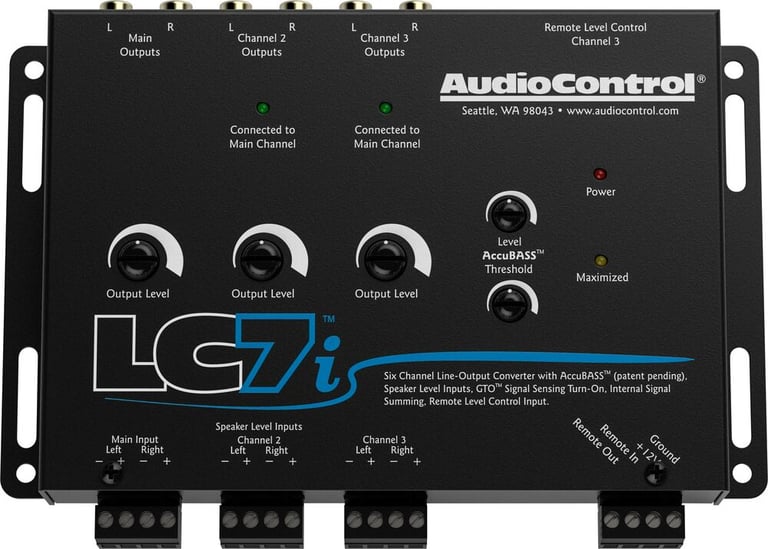

LC7i - 6 Channel Line Out Converter with Accubass™

The AudioControl LC7i, six channel active line converter, allows all music lovers, who want a great in-car audio experience, to keep their factory installed source unit and dramatically improve their system performance. The LC7i delivers amazing sound quality and fixes one of the biggest letdowns of today's factory systems, weak BASS!

Designed for maximum sound quality and enhanced audio performance, the LC7i is the latest AudioControl processor to incorporate AccuBASS™. This patent pending process automatically corrects for the bass roll-off that is common with many factory-installed audio systems and AudioControl's unique and exclusive AccuBASS™ patent pending circuitry maintains and restores the Bass as the volume is turned up, improving the audio performance.

The LC7i allows the flexibility of powering the audio signals downstream to single or multiple factory amps maximizing sound quality & achieving high output at a great price. In addition, the LC7i is designed to fit into a compact chassis allowing an easy & flexible factory system upgrade in today's space constrained vehicles. The ACR-1 dash remote (sold separately) allows the user to control the level of the low frequency output.

Key Features:

AccuBASS™ :

Most factory speaker systems are not capable of loud, clean bass reproduction, all in order to "protect" the OEM Speakers. This is why many car manufacturers restrict bass frequencies at higher volumes. AudioControl's AccuBASS™ Bass Compensation circuit corrects the roll off that occurs at high volume levels, delivering killer bass at all volumes! The AccuBASS circuit automatically engages at a preset volume level and reverses the factory bass roll-off to give you the music the way the artist intended it to be heard.

Internal Channel Summing:

The LC7i has the unique ability to internally sum together multiple (4 or 6) input channels from the factory source unit into 2 channels. This is particularly handy when using the LC7i with a factory system that has multiple, actively crossed-over signals being sent from the OEM source unit or amplifier(s). For example, in some vehicles there is an actively crossed-over tweeter, midrange, and woofer all in the front of the vehicle. The LC7i lets you take all of those signals and sum them together to get a high-quality, full-range, pre-amp signal without the use of any additional cables or hardware.

GTO™ Signal-Sensing Inputs:

Most factory-installed source units lack the features that make it easy to upgrade with really good-sounding, performance aftermarket products. One of those key features is a 12-volt trigger that will turn on devices like the LC7i and your external amplifiers. Therefore, we have equipped your LC6i with our unique GTO™ (Great Turn On) signal-sensing inputs. Once the GTO input of your LC7i detects a speaker-level signal on the Main Inputs, it powers up. When the speaker-level signal goes away, your LC6i will automatically turn-off. Optionally, your LC7i is also equipped with a standard 12-volt trigger (Remote In) that will allow you to turn on your LC7i in the traditional manner.

AutoMode Inputs:

Sometimes in life (and car audio) we need more outputs than inputs. Therefore we have equipped your LC6i with AutoMode inputs that take the Channel 2 signal and automatically feeds it to the Channel 3 outputs, provided there is no signal present on the Channel 3 inputs. This means your LC7i will accept two input channels and give you four output channels. Or it can accept four input channels and give you six output channels.

12-Volt Output Trigger:

Since you will be using an external amplifier(s) and processor in your system, you will need the ability to "trigger" or turn-on these devices (a romantic dinner won't quite work here). Your LC7i has a high-current 12-volt output (labeled Remote Out) that will provide a trigger to these remote devices, when the LC7i is powered up. Please note that this output is not to be used as the main power for these devices.





AudioControl
LC2i
AudioControl
LC6i
AudioControl
LC7i
AudioControl
LC8i
AudioControl
LCQ-1
AudioControl
DQ-61
Your
Price
$99.99 $149.99 $189.99 $249.99 $299.99 $399.99
Line Out Converter 2 Channel 6 Channel 6 Channel 8 Channel 6 Channel 6 Channel
High Level Inputs
GTO™
Channel Summing
AccuBASS™
Remote Included
Auxiliary Input
Equalizer
Signal Delay
Input Level Control


AudioControl LC7i - Black

6-Channel Line Out Converter with AccuBASS
Quantity: 1

General Features:

  • Six Input and Output Channels with AccuBASS
  • 6 Speaker Level Inputs - Can Accept 400 Watt Signals!
  • GTO (Great Turn-On) Circuit
  • Signal sensing inputs
  • Internal Channel Summing
  • AutoMode inputs
  • Level matching controls
  • 12 volt trigger output
  • Line Output Converter:
    • A device for converting a powered (or amplified) signal into a pre-amp line level (or non-powered) signal
  • Compact chassis allowing for ease of installation
  • Input for optional subwoofer level control: AudioControl ACR-1
  • Color: Black
  • Also available in Sierra White: AudioControl LC7I White
  • Weight: 3.0 lbs
  • Size: 7.50" W x 4.72" D x 1.22" H
  • Authorized Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

LC7i Specifications:

  • Maximum speaker-level input: 400 watts @ 4 ohms
  • Maximum output level: 8.5Vrms
  • Output gain: ±15 dB
  • Frequency response: 10Hz - 22,000 Hz
  • Total harmonic distortion: 0.01%
  • Input Impedance: 20 Kohms
  • Output Impedance: 150 ohms
  • Power supply: High headroom PWM switching
  • Power draw: 350mA
  • Recommended fuse rating: 2 Amp
  • Remote Trigger Ouput Current: 1 Amp

Check out the AudioControl LC7i Owner's Manual

Product history:

AudioControl LC7i Black, XCR1 thumbnail
(newest, current model)
AudioControl LC7i Gray thumbnail
(previous model, replaced by AudioControl LC7i - Black + Free NVX Complete Bass Knob)

Specifications & Details


Line Out Convertor Specifications
Number of Channels
6-Channel
Frequency Response
10 - 22,000 Hz
Speaker Level Input Wattage/Voltage
2400 watts
Preamp Output Voltage
8.5 volts
Line-Out Converter Features
Turn on Mode
DC Offset
Remote Wire
Ground Isolation Options
200 ohms
Ground
Selectable Impedance Load
20, 60, 20k ohms
Remote Turn On Output
Yes
Remote bass/level controller
Optional (Accessory required and sold separately)
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LC7i Black, XCR1

Weight:

2.94lbs

Internal SKU:

lc7i-black_xcr1

Internal Product ID:

181125

Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
5
Design
4.9
Usability
4.7

Customer Reviews

Sort by:

Loading...

Great product

The following review is for XCR1, which is a part of the bundle you are viewing.

Sometimes you might not want that much bass and the knob lets you control that super easy.

By Eric on June 7, 2020 Checkmark Icon Verified purchase

41

found this helpful.

Game changer

The following review is for XCR1, which is a part of the bundle you are viewing.

Bass control at your fingertips. Every song is different. I can control the bass so easily bringing this 9510 DD Sub to its full potential instantly. A must-have in any system.

By Jordan on March 21, 2020 Checkmark Icon Verified purchase

38

found this helpful.

AudioControl LC7i - Black

The following review is for LC7i Black, which is a part of the bundle you are viewing.

Made keeping my factory radio and adding an aftermarket amp install super easy. The accubass works like a charm. I used the 3rd set of output that has accubass on my front door 6x9 to give the a lil kick at low volume

By Anonymous on June 5, 2018

37

found this helpful.

Great product

The following review is for LC7i Black, which is a part of the bundle you are viewing.

I've added an amp to my factory Toyota deck. This LC7i made things easy and actually does help restore the bass you lose with many factory stereos. I'm very happy with this product. They offer a "bass knob" separately but I just used what came with my amp.

By Anonymous on September 9, 2019 Checkmark Icon Verified purchase

35

found this helpful.

AudioControl LC7i - Black

The following review is for LC7i Black, which is a part of the bundle you are viewing.

I recently upgraded to this unit from the LC6i because I needed the Accubass to restore the bass that the factory radio was attenuating at higher volume. It did exactly that and gave my subs the clean bass signal that they were meant to reproduce. The clarity and balance is amazing, coupled with the power of my amplifier my system is better than ever. If you must keep your factory system intact while adding power and aftermarket speakers and subs, this is the product to help you do it. Be sure to buy it from Sonic, I received mine as a gift someone bought from the Big Blue electronic store...I could have saved that person $70!

By Anonymous on July 6, 2018

33

found this helpful.

Works as it should

The following review is for XCR1, which is a part of the bundle you are viewing.

Good quality and works as it should thank you very much

By Chris on August 13, 2020

37

found this helpful.

The following review is for XCR1, which is a part of the bundle you are viewing.
By Harry on June 16, 2023 Checkmark Icon Verified purchase

30

found this helpful.

AudioControl LC7i

The following review is for LC7i Black, which is a part of the bundle you are viewing.

I highly recommend this product to anyone adding on to a factory headunit. You can definitely dial in your sound system and add RCA’s for your highs and bass.

By NIKOLAS on November 8, 2017 Checkmark Icon Verified purchase

31

found this helpful.

Works fine

The following review is for LC7i Black, which is a part of the bundle you are viewing.

Absolute must line driver for bass heads that have to keep stock radio.

By ASciv on July 17, 2022 Checkmark Icon Verified purchase

29

found this helpful.

The following review is for LC7i Black, which is a part of the bundle you are viewing.
By Anonymous Shopper on August 1, 2023

27

found this helpful.
