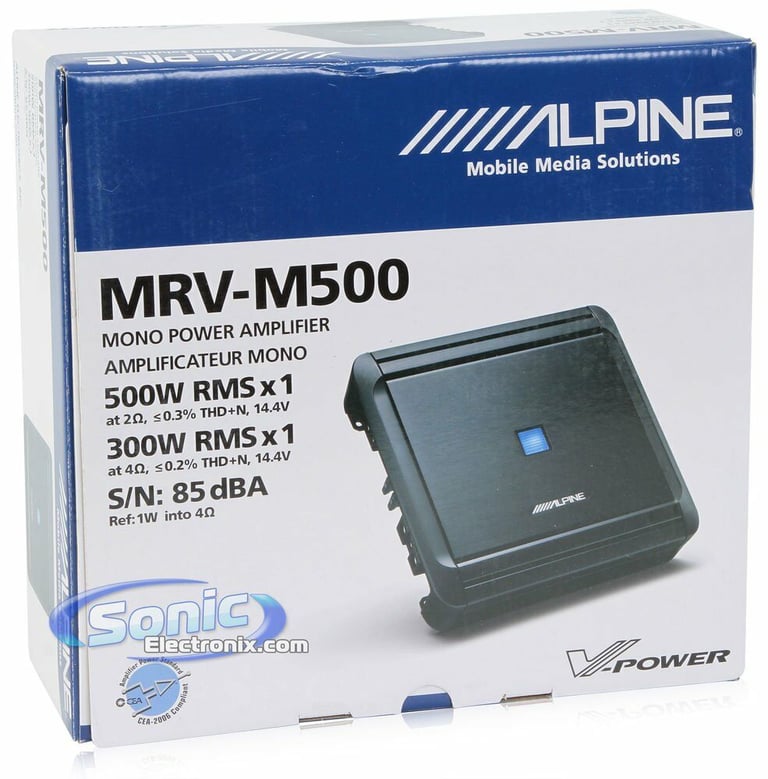

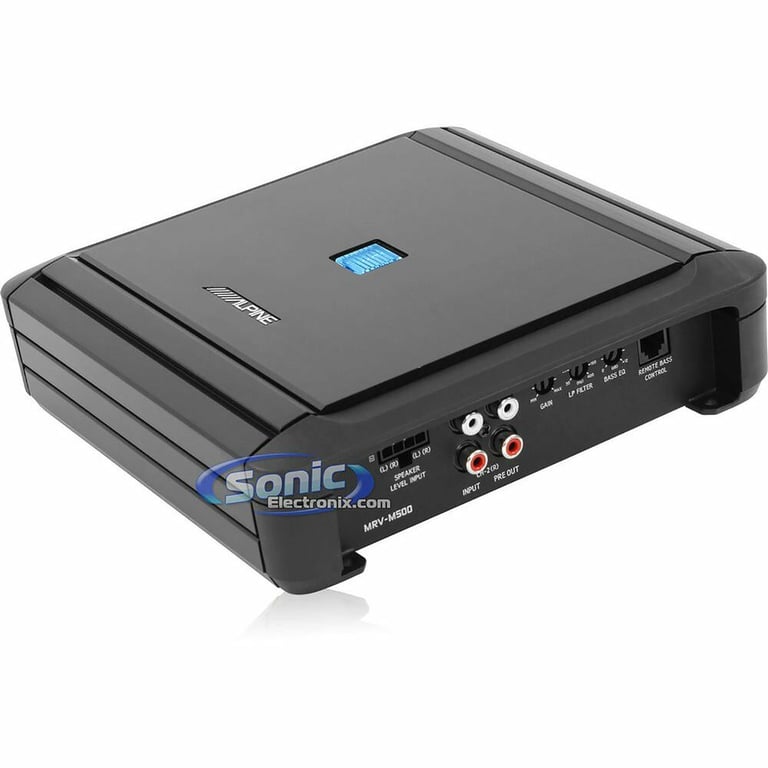

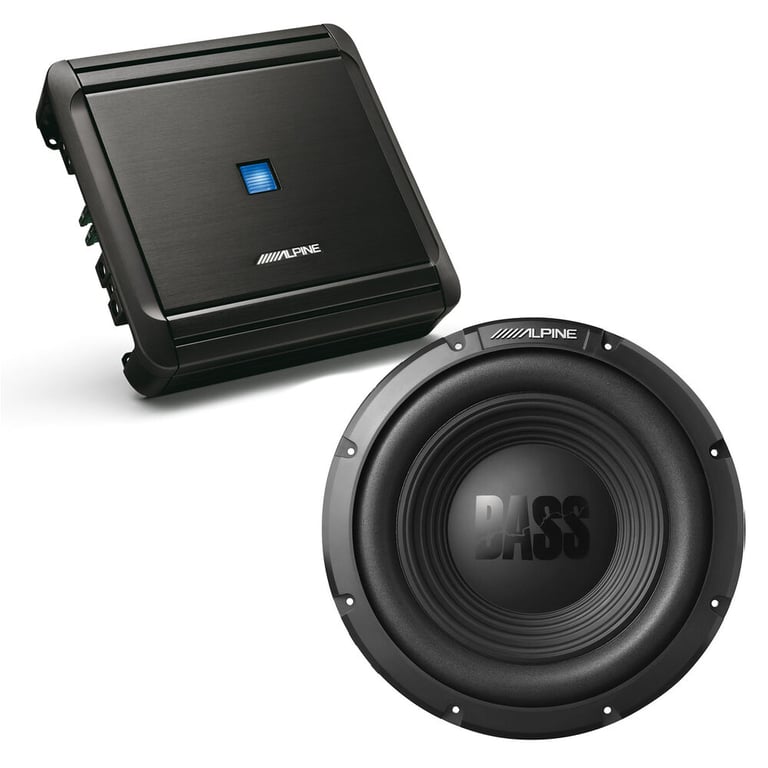

Alpine MRV-M500 + Alpine W12S4 Subwoofer + Amp Kit

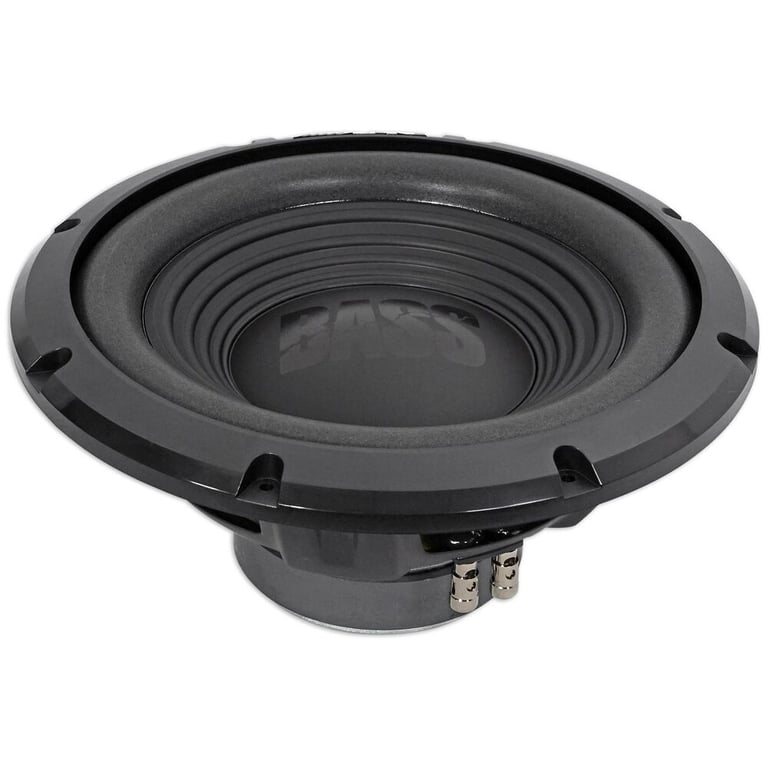

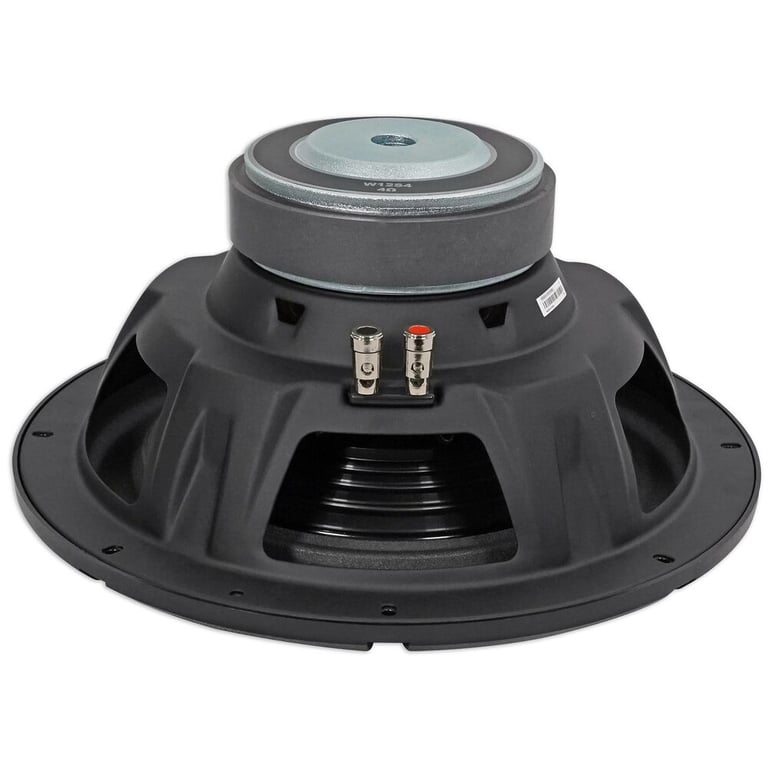

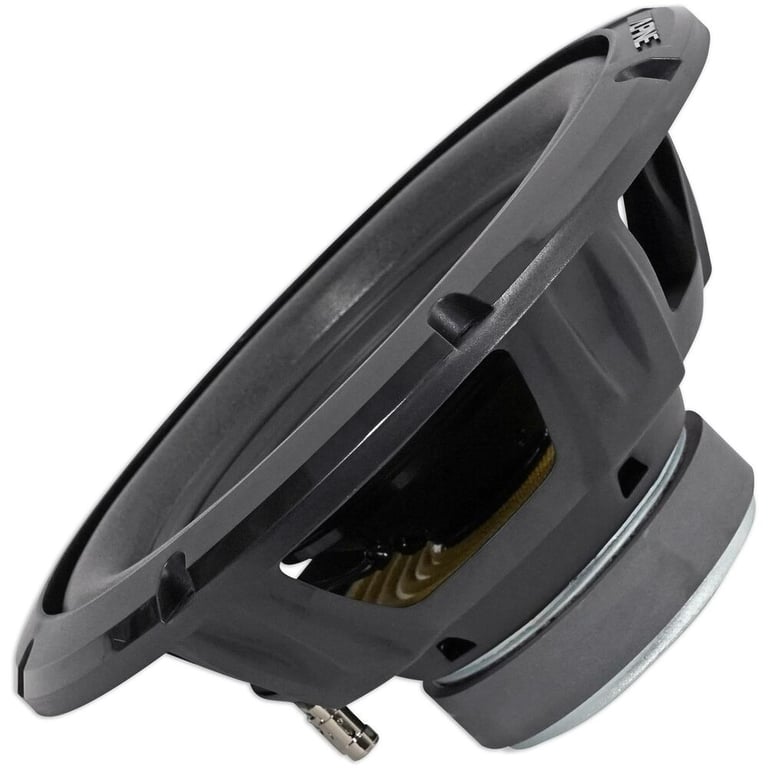

500W V-Power Series Class D Monoblock Digital Amplifier + 12" Single 4 Ohm Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• RMS: 300W x 1 @ 4 ohms, 500W x 1 @ 2 ohms
• Total Peak Power: 500W
• CEA-2006 Compliant Amplifier
• 4-Channel Speaker-Level Inputs
• Heavy Duty Aluminum Alloy Heat-Sink
• Dimensions: 7-7/8"W x 7-7/8"L x 2-3/16"H

Learn more about the mrvm500_w12s4

We apologize

This item has been discontinued

Description


Alpine

Authorized dealer

General Features:

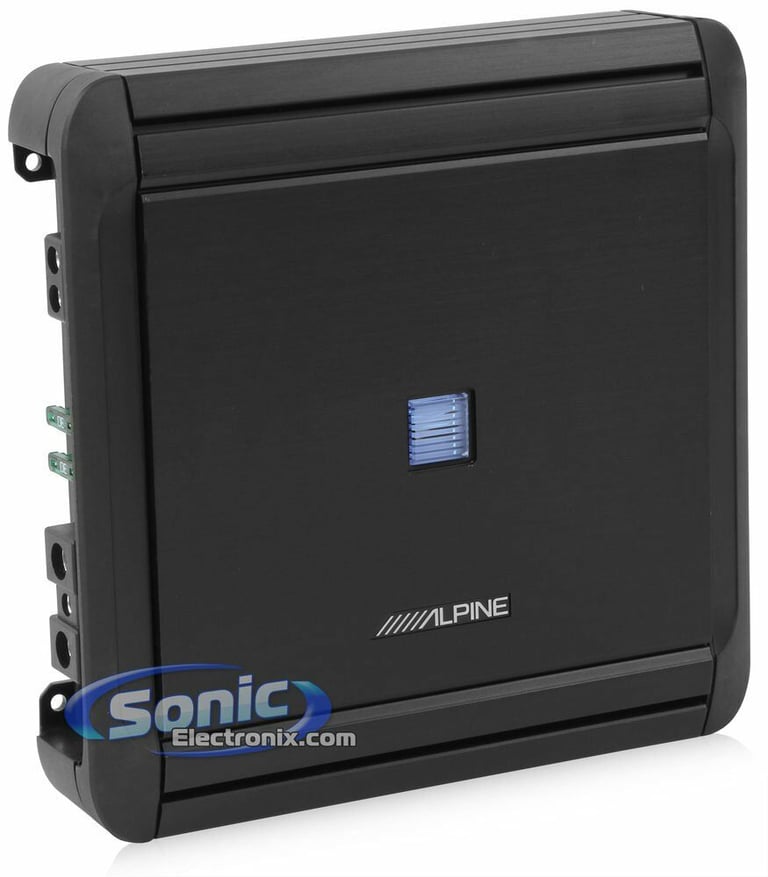

  • V-Power Series Class D Monoblock Digital Amplifier
  • RMS Power Rating:
    • 4 ohms: 300 watts x 1 chan.
    • 2 ohms: 500 watts x 1 chan.
  • Max power output: 500 watts x 1 chan.

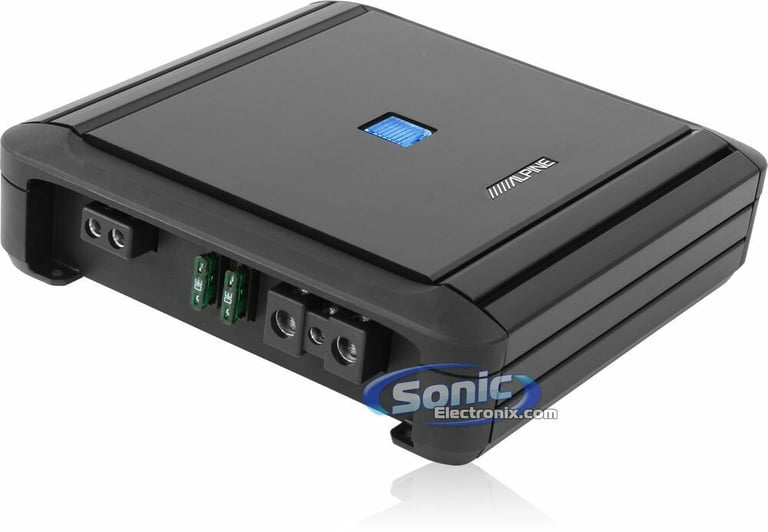

  • Integrated wire and mounting screw terminals
  • S.T.A.R. circuitry
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Optional Alpine RUX-KNOB.2 remote bass knob available
  • Soft start turn-on
  • 4 or 2 channel operation

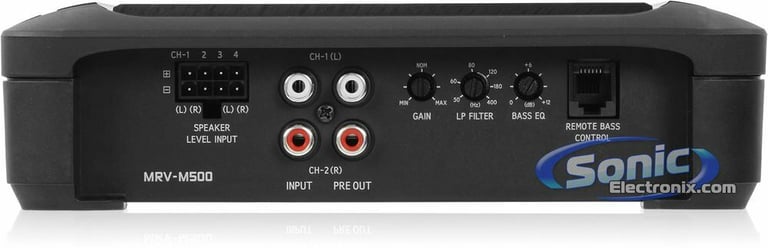

  • 4-channel speaker-level inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: 0.4V - 10V
  • Non-fading pre-amp output
  • Variable low-pass filter (50-400 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7-7/8"W x 7-7/8"L x 2-3/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Alpine MRV-M500, W12S4 thumbnail
(newest, current model)
Alpine MRP-M500 thumbnail
(previous model, replaced by Alpine MRV-M500 + Alpine W12S4 Subwoofer + Amp Kit)
Alpine MRP-M650 thumbnail
(previous model, replaced by Alpine MRP-M500)

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Series
V Power Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
500 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
.2%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 400 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
One spare fuse

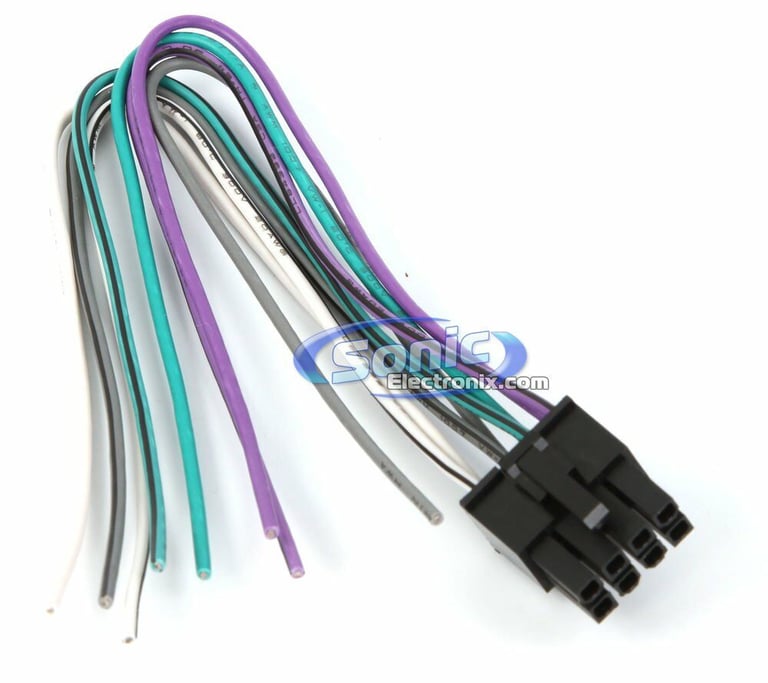

High-level input wiring harness w/ molex connector
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MRV-M500, W12S4

Weight:

18.67lbs

Internal SKU:

mrvm500_w12s4

Internal Product ID:

181187
