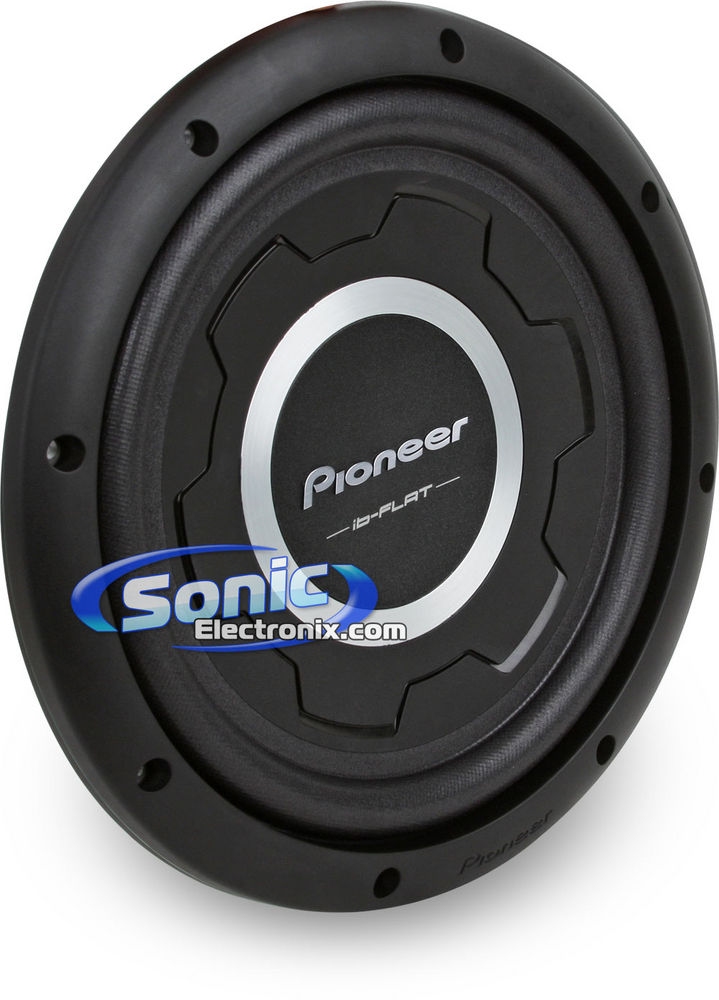

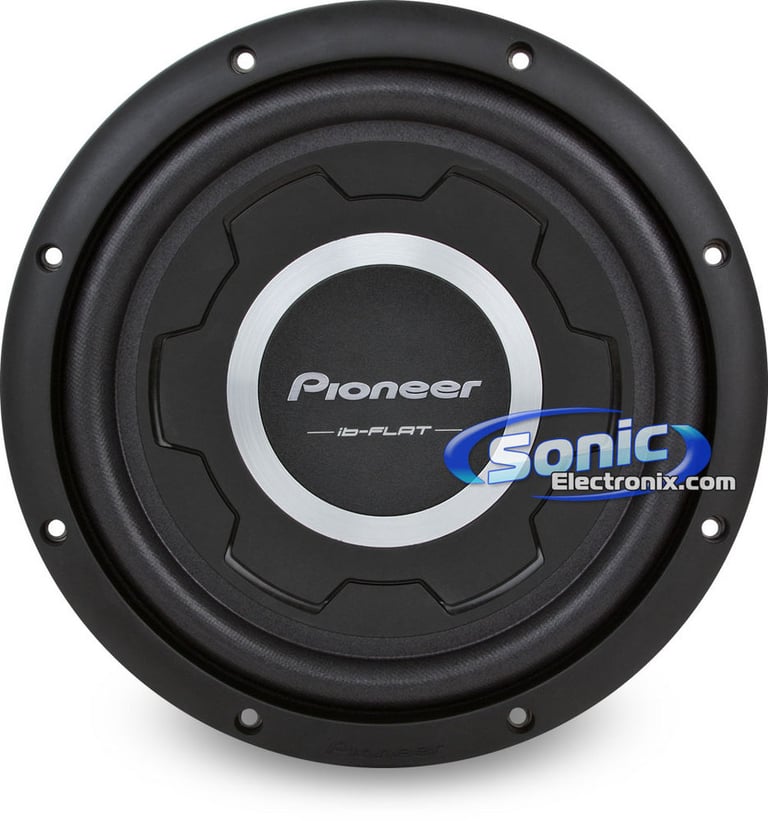

Pioneer TS-SW3001S4 12" Shallow-Mount 1500W Car Subwoofer

Pioneer TS-SW3001S4

400W 12" Shallow-Mount Series Single 4 ohm Subwoofer

400W 12" Shallow-Mount Series Single 4 ohm Subwoofer

• 1500W Peak
• 400W RMS
• Double Woofer Cone design with Air Suspension Control System
• Cast Aluminum Basket with Fin-Shaped Design
• Projected Pole Yoke

We apologize

This item has been discontinued

DESCRIPTION
Pioneer

Authorized dealer

  • 12" Single 4 Ohm Shallow Mount Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 400 watts
  • Impedance: Single 4 Ohm
  • Double woofer cone design
  • Air suspension control system
  • Interlaced Basalt/Carbon fiber reinforced IMPP woofer cone
  • 3-Layer fiber woven radial woofer surround with m-shape cross-section
  • Cast aluminum basket with fin-shaped design
  • Phenol resin coated glass cloth voice coil bobbin

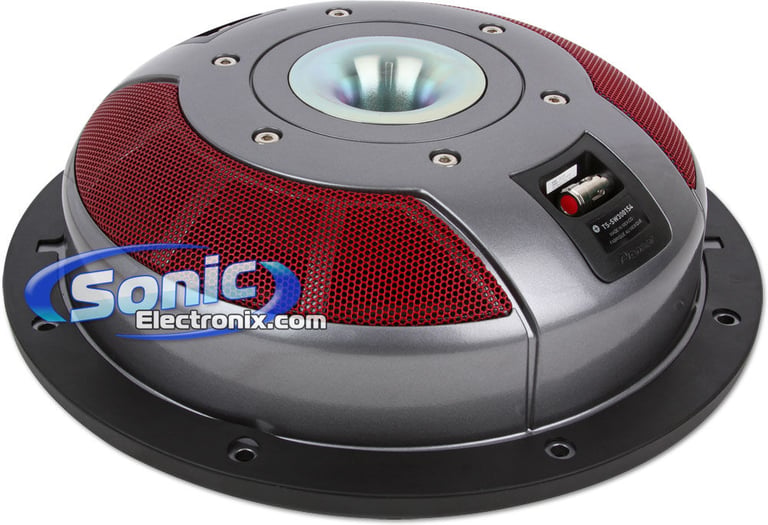

  • Projected pole yoke with vented pole
  • 6 Layer aluminum voice coil
  • Strontium magnet construction
  • Silver spring compression wire terminals
  • Frequency response: 20-230 Hz
  • Sensitivity: 93 dB
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-SW3001S4 thumbnail
(newest, current model)
Pioneer TS-SW301 thumbnail
(previous model, replaced by Pioneer TS-SW3001S4)
FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
Shallow Mount (Pioneer)
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohms
Voice Coil Diameter
Frequency Response
20 - 230 Hz
Sensitivity
93 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Interlaced Carbon-Glass Fiber Composite - IMPP
Woofer Surround
Fiber Woven Radial
Magnet Structure
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Optimum Sealed Box Volume
Maximum Sealed Box Volume
1.0 cubic feet
Optimum Ported Box Volume
Top-Mount Depth
3-1/4"
Cutout Diameter
10-1/8"

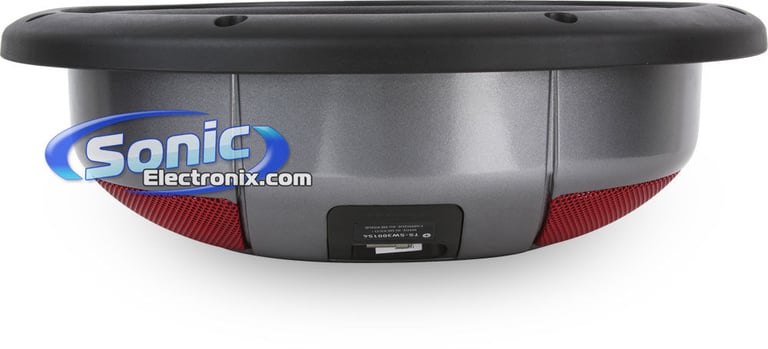

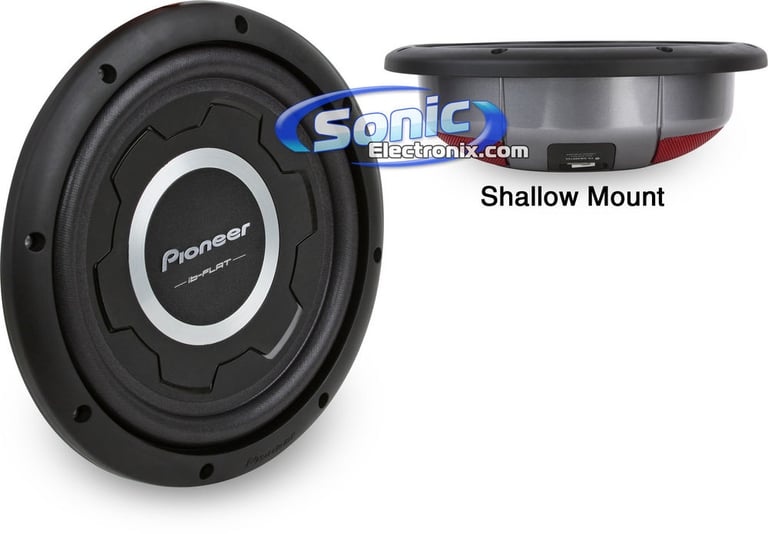

Shallow Mount Installation
Yes
Electromechanical Parameters
Free-Air Resonance (Fs)
Equivalent Compliance (Vas)
Total Speaker Q Value (Qts)
Electrical Q Value (Qes)
Electrical Resistance of Voice Coil (Re)
Mechanical Q Value (Qms)
Efficiency Bandwidth Product (EBP)
What is in the box?
WITB: Subwoofers
Paperwork
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
VIDEOS AND HOW - TO
REVIEWS
Pioneer TS-SW3001S4

Pioneer TS-SW3001S4

4.8

(25)

Write a review

Overall rating distribution

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
4.7
Value
4.8
Features
4.7
Design
4.9
Usability
4.9

Bigjflow

February 24, 2014

Great woofers good bass

Bought these to replace mb quartz woofers night and day difference good bass for shallows.

24

found this helpful.

Joey

June 11, 2012

Watch Recommended Wattage

I am on my second one of these subs. It sounds great in my box which is .95 cu ft before speaker displacement. However I do recommend you don't over power these at all. I have a Kenwood KAC-9152 powering these subs which puts out 500 watts rms at 4 ohm. I have to keep the amp turned down a little. I tried pushing the 500 watts to the first one and fried it. I backed the amp down to around 350 rms (based on oscilloscope and volt meter readings) and that seems to be the sweet spot. Overall a good sub for the money. The next best sub in this category costs significantly more, so this is a good bang for your buck option if properly powered.

24

found this helpful.

hudeyu8888

January 26, 2014

very good saler

This is a good saler. good quality,ship fery fast, package is very safe

22

found this helpful.

Bobby

December 27, 2013

Subwoofer is perfect for smaller boxes.

I have a Ford F150 supercrew, and needed a smaller enclosure. I got this sub and push 450 watts RMS to it. Turns out its tight loud bass. Everyone who likes music that has heard it wants a sub in their car now. I will say the cutout diameter is about 1/4" bigger then they specify. If you need a shallow sub that can hit hard this is good. I have it pushing the lows from 100 hz and under.

23

found this helpful.

David

September 17, 2013

great bang for the buck!!

Put four of the pioneer IB flat 12" subs behind the back seat of my mega cab on a Hifonics Zeus 1.500x1 and they sound great! Need a bigger amp now!

23

found this helpful.

aarontur

February 9, 2012

they hit hard

Installed 3 of these behind the back seat of a 03 f150 crewcab. They actually hit really close to what a convetional sub will hit. Paired to a boss PH3000D, wired to 1.34 ohms. I think they're getting about 1000-1200 rms. I've only owned for a couple weeks so i cant speak for durability yet. If you have limited space, i would go with these. Just make sure your box is built to Pioneer air specs.

22

found this helpful.

Ronald

June 20, 2011

outstanding

You would never know they were shallow mount. I have them in a shallow box under my back seat of an extended cab silverado. They outperform all of my buddy's "normal depth" subs. Would highly recommend and would purchase again.

22

found this helpful.

EVAN

September 19, 2013

Awesome sub

This little sub is amazing once broken in. Hits great with all types of music. Hits low, clean and tight. Make sure to build or buy a box close to the recommended .65 cu. ft. I bought a sonic .70 cu. ft. Box and it sounds amazing. Just make sure to test the sub firing in all directions to see what sounds best. I have mine firing to the side. DON'T BUY THE PIONEER DOWN FIRING BOX YOUR SUB WILL BLOW VERY QUICKLY FOUND OUT HARD WAY TOO SMALL BLEW UP A 2ohm BROKE IN SUB IN ONE DAY WITH ONLY VERY LITTLE USE. Make sure to use a quality amp, I am running jl amp at 300 rms. It has more than enough power. You can get the 2ohm and run 500 rms on the same amp just go slow and break it in for about twenty hours. then you can really let it loose. In a car trunk or larger suv, in a mid to small truck or suv it's overkill, I need dynomat for the back now can't imagine 500 watts. it's great I have it in a 2013 Ford Edge, pain in the but cuv to work with as far as factory radio setup. I also use this sub for a home theater sub,sealed with 300rms also very clean, tight, and hits super low had one for three years and it's still strong in .70 cu ft sealed box. LOVE THESE PIONEER SUBS BEST ON THE MARKET FOR THE MONEY AND YOU CAN KEEP MOST OF YOU CARGO AREA OR TRUNK. P.S. Sounds great in small cars too had one in a Corolla,2ohm one at 500 watts rms in sealed box at .70 cu ft. Tried to use it over in the Edge with pioneer box and it fried from the small cu. ft.

21

found this helpful.

Wes

November 17, 2010

Exeeded exptectations!

I have two of these wired down to 2ohm load on a 1200watt rms hifonics amp in my silverado ext cab and must I say they hit really really hard. They literally sound like full sized subs. if you dont have or wanna save the space in your car/truck/suv whatever you have I would definitely recommend these. Just make sure your fully powering them and have a good in dash to control them. Overall Pioneer has redefined what a shallow mount can really do. Great price also and no one can beat Sonic!

22

found this helpful.

B-rad

August 22, 2010

Best Price on the Net for some really nice shallow-mount Subs!

The Pioneer shallow-mount subs are really powerful for thin-line. I have them amplified with a dual channel, single ohm JL amp. This combo really wakes up the neighbors in virtually inches of air space. I highly recommend these for anyone with limited space, the need to stick to a budget, and/or anyone wanting to own some very durable and powerful sub woofers.

23

found this helpful.

Nate

February 24, 2014

Sounds good!

I have this in a custom truck box powered by a Power Acoustik RZ1-1500D sounds great for a shallow mount sub. I'm happy with the added bump!

20

found this helpful.

Justin

December 27, 2013

awsome buy!

Straight up, if I hadn't heard for my self I would not believe it! 2009 GMC crew cab I have two 12's and damn!!!!!! Never thought I could get this kind of bass from such little space. Vary clean in a sealed enclosure. Would highly recommend!

20

found this helpful.

Danny

August 7, 2013

Awesome

After price checking several places this is by far the cheapest place to by top of the line products. Several people mentioned Sonic Electronix and they were right. I wanted a nice system for my brand new single cab Silverado. With a custom built box from Subthump, these and the rest of the equipment I bought from Sonic sound clear and awesome! The salesman helped me put together everything I needed. From Metallica to rap - everything sounds great. Real happy.

21

found this helpful.

yagum

April 3, 2010

Great!

Very good design and good performance. Recommended.

20

found this helpful.

B Rad

March 8, 2010

Great Buy!!!

This sub was well worth the money replacing my old pioneer shallow sub. This one hit much harder and has lasted much longer. Thanks Sonic!

20

found this helpful.
ACCESSORIES
WIRING GUIDE
Wiring Guide to Wire 1 Pioneer TS-SW3001S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-SW3001S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-SW3001S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-SW3001S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp
