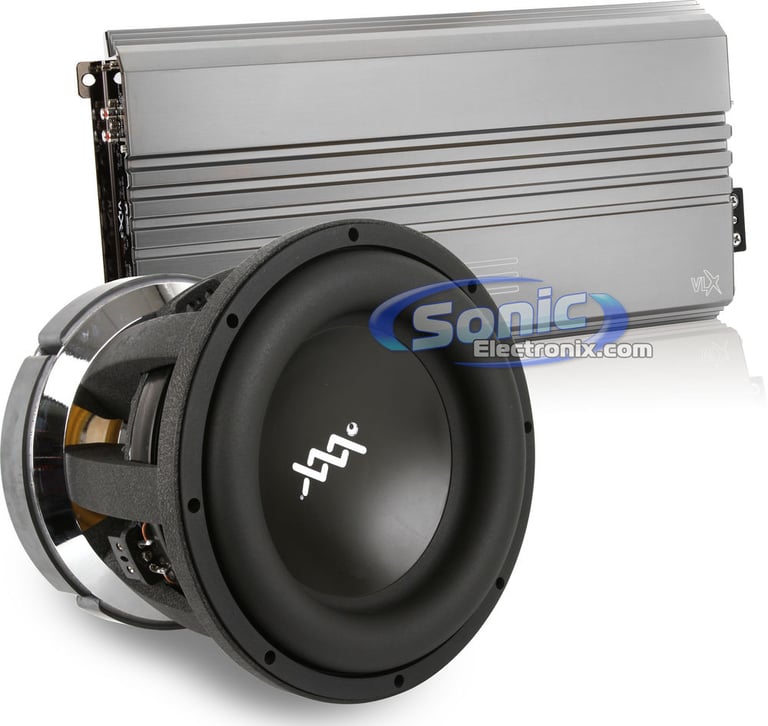

Combo: RE Audio XXX15D2 and RE Audio VLX-3DE

15" Dual 2 ohm XXX Series Subwoofer and a 2400W RMS, 1-Channel Monoblock Amplifier

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

VLX Series Monoblock Class "DE" Digital Stereo Amplifier • 2400W x 1 Chan @ 1 Ohm • 15" XXX Series Car Subwoofer • 2000 Watts RMS • Dual 2 ohm • Rubber Surround • Dual Composite 2-Piece Cone • High Impact Bass Package

Learn more about the xxx15d2_vlx3de

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

PNW-525 main

AudioControl PNW-525

150W Peak (100W RMS) 5.25″ PNW Series 2-way 3-ohm Coaxial Car Speakers

1
-7.72%

$239.00

List price $259.00

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

59
-11.77%

$74.99

List price $84.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

15
-33.36%

$79.96

List price $119.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

Limited time!
TS-G1320S main

Pioneer TS-G1320S

500W Peak (70W RMS) 5.25" G-Series 2-way 4-ohm Coaxial Car Speakers

34
-30.78%

$44.99

List price $65.00

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

68
-9.08%

$100.00

List price $109.99

VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Product Highlights


VLX Series Monoblock Class "DE" Digital Stereo Amplifier • 2400W x 1 Chan @ 1 Ohm • 15" XXX Series Car Subwoofer • 2000 Watts RMS • Dual 2 ohm • Rubber Surround • Dual Composite 2-Piece Cone • High Impact Bass Package

Description


RE Audio brand icon

Authorized dealer

Built for Brutality

You’ve stumbled upon RE Audio’s XXX Subwoofer with a matching VLX amplifier. Don’t be afraid. This package is built for brutality, but capable of so much more. The XXX subwoofer competes with any high output SPL based subwoofer, but is capable of outputting amazing sound quality as well.

RE Audio has joined the digital amplifier era, and crafted their VLX all digital amplifiers. The VLX Digital amplifiers have such clean internals that RE Audio decided to case them with a transparent bottom. The VLX-3DE outputs 2400 watts RMS at 1 Ohm, this amplifier is meant for those in need of serious power.

This bass package is designed to be installed by wiring the subwoofers Dual 2 Ohm Voice Coils in parallel down to 1 Ohm. This will allow the amplifier to output the full 2400 watts of continuous RMS power to the subwoofer and achieve the best possible bass response from this package. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

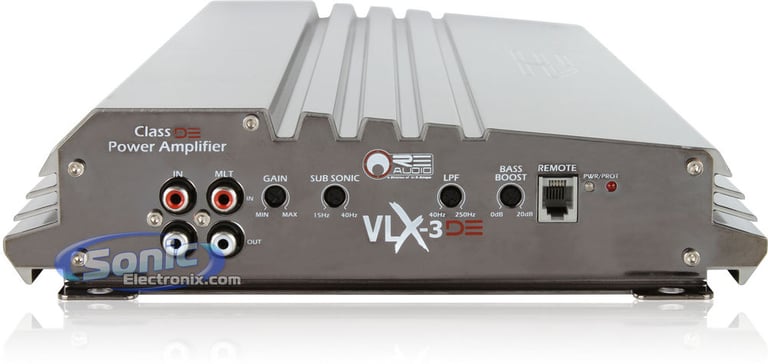

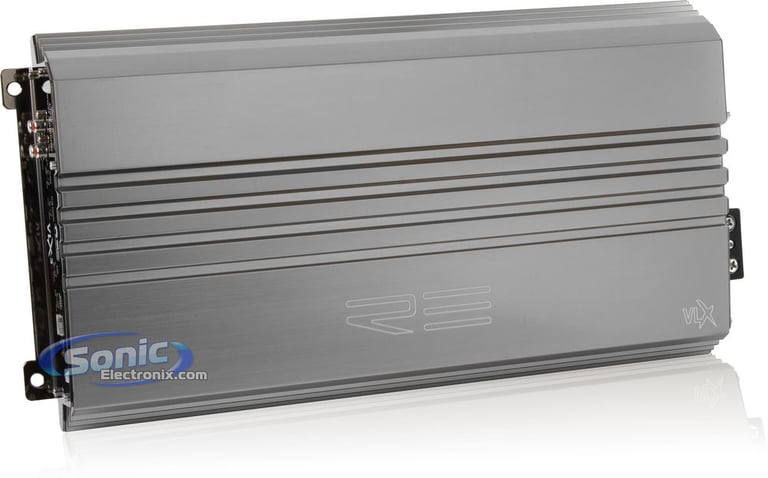

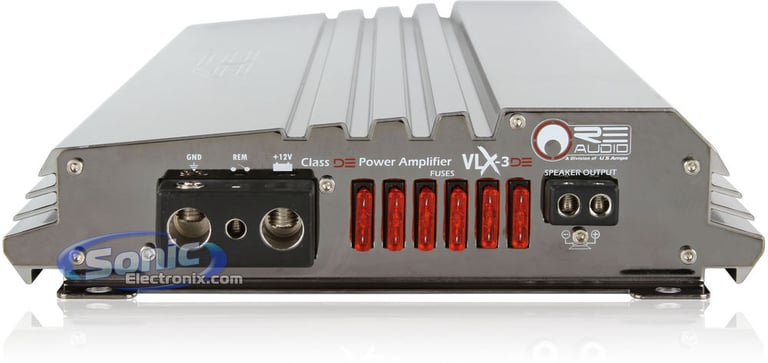

RE Audio VLX Amplifier Features:
  • VLX Series Monoblock Class "DE" Digital Stereo Amplifier
  • RMS Power Rating:
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
    • 1 ohm: 2400 watts x 1 chan.
  • Magnetic induction regulated drive power supply
  • Pulse Width Modulated high-current matched MOSFET devices
  • Class DE technology utilizes elevated efficiency platform technology

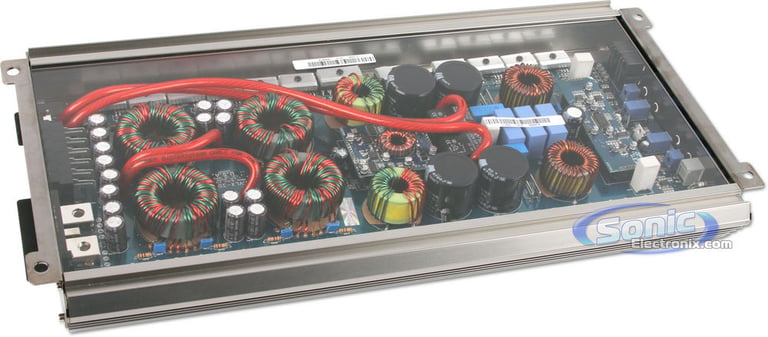

  • 90% High density construction surface mount technology
  • Metallized high temperature low ESR capacitors
  • High speed audio grade low level stage components
  • Balanced Transformer-less Logic input for highest possible damping factor, slew rate and S/N ratio
  • Stability filter design for reduction in noise

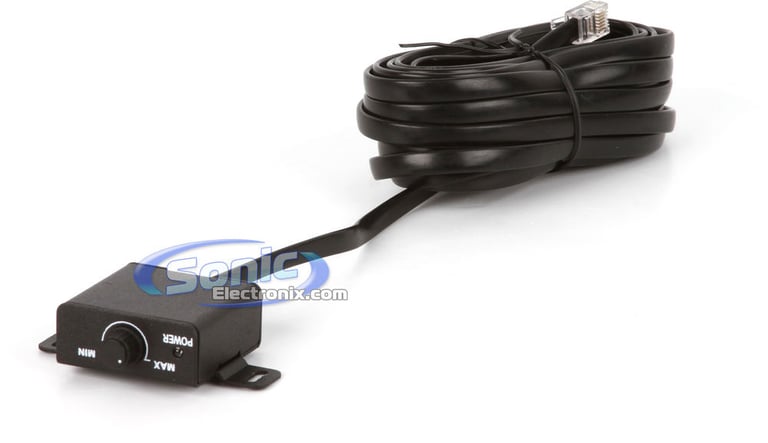

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +20 dB bass boost at 45 Hz)
  • Time delay soft start turn on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy convection cooled heatsink for extreme heat dissipation
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Input sensitivity:
    • Level: 250mV-9V
  • Variable low-pass filter (40-250 Hz, 24 dB/octave)
  • Subsonic filter (15-40 Hz, 24 dB/octave)
  • Damping factor: >200
  • CEA-2006 compliant amplifier
  • Frequency response: 20-250 Hz
  • Dimensions: 19-3/4"L x 9-3/4"W x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

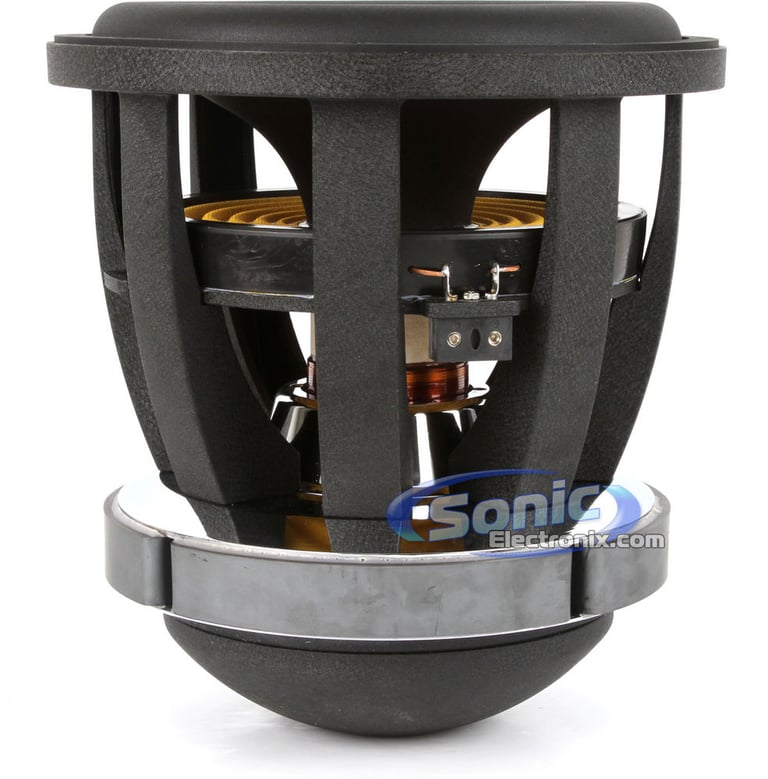

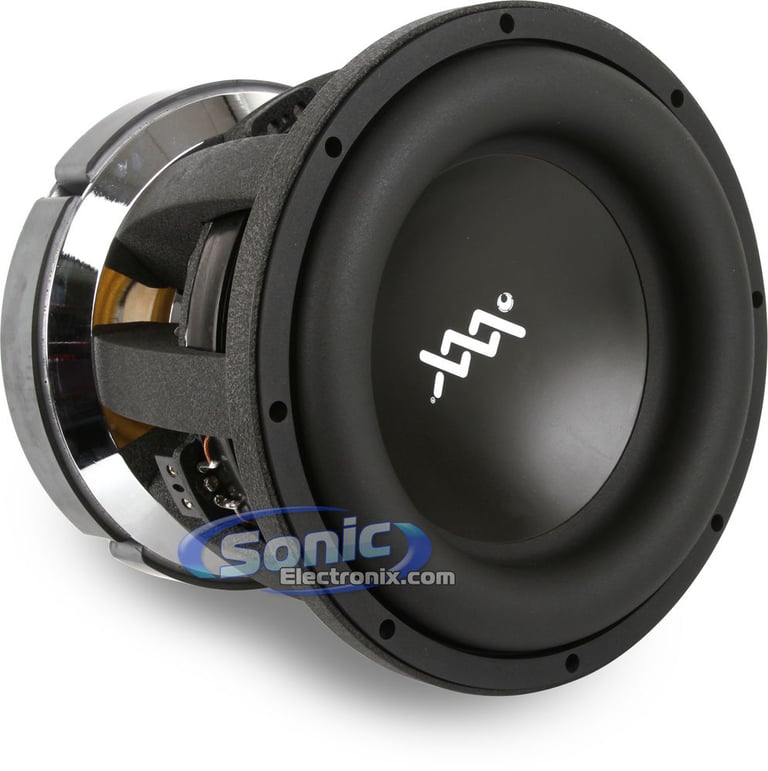

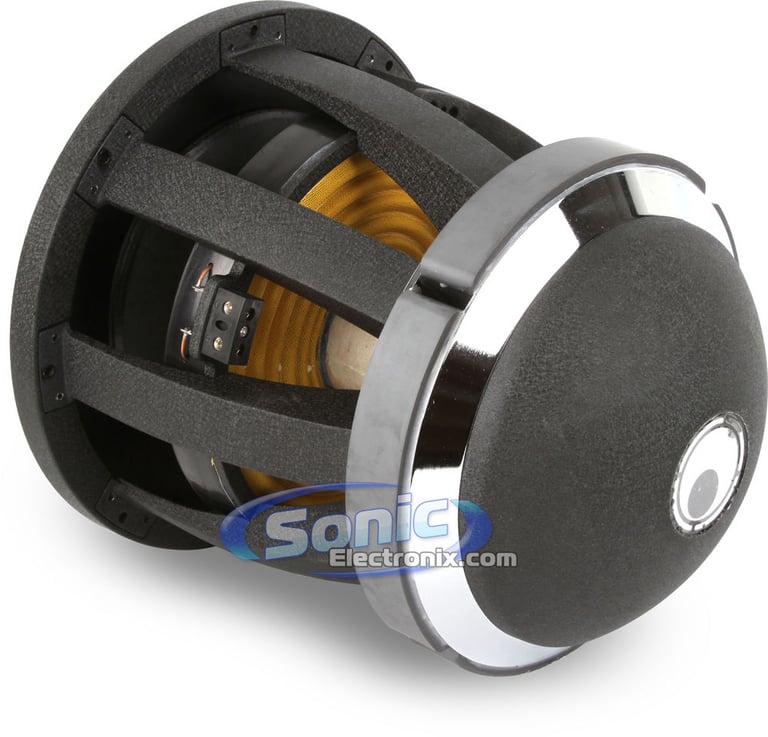

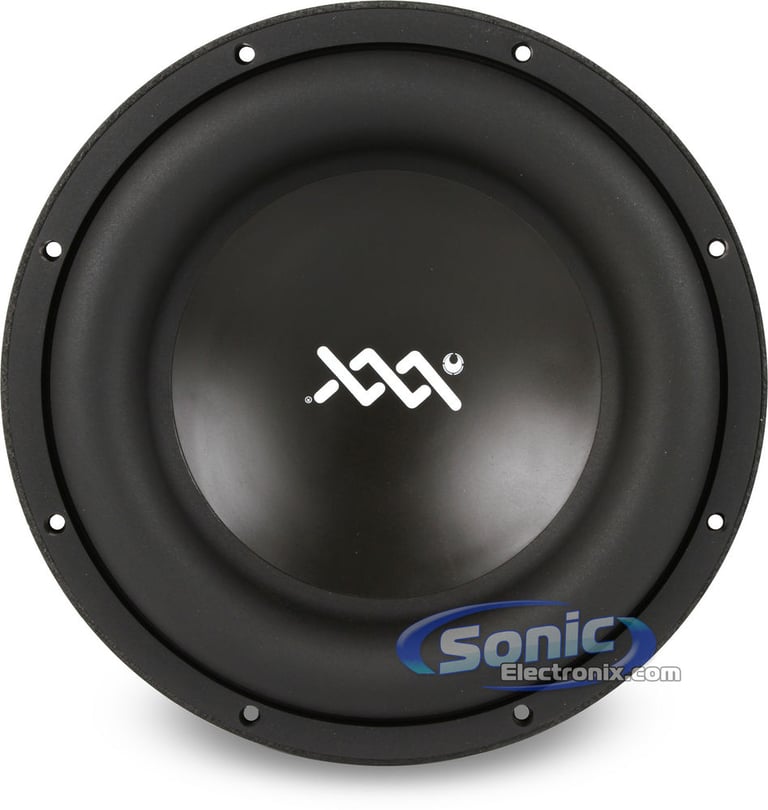

RE Audio XXX Subwoofer Features:
  • 15" Dual 2 ohm XXX Series Car Subwoofer
  • Power Handling:
    • RMS: 2000 watts
  • Impedance: Dual 2 ohm
  • Kevlar reinforced kraft pulp, dual composite 2-piece cone

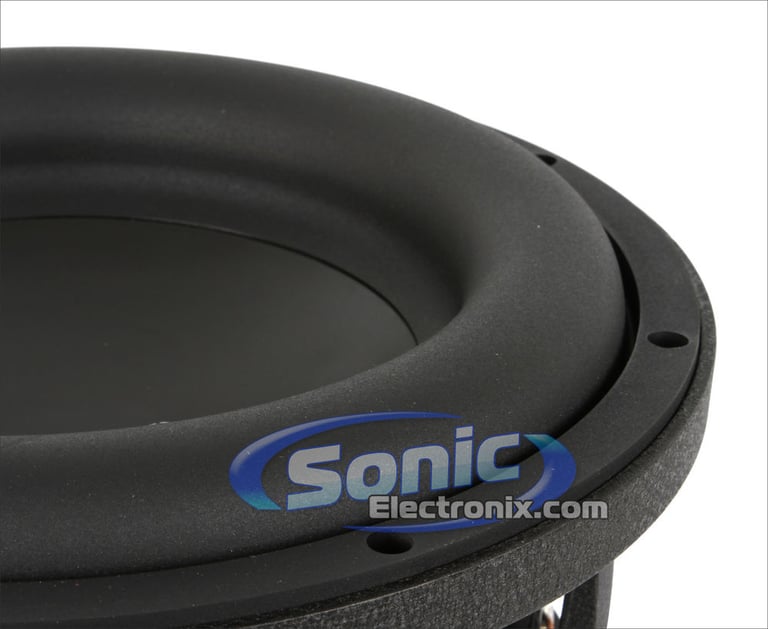

  • Rubber surround
  • Integrated tinsel leads
  • FEA Optimized motor structure
  • Dual progressive spiders
  • Integrated gasket
  • Tork-Tite terminals
  • 3" 4-Layer aluminum flat wire voice coil
  • Split coil design
  • VMS Vented magnet system
  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for sealed or ported enclosures
  • Proudly made in the USA
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
XXX 15" T/S Parameters:
  • Electrical Q Value (Qes): 0.58
  • Mechanical Q Value (Qms): 3.62
  • Total Speaker Q Value (Qts): 0.501
  • Free Air Resonance (Fs): 19.10 Hz
  • Equivalent Compliance (Vas): 207 liters
  • One-Way, Linear Excursion (Xmax): 54 mm
  • Efficiency (SPL 1W/1m): 85.81 dB SPL
  • Effective Piston Area (Sd): 810 cm2
  • DC Resistance (Re): 4.2 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 2000 W
  • Force Factor (Bl): 18.16

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
2400 watts x 1 channel
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
2400 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.09%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 20 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
60A x 6
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
15"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
2000 watts
Total RMS Power Handling
2000 watts
Woofer Surround
Rubber
Woofer Composition
Kevlar reinforced kraft pulp, dual composite 2-piece cone
Minimum Sealed Box Volume
1.6 cubic feet
Maximum Sealed Box Volume
2.1 cubic feet
Minimum Ported Box Volume
3.2 cubic feet
Maximum Ported Box Volume
4.0 cubic feet
Xmax (millimeters)
54 mm
Top-Mount Depth (Mounting Depth)
13-1/2"
Cutout Diameter
14-1/2"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XXX15D2_VLX-3DE

Weight:

116.00lbs

Internal SKU:

xxx15d2_vlx3de

Internal Product ID:

28086

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Combo: RE Audio XXX15D2 and RE Audio VLX-3DE thumbnail image

5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.4
Features
4.7
Design
4.9
Usability
3.9

Customer Reviews

Sort by:

Loading...

beast mode!

The following review is for XXX15D2 V2, which is a part of the bundle you are viewing.

Hard low level bass, takes punishment throughout the day. Recone kits available. My first one I had for a solid year abusing it every day. Purchased second one while awaiting recone kit. Excited to see what two can do!

By Mont-Dogg on June 24, 2014

37 found this helpful


Massive subwoofer!!!

The following review is for XXX15D2 V2, which is a part of the bundle you are viewing.

HUGE subwoofer. Hits deep and hard. Slightly larger hole needed to be cut in my box since this sub is a little bigger in circumference than regular subs. Currently using it for competition. This thing was built as tough as I've ever seen.. Highly recommend!!!

By Massive Flex on August 20, 2015

16 found this helpful


Low end monster

The following review is for XXX15D2 V2, which is a part of the bundle you are viewing.

This sub crunches lows with the best of them. We put it in a 30hz box and it sounded great on music and was awesome on the lows and it metered at 144.7 but i dont remember what frequency that was at. Then we put it in a 26hz box just fur fun and the lows are insane. From 20 to 25 hertz just shakes the doors off the car! It metered at 137db at 20hz which is incredible. The negatives of the sub are it's power handling and terminals. It got smelly pretty quickly on 2500 watts but its been taking 1000 with no problems. I'll put it back on 2500 soon once it's broken in more and see if it takes it. Also the terminals are pretty small for such a beefy sub so if you want to run 8 or 10 gauge you have to run seperate sets from each coil as you can not fit 2 fatties in one terminal. Overall this is a good sub and I'd recommend it.

By Josh on May 5, 2016

11 found this helpful


One hard hithing sub!

The following review is for XXX15D2 V2, which is a part of the bundle you are viewing.

Very happy with the sound and the suprisingly small enclosure specs. Was able to expand my system even further worth the free space.... great price when on sale. Ease of use is lower because this beast is heavy!!!

By Gerald on October 30, 2015 Checkmark Icon Verified purchase

10 found this helpful


vlx3de

The following review is for VLX-3DE, which is a part of the bundle you are viewing.

this is great ....i've heard this twice and damn so loud it's give's more power in a subwoofer. i wanna have this amp .

By siopao on May 4, 2012

5 found this helpful


THIS AMP IS FOR REAL

The following review is for VLX-3DE, which is a part of the bundle you are viewing.

I do not own this amp, but have seen and heard two of them in a Chevy Suburban, each powering an RE Audio XXX12 2 OHM DVC subwoofer in a custom made 4.1 cubic foot tri-port enclosure. Two high output alternators, four additional batteries, and true 0 gauge wiring. This set up will DESTROY any that I have seen and heard in the past, including JL Audio. Unfortunately, I can only dream of a system like this! RE Audio is for real!

By bostonharris on March 11, 2011

4 found this helpful




XXX12D2_VLX-3DE small

Combo: RE Audio XXX12D2 and RE Audio VLX-3DE

12" Dual 2 ohm XXX Series Subwoofer and a 2400W RMS, 1-Channel Monoblock Amplifier

(2)

$1217.15

List price $2499.97

HCCA124_SK-4500.1D_BAK02 small

4000 Watt Ear Drum Buster Bass Package

Pair of Orion HCCA124 4000 Watts 12" Subwoofers + SKAR Audio SK-4500.1D 4500 Watt Amp + Power Cell + Amp Kit

(225)

$2106.42

List price $4391.84

FZX3500C12U small

MTX Audio Thunderform FZX3500C12U (Charcoal, Unloaded)

Unloaded Single 12" Custom-Fit Bass Slammer Subwoofer Enclosure for 2000-2007 Ford Focus ZX5 / ZX3

$349.95

List price $449.95

APPT1755 small

Presto APPT1755 16 Quart Aluminum Pressure Cooker

Presto 01755 16 Quart Aluminum Pressure Cooker

$89.99

List price $172.00

MDRE9LP/GRN small

Sony MDRE9LP/GRN (MDR-E9LP/GRN) Earbuds In-Ear Headphones - Green

In-Ear Lightweight Stereo Earbud Headphones (Green)

(1)

$8.99

List price $9.99

HP402B small

Kicker HP402B CUSH - Black

Urban-Style Over-Ear Headphones with Adjustable Headband and Comfortably Padded Earcups

(8)

$59.95

List price $79.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Aston Martin DB9

1978 Honda Accord

2011 Toyota 4Runner

2024 Jeep Wrangler

1989 Buick Skylark

1992 GMC C1500

2005 Saturn Ion-3

2013 Toyota Sequoia

1974 Jeep J10

1987 Ford Mustang

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
