NVX XAD11

700W RMS X-Series Full-Bridge Class D 1-Ohm Stable Monoblock Amplifier

NVX
Shop all NVX
Product videos
highlight-star-icon

• 320 watts x 1 channel @ 4 ohm
• 360 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm
• Total RMS Power: 700 watts
• Frequency Response: 10 - 300 Hz
• CEA-2006 Compliant Amplifier

Learn more about the xad11

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

99-5858CH main

Metra 99-5858CH Dash Kit

[Single DIN and Double DIN Stereo Dash Kit and Harness for select 2011-2019 Explorer with Factory 8" Screens

-33.91%

$379.99

List price $574.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

P1692 main

Rockford Fosgate Punch P1 P1692

300W Peak (150W RMS) 6x9" Punch Series 2 Way Coaxial 4-ohm Speakers

81
FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

33
-14.29%

$119.99

List price $139.99

BE9ACP.X main

Boss Elite BE9ACP.X

9" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

1

Product Highlights


• 320 watts x 1 channel @ 4 ohm
• 360 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm
• Total RMS Power: 700 watts
• Frequency Response: 10 - 300 Hz
• CEA-2006 Compliant Amplifier

Description


NVX brand icon

Authorized dealer

Full-Bridge Class D Amplifier

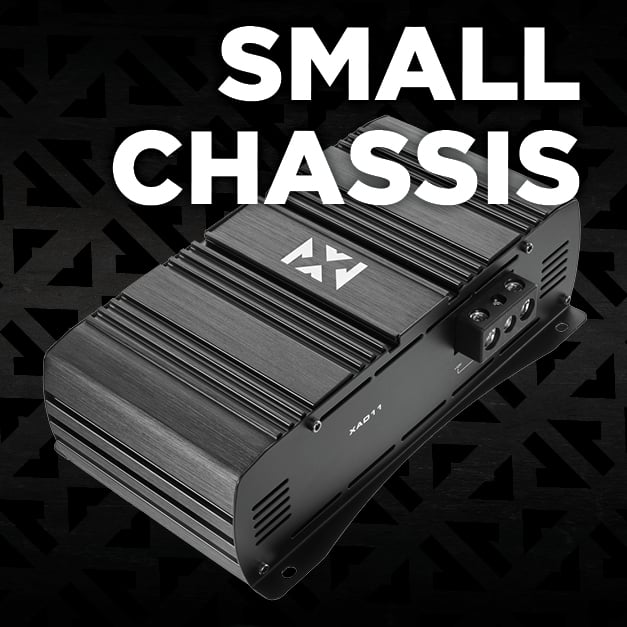

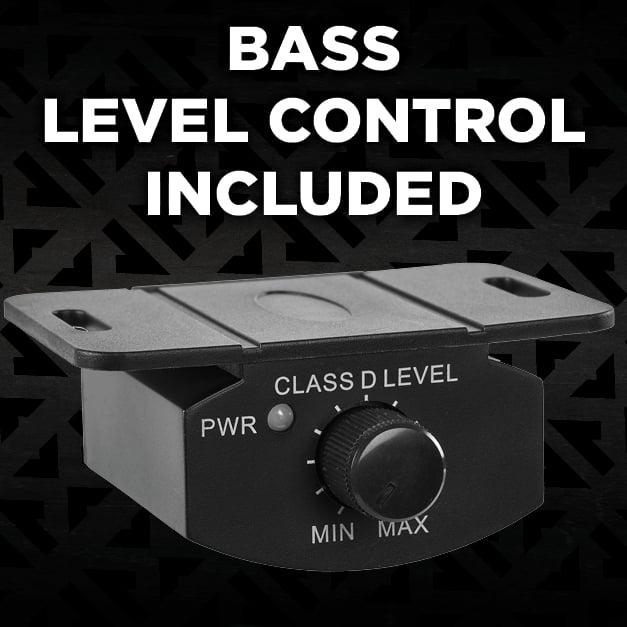

1 Ohm Stable Bass Level Control Included Small Chassis
Mosfet Power Supply

Product Details:

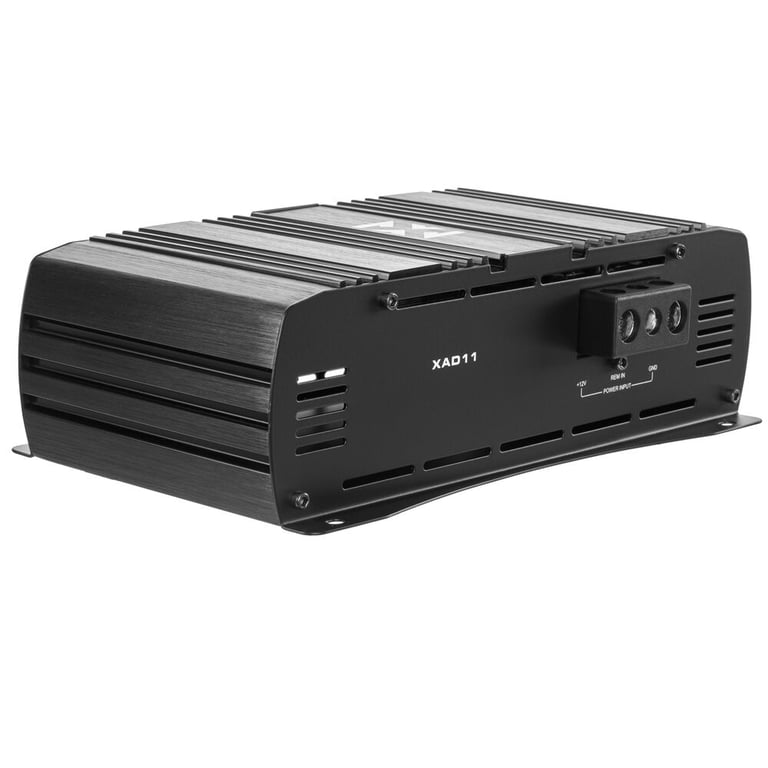

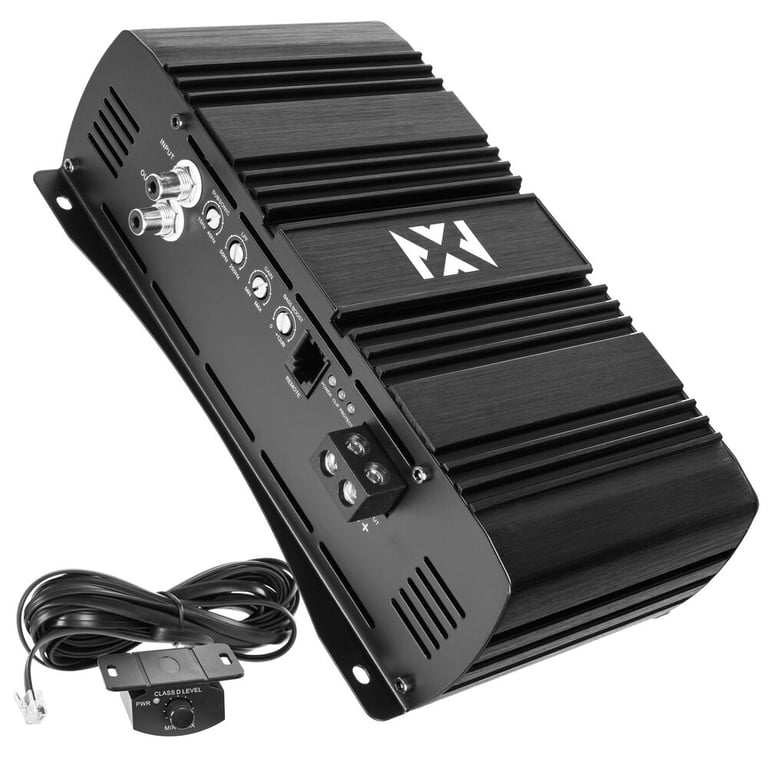

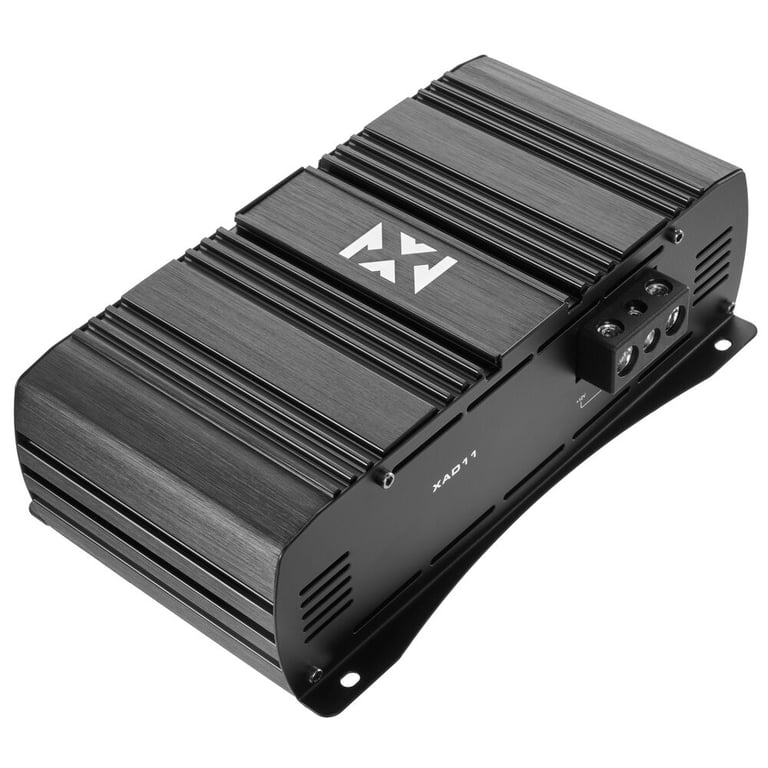

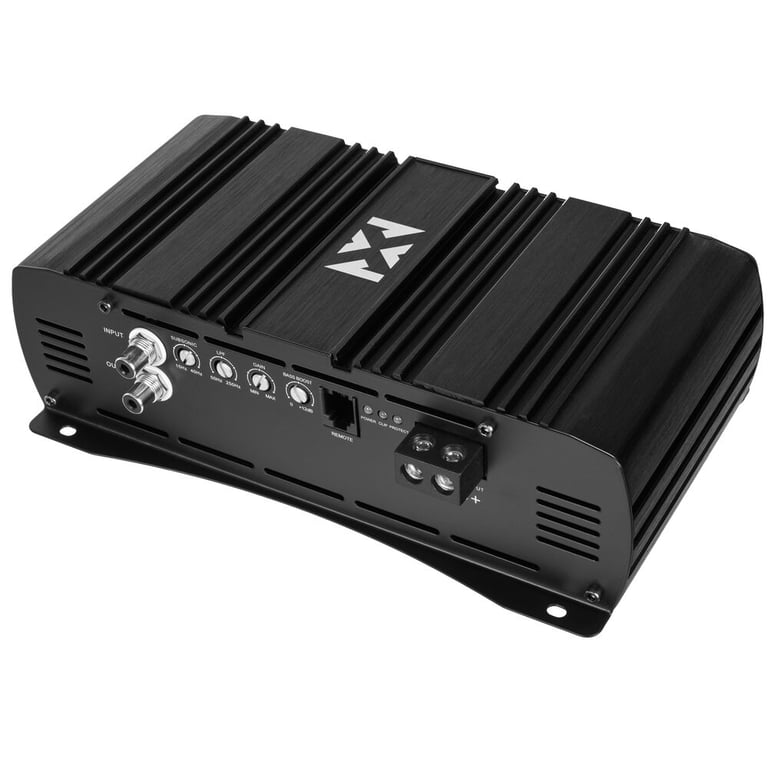

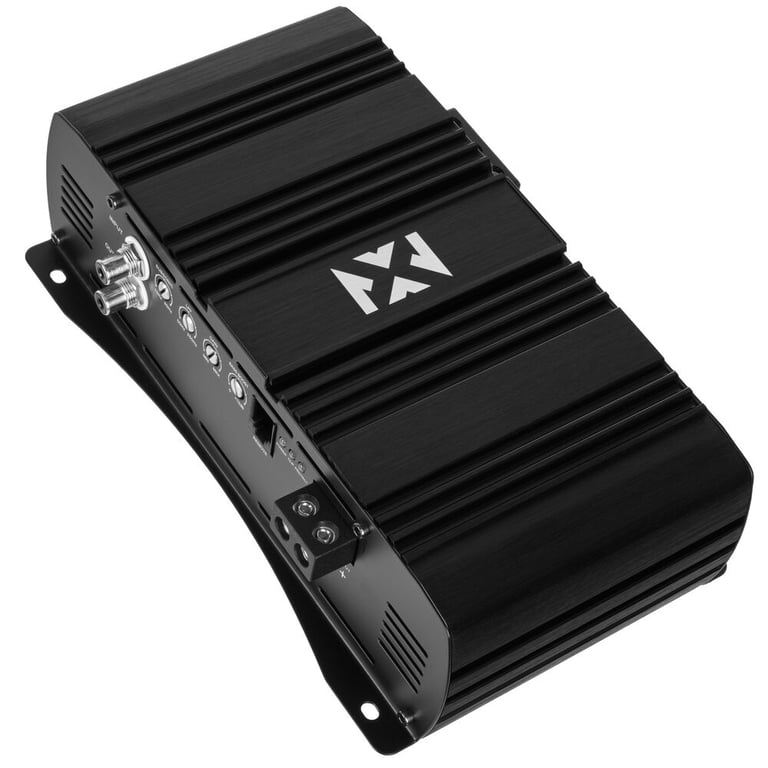

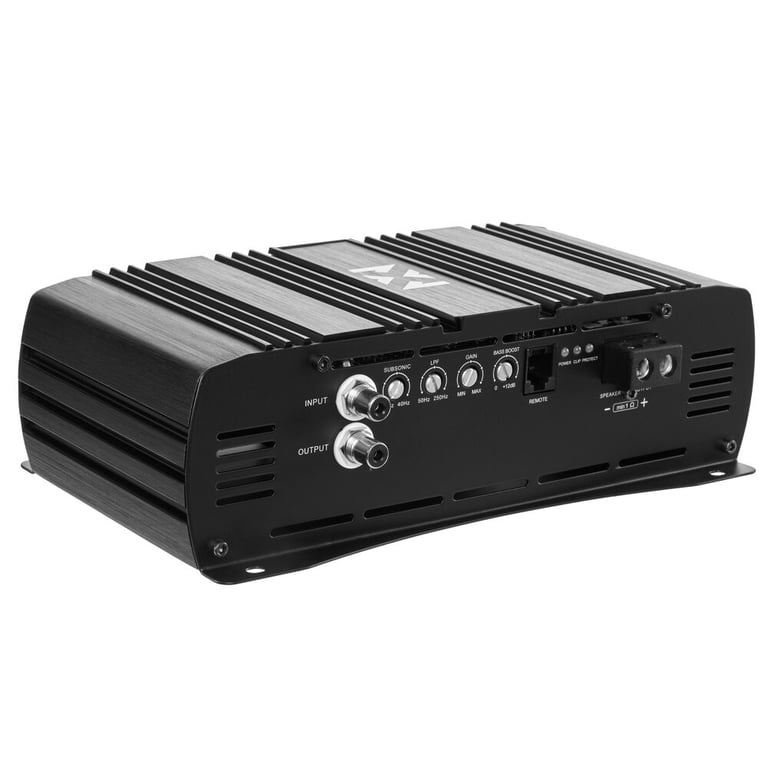

  • NVX X-Series XAD11
  • Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 320 watts x 1 channel
    • 2 ohm: 360 watts x 1 channel
    • 1 ohm: 700 watts x 1 channel
  • Sonic Certified RMS Power Rating:
  • Total power output: 700 watts
  • Pulse Width Modulated MOSFET power supply

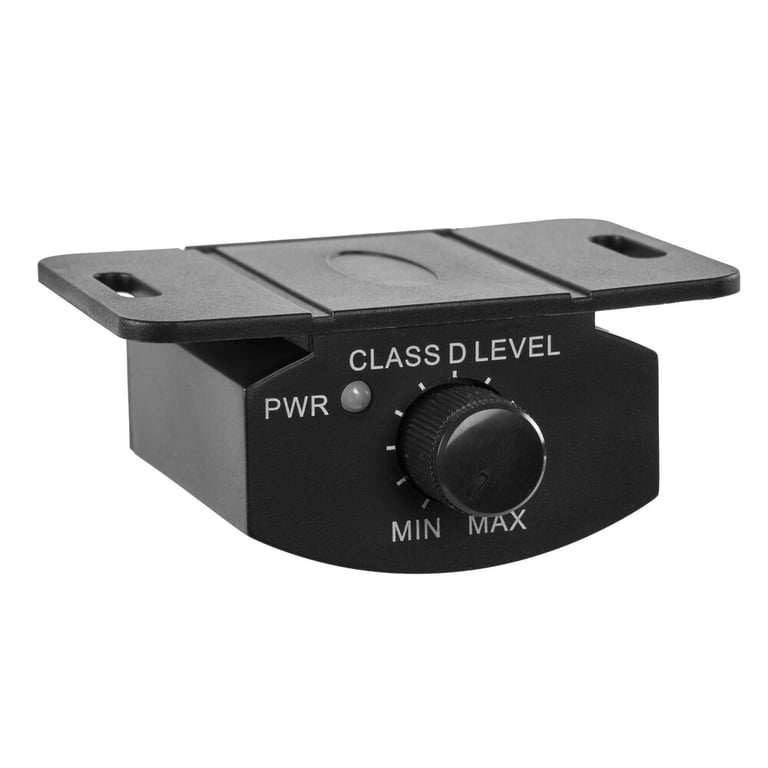

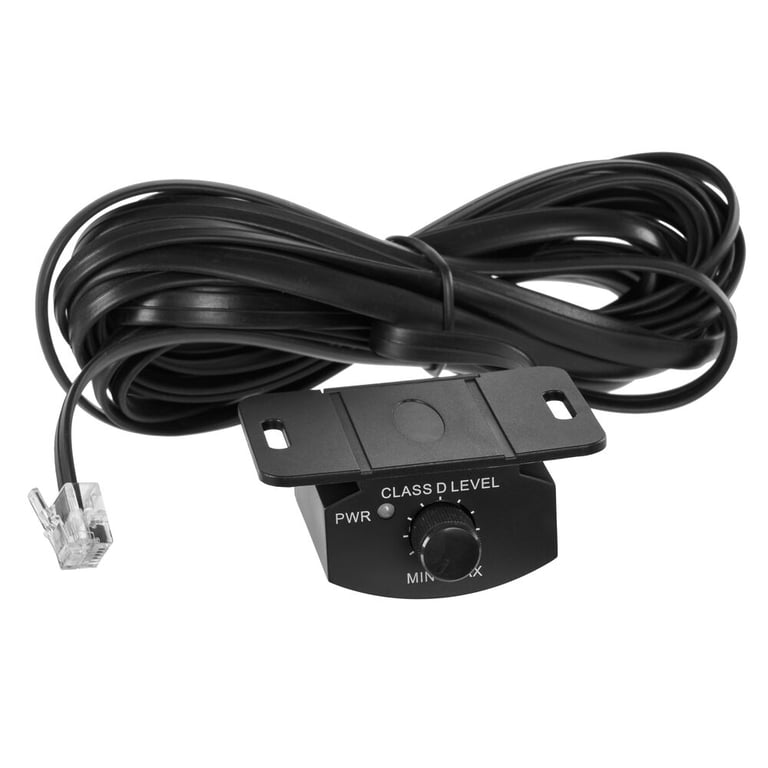

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV
  • Frequency Response: 10 - 300 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 100 dB

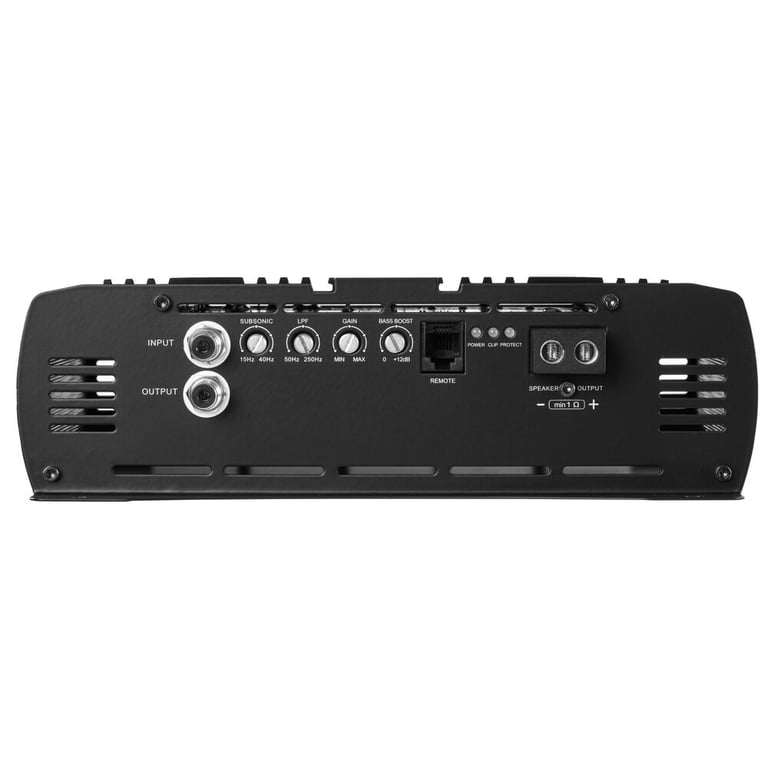

  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable subsonic filter: 15 - 40 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz

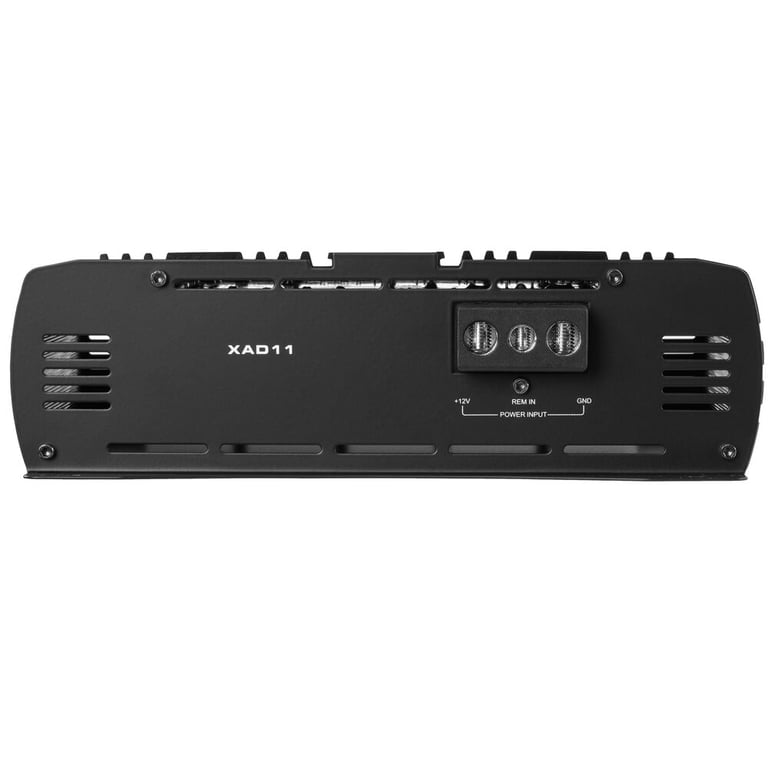

  • 4 AWG gauge power and ground wiring is recommended for installation
  • Dimensions: 4.25"W x 8.75"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
PDF icon NVX XAD11 Owner’s Manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Fan Cooled
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
320 watts x 1 channel
RMS Power @ 2 ohms
360 watts x 1 channel
RMS Power @ 1 ohm
700 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
640 watts x 1 channel
Peak Power @ 2 ohms
720 watts x 1 channel
Peak Power @ 1 ohm
1400 watts x 1 channel
Amplifier Specifications
Series
X Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1400 watts
Total RMS Power Output
700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
0.05%
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Amp Bluetooth Connectivity
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Gain knob wire
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XAD11

Weight:

5.00lbs

Internal SKU:

xad11

Internal Product ID:

183133

Product and How-to Videos


  • AMP DYNO - NVX XAD11 - 700W RMS X-Series Full-Bridge Class D 1-Ohm Stable Monoblock Amplifier
  • All NEW NVX X-Series Full Bridge Amplifiers

Customer Ratings & Reviews


NVX XAD11 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Really good value

I have used a lot of hi end amp as well as equipment over the year 20 plus years from Zapco mmats us amps Jl audio ppi early days Rock ford and many other I have used Nvx subs and like the quality .This amp is really good has the power quality is there.Keep up the good work Nvx

By Ronnie on January 20, 2022 Checkmark Icon Verified purchase

31 found this helpful


These amps are amazing when you know what you are doing.

My problem isn't with the product. I use NVX for alot of my customers. But in this case I have a problem with the service. I paid to have my order expedited overnight because I missed the window for the free 2 day shipping to receive it Saturday September 23rd (tomorrow). After paying the overnight fee of about $19 the site said I would receive it by 8pm Friday. When I received my tracking info, it said Monday morning. I called because again I paid an overnight fee and it was picked up early Friday morning so I was fine with A Saturday delivery. But when I called to ask why the site said Friday and fedex says monday...........I was told that it's business days and the guy doesn't know why the system said Friday. As if it were a glitch and wrong. This was disappointing because I starting buying alot from you guys while I get set up as a vendor. This was disappointing to see the least. And the attitude of me being the one to see it wrong was not good for business. I asked if I could have my overnight fee back and I was told only if I don't receive my package Monday. I could've purchase it on Amazon for the same price, insurance and next day 4am delivery but was trying to remain loyal to Sonic Electronics. This pretty much amounted to the free 2 day shipping to me.

By Marcus on September 22, 2024 Checkmark Icon Verified purchase




XWS12100 small

NVX XWS12100

100 ft 12-Gauge EnvyFlex 100% Oxygen Free Copper Speaker Wire (Blue/Gray)

(8)

$74.99

List price $89.99

A6005DN small

Audiobahn A6005DN

600W Max, Intake Series Class D Monoblock Amplifier

(1)

$109.99

List price $299.99

MPS-C03 small

Metra MPS-C03

1-3/16" Aluminum Roll Bar Mount for LED Lightbars in Powersports Applications

$13.99

List price $25.00

KMMTESW small

Kicker KMMTESW (40KMMTESW)

Empty Single 4" Marine Tower Speaker Enclosures in Gloss White

$199.99

List price $219.99

RGBW2-S1 small

Metra RGBW2-S1

Single 3-Pod RGBW LED Rock Light Strip Kit

$38.99

List price $43.99

MPS-B07 small

Metra MPS-B07

Side Pillar Light Brackets for 2" to 4" Cube and Round Work Lights in select 2016-2017 vehicles from Yamaha

$24.99

List price $42.00

GTO14001 small

JBL GTO14001

1500W RMS, Monoblock Grand Touring Series Amplifier

(9)

$449.95

List price $699.95

SPF5680 small

Stinger SPF5680

3-Pack of 80 Amp Maxi Fuses

(9)

$9.99

List price $19.00

HMP 4D small

Hertz HMP 4D

600W Peak (260W RMS) Class D 4 HMP Series 4-Channel Full Range Motorcycle and Powersports Amplifier

$379.99

List price $415.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Ford Explorer

1991 Dodge Stealth

2011 Kia Optima

2008 Ford Ranger

2005 Saab 9-7X

2003 Saab 9-3

2009 Ford Expedition

2016 GMC Canyon

1998 Chevrolet Corvette

1995 Ford Explorer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
