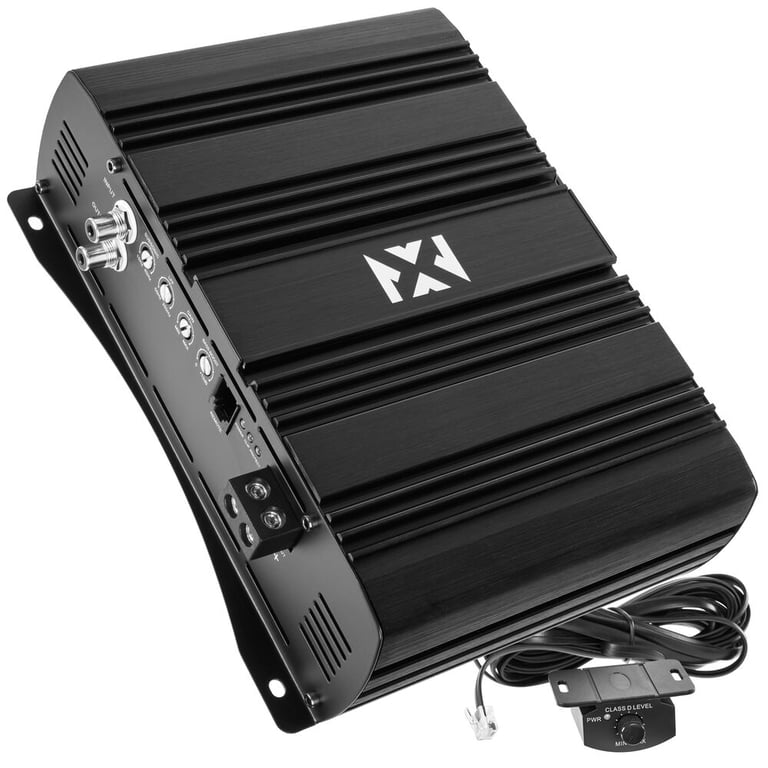

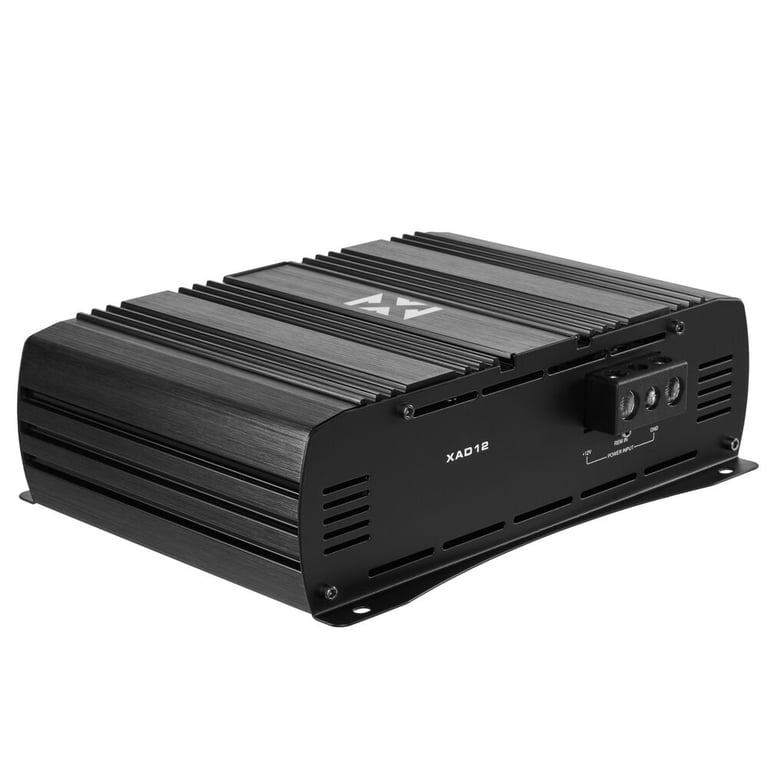

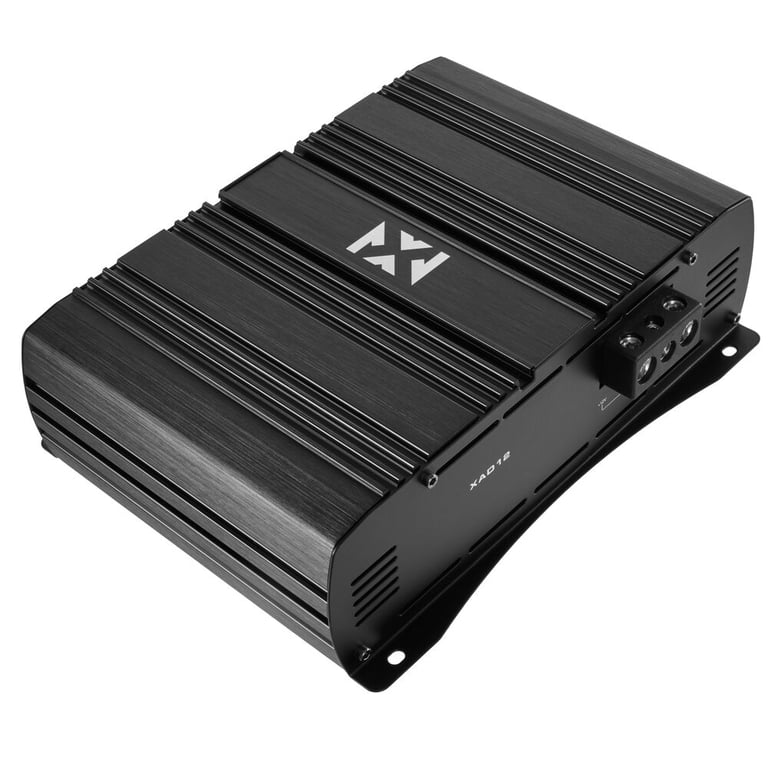

NVX XAD12

1500W RMS X-Series Full-Bridge Class D 1-Ohm Stable Monoblock Amplifier

NVX
Shop all NVX
highlight-star-icon

• 500 watts x 1 channel @ 4 ohm
• 750 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Frequency Response: 10 - 300 Hz
• CEA-2006 Compliant Amplifier

Learn more about the xad12

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5818 main

Metra 95-5818 Dash Kit

Install a new Double-DIN car stereo in select 1997-2004 vehicles from Ford, Lincoln

48
-11.54%

$22.99

List price $25.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

C1-570x main

JL Audio C1-570x

100W RMS 5x7" / 6x8" C1 Series 2 Way Coaxial 4-ohm Car Speakers

4
NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Description


NVX brand icon

Authorized dealer

Class D Amplifier 1500 W RMS

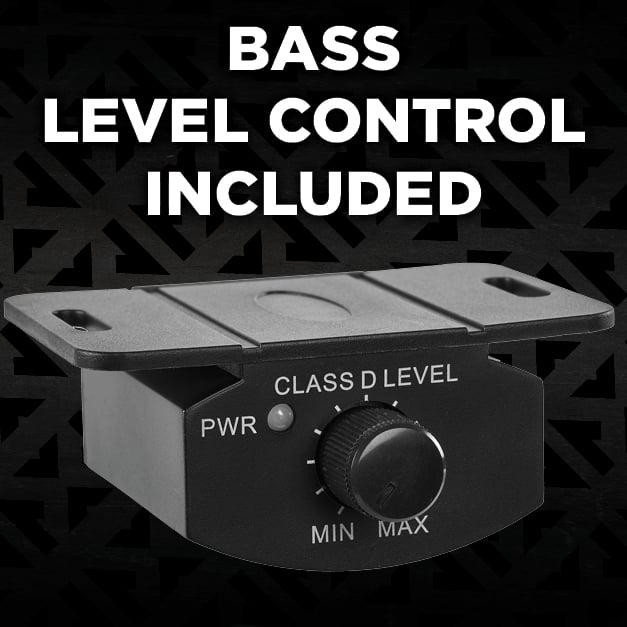

1 Ohm Stable Bass Level Control Included Small Chassis
Mosfet Power Supply

Product Details:

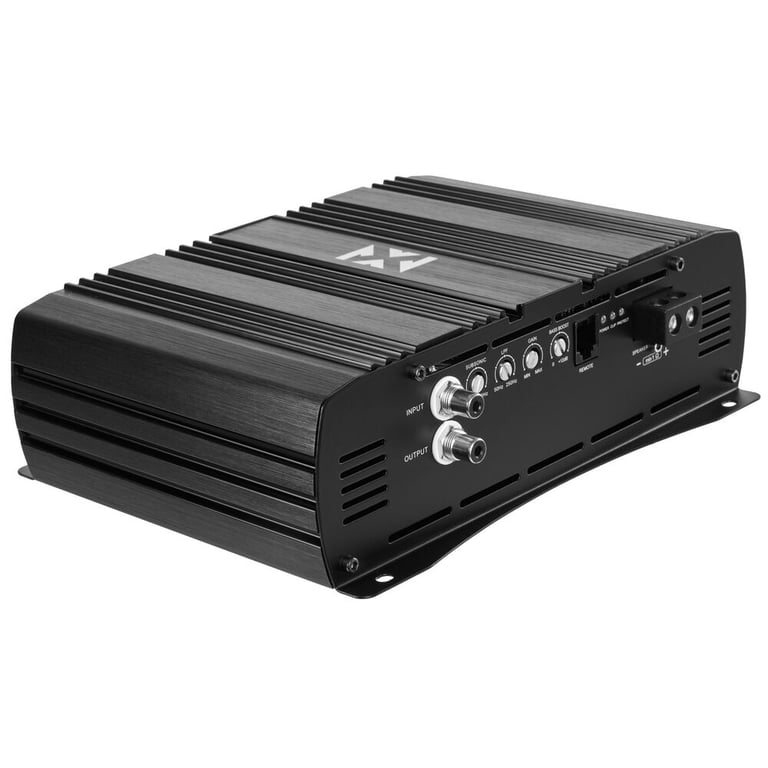

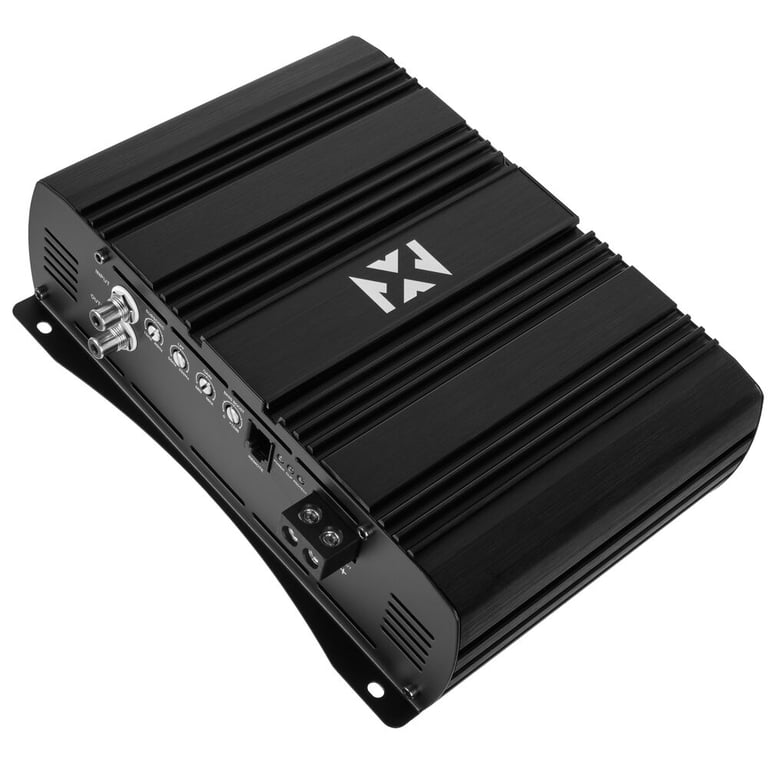

  • NVX X-Series XAD12
  • Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 channel
    • 2 ohm: 750 watts x 1 channel
    • 1 ohm: 1500 watts x 1 channel
  • Total power output: 1500 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

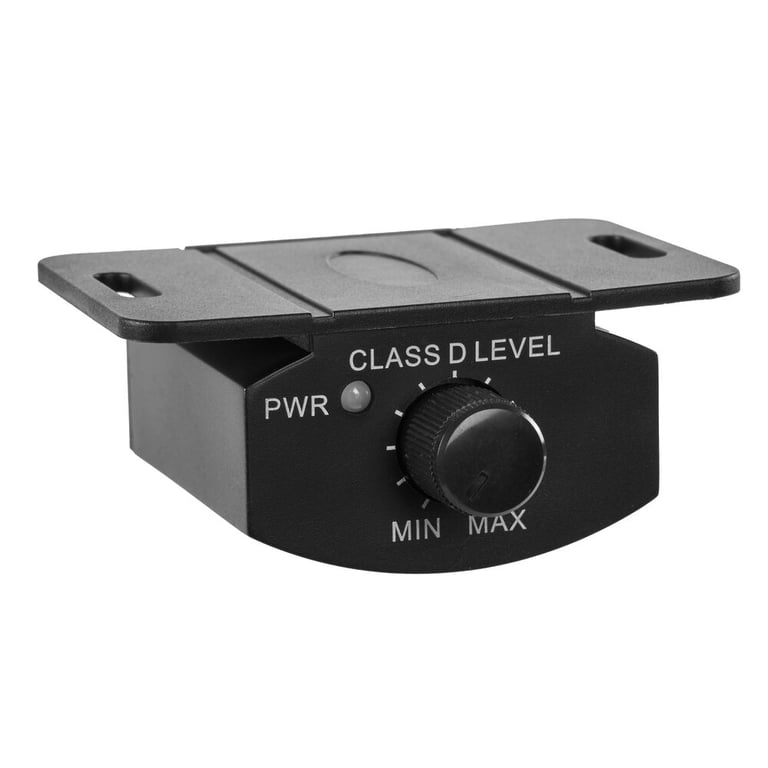

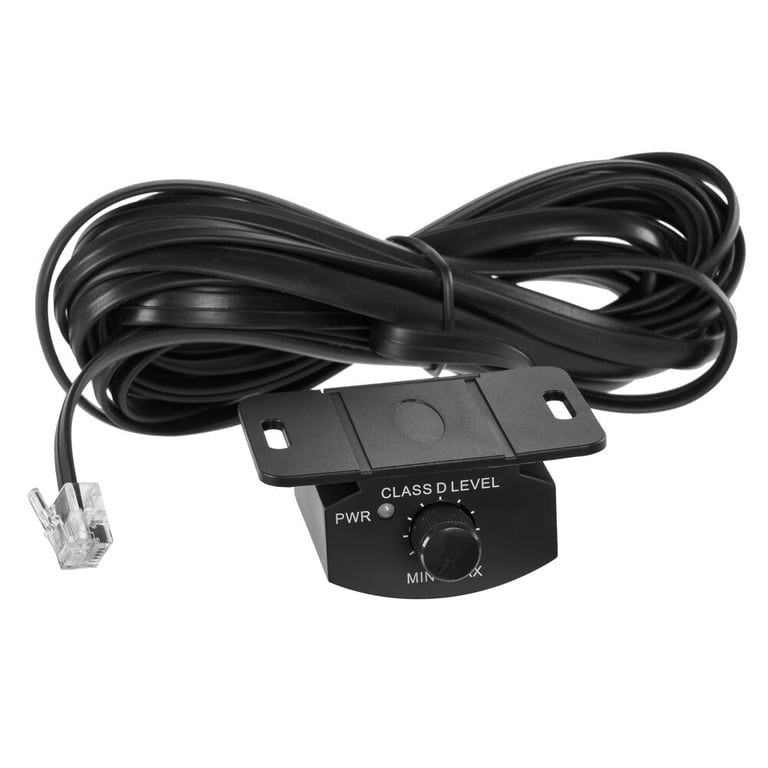

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV
  • Frequency Response: 10 - 300 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 100 dB

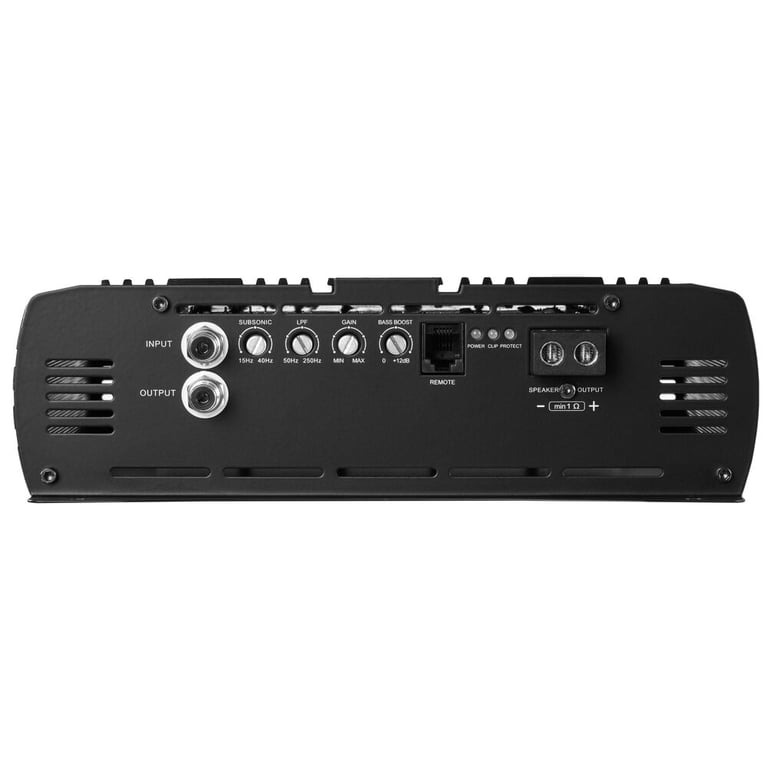

  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable subsonic filter: 15 - 40 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz

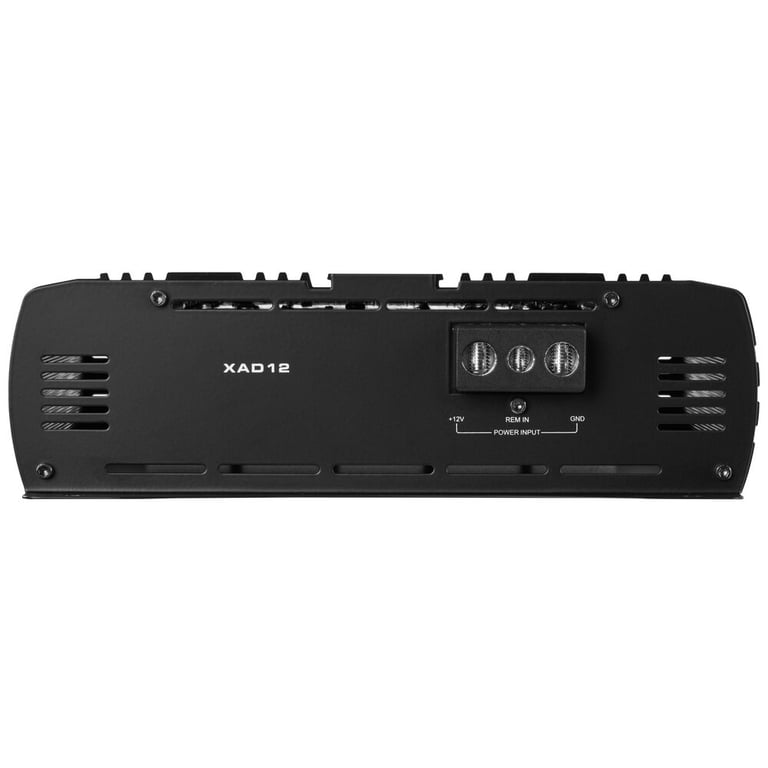

  • 4 AWG gauge power and ground wiring is recommended for installation
  • Dimensions: 6"W x 8.75"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
pdf icon Check out the X-Series Monoblock Amplifiers Owner's Manual

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Fan Cooled
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
RMS Power @ 1 ohm
1500 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
1000 watts x 1 channel
Peak Power @ 2 ohms
1500 watts x 1 channel
Peak Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Series
X Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3000 watts
Total RMS Power Output
1500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
0.05%
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Amp Bluetooth Connectivity
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Gain knob wire
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XAD12

Weight:

6.00lbs

Internal SKU:

xad12

Internal Product ID:

183135

Customer Ratings & Reviews


NVX XAD12 thumbnail image

5 star
78%
4 star
22%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.6
Design
4.9
Usability
4.7

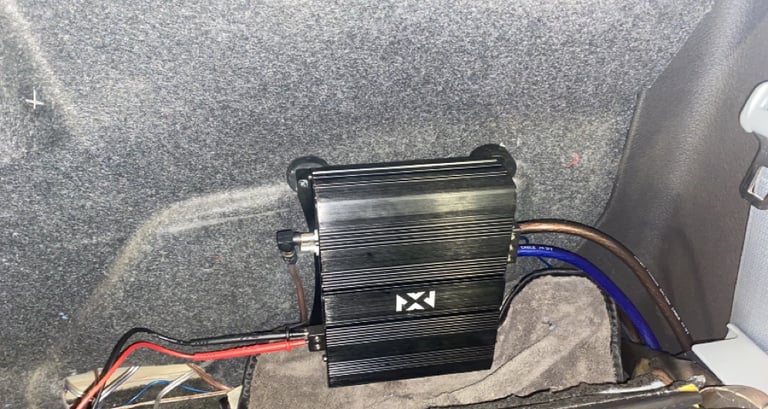

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Great value

I accidentally ordered 2 of them when I bought one. After trying out the first one I just decided to give it to my dad. This is his old 1000w Hifonics amp next to it.

By Tyler on January 7, 2023 Checkmark Icon Verified purchase

56 found this helpful


Awesome

I wired this to 2 10 inch vcw's in a box tuned to 32 hertz and this amp is impressive I also have nvx 4 gauge wiring kit the amp is small but powerful also has a fan worth every penny nvx for the win

By Juice on March 26, 2022 Checkmark Icon Verified purchase

29 found this helpful


small size, big value!

The amp has a very small footprint, but puts out a big sound. I also like the fact that it has an internal fan for cooling. This is my 2nd NVX amp, I haven't been disappointed yet.... The only negative is the fact that I had to get a dual to single RCA input adapter for the audio input.

By Joseph on July 11, 2022 Checkmark Icon Verified purchase

28 found this helpful


Great amp for price

Does rated power and some. The only problem I have is the crossover does not filter vocals well. There is no way it is a 24db crossover.

By Chris on July 19, 2022 Checkmark Icon Verified purchase

27 found this helpful


WOW!

I purchased this amp never buying any nvx products but did do a fair amount of research along with two nvx 10 inch subwoofers to install in my 2017 Chevy Silverado 1500 crew cab along with a fox box that is ported which I purchased from a local seller I’ve been installing audio systems in my vehicles the last 18 years.The amp is built very well,is very simple to tune and it’s small which is great I have it setup at 1ohm and it is very powerful it will blow your subs if it is not set properly to match your subs power handling great quality and well built I will definitely recommend this amp to anyone great product.

By Bradley on May 2, 2022 Checkmark Icon Verified purchase

28 found this helpful


Compact and full of power

I use this amp for testing purposes and he is a work horse. Stays warm and keeps the subs pumping.

By Jay on August 3, 2023 Checkmark Icon Verified purchase

26 found this helpful


Not Bad For the Price at all

I have had these for only a month, but I have used this amp and the amp kit bundle I purchased with it, with 3 different setups trying to find the right sound. These have been great overall and are delivering beyond my expecations. It does look like its on the cheaper end, but it feels good in the hand, mounted well, and is delivering what I need. Will change my review if things go south in the future, but for now, it seems great!

By Andrew on October 17, 2022 Checkmark Icon Verified purchase

24 found this helpful


By Marcus on October 7, 2024 Checkmark Icon Verified purchase

4 found this helpful


By andrew on October 12, 2024 Checkmark Icon Verified purchase

3 found this helpful




No picture

Single 10" Molded JMC Box OB

(MINOR AESTHETICAL DAMAGE) Custom Designed Ported Enclosure

$39.00

List price $149.99

ICBM-9261T small

Performance Teknique ICBM-9261T

7" Sun Visor / Headrest TFT-LCD Monitor

$149.99

List price $429.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Saab 900

2001 Ford Expedition

2003 Dodge Viper

2019 Audi SQ5

1994 Cadillac DeVille

2012 Audi A5

2011 Ford Expedition

1993 Geo Tracker

2006 Chrysler Pacifica

2017 Nissan Altima

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
