Name: Kenwood eXcelon XR-4S Open Box
Brand: Kenwood
SKU: LS-xr4s-OB
Price: 299.99 USD
Availability: Discontinued

by Kenwood

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

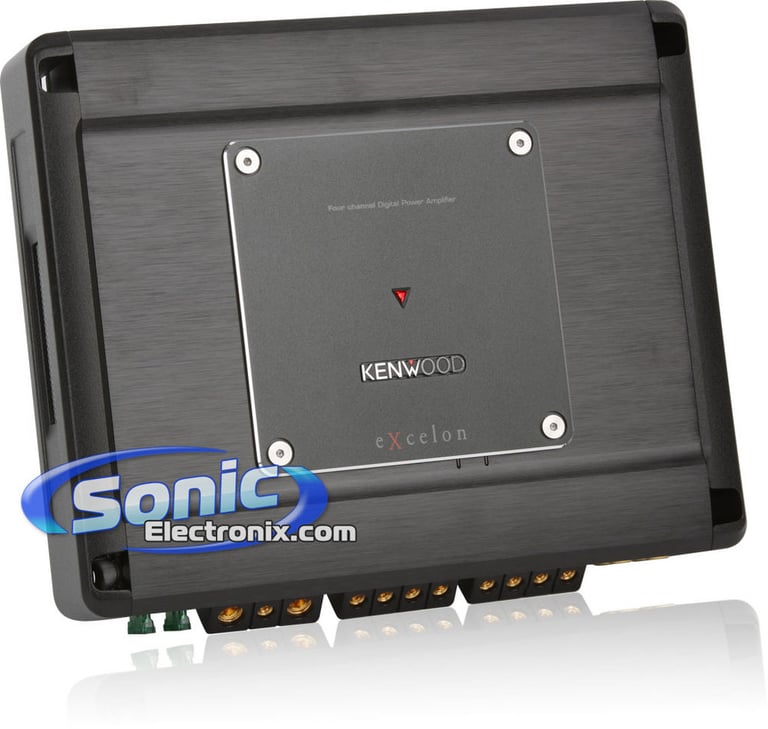

Kenwood eXcelon XR-4S Open Box Image 1 — Kenwood eXcelon XR-4S Open Box

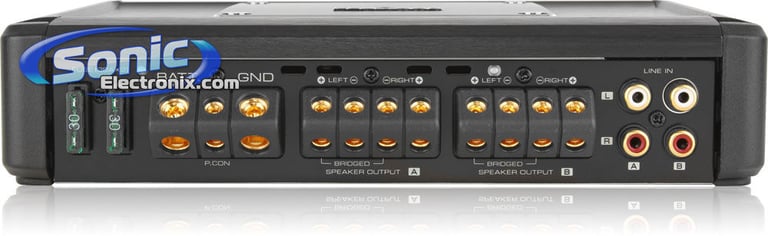

Kenwood eXcelon XR-4S Open Box Image 2 — Kenwood eXcelon XR-4S Open Box

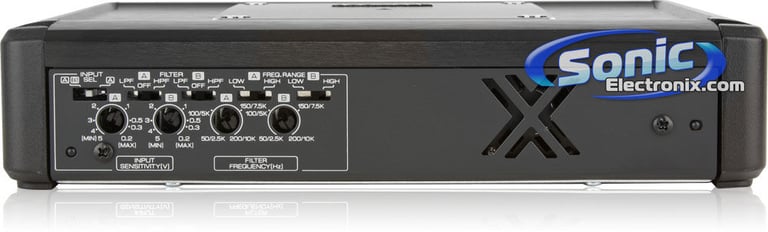

Kenwood eXcelon XR-4S Open Box Image 3 — Kenwood eXcelon XR-4S Open Box

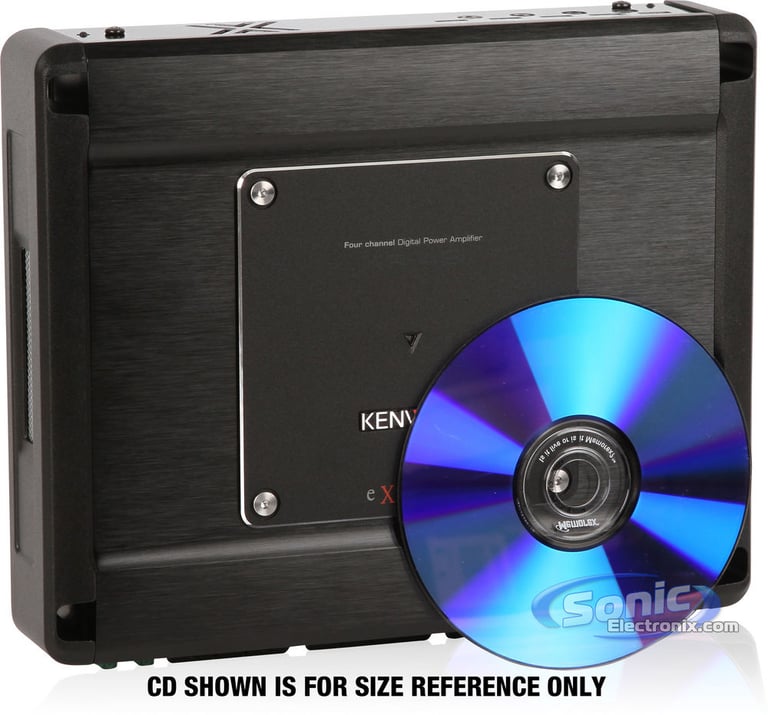

Kenwood eXcelon XR-4S Open Box Image 4 — Kenwood eXcelon XR-4S Open Box

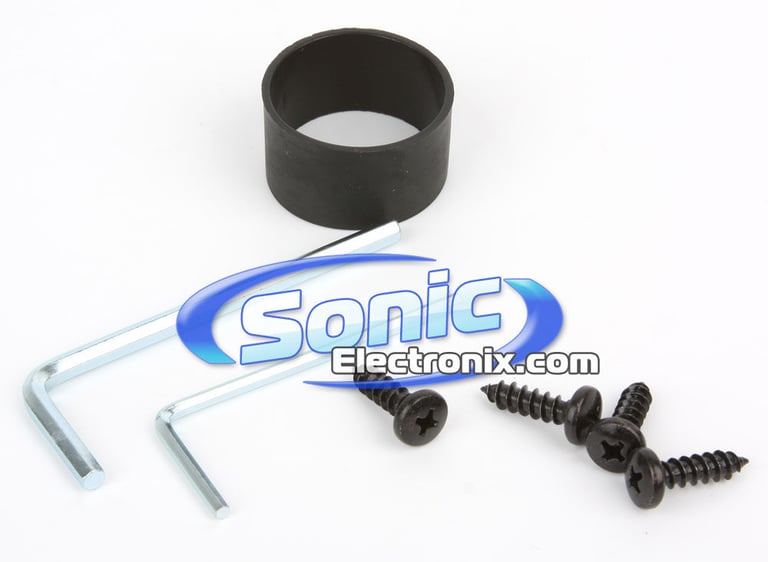

Kenwood eXcelon XR-4S Open Box Image 5 — Kenwood eXcelon XR-4S Open Box

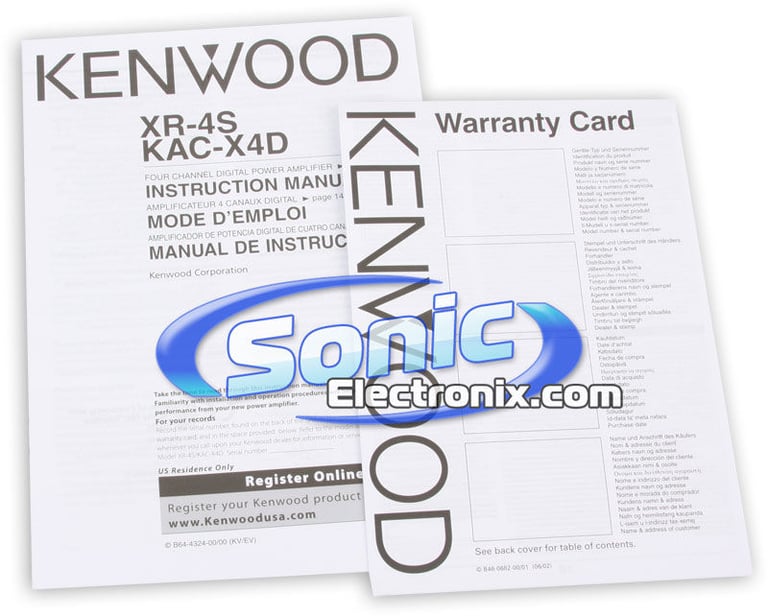

Kenwood eXcelon XR-4S Open Box Image 6 — Kenwood eXcelon XR-4S Open Box

Kenwood eXcelon XR-4S Open Box Image 7 — Kenwood eXcelon XR-4S Open Box

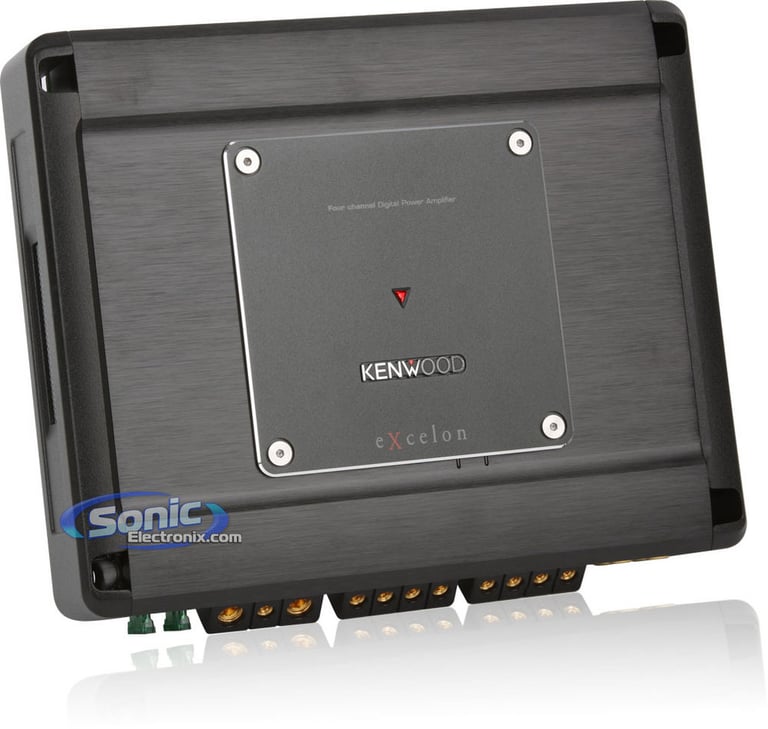

Kenwood eXcelon XR-4S Open Box Image 8 — Kenwood eXcelon XR-4S Open Box

Kenwood eXcelon XR-4S Open Box Image 9 — Kenwood eXcelon XR-4S Open Box

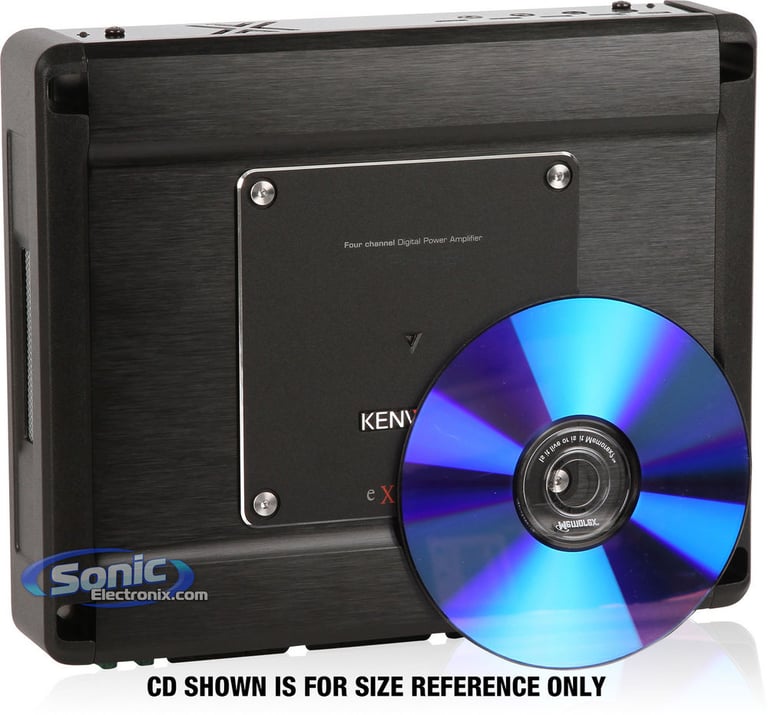

Kenwood eXcelon XR-4S Open Box Image 10 — Kenwood eXcelon XR-4S Open Box

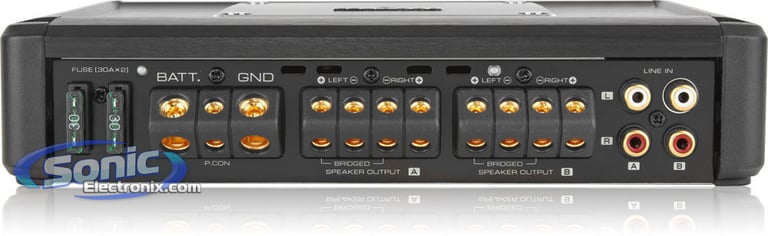

Kenwood eXcelon XR-4S Open Box Image 11 — Kenwood eXcelon XR-4S Open Box

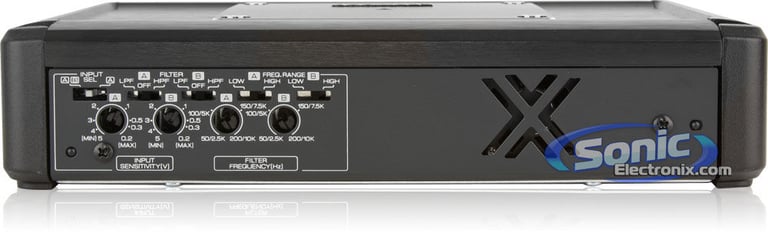

Kenwood eXcelon XR-4S Open Box Image 12 — Kenwood eXcelon XR-4S Open Box

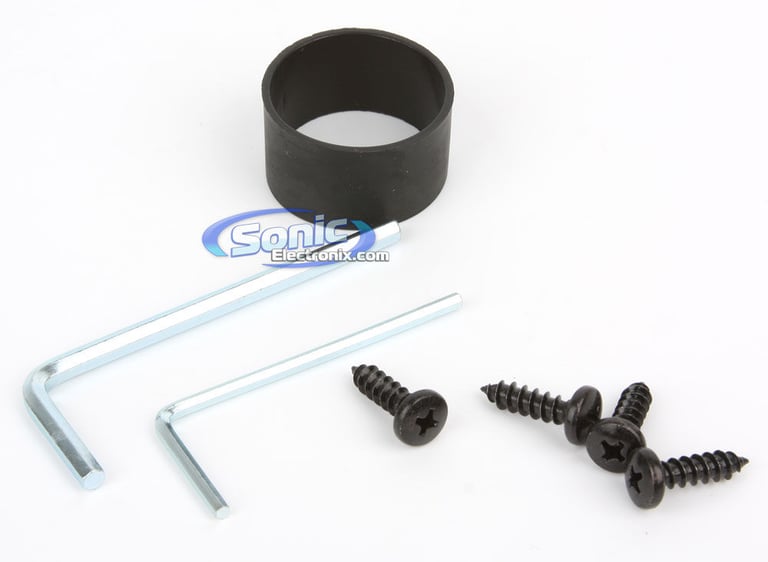

Kenwood eXcelon XR-4S Open Box Image 13 — Kenwood eXcelon XR-4S Open Box

Product videos

Product highlights

Reference Fit Class D Monoblock Car Amplifier • 120 Watts RMS X 4 Chan. @ 4 Ohm • 150 Watts RMS X 4 Chan. @ 2 Ohm • 300 Watts x 4 Chan Max • Heavy Duty Heatsink With Cooling Fan • Digital Amplifier • Dual Power Supply

Learn more about the LS-xr4s-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

The eXcelon Reference Fit amplifiers may fool some, but those who know Kenwood understand the power behind the aluminum plating. These amplifiers have a small footprint allowing installation in even the tightest of locations. For those who need a truly custom installation the top plate can be removed and replaced with a creation of your choice. For such a small size these amplifiers put out a huge amount of power, just don't let it go to waste

Reference Fit Class D Car Amplifier
RMS Power Rating:

4 ohm: 120 watts x 4 chan.
2 ohm: 150 watts x 4 chan.
Bridged, 4 ohm: 300 watts x 2 chan.

Max power output: 300 watts x 4 chan.
Digital amplifier technology with dual MOSFET switching power supply
Remote bass level input (Kenwood KAC-X1D remote level control sold separately)
LED power indicators
4/3/2 Channel operation
Line inputs
AB/A Channel input selector with independent gain adjustment
Single side exposure of terminals for multi-installation
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink with built-in cooling fan for extreme heat dissipation
Removable top plate allows for custom fabricators to easily create their own plates
Gold-plated RCA level inputs
Gold-plated screw terminals
Variable high-pass filter (Low Range: 50-200 Hz, 12 dB/octave | High Range: 2,500-10,000 Hz, 12 dB/octave)
Variable low-pass filter (Low Range: 50-200 Hz, 12 dB/octave | High Range: 2,500-10,000 Hz, 12 dB/octave)
Infrasonic Filter (24 dB at 15-40 Hz)
CEA-2006 compliant amplifier
Frequency response: 20-20,000 Hz
Dimensions: 9-1/4"W x 2-1/16"H x 7-9/16"D
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
30-Day Sonic Electronix warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

120 watts x 4 channel

RMS Power @ 2 ohms

150 watts x 4 channel

Bridged RMS Power

300 watts x 2 channel

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total Peak Power Output

1200 watts

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

2,500 - 10,000 Hz

Low-Pass Crossover Frequency

50 - 200 Hz

Signal-to-Noise Ratio

73 dB

Remote bass/level controller

Fuse Rating

30A x 2

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
