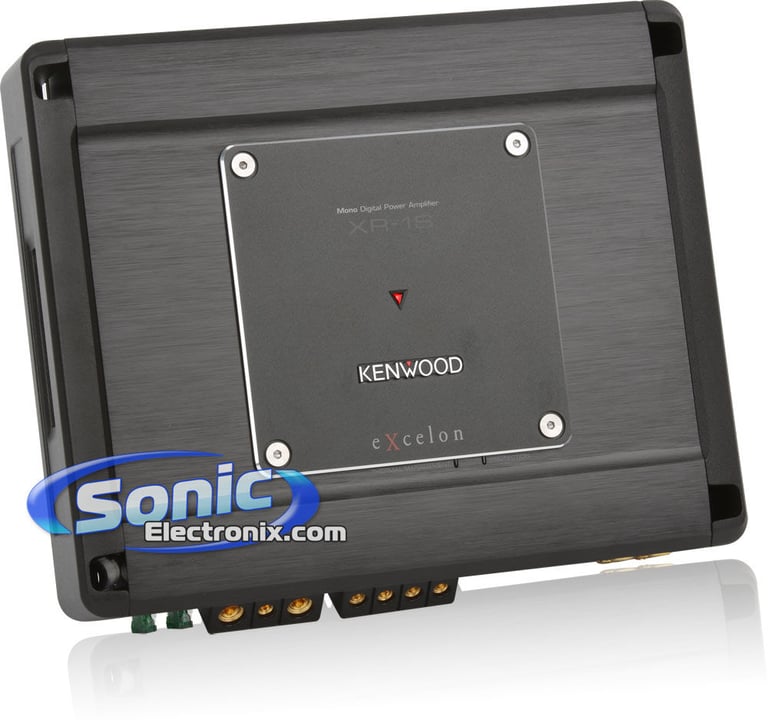

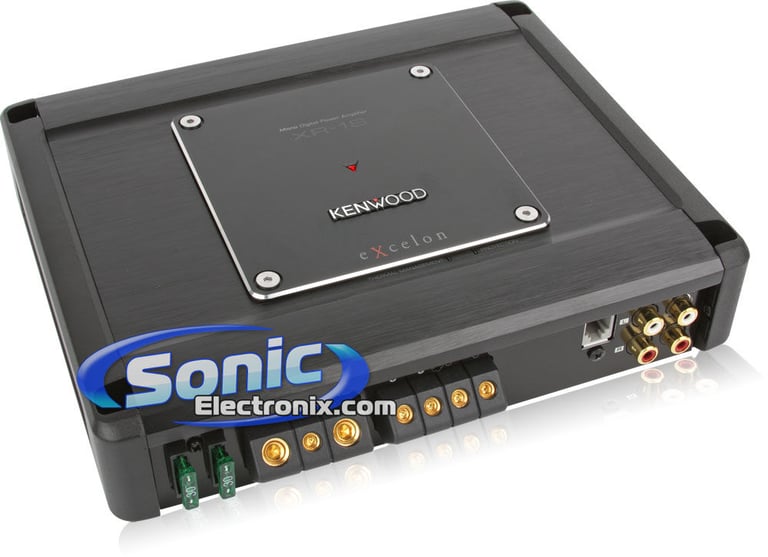

Kenwood eXcelon XR-1S

1500W Max Reference Fit Class D Monoblock Amplifier

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

Reference Fit Class D Monoblock Car Amplifier • 600 Watts X 1 Chan. @ 4 Ohm • 700 Watts X 1 Chan. @ 2 Ohm • 1600 Watts Max • Dual Sigma Drive Technology • Digital Amplifier • Dual Power Supply

Learn more about the xr1s

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

AP4-CH41 main

PAC AP4-CH41 R.2

Amplifier Integration Interface for select 2013-2023 vehicles from Ram, Jeep, Dodge

4
-16.03%

$419.00

List price $499.00

AXABH-CH2 main

Axxess AXABH-CH2

Amplifier Bypass Harness for select 2007-2021 vehicles from Ram, Dodge, Jeep

2
-11.77%

$29.99

List price $33.99

82-6600 main

Metra 82-6600

5-1/4" or 6-1/2" Front Door Speaker Adapter for select 1995-2024 vehicles from Dodge, Ram, Jeep

14
-40.02%

$14.99

List price $24.99

Lowest price in 30 days
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-16.67%

$49.99

List price $59.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

48
-42.51%

$22.99

List price $39.99

Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

2
-56.40%

$108.99

List price $249.95

Limited time!
KFC-X175 main

Kenwood eXcelon KFC-X175

480W Peak (160W RMS) 6.5" eXcelon Series 2 Way Coaxial 4-ohm Car Speakers

-38.06%

$111.50

List price $180.00

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

31
T1693 main

Rockford Fosgate Power T1 T1693

400W Peak (200W RMS) 6x9" Power Series 3-way 4-ohm Coaxial Car Speakers with Dual Tweeters

32

Product Highlights


Reference Fit Class D Monoblock Car Amplifier • 600 Watts X 1 Chan. @ 4 Ohm • 700 Watts X 1 Chan. @ 2 Ohm • 1600 Watts Max • Dual Sigma Drive Technology • Digital Amplifier • Dual Power Supply

Description


Kenwood brand icon

Authorized dealer

The eXcelon Reference Fit amplifiers may fool some, but those who know Kenwood understand the power behind the aluminum plating. These amplifiers have a small footprint allowing installation in even the tightest of locations. Kenwoods Dual Sigma Drive technology is an advanced negative feedback circuit that improves damping factor and increases accuracy and sound quality. For those who need a truly custom installation the top plate can be removed and replaced with a creation of your choice. For such a small size these amplifiers put out a huge amount of power, just don't let it go to waste.

  • Reference Fit Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 700 watts x 1 chan.
  • Max power output: 1600 watts
  • Digital amplifier technology with dual MOSFET power supply
  • Remote bass level input (Kenwood KAC-X1D remote level control sold separately)
  • LED power indicators
  • Bass Boost (0-18 dB variable bass boost 40-100 Hz)
  • Mono channel operation
  • Line inputs
  • Preamp RCA output
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink with built-in cooling fan for extreme heat dissipation
  • Dual Drive Technology (advanced negative feedback circuit sends out opposite pulses to the subwoofer to stop unwanted vibrations increasing accuracy and sound quality)
  • Removable top plate allows for custom fabricators to easily create their own plates
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals

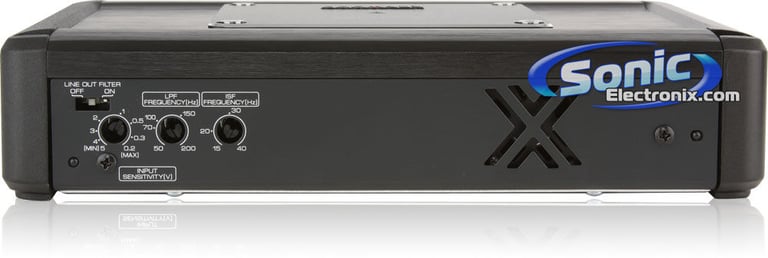

  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • Infrasonic Filter (24 dB at 15-40 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-200 Hz

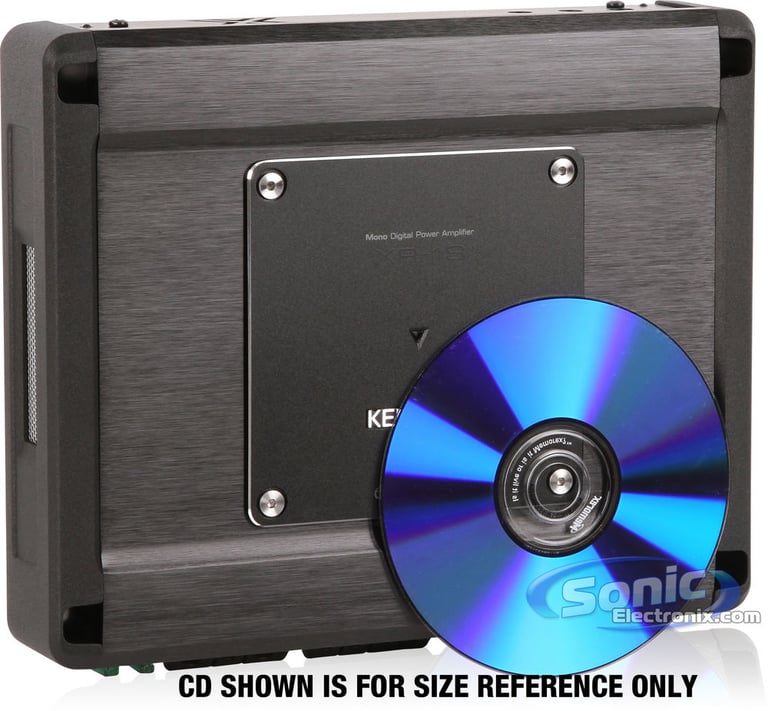

  • Dimensions: 9-1/4"W x 2-1/16"H x 7-9/16"D
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 2-year Sonic Electronix warranty

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.15%

$211.66

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
700 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1600 watts
Total RMS Power Output
700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
86 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)

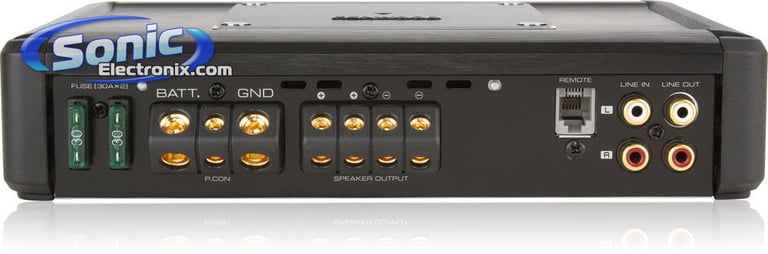

Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XR-1S

Weight:

7.00lbs

Internal SKU:

xr1s

Internal Product ID:

18458

Product and How-to Videos


Customer Ratings & Reviews


Kenwood eXcelon XR-1S thumbnail image

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.6
Features
4.6
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

good things do come in small packages

This is a great little amp. I love it. Nicely made, good quality. Right now it is powering a 10" subwoofer. I bought this one because I have the XR-4S and wanted to be able to stack them. Nice amp, if you need small mono amp, check this one out. Compares quite favorably to the Alpine PDX and the other compact class D from Kicker and JL Audio.

By Chris on August 11, 2010

11 found this helpful


Nice Amp. Could use a little work

The Kenwood eXcelon XR-1S is a little amp. I just recently pulled this amp out and installed a Jl Audio 500/1v2 slash amp for my 10 w7 and I must say, the Kenwood hits harder. One thing i do not like about the Kenwood is that it deletes some of the mids and highs in the sub which is very strange to Not hear. It is definitely louder than the JL amp but lacks some potency. Fan is very nice to have as well for those hot days.

Still a very good Quality amp.

By Miles on January 9, 2011

11 found this helpful


great item

This has been a great amp. I used it behind a seat in a lotus elise and it has worked great.

By khauger on December 23, 2009

10 found this helpful


PERFECT SOUND PERFECT QUALITY

I got a 2010 Impala with eXcelon DNX7140 Double Din with this amp powering their eXcelon XW1224 sub. Its so accurate n still gets real real deep. No need for 2 unless bass junkie. They are matched at 600 watts rms. Match made in heaven.

By RAFFE on May 2, 2011

10 found this helpful


AWSOME AMP

ABSOLUTELY AMAZING AMP! I have it pushing two mtx thunderthin 10's with a power rating of 300 watts rms per sub and the amp has power to spare. The amp is very compact and looks great....This amp is pushing every bit of the 700rms at 2ohm. The power is very clean and it has a built in fan that works great to control the heat....I have never seen an amp so compact push so much power....Spend the extra money and you WILL NOT BE DISSAPPOINTED! Kenwood's excelon series stuff is always top notch and this amp proves it!

By john on June 10, 2010

9 found this helpful




V1100.5 small

Cerwin-Vega V1100.5

1100W RMS Vega Series 5-Channel Class D Car Amplifier

$319.99

List price $699.99

H41500.1D small

Cerwin-Vega H41500.1D

1500W HED Monoblock Series Class D Amplifier

(1)

$189.99

List price $379.99

SLG-UDSD6LD small

DS18 Hydro SLG-UDSD6LD

1200W Peak (600W RMS) Loaded Dual 6.5" Sealed Enclosure for select 2015-2019 vehicles from Polaris

$359.95

List price $359.95

PDX-10K small

Precision Power PPI PDX-10K (Rare Competition Amplifier)

10,000W RMS, Monoblock Class D PDX Series Car Amplifier

(7)

$899.95

List price $3649.95

KDC-X491 small

Kenwood eXcelon KDC-X491

CD/MP3/WMA Receiver with Remote and Front USB Input

(3)

$129.99

List price $199.99

GMP240 small

German Maestro GMP 240

GMP Live-Series, Acoustically Open 100 ohm Stereo Headphones with Brilliant Sound Reproduction

$109.99

List price $199.99

SPT8114 small

Stinger SPT8114 (Gold)

Ring Terminal w/ 8 Gauge Input to 1/4" Ring, 4 Pack (2 black, 2 red)

$2.99

List price $9.99

8500CI-LASER-SHIFTER small

Escort 8500ci Laser Shifter Pack

Add-on Laser Shifting System for 8500CI and 8500CI-Plus Radar Detector

$199.95

List price $249.95

KVT-717DVD small

Kenwood KVT-717DVD

In-Dash DVD Multimedia System with 7" LCD Screen

(2)

$839.99

List price $1299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Ford C-Max

2017 Dodge Durango

2010 Mitsubishi Eclipse

2007 Dodge Nitro

2010 Scion xD

1985 Ford Bronco

2018 MINI Cooper

1984 Mercury Capri

1994 Dodge B150

Vehicle
Store
Delete

2002 Harley Davidson FXSTD Softail Deuce

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
