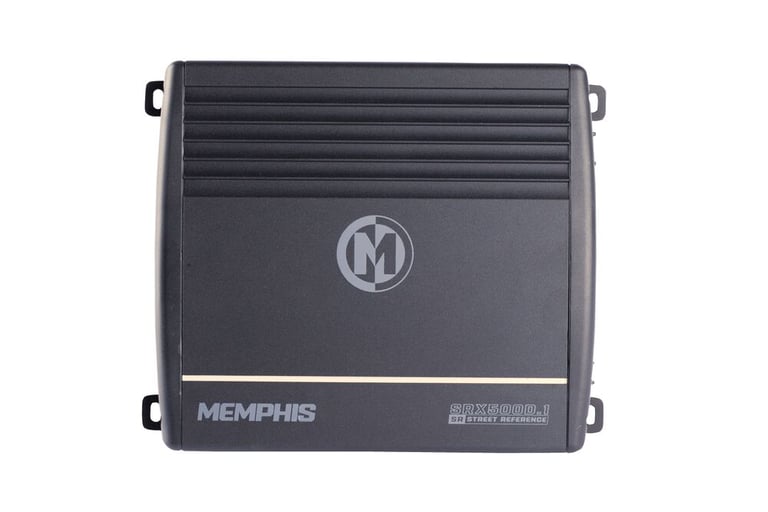

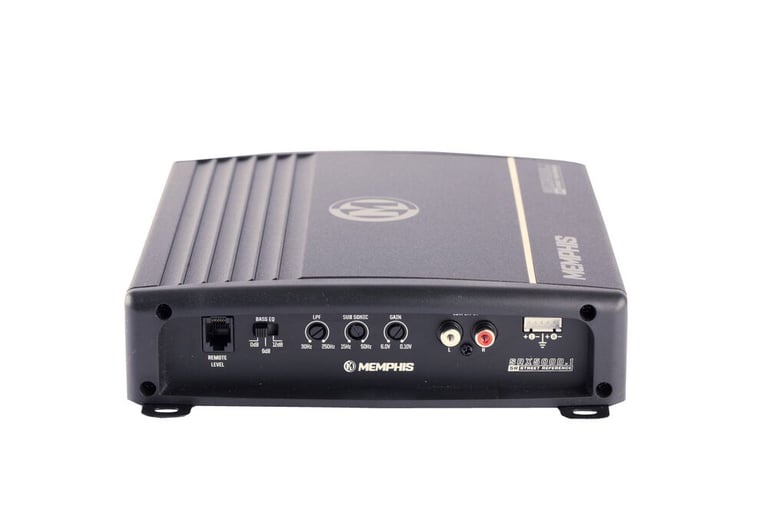

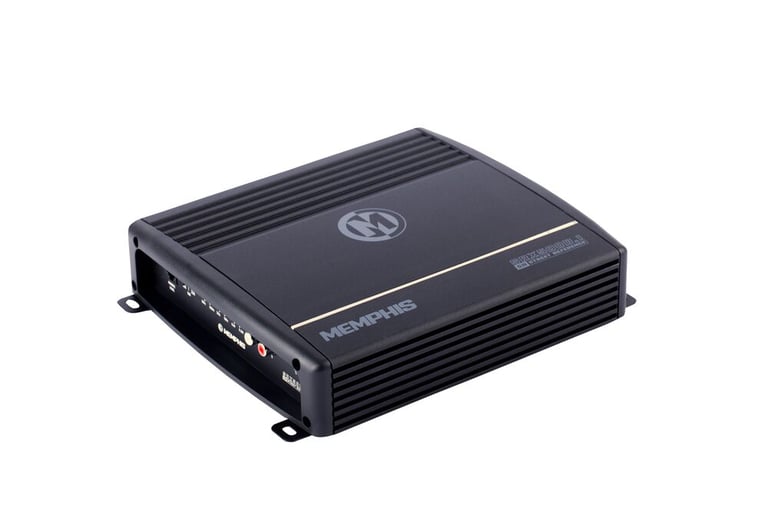

Memphis SRX500D.1

500W RMS Street Reference Series Class D Monoblock Amplifier with Bass Remote

Memphis
Shop all Memphis
highlight-star-icon

• 350 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

Learn more about the srx500d1

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

srx5001v thumbnail

Memphis SRX500.1V

OUR PRICE: $259.95

View item

Loading...
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

ZS65CXS main

Hifonics ZS65CXS

600W Peak (100W RMS) 6.5" Zeus Series 2-way 4-ohm Coaxial Car Speakers

18
-5.72%

$32.99

List price $34.99

XED42 main

Cerwin-Vega XED42

300W Peak (40W RMS) 4" XED Series 2-Way Coaxial 4-ohm Speakers

4
-16.67%

$39.99

List price $47.99

Description


Memphis brand icon

Authorized dealer

Style, Value, and Performance!

Memphis Audio keeps its customers in mind when it comes to designing its products. Their Street Reference amplifiers are the ultimate combination of performance, style, and value. They feature a bold new look complemented by an ultra-bright micro-LED strip. These amplifiers bright solid performance without breaking the bank.

Product Details:

  • Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 350 watts x 1 channel
    • 2 ohm: 500 watts x 1 channel
  • Total RMS power output: 500 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Wired remote bass level control included
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 6.0 - 0.10 volts
  • Frequency Response: 30 - 250 Hz
  • Total Harmonic Distortion (THD): .5%
  • Signal to Noise Ratio: 90 dB
  • Variable low-pass filter: 30 - 250 Hz
  • Subsonic filter: 15 - 50 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 50A
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 9-3/4" W x 8" L x 2-3/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Memphis SRX500.1V thumbnail
(newest, current model)
Memphis SRX500D.1 thumbnail
(previous model, replaced by Memphis SRX500.1V)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
350 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
30 - 250 Hz
THD at Rated RMS Power
.5%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Total Fuse Rating
50A
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
6.0 - 0.10 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Mounting screws (6)
Washers (6)
Two spare fuses
High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SRX500D.1

Weight:

5.20lbs

Internal SKU:

srx500d1

Internal Product ID:

186637
