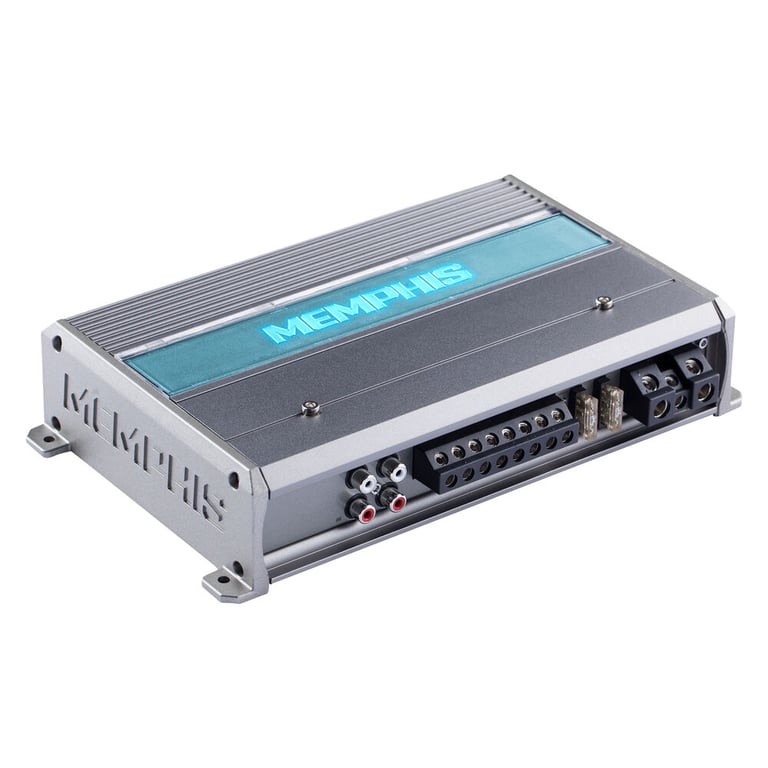

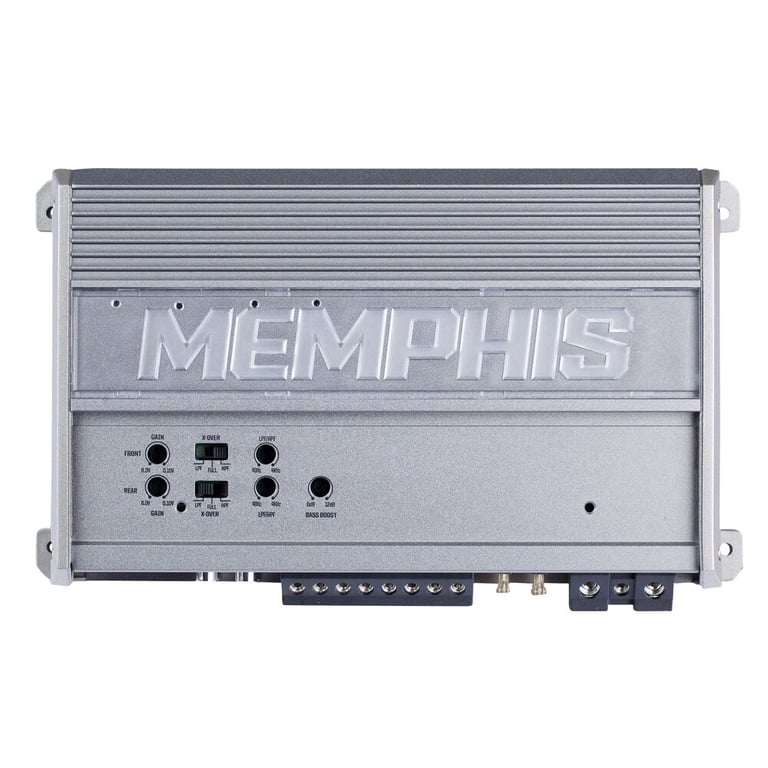

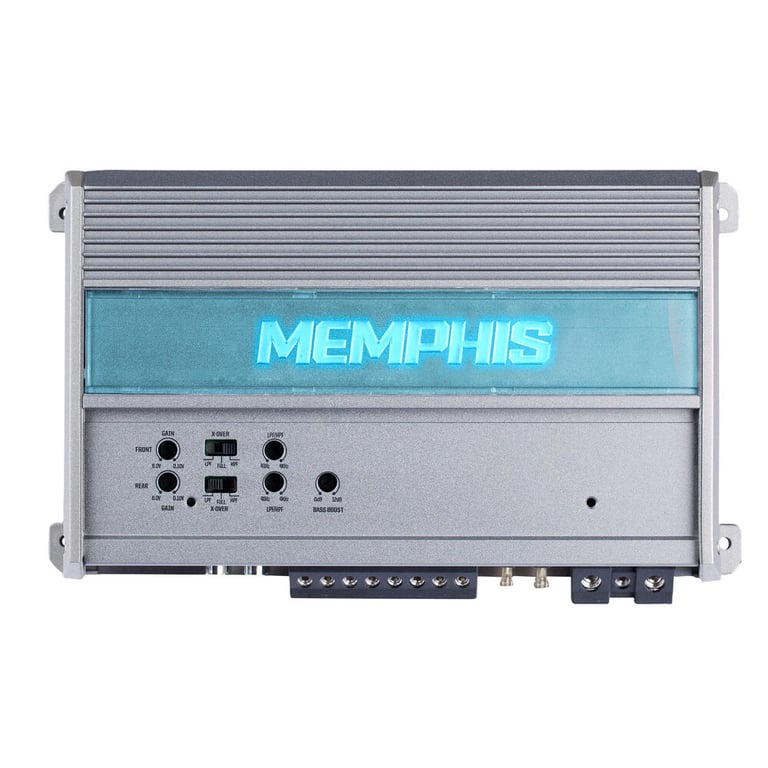

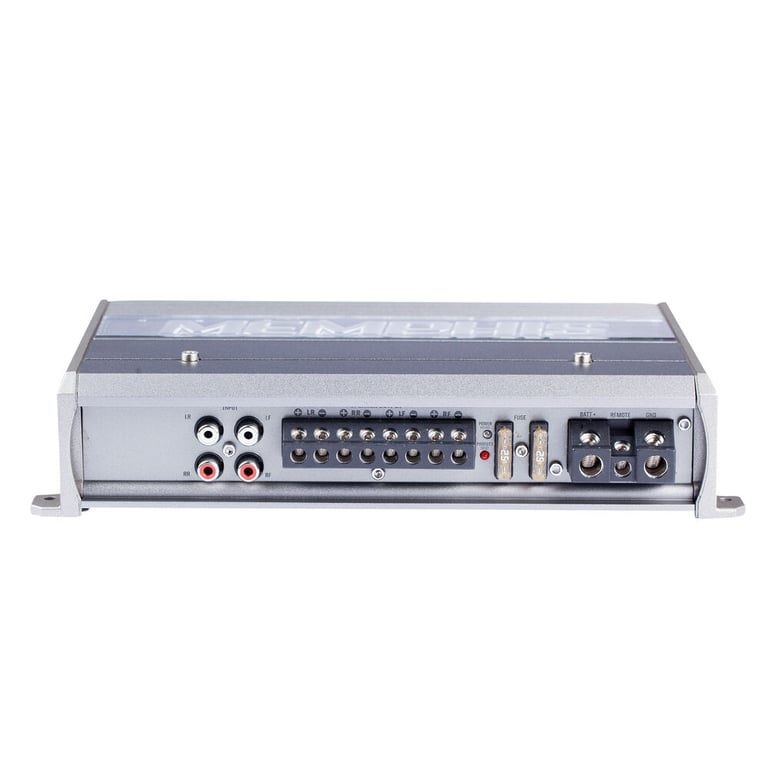

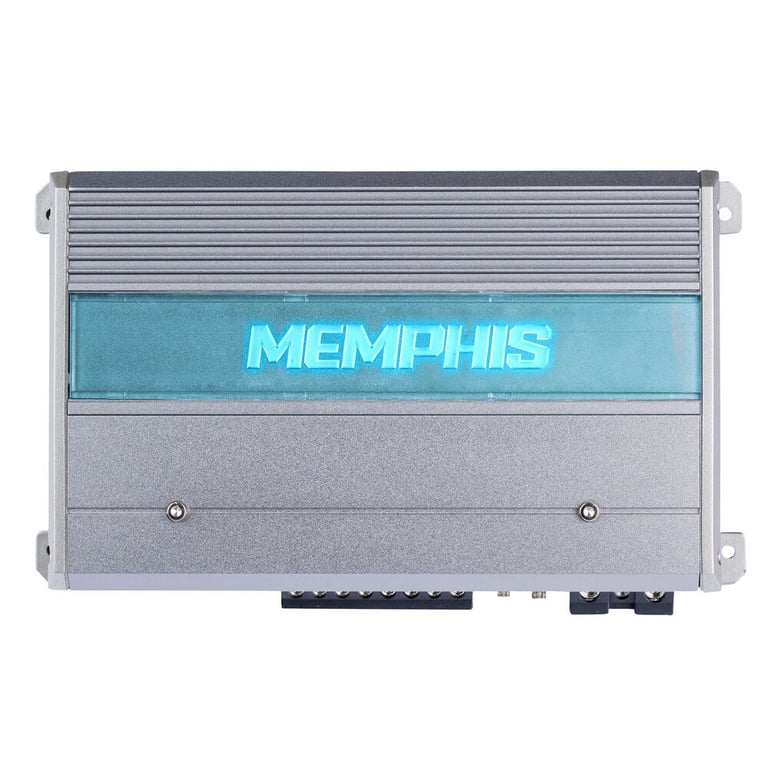

Memphis MXA480.4M

480W RMS MXA Series Class D 4-Channel Marine Amplifier

Memphis
Shop all Memphis
highlight-star-icon

• 80 watts x 4 channel @ 4 ohm
• 120 watts x 4 channel @ 2 ohm
• Bridged: 240 watts x 2 channel @ 4 ohm
• Total RMS Power: 480 watts
• Class D 2 ohm Stable 4-Channel-Channel Amplifier

Learn more about the mxa4804m

We apologize

This item has been discontinued


Loading...
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

99-9109B main

Metra 99-9109B

Single DIN or Double DIN Stereo Dash Kit for select 2006-2013 A3

1
-39.59%

$28.99

List price $47.99

LAI10 main

Scosche LAI10 Wiring Interface

Install new car stereo and retain steering wheel audio controls in select 2004-2023 vehicles from Audi

MVH-S522BS main

Pioneer MVH-S522BS

Single DIN Digital Media Bluetooth Receiver with Bluetooth and SiriusXM Ready

4
-10.53%

$169.99

List price $190.00

DDX9907XR main

Kenwood eXcelon DDX9907XR

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

2
-14.36%

$1,199.00

List price $1400.00

Description


Memphis brand icon

Authorized dealer

Product Details:

  • MXA Series Class D 2 ohm Stable 4-Channel-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 channel
    • 2 ohm: 120 watts x 4 channel
    • Bridged, 4 ohm: 240 watts x 2 channel
  • Total power output: 480 watts
  • Pulse Width Modulated MOSFET power supply
  • Water and element resistant conformal coated circuit board
  • Bright blue Memphis LED accent strip
  • LED Power/Protect Light
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 100mV - 5.5 volts
  • Frequency Response: 20 - 40000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 95 dB
  • Variable high-pass filter: 40 - 40000 Hz, 12dB/octave
  • Variable low-pass filter: 40 - 40000 Hz, 12 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 45 Hz
  • Fuse Rating: 50A
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 10-3/4" W x 6-1/2" L x 2-3/8" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
PDF IconMemphis MXA4804M owner’s manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
120 watts x 4 channel
Bridged RMS Power
240 watts x 2 channel
Amplifier Specifications
Series
MXA Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
480 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 40000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 40000 Hz
Low-Pass Crossover Frequency
40 - 40000 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Total Fuse Rating
50A
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
100mV - 5.5 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Mounting screws (4)
One spare fuse
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MXA480.4M

Weight:

5.28lbs

Internal SKU:

mxa4804m

Internal Product ID:

187175
