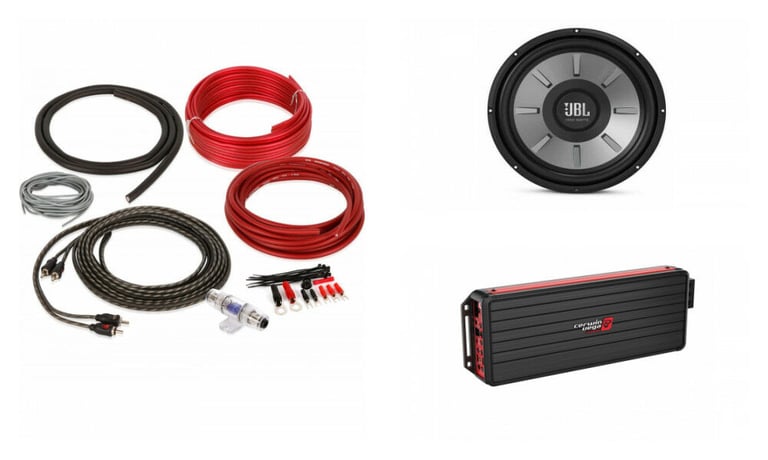

Cerwin-Vega VCU81 + JBL Stage1210 Subwoofer + 8 Gauge Amp Kit

Vega Series 600W Class D Monoblock Amplifier + JBL 12" Subwoofer + Belva BAK82

highlight-star-icon

• Vega Series Class D Mono 600W Amplifier
• RMS Power: 400W x 1 @ 2 Ohms
• RMS Power: 240W x 1 @ 4 Ohms
• MAX Power: 600W x 1 @ 1 Ohm
• Surface Mount Component Technology
• Compact Universal All-Weather Application
• Variable/Switchable Crossovers On Multi-Channel Models

Learn more about the vcu81_stage1210_bak82

We apologize

This item has been discontinued

Description


Cerwin-Vega brand icon

Authorized dealer

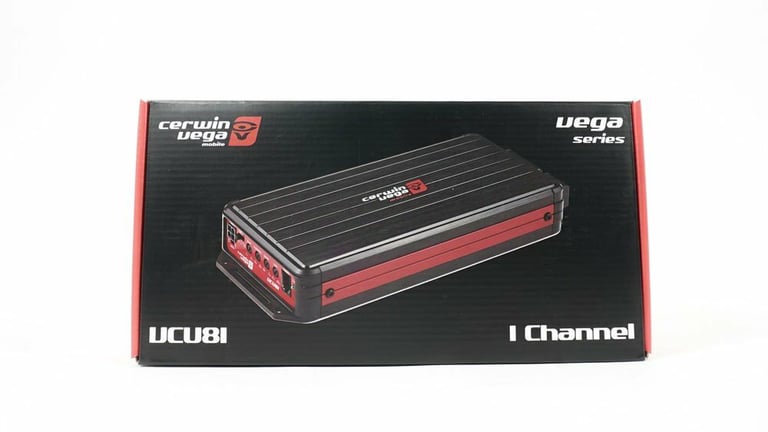

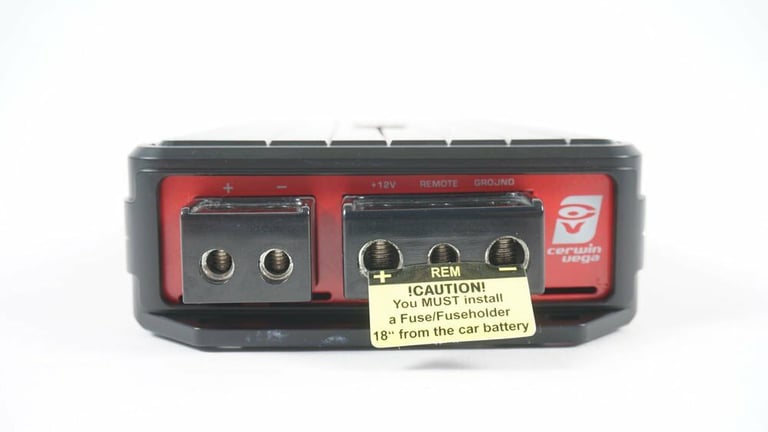

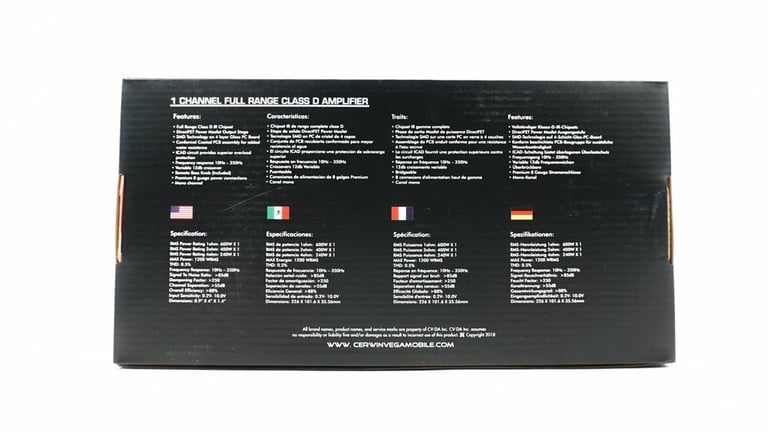

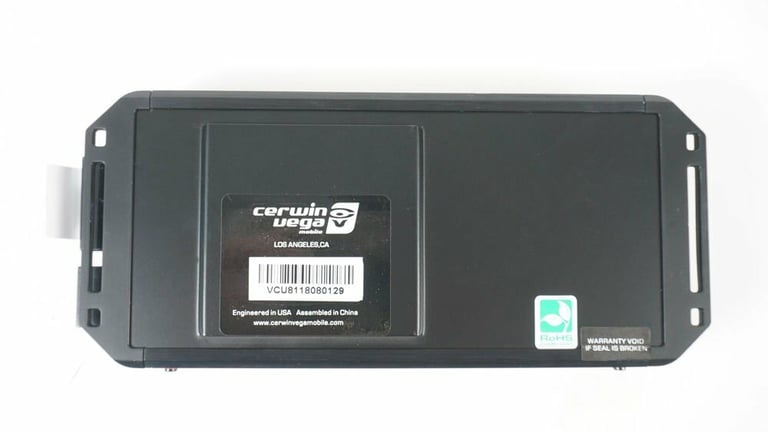

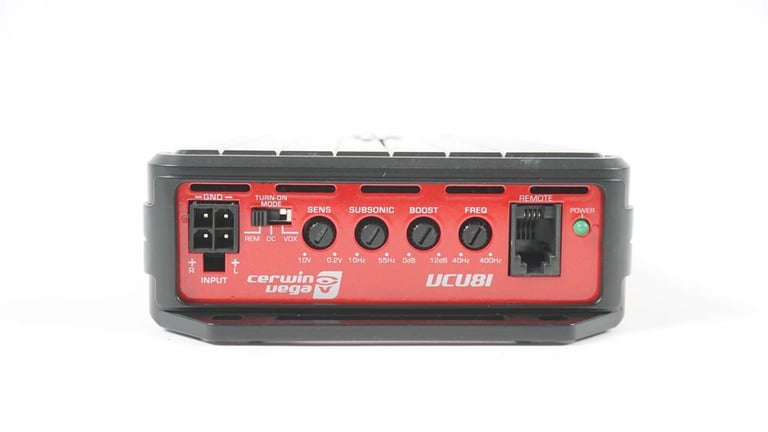

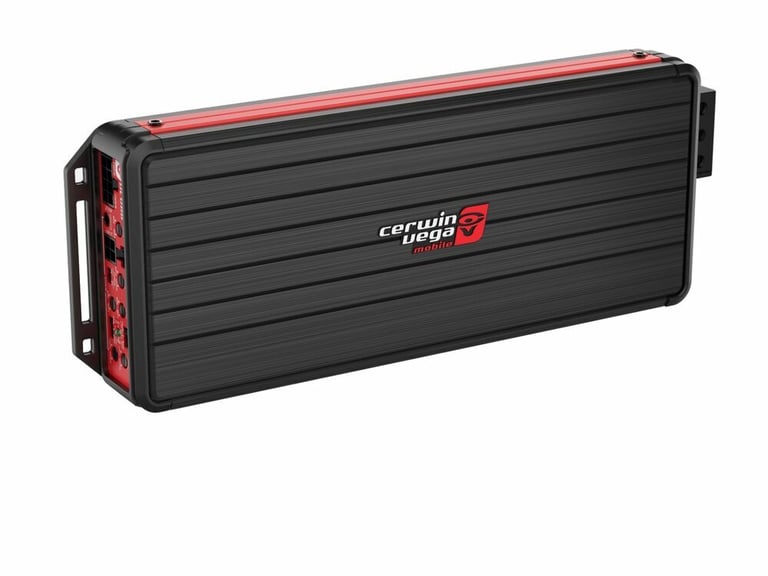

Cerwin-Vega VCU81

1000W Peak (500W RMS) Vega Series Class-D Monoblock Amplifier with Bass Remote
Quantity: 1

Product Details:

  • VEGA Series Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 240 watts x 1 channel
    • 2 ohms: 400 watts x 1 channel
    • 1 ohm: 600 watts x 1 channel
  • Total RMS power output: 500 watts
  • LED Power/Protect Light

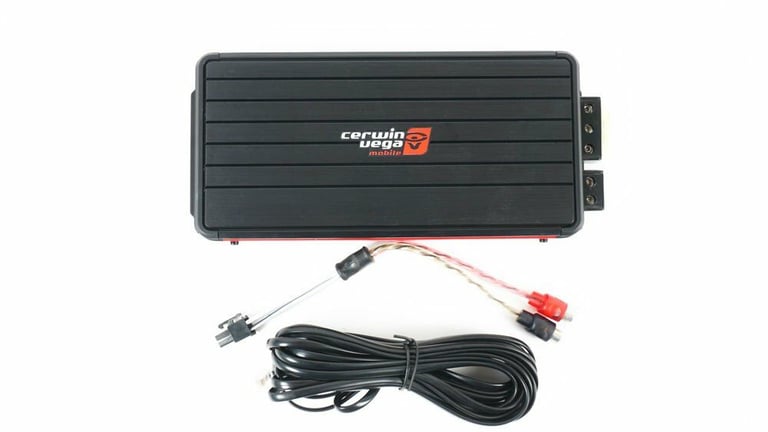

  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Conformal-coated circuit boards
  • Sleek and compact design
  • Water resistant
  • Input sensitivity:
    • Low level: 200mV - 10.0 volts
    • High level: 200mV - 10.0 volts
  • Total Harmonic Distortion (THD): 0.5%
  • Signal to Noise Ratio: -101.1 dB
  • Variable low-pass filter: 40 - 400 Hz
  • Subsonic filter: 10 - 55 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 25A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7.7" L x 4.02" W x 1.4" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: VCU81

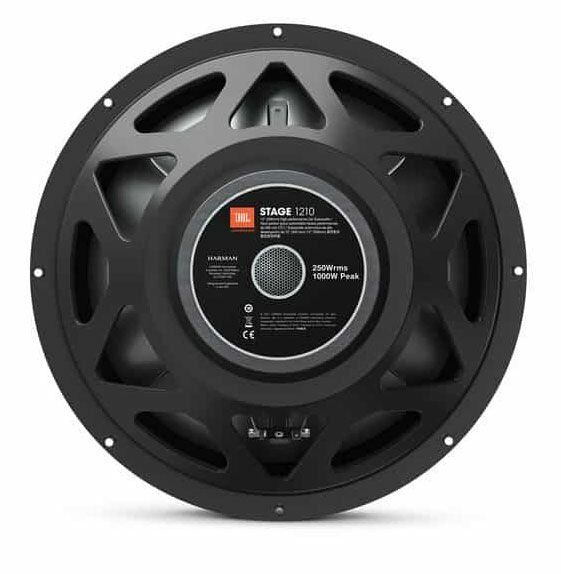

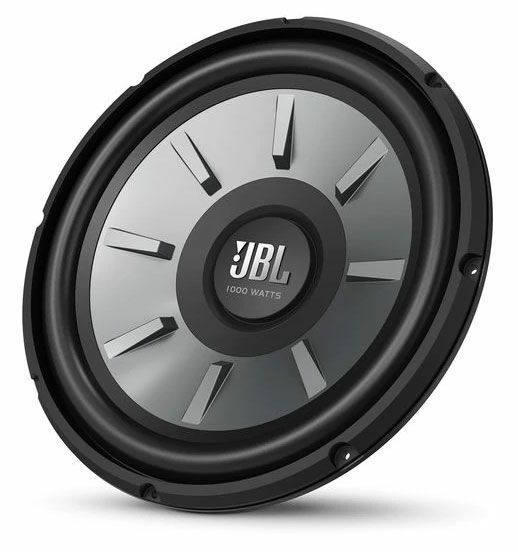

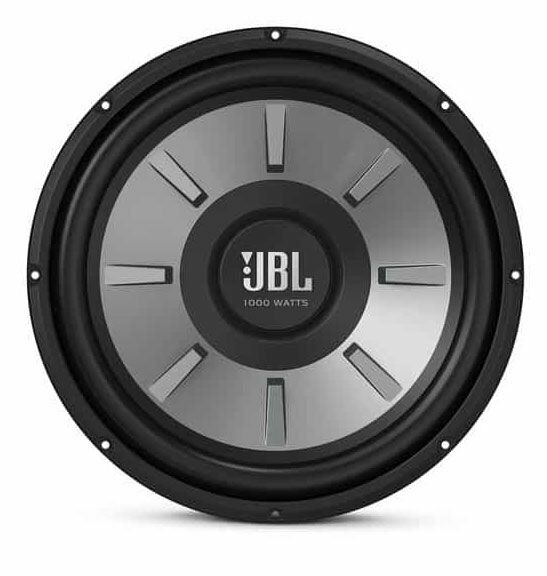

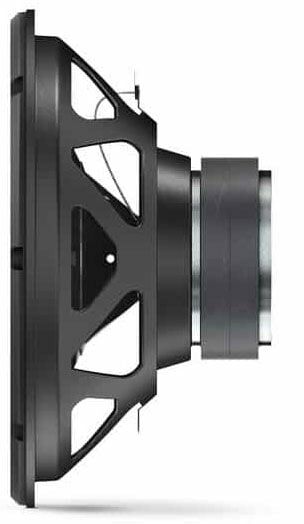

JBL Stage 1210

1000W Max (250W RMS) 12" Stage Series Single 4 ohm Car Subwoofer
Quantity: 1

General Features:

  • 12" 4 ohm Stage Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Polypropylene cone
  • Rubber surround
  • Competitively tuned
  • Regular prong-style terminals
  • 2" Voice coil
  • Recomended Sealed Box Volume: 1.41ft3
  • Recomended Ported Box Volume: 1.61ft3
  • Top-mount depth: 5-13/16"
  • Cutout diameter: 11-1/16"
  • Frequency Response: 34 - 200Hz
  • Sensitivity: 91dB
  • Resonance Frequency (Fs): 31.7
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually



PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

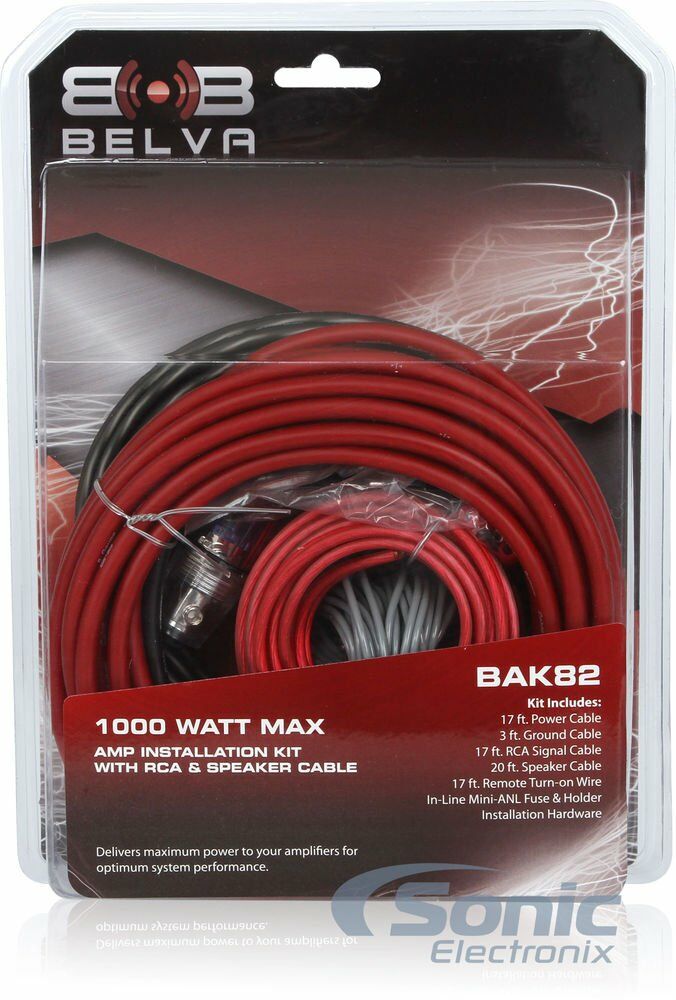

Belva BAK82

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • Complete 8 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 60 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

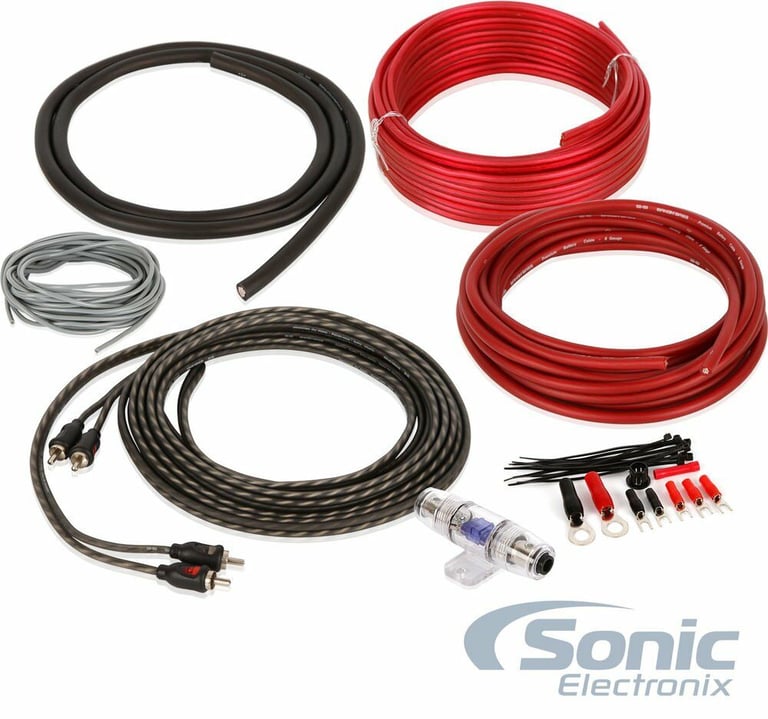

Kit includes:

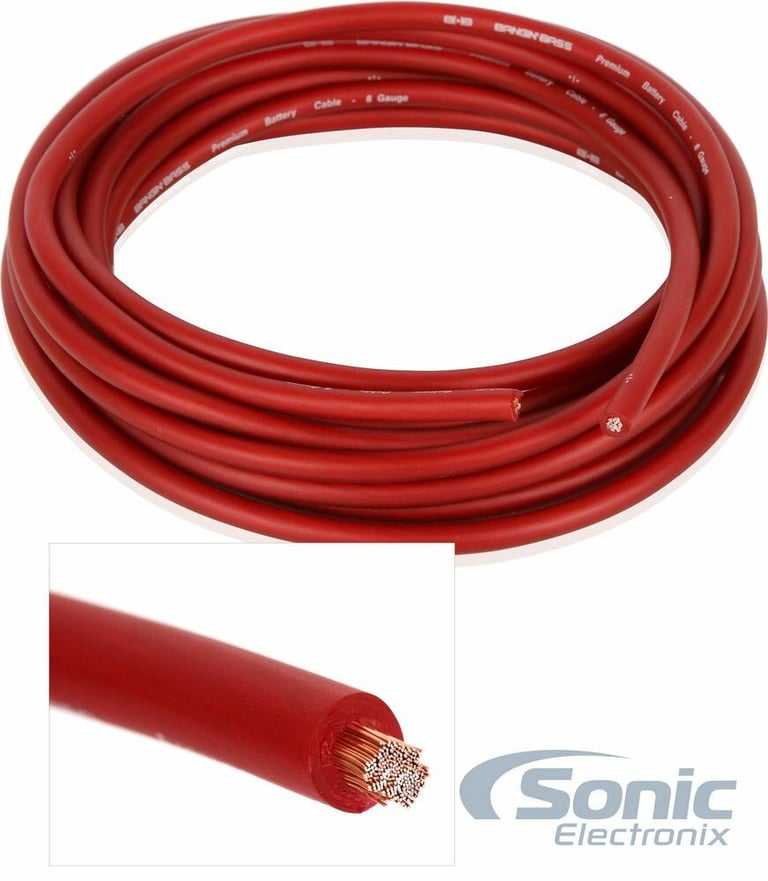

  1. 17 ft. (5.2 meters) Red 8 gauge power wire

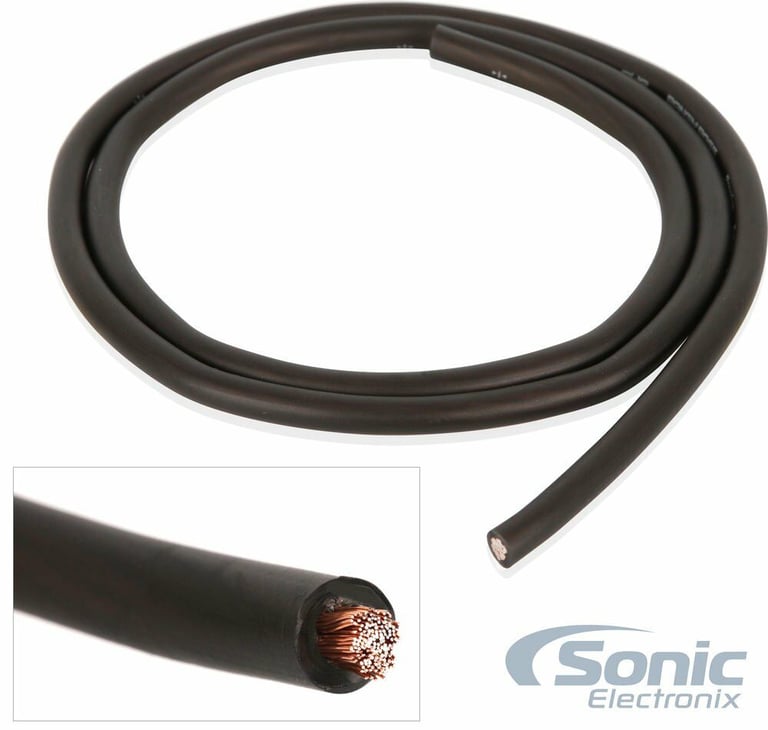

  2. 3 ft. (.91 meters) Black 8 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

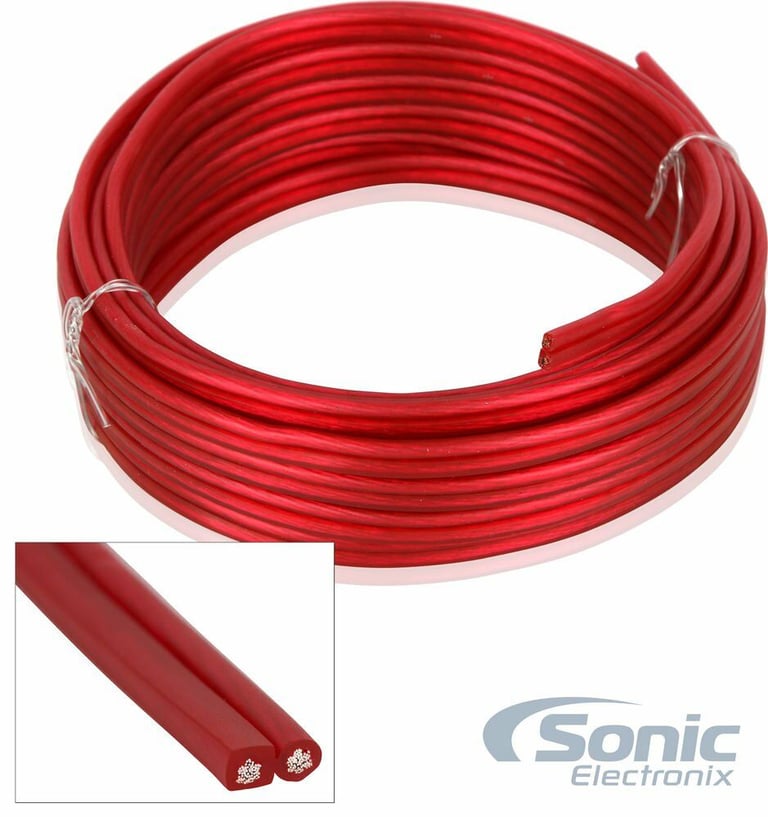

  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

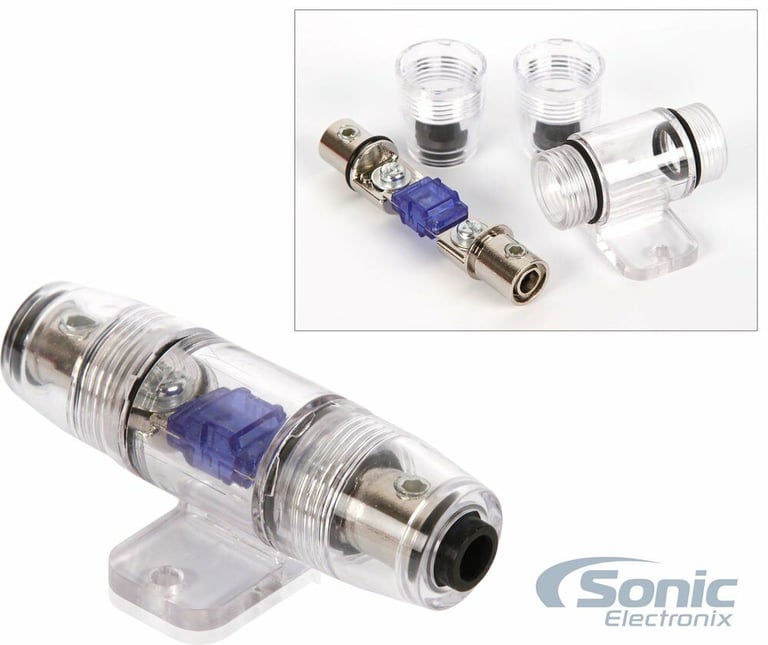

  6. One MINI-ANL Fuse Holder with a 60 amp fuse
  7. One Black rubber firewall grommet
  8. One 8 Gauge Red chrome plated ring terminals
  9. One 8 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
240 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
600 watts
Total RMS Power Output
400 watts
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
No
Preamp Outputs
No
Remote bass/level controller
No
Fan Cooled
No
CEA-2031 Compliant
No
Subwoofer Specifications
Series
VEGA Series
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VCU81, STAGE1210, BAK82

Weight:

15.80lbs

Internal SKU:

vcu81_stage1210_bak82

Internal Product ID:

187383

Customer Ratings & Reviews



5 star
70%
4 star
23%
3 star
7%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.6
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

BAK 82

The following review is for BAK82, which is a part of the bundle you are viewing.

Nice package, quality wire but could more end connectors for the larger wire.

By Sam on June 19, 2014

160

found this helpful.

Good product

The following review is for BAK82, which is a part of the bundle you are viewing.

It's exactly what you need for your car amp installation. I bought this kit with Kenwood KAC-1502S amp for 75 bucks. Good deal from Sonic Electronix.

By Collins on January 6, 2014

148

found this helpful.

Don't know what the other guy is talking about.

The following review is for BAK82, which is a part of the bundle you are viewing.

This kit was awesome and included with my package that I bought. In comparison to others for the same price, there is simply not a comparison and the other review is just wrong on so many levels I felt compelled to write this.

The reality is there are a lot of real shoddy amp kits and wire as a whole being used in car audio in terms of cheap amp kits that have over-insulating wires and fake gauge ratings, huge amounts of aluminum, lousy RCA cables, fuse holders and other accessories. BUT and a BIG BUT, this kit excels in those areas where others fall flat on their face. I have bought a few inexpensive 8 gauge kits in my day and XScorpion, Raptor, Install Bay and others haven't even given me the 8 gauge of wire that I paid for, and in some cases gave me wire that heated up to a dangerous level due to the actual make up of the wire.

I also literally laughed when I see that the other reviewer was intending to use spade terminals to connect his amp power and ground wire... It is for the SPEAKER wire knucklehead :-). I am an installer and the smaller accessories work just fine when you use them correctly. Most amps will still work with them when used with the speaker wire. Of course one can be used for the remote wire connection to the amp and the other end with the butt connector being used to connect to the stereo. The funny thing is, if you do not need them, who cares? It is like ordering this kit for a compact car or single cab pickup. You will not use all of the power wire for these applications, so do you complain that the manufacturer gave you extra wire? That just made me laugh.

Now, onto the other accessories. The AFS fuse and holder that are included are so far superior to others in this price range and the amount of copper (albeit CCA) is much better than others in the price range. Lastly, the RCAs included are awesome for the price. I cannot find ANYTHING to complain about here for $21.99.

All in all, you will not get a better value for the money.

By Double Down on August 14, 2012

138

found this helpful.

Great kit for the cost

The following review is for BAK82, which is a part of the bundle you are viewing.

Very nice kit for $18.
Wire seems adequately thick. Good quality fuse (not AGU) and fuse holder. RCA's feel durable. Decent assortment of accessories. All together a solid budget kit IMO.

By n2audio on September 24, 2014

143

found this helpful.

Good product for the price

The following review is for BAK82, which is a part of the bundle you are viewing.

Good wiring package, good quality fuse holder and wires, I would like more connectors on it and maybe some tube for the power wire, but overall is a good kit.

By Alfredo on October 29, 2014

139

found this helpful.

Good Purchase

The following review is for BAK82, which is a part of the bundle you are viewing.

I used this kit to install a 2 channel Boss amp. The quality of the pieces in this kit is five stars, but I'm giving it 4 because it is my belief that to do a clean install you need (4) 8 gauge terminals (one at the batt, one at the amp, one at ground, one at the amp), not just two. I had to spend an extra six bucks at Orchard for the extra terminals, but since the cost of the kit here at Sonic was only $20 at the time, it was still a good deal.

By Jumbo Dumbo on December 19, 2013

130

found this helpful.

Good kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Good kit for basic setups. Using it right now in my mothers system powering a simple 12. Could handle more if needed.

Pros: Handles power, Wires are HQ, More copper than rubber, Wires are good length, Fuse is HQ, Comes with lots of ties and rubbers.

Cons: None

I would recommend this kit to anyone who has a simple system. All around good kit.

By Mitch on January 31, 2014

137

found this helpful.

Great wiring kit

The following review is for BAK82, which is a part of the bundle you are viewing.

works great on my MB Quart 2x100 watt amp.

By Eric on November 29, 2013

128

found this helpful.

Good Kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Great kit for the price. the price is good. Long wires.

By Joshua on December 8, 2013

129

found this helpful.

Belva BAK82

The following review is for BAK82, which is a part of the bundle you are viewing.

Worked very well for the money, great value for my system! Only thing that kept me from giving this 5 stars across the board is the design of the fuse holder and how you have to change/connect the fuse, minimal complaint.

By Dwight on April 9, 2014

125

found this helpful.
