AR4.1200 | 1200W 2-Ohm Stable 4-Channel Amplifier | Soundstream

Soundstream AR4.1200 + NVX XFLOC4 Line-Output-Converter + Amp Kit

1200W Peak 4-Channel 2-Ohm Stable Amplifier + NVX 4-Channel L.O.C + 8 Gauge Amp Kit

1200W Peak 4-Channel 2-Ohm Stable Amplifier + NVX 4-Channel L.O.C + 8 Gauge Amp Kit

• 50 Watts RMS x 4 @ 4 ohms
• 80 Watts RMS x 4 @ 2 ohms
• Total Peak Power: 1,200 Watts
• Bass Boost
• Aluminum Heatsink
• 8.5" W x 15.75" L x 2" H

4.6

(42)
List price $179.97
Save: $39.98

$139.99

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Soundstream

Authorized dealer

Soundstream AR4.1200

1200W Peak (160W RMS) Arachnid Series Class-A/B 4-Channel 2-Ohm Stable Amplifier
Quantity: 1

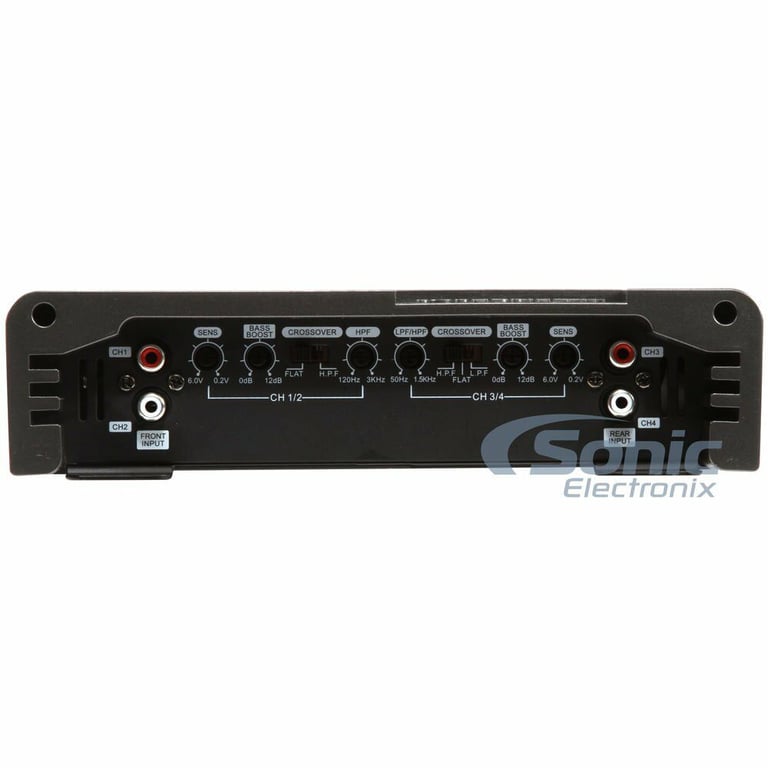

General Features:

  • Soundstream Arachnid Series AR4.1200 Amplifier
  • Class-A/B Full Range 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 4 chan.
    • 2 ohms: 80 watts x chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohms: 160 watts x 2 chan.
  • Total power output: 1,200 watts
  • Military-Grade PCB with Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • 4/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • .2-6V
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ration: 95 dB
  • Variable high-pass filter: 120 - 3,000 Hz
  • Variable low-pass filter: 50 - 1,500 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • Fuse Rating: 20 A x 2
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions:8.5 "W x 15.75"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty


Check out the AR4.1200 product manual

NOTE: Manufacturer specifications and design subject to change without notice for improvements.

NVX XFLOC4

160W, 4-Channel Line Output Converter with Digital Noise Filter + Line Driver
Quantity: 1

Product Features:

  • 4-channel Premium adjustable line output converter
  • Digital Noise Filter + Line Driver
  • 3:1 Step Down With Adjustable Output
  • DC Amplifier Turn On Trigger
  • 160w Maximum Input Total (40w Per Channel)
  • Super Low Distortion
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

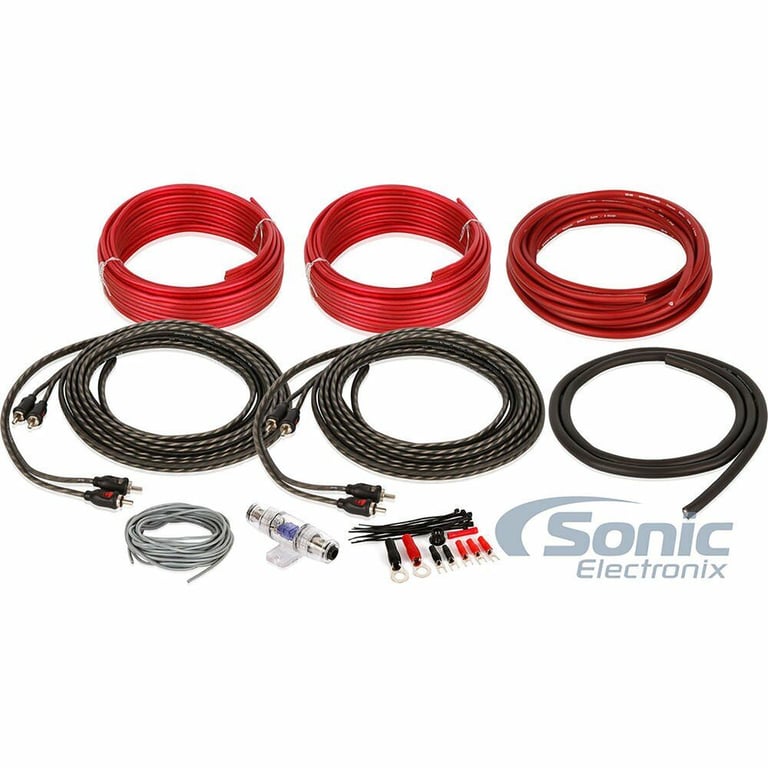

Belva BAK84

Complete 8 Gauge Amplifier Wiring Kit with 4-Channel RCA Interconnects (CCA Wiring)
Quantity: 1

General Features:

  • Complete 8 Gauge 4-Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 500 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
    • Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • Mini-ANL Fuse holder with a 60 amp Mini-ANL fuse offers ideal protection
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. (5.2 meters) Red 8 gauge power wire

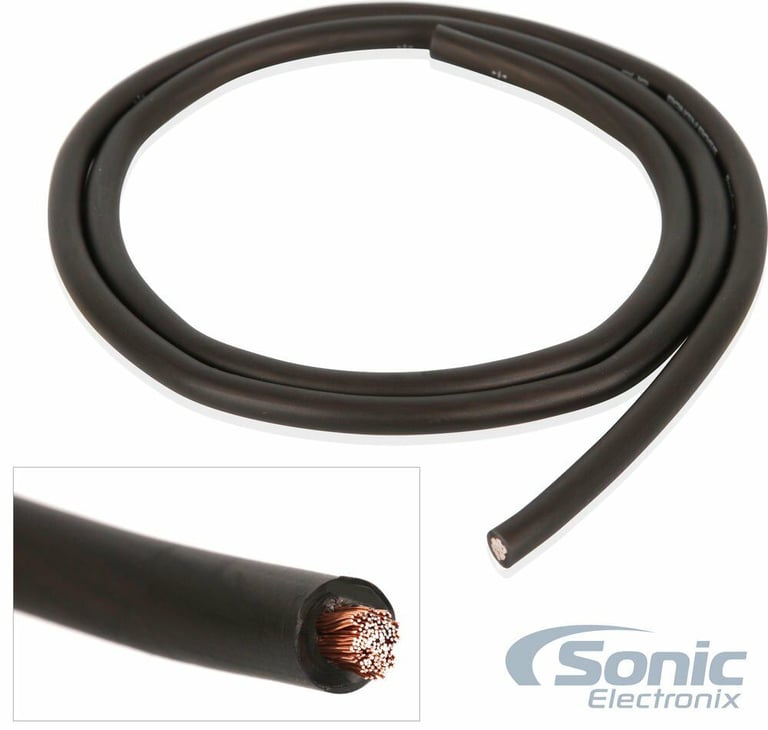

  2. 3 ft. (.91 meters) Black 8 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 4-channel RCA interconnect cable
  5. 40 ft. (12.2 meters) Speaker cable
  6. One In-line Mini-ANL Fuse Holder with a 60 amp Mini-ANL fuse
  7. One black rubber firewall grommet
  8. One 8 Gauge red chrome plated ring terminals
  9. One 8 Gauge black chrome plated ring terminal
  10. Three 18 Gauge red Spade terminal
  11. Two 18 Gauge black Spade terminal
  12. One 18 Gauge red butt connector
  13. Ten 4" Black zip ties

FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channels
RMS Power @ 2 ohms
80 watts x 4 channels
Bridged RMS Power
160 watts x 2 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
100 watts x 4 channels
Peak Power @ 2 ohms
160 watts x 4 channels
Peak Power @ 1 ohm
320 watts x 2 channels
Amplifier Specifications
Amplifier Series
Arachnid
Marine Certified
No
Amplifier Class
AB
Number of Channels
4
Total Peak Power Output
1200 watts
Total RMS Power Output
320 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
120 - 3,000 Hz
Low-Pass Crossover Frequency
50 - 1,500 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
No
Fan Cooled
No
Fuse Rating
20A x 2
Total Fuse Rating
40
Strappable
No
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
REVIEWS
Soundstream AR4.1200 + NVX XFLOC4 Line-Output-Converter + Amp Kit

Soundstream AR4.1200 + NVX XFLOC4 Line-Output-Converter + Amp Kit

4.6

(42)

Write a review

Overall rating distribution

5 star
86%
4 star
2%
3 star
2%
2 star
2%
1 star
7%

By feature average rating

Durability
4.6
Value
4.7
Features
4.7
Design
4.8
Usability
4.7

Jay

May 10, 2014

Solved that static alternator whine issue

The following review is for XFLOC4, which is a part of the bundle you are viewing.

My brand new car's factory sound system sounded terrible so I decided to upgrade it. I had to keep my factory radio because the car's functions depend on the screen/radio of the car. I installed a JL audio 300/4v2 along with Focal components and after I was done installing everything, there was a tremendously loud static noise coming from the speakers, even with the volume all the way down. When I would rev up the engine, it would make a whistling, whining noise from the alternator. I spent 2 days trouble shooting the problem. Separating wires, re-grounding, running new wires, adjusting gains, etc. and none of that worked. I saw this LOC from NVX and decided to give it a try since it claimed to have a digital noise filter feature. Man, as soon as I installed I was blown away. That annoying noise was GONE! The music sounds crystal clear now. I purchased that particular set up because I wanted an SQ sound system and now it delivers that very clean music with absolutely NO distorting noise. I was stressed out for 2 days wondering how to fix it. If you are in the same situation, buy this LOC. It will end your problems with all that unwanted noise. Forget those "solutions" people talk about all over the internet about re-grounding, ground isolation, and all that junk. This LOC solved it for me. It was so easy to install, it has adjustable gains, and feels very sturdy. Even if you turn the gains all the way up on the LOC, you will still hear no unwanted noise.

40

found this helpful.

Santiago

August 25, 2014

Excellent product

The following review is for XFLOC4, which is a part of the bundle you are viewing.

Easy to install in factory stereo. Great product. No noise at all. High fidelity sound.

37

found this helpful.

J

January 20, 2015

NVX Output converter

The following review is for XFLOC4, which is a part of the bundle you are viewing.

This converter was easy to install plus it added power and more clarity to my speakers. It has a remote wire for my amp.

35

found this helpful.

Brandore

October 30, 2013

perfect!

The following review is for XFLOC4, which is a part of the bundle you are viewing.

No unwanted noise, soft turn on and off, cant even tell its there. It does its job seemlessly in my 09 Jeep Grand cherokee with boston acoustics system. I wanted full range sound out of the door speakers so I pulled off the output from the factory amp of the dash speakers and rear speakers. All speakers are now full range and amplified with a kicker ZX350.4. I can keep the gain super low on the amp and cross over the speakers to keep the bass out with the amp controls. This LOC made all that possible to use the kicker amp with NO NOISE.

35

found this helpful.

Eliseo

October 17, 2012

Perfection! NVX is the best!

The following review is for XFLOC4, which is a part of the bundle you are viewing.

Durable, small, easy to use, fun, quality build and sound! Great LOC! No unwanted noise! Love the gain controls and remote turn on for an amplifier! Works wonderfully with my NVX JAD900.5 and my NVX 4 channel rcas! NVX is the only way to go! I just can't get enough of NVX! Thanks NVX and Sonic Electronix for all of your support!

36

found this helpful.

Scott

January 19, 2015

Digital Converter

The following review is for XFLOC4, which is a part of the bundle you are viewing.

I used this to convert wired to RCA. This device worked great. I eventually replaced the factory head unit with a Pioneer that had RCA outputs.

33

found this helpful.

Greg

February 11, 2013

Good Converter

The following review is for XFLOC4, which is a part of the bundle you are viewing.

I bought this to replace another one that I bought that had terrible noise and poor quality. This one however is great and works as you would expect. Spend the extra couple of bucks and get this one

33

found this helpful.

Luis

September 17, 2013

bueno

The following review is for XFLOC4, which is a part of the bundle you are viewing.

Me gusto lo fácil que es instalar lo y los resultados son bienos

32

found this helpful.

Randy

September 12, 2013

Worked great!

The following review is for XFLOC4, which is a part of the bundle you are viewing.

I installed this unit on my boat due to my radio had to pre amps.. Easy to wire although theres a bunch of wires. Works great for triggering your amp though! My radio put out 160W so I left all my channels on the unit turned down. Would highly recommend!

32

found this helpful.

Anonymous

August 5, 2018

Great value

The following review is for BAK84, which is a part of the bundle you are viewing.

Fast shipping works great with no problems. I would order other if i ever needed it

10

found this helpful.

brian

October 19, 2015

Works as said

The following review is for BAK84, which is a part of the bundle you are viewing.

Everything needed for a 4 ch amp install. Better quality than other cca kits I have used before. Nice thick strands.

11

found this helpful.

tim

September 12, 2015

Junk

The following review is for XFLOC4, which is a part of the bundle you are viewing.

Upon receiving product, I carefully read instructions. Installed unit as directed in instructions. Product did not work, so I cut the unit out and threw it in the trash.

12

found this helpful.

Anonymous

September 22, 2018

Great deals

The following review is for BAK84, which is a part of the bundle you are viewing.

I recommend this to anyone. The shipping is fast and you always get a good deal.

9

found this helpful.

Adam

February 1, 2018

Good Value Kit!

The following review is for BAK84, which is a part of the bundle you are viewing.

Everything I needed and good quality wire, not like some other cheap thin gauge wire you get in similarly priced kits elsewhere.

7

found this helpful.

Chad

September 15, 2017

Great value

The following review is for BAK84, which is a part of the bundle you are viewing.

Included in a bundle package for the price well worth it

5

found this helpful.
ACCESSORIES
TRENDING SIMILAR ADD AN AMPLIFIER TO YOUR FACTORY STEREO

This product is temporarily out of stock. May we recommend...

Power Acoustik OD4-1300 + NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class-A/B Full Range 4-Ohm Stable 4-Channel Amplifier
• 100 Watts RMS x 4 @ 4 ohms
• 160 Watts RMS x 4 @ 2 ohms
• Bridged, 320 Watts RMS x 2 @ 4 ohms
• Total Peak Power: 1300 Watts
• Military Grade PCB w/ PWM MOSFET Power Supply
• High/Speaker Level & Low Level/RCA Input

(71)

$156.99

Soundstream AR4.1800 + NVX XFLOC4 Line-Output-Converter + Amp Kit

• 80 Watts RMS x 4 @ 4 ohms
• 130 Watts RMS x 4 @ 2 ohms
• Total Peak Power: 1,200 Watts
• Bass Boost
• Aluminum Heatsink
• 8.5" W x 15.75" L x 2" H

(72)

$189.99

Rockford Fosgate PM400X4 + NVX XFLOC4 Line-Output-Converter + Amp Kit

• RMS: 50 watts x 4 chan. @ 4 ohms, 100 watts x 4 chan. @ 2 ohms, Bridged 200 watts x 2 chan. @ 4 ohms
• CEA-2006 Compliant
• Features C.L.E.A.N. Set-up
• Protected against Dust, UV, & Corrosion
• Marine grade two part epoxy coating on circuit boards

(72)

$449.99

Power Acoustik OD4-1800 + NVX XFLOC4 Line-Output-Converter + Amp kit

• Class-A/B Full Range 4-Ohm Stable 4-Channel Amplifier
• 140 Watts RMS x 4 @ 4 ohms
• 225 Watts RMS x 4 @ 2 ohms
• Bridged, 450 Watts RMS x 2 @ 4 ohms
• Total Peak Power: 1800 Watts
• Military Grade PCB w/ PWM MOSFET Power Supply
• High/Speaker Level & Low Level/RCA Input

(71)

$159.99

Massive Audio EX44 + NVX XFLOC4 Line-Output-Converter + Amp kit

• 100 Watts RMS x 4 @ 4 ohms
• 200 Watts RMS x 2 @ 2 ohms
• 400 Watts RMS x 2 @ 4 ohm Bridged
• Total Peak Power: 800 Watts
• CTA-2006 Compliant Amplifier
• Variable high-pass filter: 10 - 300Hz
• Variable low-pass filter: 10 - 300Hz
• Dimensions: 9.5"W x 5.9"L x 2.1"H

(73)

$264.99

Searches Related to the Soundstream AR4.1200, XFLOC4, BAK84
ITEM DETAILS

Manufacturer:

Model Number:

AR4.1200, XFLOC4, BAK84

Weight:

6.30lbs

Internal SKU:

ar41200_xfloc4_bak84

Internal Product ID:

187773

Item Added to Cart

1200W Peak 4-Channel 2-Ohm Stable Amplifier + NVX 4-Channel L.O.C + 8 Gauge Amp Kit

$139.99

Keep Shopping

Why SquareTrade?

  • The #1-Rated Protection Plan
  • 5-Day Service Guarantee & Free Shipping
  • Protection from Normal, Everyday Use
You have added a warranty
$16.99
Add Warranty
3 years of protection

NVX XWS1625 16 AWG Speaker Wire

25 ft. of True 16 Gauge 100% Copper EnvyFlex Speaker Cable/Wire

$19.99

Add
NVX XBG3PK 1/0 Gauge OFC Big 3 Upgrade Kit

Comes with everything you need to upgrade your power and ground wire.

$99.99

Add
NVX XTGSP2

Perfect for safely troubleshooting and testing audio systems

$29.99

Add

Don't see the accessory you're looking for?
View all available accessories for the Soundstream AR4.1200 + NVX XFLOC4 Line-Output-Converter + Amp Kit.
