JL Audio M3-10IB-S-Gm-i-4

175W RMS 10" M3 Series Single 4-ohms Marine Subwoofer with RGB LED Lighting

JL Audio
Shop all JL Audio
highlight-star-icon

• RMS Power: 175 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene - IMPP Cone
• Synthetic Rubber Surround
• Mount depth: 5.12"
• Sensitivity: 87.2 dB

Learn more about the m310ibsgmi4
Thanks , You Pay:

$399.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one m310ibsgmi4.

Set your vehicle or Return to product page
shipping truck icon Free shipping in USA. Provide zip for delivery date.
Dollar Icon
VIP Product Get $40.00 in rewards to spend later
Quantity
Available: Ships in 10-14 days
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 24 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


JL Audio brand icon

Authorized dealer


JL Audio M3-10IB-S-Gm-i-4

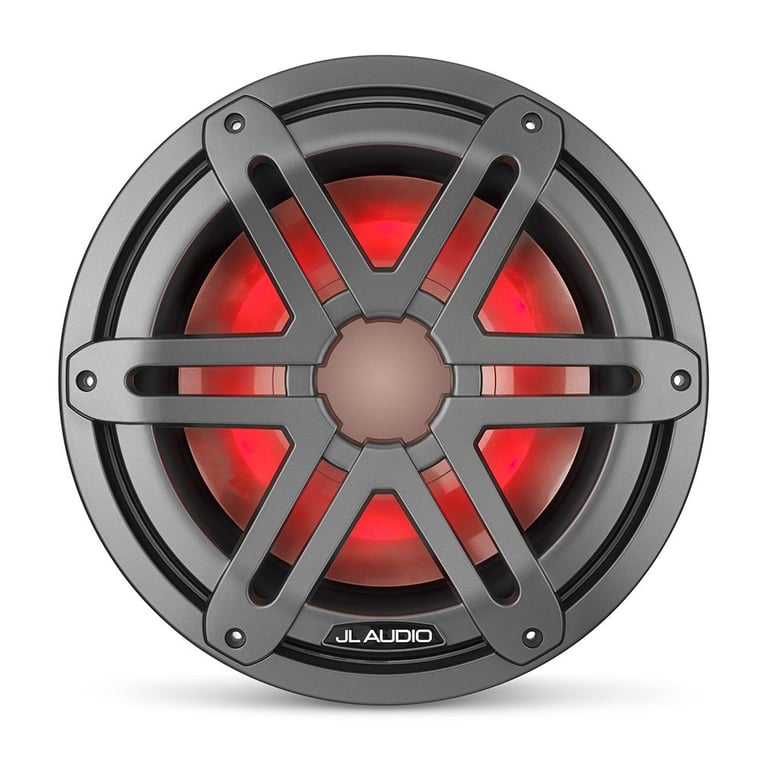

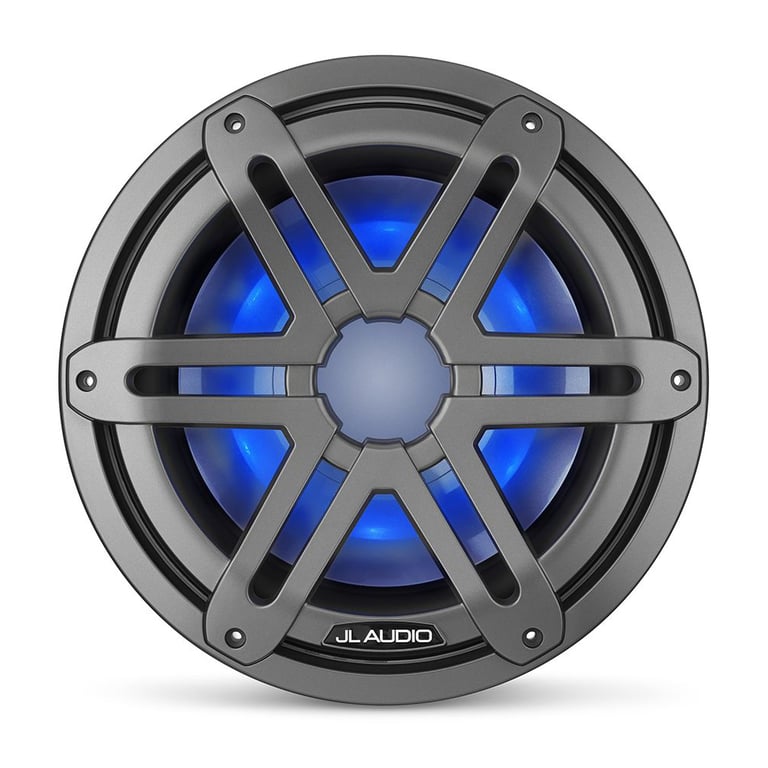

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels. Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively glow, adding a dramatic visual experience to your high seas journey. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.


Product Details:

  • 10" Single 4 ohm M3 8 Series Subwoofer
  • Power Handling:
    • RMS: 175 watts
  • Injection Molded Polypropylene - IMPP Cone
  • Synthetic Rubber Surround
  • Built-in RGB LED illumination
  • DMA-optimized motor designs
  • Marine-grade brass binding posts
  • Marine-grade synthetic fiber spider
  • Works in free air applications, plus sealed or ported boxes
  • Polymer basket and grille, with stainless steel back plate
  • 11 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 41.84 Hz
  • Sensitivity: 87.2 dB
  • Recommended min sealed box volume: 2 cubic feet
  • Recommended optimum sealed box volume: 2.5 cubic feet
  • Top-mount depth: 5.12"
  • Cutout diameter: 8.875"
  • Authorized Internet Dealer
  • Includes Gray Metallic Sport subwoofer grille
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconJL Audio M310IBSGMI4 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio M3-10IB-S-Gm-i-4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio M3-10IB-S-Gm-i-4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio M3-10IB-S-Gm-i-4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio M3-10IB-S-Gm-i-4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
M3 8 Series
Subwoofer Size
10"
RMS Power Handling
175 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.2 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Woofer Composition
Injection Molded Polypropylene - IMPP
Woofer Surround
Synthetic Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
Yes - Included
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
2 cubic feet
Optimum Sealed Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
5.12"
Cutout Diameter
8.875"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
41.84 Hz
Equivalent Compliance (Vas)
36.53 liters
Total Speaker Q Value (Qts)
0.754
Electrical Q Value (Qes)
0.806
Electrical Resistance of Voice Coil (Re)
3.957 ohm
Mechanical Q Value (Qms)
11.751
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Grille (detached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M3-10IB-S-Gm-i-4

Weight:

9.02lbs

Internal SKU:

m310ibsgmi4

Internal Product ID:

191121
