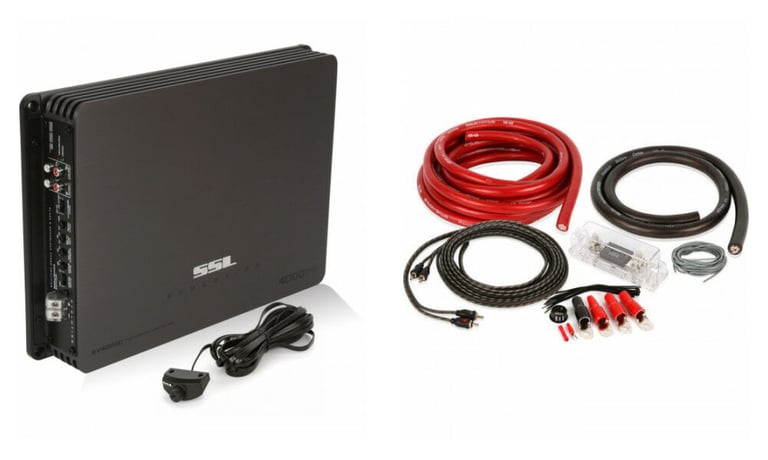

Sound Storm Labs (SSL) EV4000D + Belva 1/0 Gauge Amp Wiring Kit

4000W Max, Evolution Series Class D Monoblock Power Amplifier

81
Sound Storm Labs (SSL)
highlight-star-icon

• RMS: 750 x 1 @ 4 ohms
• Wired Bass Level Remote
• Bass Boost: 0-18 dB
• DataLink Cable for Connecting Two Evolution Amps
• Dimensions: 10"D x 15"W x 2-3/8"H

Learn more about the ev4000d_bak02

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Description

Sound Storm Labs (SSL)

Authorized dealer

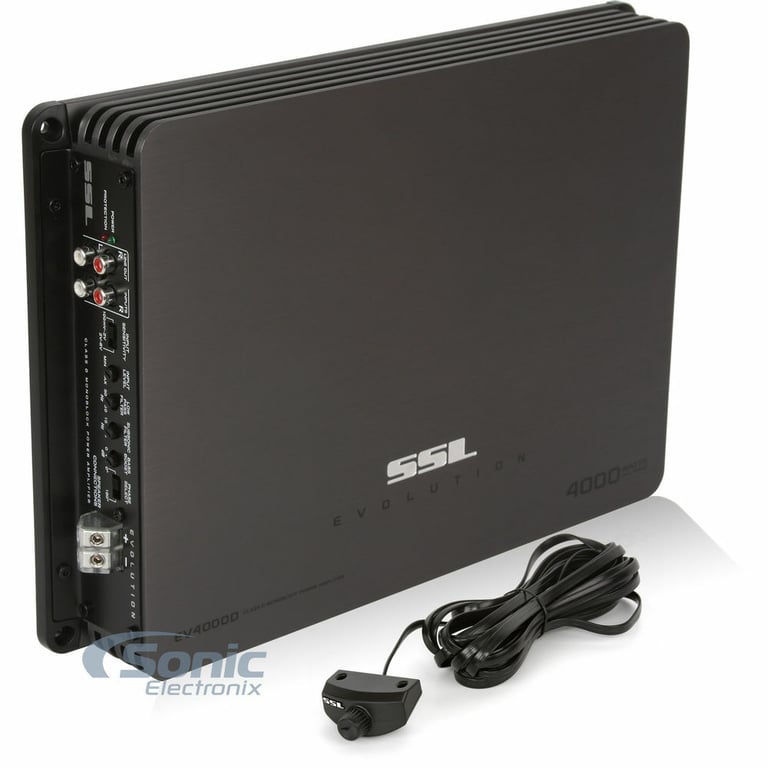

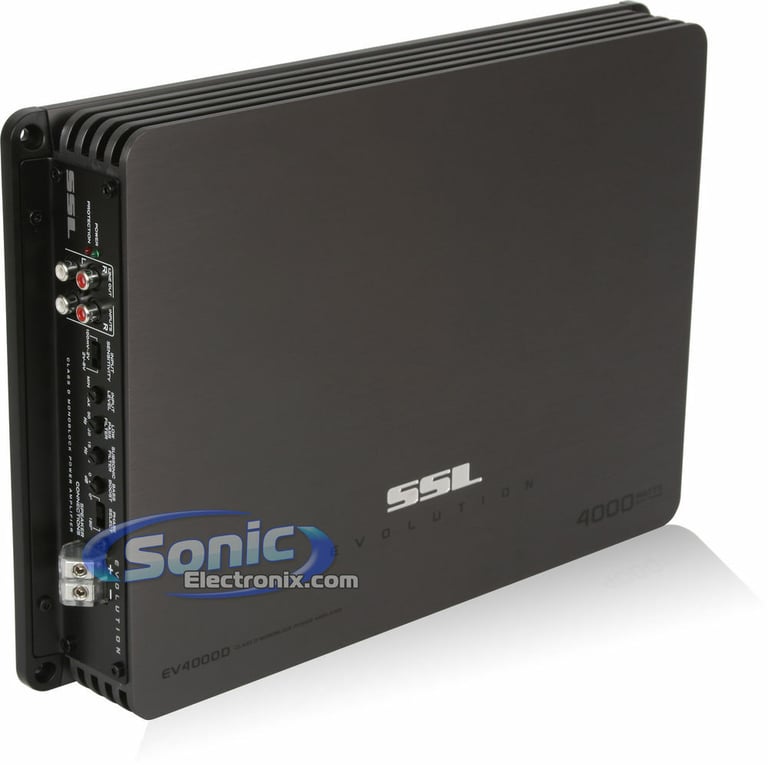

Sound Storm Labs (SSL) EV4000D

4000W Max, Evolution Series Class D Monoblock Power Amplifier
Quantity: 1

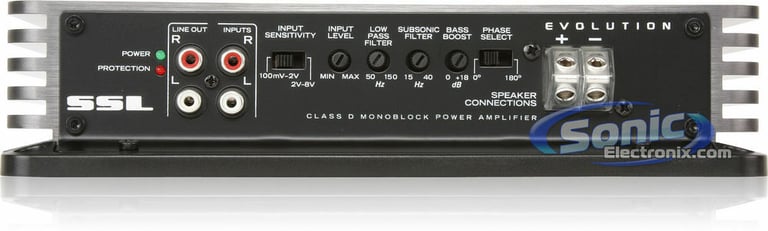

SSL Platinum Dealer Amplifier Features:
  • Evolution Series Single-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 750 watts x 1 chan.
    • 2 ohms: 1500 watts x 1 chan.
    • 1 ohms: 3000 watts x chan.
    • Strapped/Bridged Power@ 2 ohms: 6000 watts x 1 chan.
  • MOSFET PWM (Pulse Width Modulated) power supply)

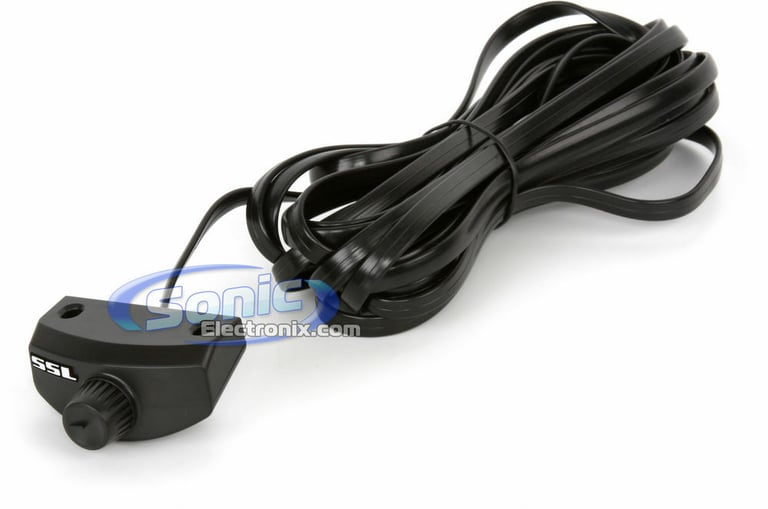

  • Wired remote bass level control included
  • Power and protection LED indicators
  • Variable tuned bass EQ (0-18 dB bass boost)
  • 1 Ohm stable
  • Single channel monoblock operation
  • Selectable input sensitivity (100mV-2V or 2V-8V)
  • Thermal, overload, and speaker short protection
  • 1 pair of preamp RCA outputs
  • Soft turn-on circuit
  • Selectable 0/180 phase shift

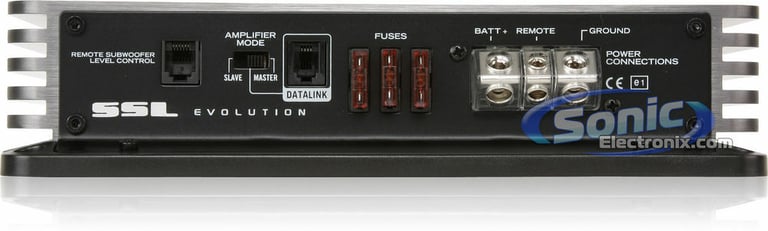

  • DataLink cable included for connecting two Sound Storm Evolution amplifiers together
  • Variable input gain control
  • Dark gray anodized heatsink
  • Large aluminum heatsink for excellent heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50-150 Hz, 12 dB/octave)
  • Subsonic Filter (15-40 Hz, 12 dB/octave)
  • Frequency response: 50-150 Hz
  • Dimensions: 10"D x 15"W x 2-3/8"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Package Includes:
  1. Class D Amplifier
  2. Remote subwoofer level control
  3. Remote subwoofer control cable

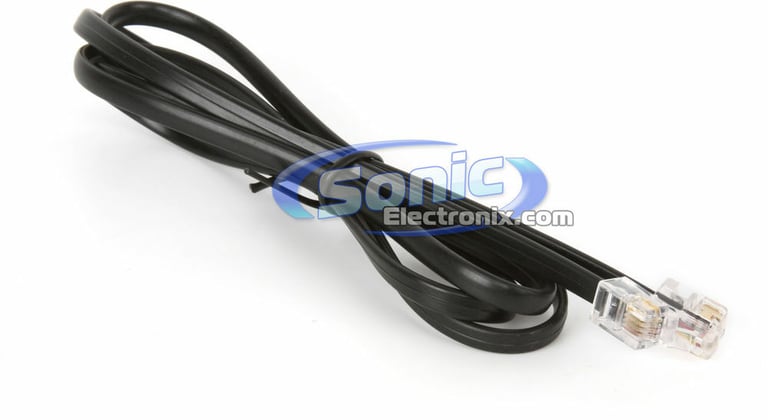

  4. DataLink cable

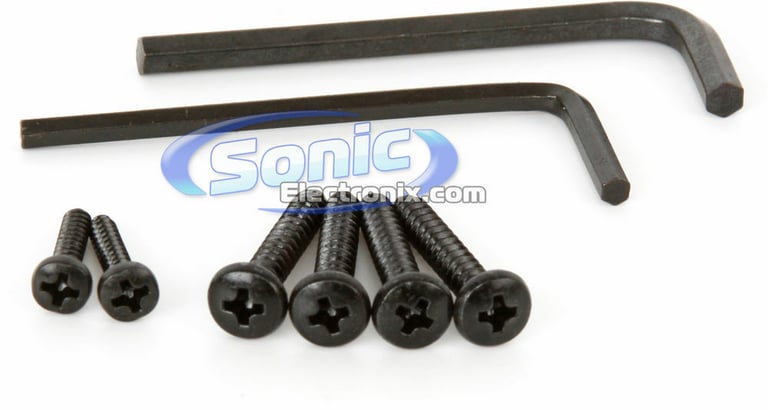

  5. Four mounting screws

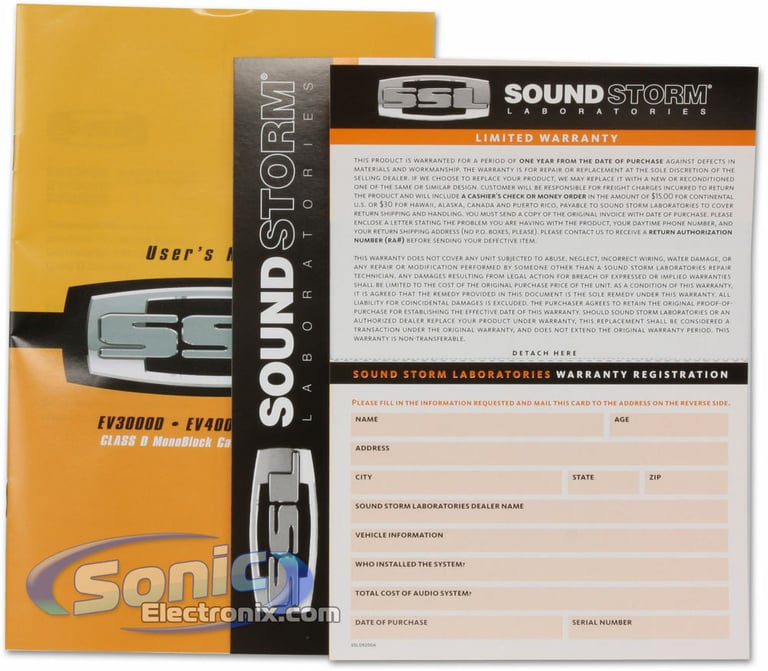

Check out the Sound Storm Labs (SSL) EV4000D Owner's Manual

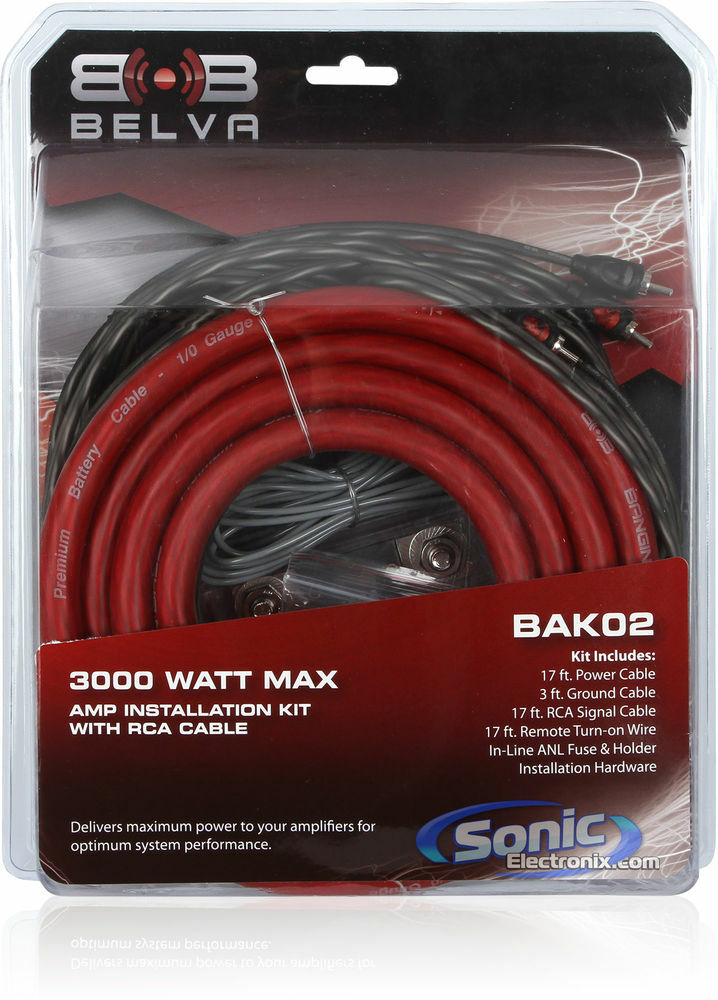

Belva BAK02

1/0 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 2000 Watts - RED
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 2000 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • ANL Fuse holder with a 150 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

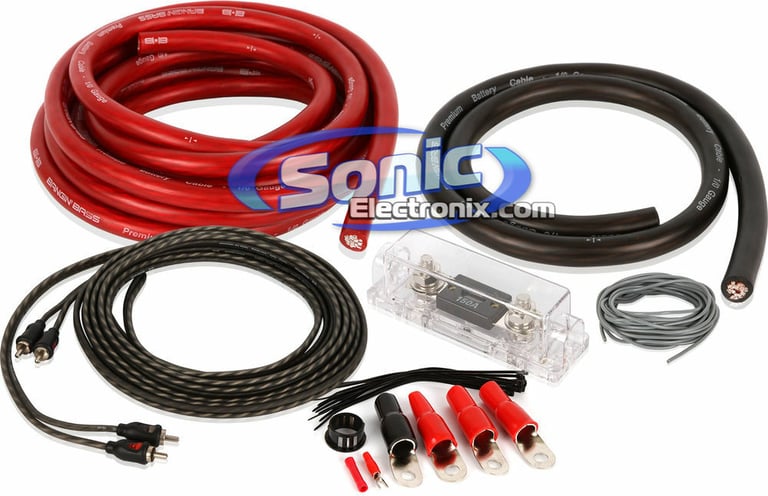

Kit includes:

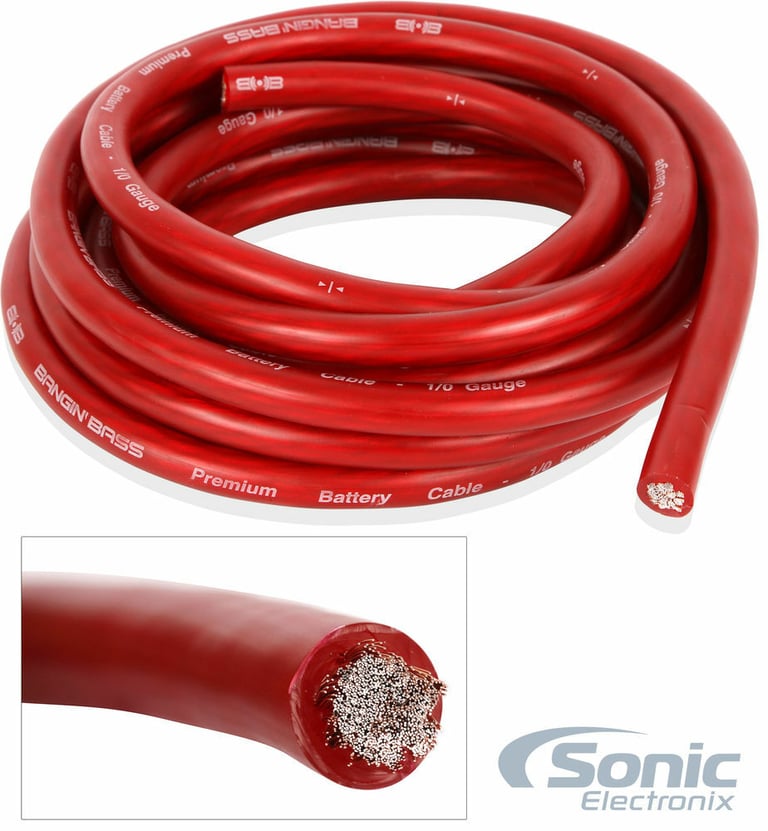

  1. 17 ft. (5.2 meters) Red 1/0 gauge power wire

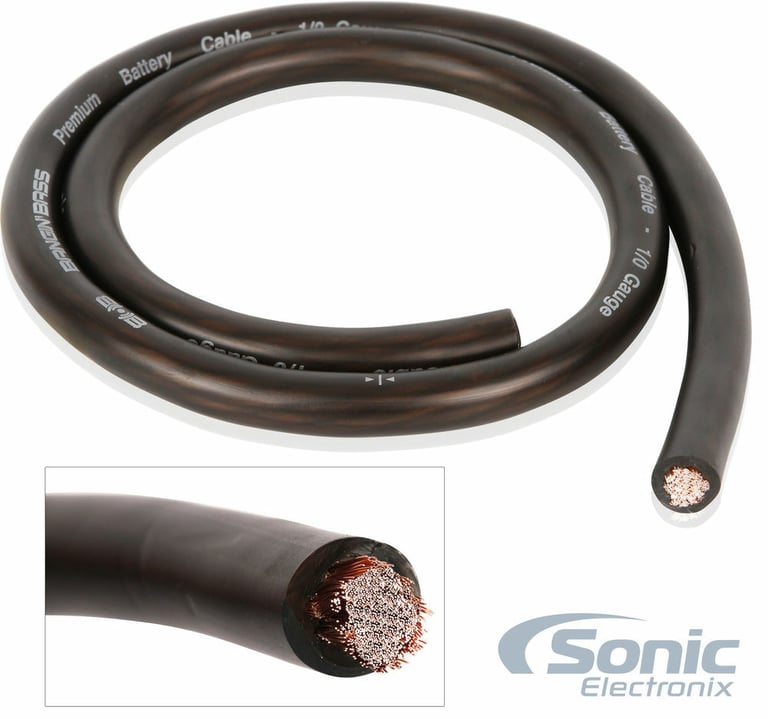

  2. 3 ft. (.91 meters) Black 1/0 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

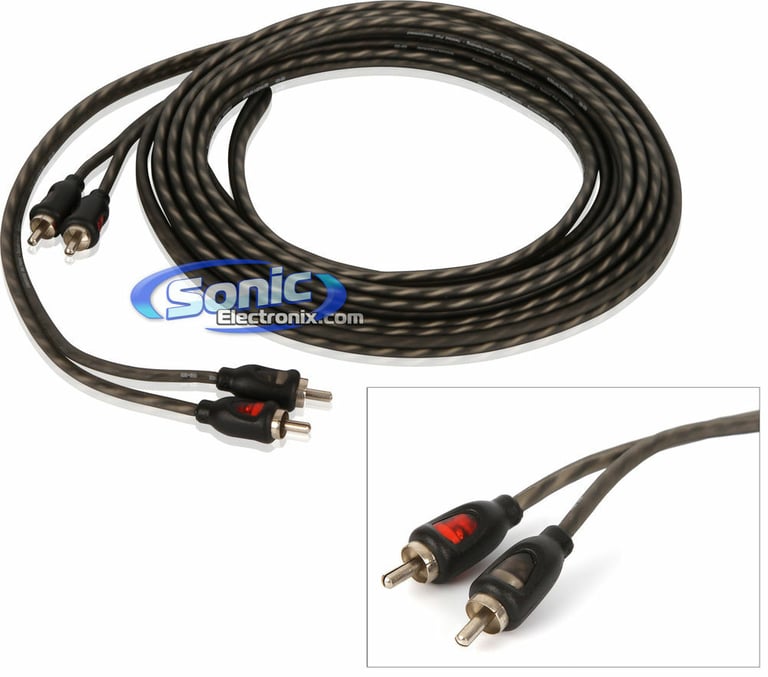

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

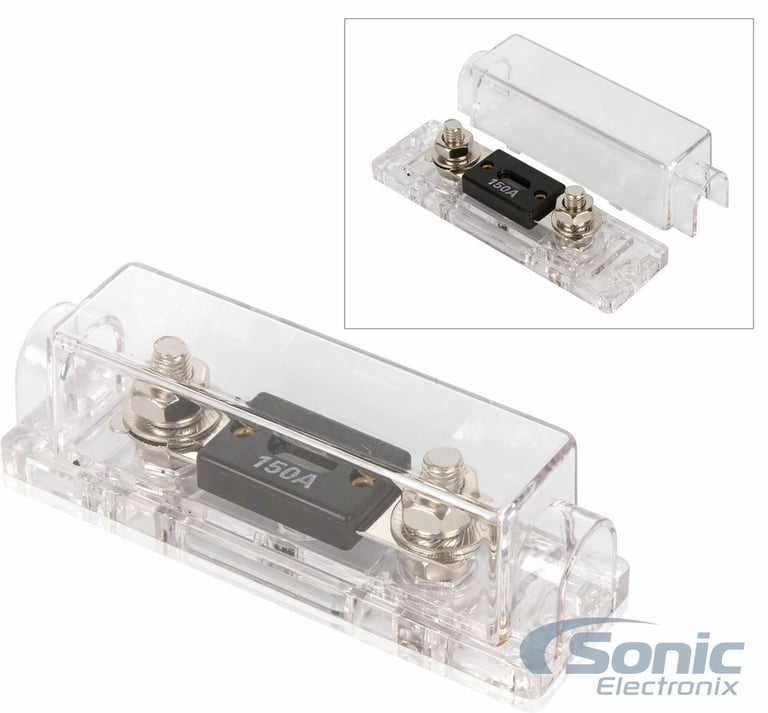

  5. One ANL Fuse Holder with a 150 amp ANL fuse

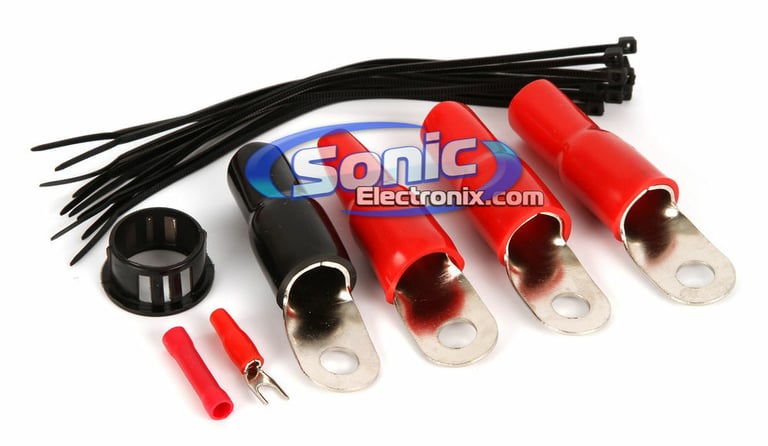

  6. One Black rubber firewall grommet
  7. Three 1/0 Gauge red chrome plated ring terminals
  8. One 1/0 Gauge chrome plated ring terminal
  9. One 18 Gauge red Spade terminal
  10. One 18 Gauge red butt connector
  11. Eight 6" Black zip ties

Specifications & Details

Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Peak Power Output
4000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
40A x 3
Total Fuse Rating
120
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Sound Storm Labs (SSL)

Model Number:

EV4000D, BAK02

Weight:

17.10lbs

Internal SKU:

ev4000d_bak02

Internal Product ID:

192147

Customer Ratings & Reviews

Sound Storm Labs (SSL) EV4000D + Belva 1/0 Gauge Amp Wiring Kit
81
Rate or review product
5 star
65%
4 star
21%
3 star
4%
2 star
6%
1 star
4%
Durability
4.5
Value
4.6
Features
4.4
Design
4.6
Usability
4.5
Sort by:
Loading...

Good

The following review is for BAK02, which is a part of the bundle you are viewing.

This wire is very flexible and fit nicely in my 2000 nissan maxima. ring terminals were a little fussy, but that was operator error. very nice 150 amp fuse. Lots of wire crammed into it. Very inexpensive for the quality. I would recommend this to anyone looking for an upgrade.

By Blane on February 24, 2014

85

found this helpful.
Helpful? Report abuse

Decent Amp Kit

The following review is for BAK02, which is a part of the bundle you are viewing.

I am a professional installer first of and my father is an electrician. Following the AWG- American Wire Gauge standards this is not 1/0 wire it's closer to 2AWG, please understand that true 1/0AWG copper wire will cost around $5-8 a foot.

That being said for the price it is an amazing kit but should be marketed as 2AWG.

When compare to Kicker and Memphis true to spec 1/0AWG wire there is a major difference in size and weigh over all. 5 feet of Memphis 1/0 Wire weigh the same as 17 feet of Belva 1/0AWG.

By josh on October 3, 2014

71

found this helpful.
Helpful? Report abuse

a great kit for the price

The following review is for BAK02, which is a part of the bundle you are viewing.

these are great for the money and would definitely buy again

By Joseph on February 6, 2014

70

found this helpful.
Helpful? Report abuse

Great

The following review is for BAK02, which is a part of the bundle you are viewing.

It is what it says it is.. no problems with install.

By PJ on September 17, 2013

68

found this helpful.
Helpful? Report abuse

top quality

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit on a deal with a amplifier I purchased thought it looked good turned out to be one of the best amp kits I have ever owned would of paid full price for it

By Drew on March 28, 2014

68

found this helpful.
Helpful? Report abuse

Huge

The following review is for BAK02, which is a part of the bundle you are viewing.

I have never ran 0 gauge before and when I got it and took it out I was surprised but the big wire didn't really hurt the install it is still hidden under the carpet and it's thick and flexible so it was easy to run through the firewall. Now I'm gonna get the Belva big 3

By Brennen on June 9, 2014

66

found this helpful.
Helpful? Report abuse

Great Wire

The following review is for BAK02, which is a part of the bundle you are viewing.

It's the size it says it is, and powers my 1400 watt system with no problems. For the price and ease of install, I couldn't be happier!

By Bay on May 18, 2014

66

found this helpful.
Helpful? Report abuse

Great deal

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit because I got a deal on it with my amp...great starting kit...didn't have any problem with it when I installed it...The ground cable was to short for me but that is due to my custom box..All in all good 1/0 Guage kit

By Robert on August 8, 2014

65

found this helpful.
Helpful? Report abuse

True 0 AWG!

The following review is for BAK02, which is a part of the bundle you are viewing.

Pros:
This kit comes with everything you need for a 0 AWG amp install with RCA inputs.

Cons:
NONE

I would definitely recommend purchasing this kit if you need a quality 0 AWG kit at a fair price with super fast shipping!

By Michael on October 10, 2013

63

found this helpful.
Helpful? Report abuse

good product

The following review is for BAK02, which is a part of the bundle you are viewing.

Good product, they give you plenty of length. Only complaint is that the o connectors are really hard to clamp down and the rcas are kinda cheesey but work

By Zach on September 12, 2013

62

found this helpful.
Helpful? Report abuse
