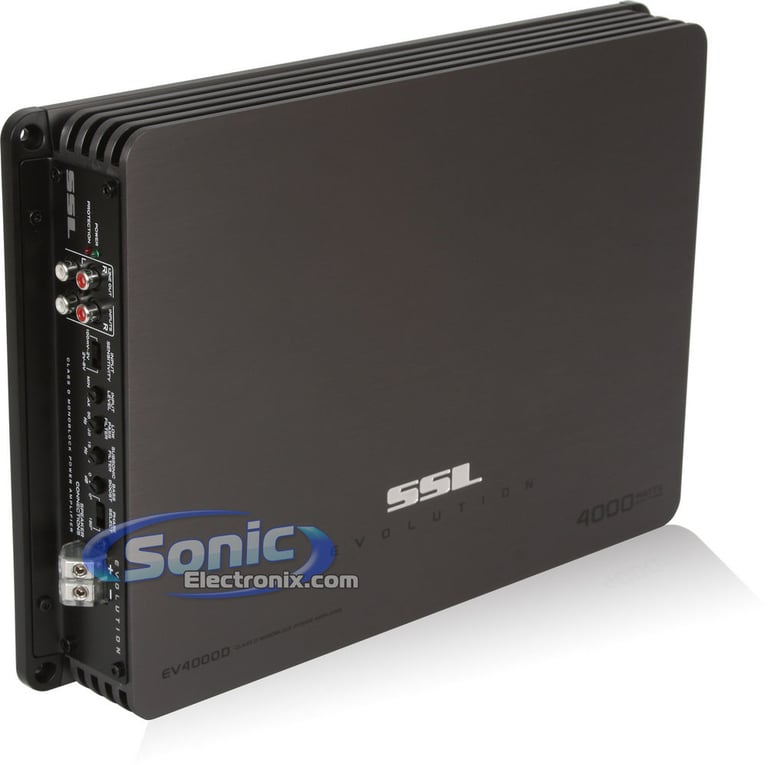

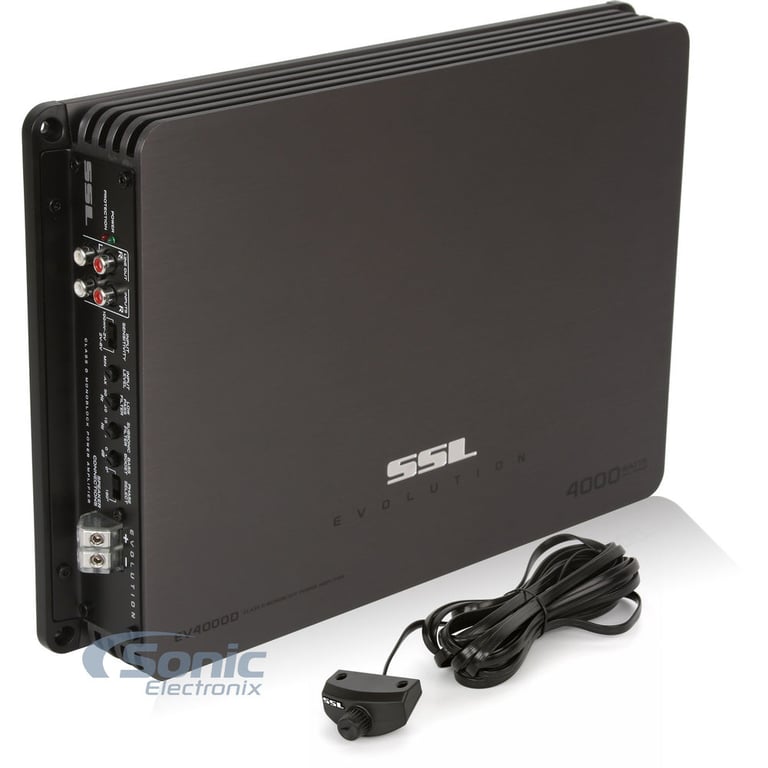

Sound Storm Labs (SSL) EV4000D

4000W Max, Evolution Series Class D Monoblock Power Amplifier

highlight-star-icon

• RMS: 750 x 1 @ 4 ohms
• Wired Bass Level Remote
• Bass Boost: 0-18 dB
• DataLink Cable for Connecting Two Evolution Amps
• Dimensions: 10"D x 15"W x 2-3/8"H

Learn more about the ev4000d

We apologize

This item has been discontinued

Description


Sound Storm Labs (SSL)

Authorized dealer

SSL Platinum Dealer Amplifier Features:
  • Evolution Series Single-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 750 watts x 1 chan.
    • 2 ohms: 1500 watts x 1 chan.
    • 1 ohms: 3000 watts x chan.
    • Strapped/Bridged Power@ 2 ohms: 6000 watts x 1 chan.
  • MOSFET PWM (Pulse Width Modulated) power supply)
  • Wired remote bass level control included

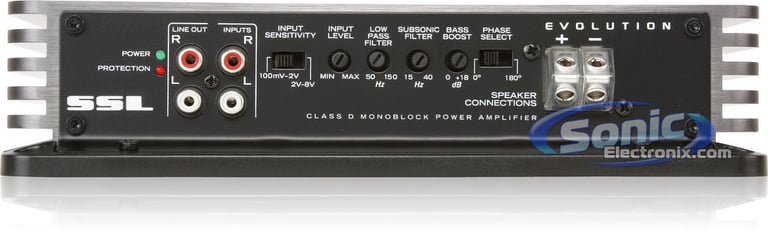

  • Power and protection LED indicators
  • Variable tuned bass EQ (0-18 dB bass boost)
  • 1 Ohm stable
  • Single channel monoblock operation
  • Selectable input sensitivity (100mV-2V or 2V-8V)
  • Thermal, overload, and speaker short protection
  • 1 pair of preamp RCA outputs
  • Soft turn-on circuit
  • Selectable 0/180 phase shift

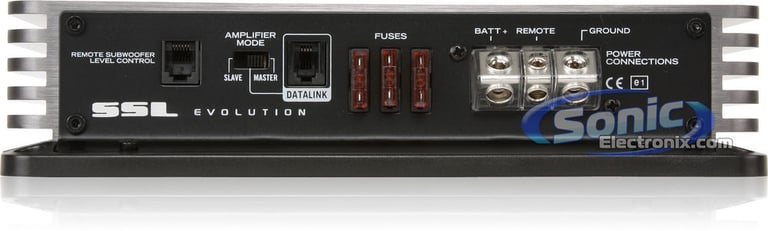

  • DataLink cable included for connecting two Sound Storm Evolution amplifiers together
  • Variable input gain control
  • Dark gray anodized heatsink
  • Large aluminum heatsink for excellent heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50-150 Hz, 12 dB/octave)
  • Subsonic Filter (15-40 Hz, 12 dB/octave)
  • Frequency response: 50-150 Hz
  • Dimensions: 10"D x 15"W x 2-3/8"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Package Includes:
  1. Class D Amplifier

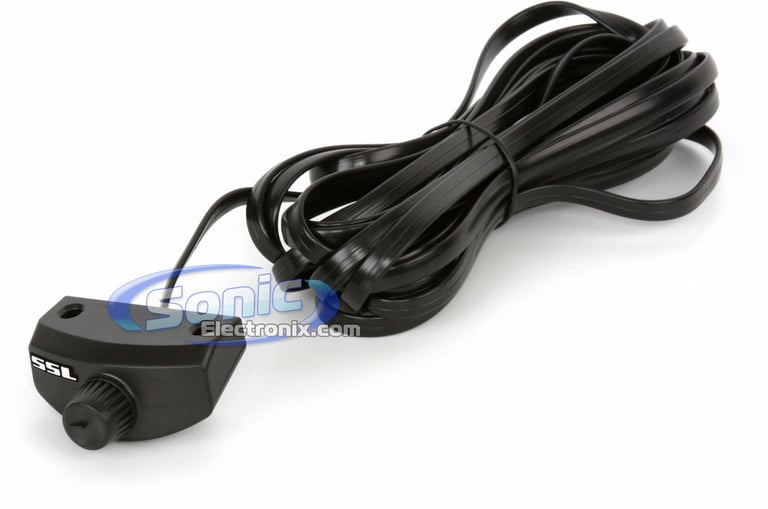

  2. Remote subwoofer level control
  3. Remote subwoofer control cable

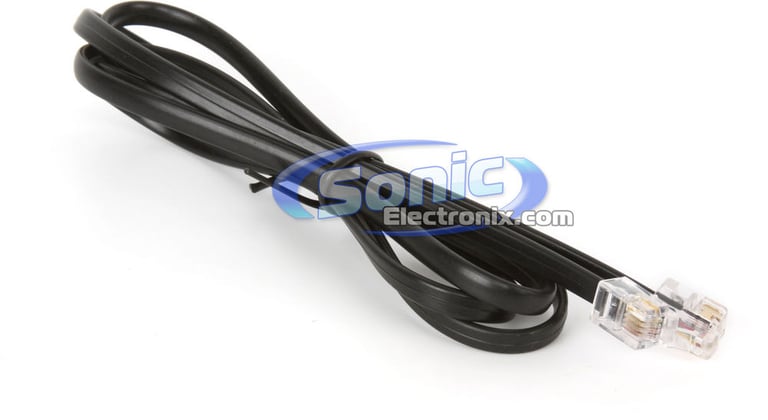

  4. DataLink cable
  5. Four mounting screws

Check out the Sound Storm Labs (SSL) EV4000D Owner's Manual

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
RMS Power @ .5 ohm
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Evolution Series
Marine Certified
No
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
40A x 3
Total Fuse Rating
120
Strappable
Yes
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?

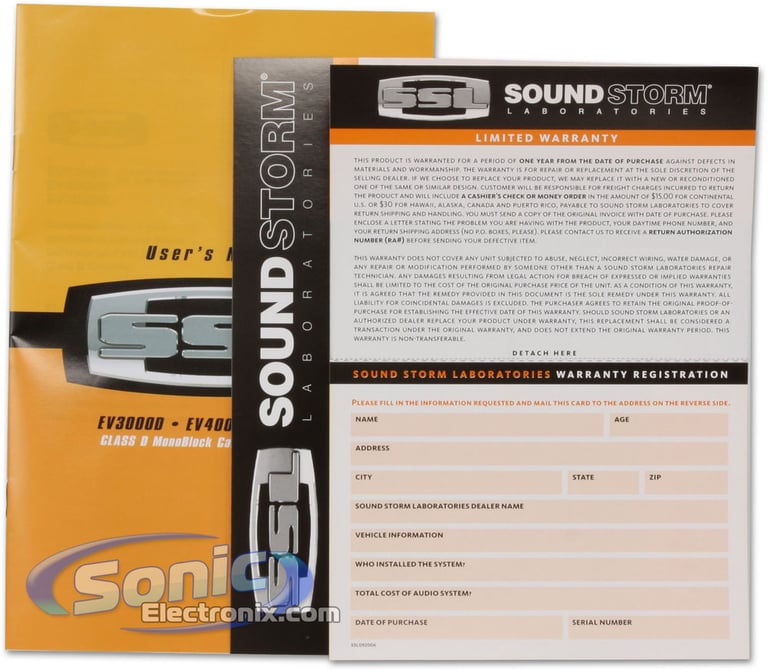

Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)

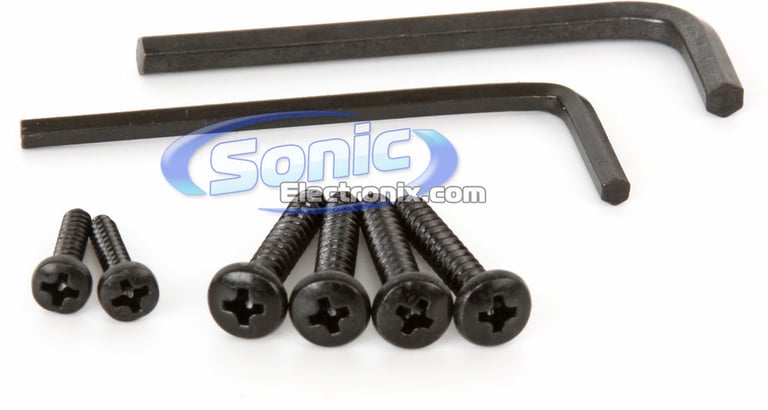

Mounting screws (6)
Allen wrenches (2)
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EV4000D

Weight:

13.00lbs

Internal SKU:

ev4000d

Internal Product ID:

23061

Customer Ratings & Reviews



5 star
68%
4 star
14%
3 star
4%
2 star
4%
1 star
11%



Durability
4.3
Value
4.3
Features
4.3
Design
4.3
Usability
4.5
Sort by:

Loading...

SLAMMING !!!!

This amp really puts out for the buck. Why pay for an expensive amp when you can get a deal from these guys and sound just as good or better. Once I tuned the amp it really blew me away. Just make sure you match your amp power with your sub(s) power and you won't be sorry. I love it. Highly recommended.

By Jonathan on April 2, 2015

28

found this helpful.

great amp

I have this amp holding 4 12s down. It's a really good amp, I would recommend it to any one.

By pelon on February 21, 2012

26

found this helpful.

SoundStorm SSL EV4000D

Overall power does not seem to reach the displayed wattage of 4000, however, it does stand up to reliability and perfoomance wise when considering nio overheating or random shut off as othe amplifiers can and may normally do! This amp was run on two 15' with peaks of 3000 watts each and a continuous of 750 each, ultimately blowing boh speakers in series, so one may say that the amplifier may push it true 4000 watts to have blown the speakers but according to more name brand amps such as kenwood, alpine and JL it does not produce a loud enough sound to be comparable in any form or fashion.

By A Jordan on November 18, 2010

27

found this helpful.

MONSTER POWER

In my '09 Ford F150 Crew Cab, I am running two 10" DB Drive K910D2 @ 1 Ohm and this amp is an absolute MONSTER. This amp will handle ANYTHING you throw at it. It is simply a BEAST!!!

I am currently in the process of upgrading my system in my Suburban: I am running Two 15" RE Audio XXX Series subs off of two EV5000D amps. I am pushing a total of 10,0000 Watts @ 1 Ohm. Believe me when I say, you cannot go wrong with these amps. They are built like a tank, but priced very cheap! I am an electrical engineer by trade; believe me when I say these are quality amplifiers.

By Stereo Guy on February 8, 2013

25

found this helpful.

Power Output is Very Bad

I purchased this product because I had a friend who used a EV2000D and he quite liked it, I also thought that the price:power ratio was very impressive. However the EV4000D just is not powerful at all. After hooking up my new amp, and hearing what my sub can really do, I realized just how little this amp was actually moving my sub. The difference was tremendous! If this amp is making your sub(s) move, chances are they can do a lot better!

By Eric on September 26, 2012

23

found this helpful.

death to my pioneer champion pro series

This thing is a monster it blew out my champion pros in a day and the gain wasn't even half way up!! Best amp for your dollar but better get some strong subs.

By e-man on June 9, 2012

23

found this helpful.

great service. fast and on time. great amp.

Great amp throbs my Orion Hcca 12.2! No problems!

By ryan on December 20, 2010

26

found this helpful.

WOW

I was actually shocked at how much power this thing had. I have it hooked up to two l7 Kicker solobarics. It was pretty loud too and my rearview wouldnt stay still!!!! In this case u get MORE than wat u pay for!!! This is honestly the strongest amp I have ever owned

By Tyrail on November 22, 2011

23

found this helpful.

ssl evo 4000

14x120x.80=1344rms HAs be3n a little over a year now and mine is still going strong. If ask I would recommend this product. As long as you understand its doesnt do rated youll be fine with it.

By jx2 on October 27, 2013

22

found this helpful.

good amp

SSL EV4000D is pushing a pair of SSL 2500 watt subs (1200rms)quite well I'm pleased with the power of the amp.

By Paullo on July 8, 2011

23
