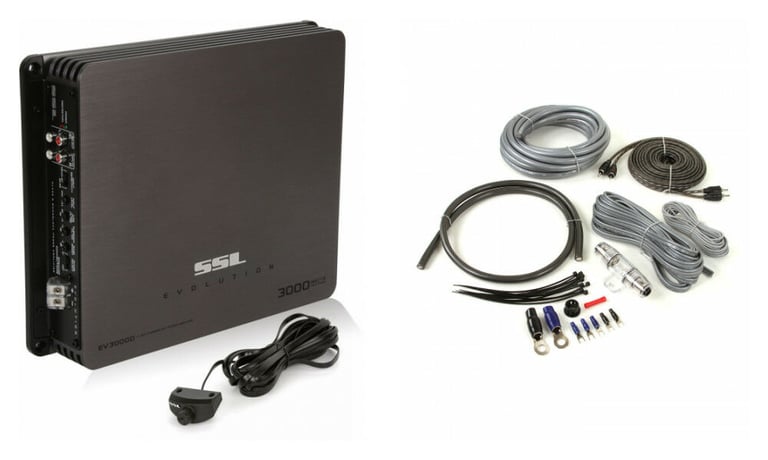

Sound Storm Labs (SSL) EV3000D + Belva 4 Gauge Amp Wiring Kit

3000W Max Evolution Series Class D Monoblock Amplifier with Bass Remote

highlight-star-icon

• 563 Watts RMS x 1 @ 4 ohms
• 1125 Watts RMS x 1 @ 2 ohms
• 2250 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 3000 Watts
• Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
• Large aluminum heatsink for excellent heat dissipation
• 12.688"L x 10"W x 2.3"H

Learn more about the ev3000d_bak42

We apologize

This item has been discontinued

Description


Sound Storm Labs (SSL)

Authorized dealer

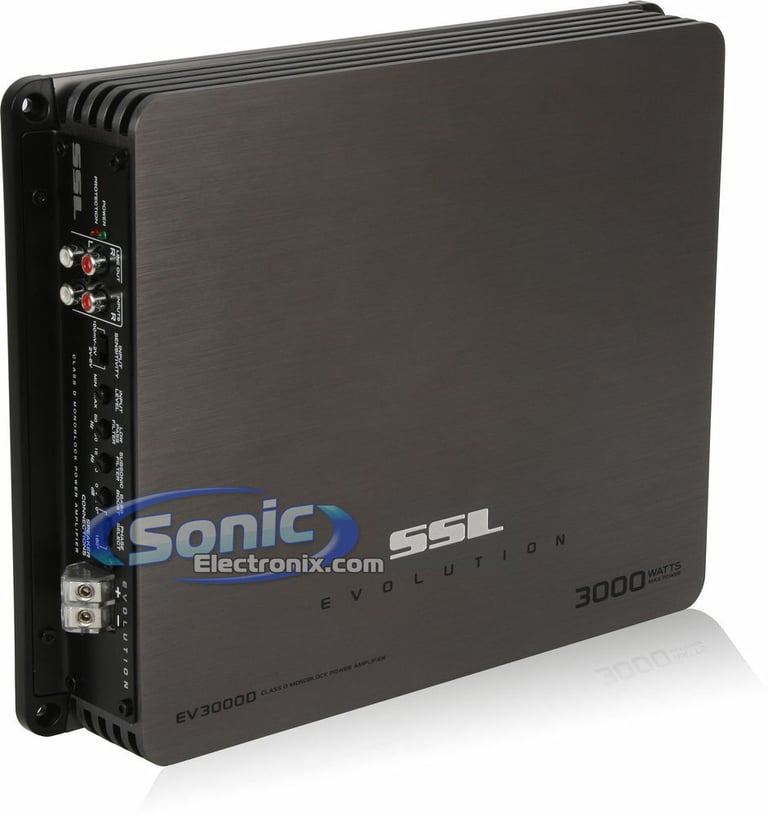

Sound Storm Labs (SSL) EV3000D

3000W Max Evolution Series Class D Monoblock Amplifier with Bass Remote
Quantity: 1

SSL Platinum Dealer

General Features:

  • SoundStormEvolution Series Monoblock Class-D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 563 watts x 1 chan.
    • 2 ohms: 1125 watts x 1 chan.
    • 1 ohm: 2250 watts x 1 chan.
  • Total power output: 3000 watts
  • Pulse Width Modulated MOSFET power supply

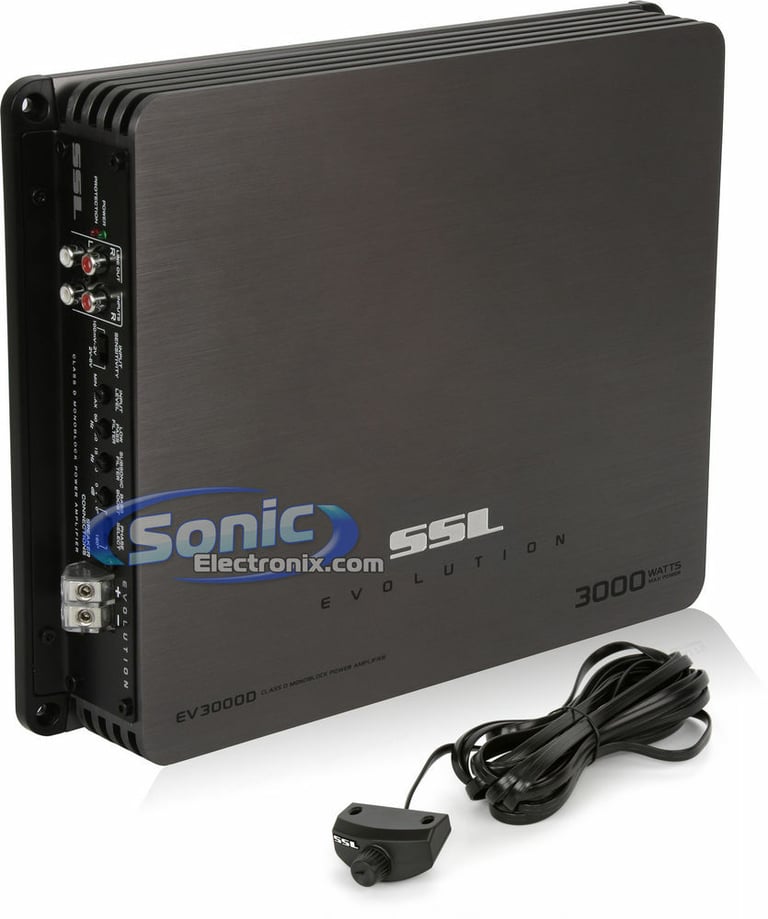

  • Wired remote bass level control included
  • Power and protection LED indicators
  • Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
  • 1 Ohm stable
  • Single channel monoblock operation

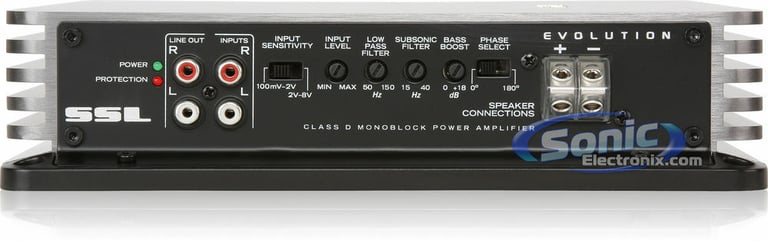

  • Selectable input sensitivity: 100mV-2V or 2V-8V
  • Thermal, overload, and speaker short protection
  • 1 Pair of preamp RCA outputs
  • Soft turn-on circuit
  • Selectable 0/180 phase shift

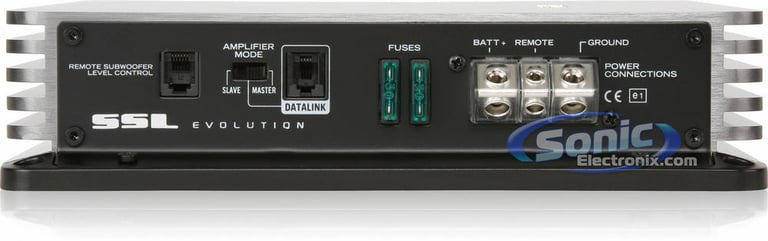

  • DataLink cable included for connecting two Sound Storm Evolution amplifiers together
  • Variable input gain control
  • Large aluminum heatsink for excellent heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50 - 150 Hz, 12 dB/octave)
  • Subsonic Filter (15 - 40 Hz, 12 dB/octave)
  • Frequency response: 15 -500 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 100 dB
  • Dimensions: 12.688"L x 10"W x 2.3"H
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty


  • Package Includes:

  • Class D Amplifier

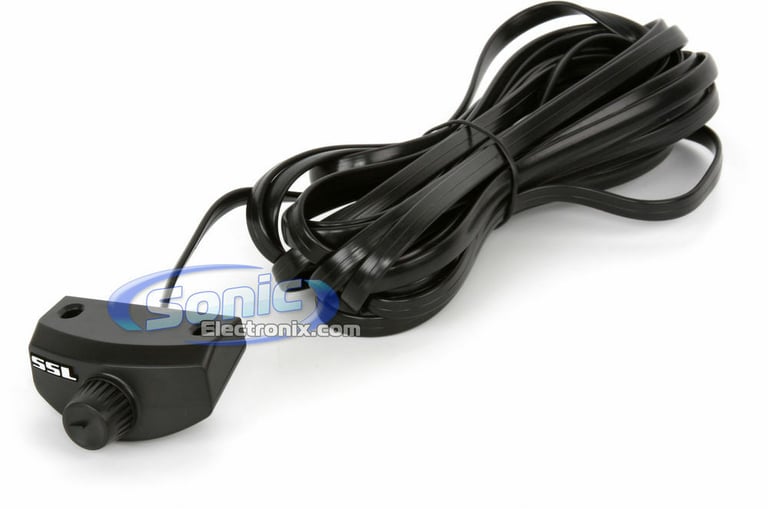

  • Remote subwoofer level control
  • Remote subwoofer control cable

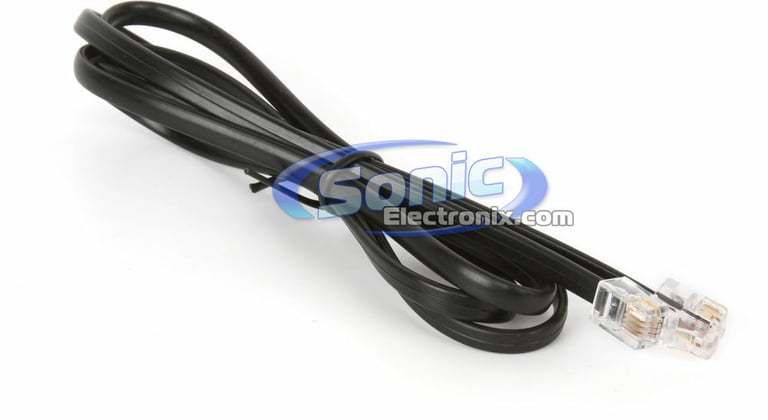

  • DataLink cable

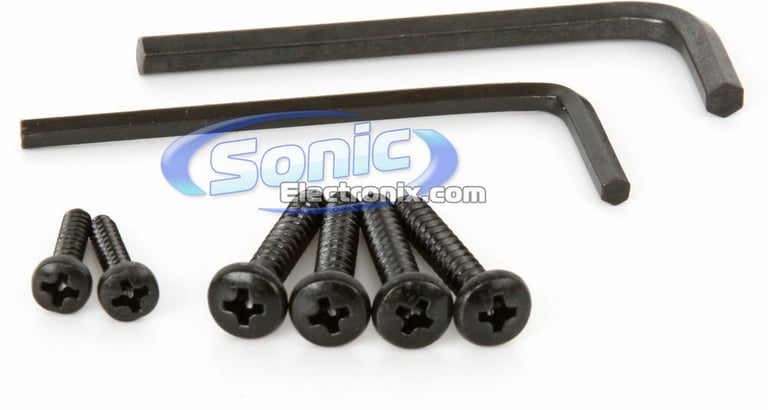

  • Four mounting screws

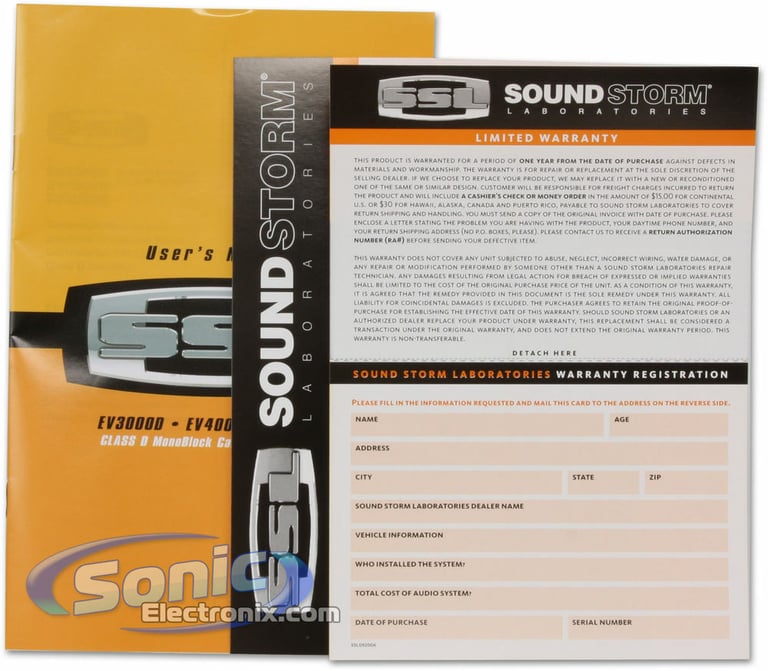

  • Sound Storm Labs (SSL) EV3000D owner’s manual

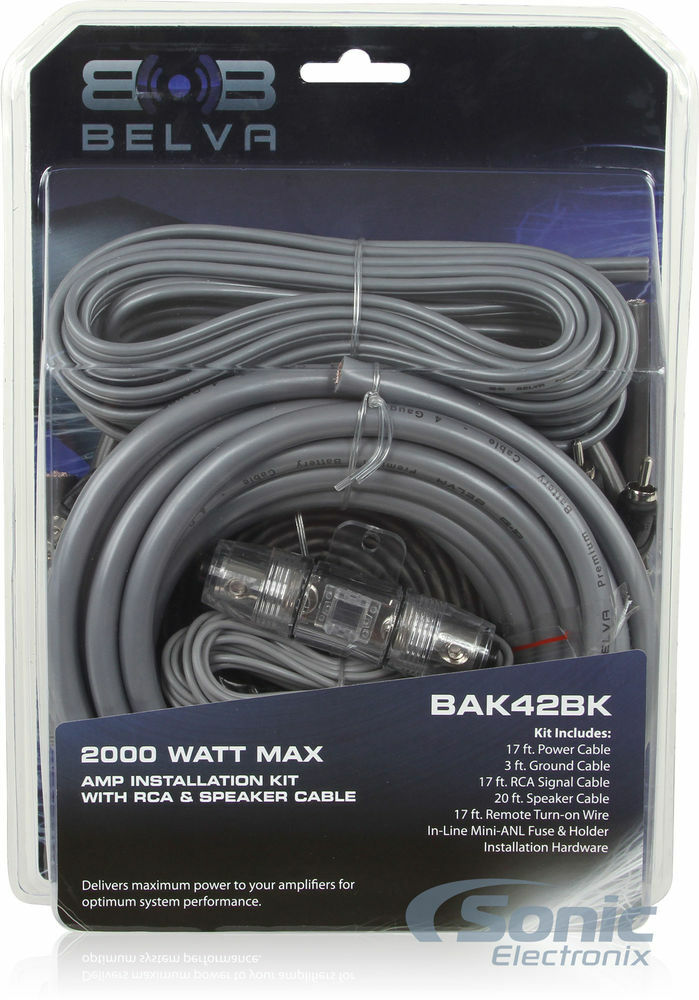

    Belva BAK42BK

    4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
    Quantity: 1

    Product Details:

    • Complete 4 Gauge 2-Channel Amplifier Installation Kit
    • Designed for car audio systems up to 1200 watts RMS
    • Premium Powerflex power and ground wire provides optimal power transfer
    • Belva CCA wire is made from 30% copper while the competition uses only 10%
    • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
    • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
    • Complies to American Wire Gauge standards
    • Also available in Blue and Red
    • Authorized Internet Dealer
    • 1-year Manufacturer's Warranty

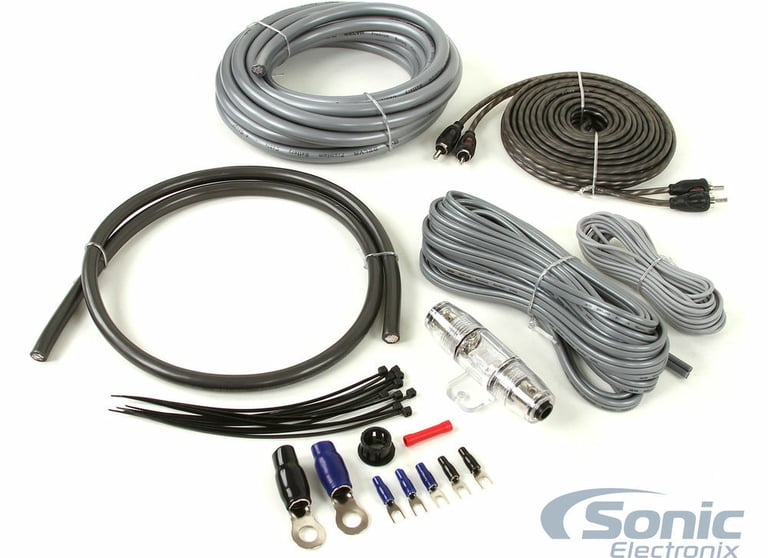

    Kit includes:

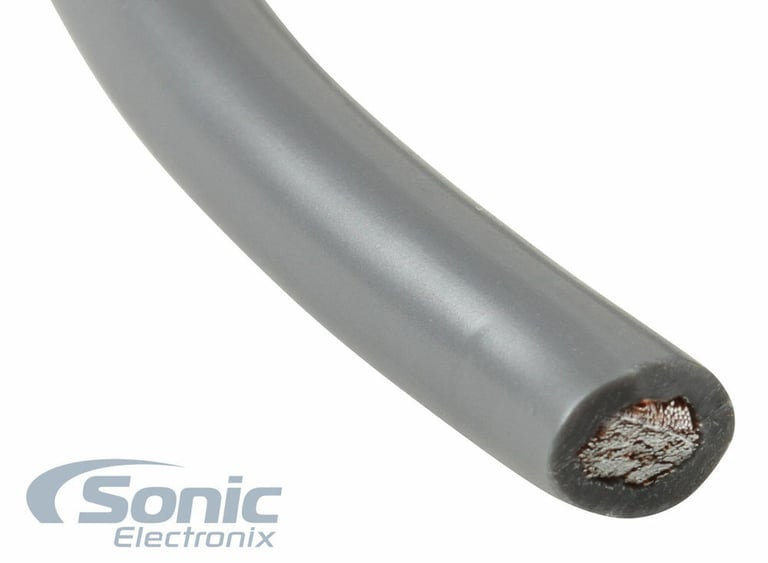

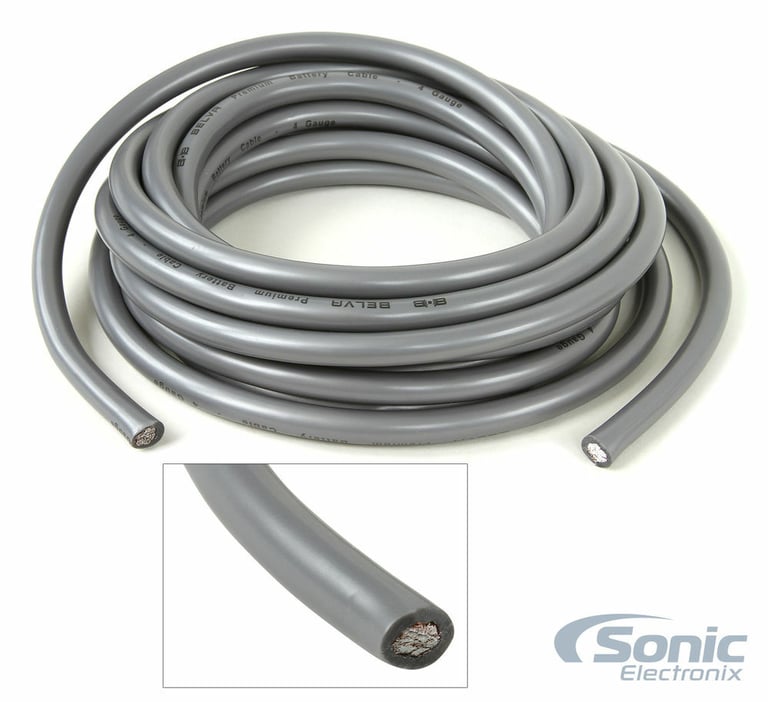

    1. 17 ft. (5.2 meters) Gray 4 gauge power wire

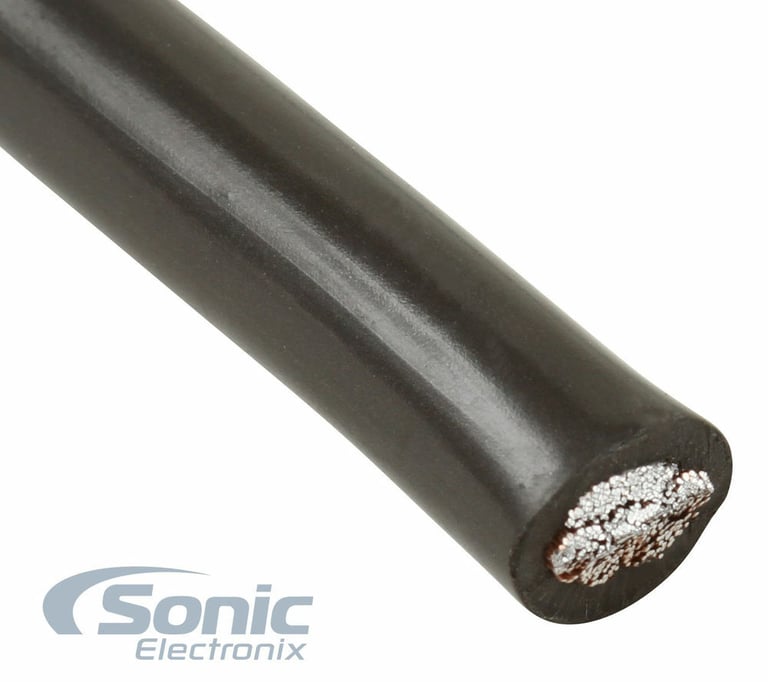

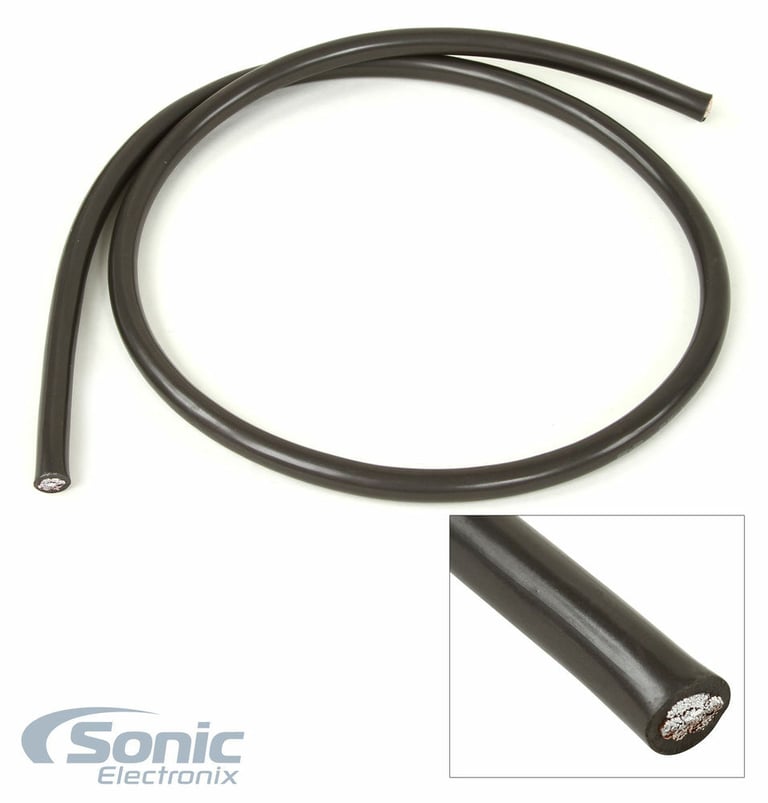

    2. 3 ft. (.91 meters) Black 4 gauge ground wire

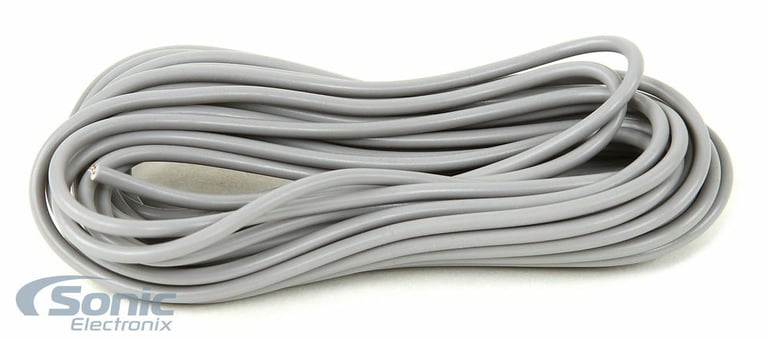

    3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

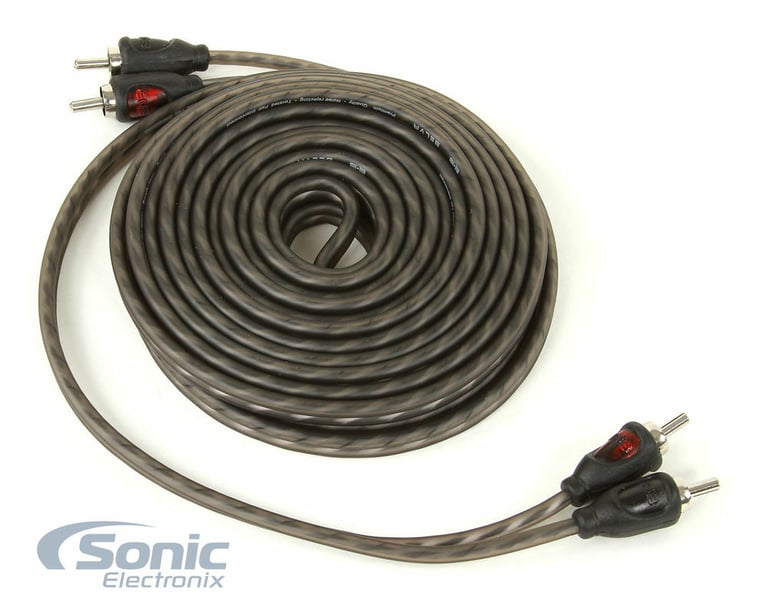

    4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

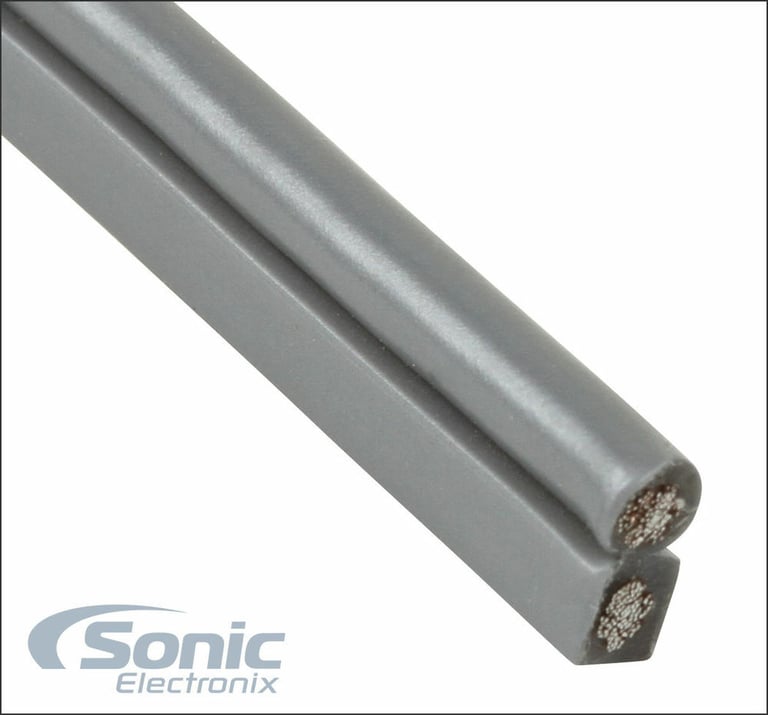

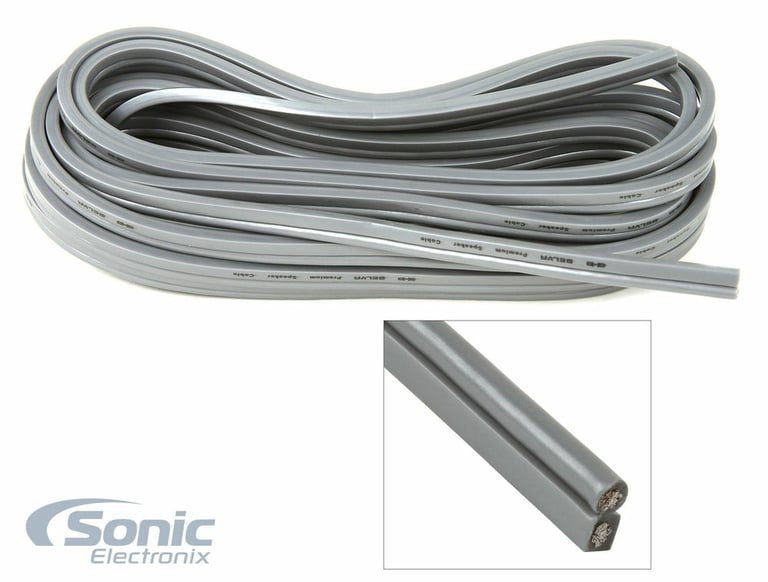

    5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

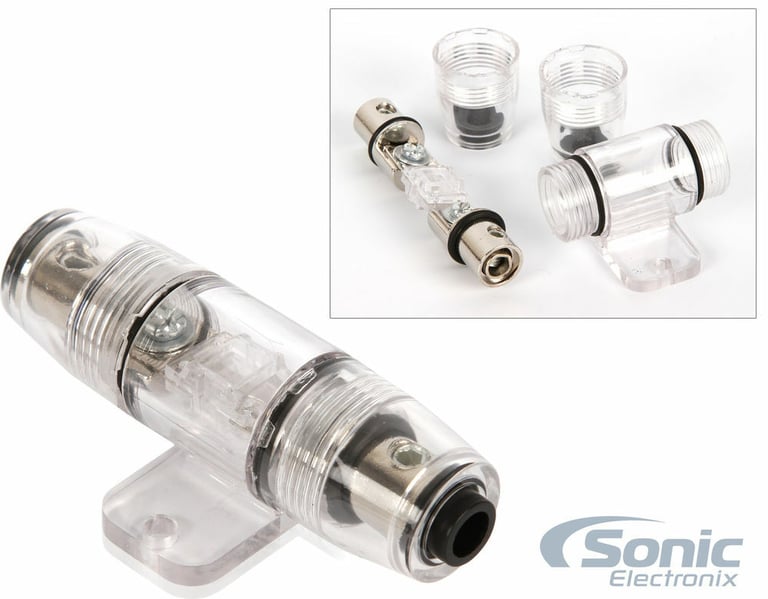

    6. One MINI-ANL Fuse Holder with a 80 amp fuse

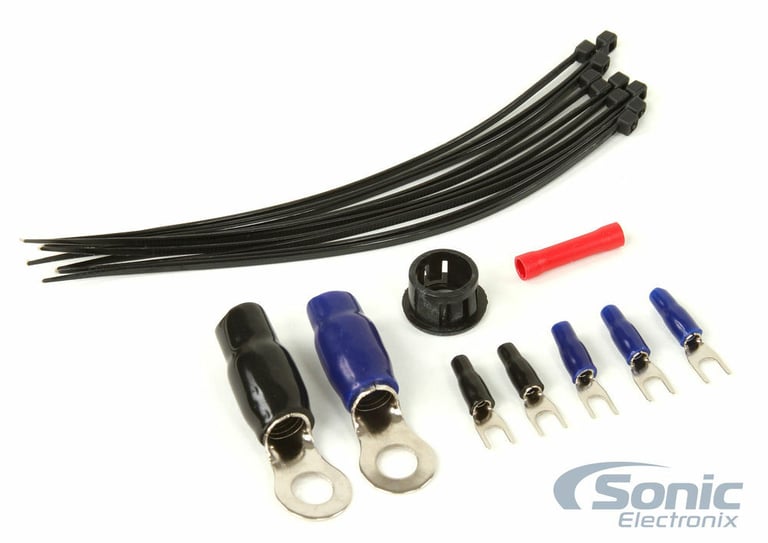

    7. One Black rubber firewall grommet
    8. One 4 Gauge Blue chrome plated ring terminals
    9. One 4 Gauge Black chrome plated ring terminal
    10. Three 18 Gauge Blue Spade terminal
    11. Two 18 Gauge Black Spade terminal
    12. One 18 Gauge Red butt connector
    13. Ten 4" Black zip ties

    Specifications & Details


    Power Specifications - Subwoofer Channel
    RMS Power @ 4 ohms
    563 watts x 1 channel
    RMS Power @ 2 ohms
    1500 watts x 1 channel
    RMS Power @ 1 ohm
    3000 watts x 1 channel
    Peak Power Output
    3000 watts x 1 channel
    Amplifier Specifications
    Amplifier Class
    D
    Number of Channels
    1 - Mono
    Total Peak Power Output
    3000 watts
    Total RMS Power Output
    2250 watts
    Maximum Input Gauge Size
    Any Gauge with use of Spade Terminal AWG
    Minimum Impedance Unbridged
    1 ohms
    Minimum Impedance Bridged
    Not Bridgeable
    Frequency Response
    THD at Rated RMS Power
    0.01%
    Speaker Level Inputs
    Preamp Outputs
    1 pair
    Built-in Crossover
    Low-Pass (LP)
    Subsonic
    Low-Pass Crossover Frequency
    50 - 150 Hz
    Subsonic Filter
    15 - 40 Hz
    Signal-to-Noise Ratio
    100 dB
    Bass Boost
    0 - 18 dB
    Remote bass/level controller
    Yes
    Fan Cooled
    No
    Fuse Rating
    35A x 2
    Total Fuse Rating
    70
    CEA-2031 Compliant
    No
    Sonic Certified Amplifier
    Not Tested
    Amp Bluetooth Connectivity
    No
    Hi-Res Certified
    No
    Low-Level Input Sensitivity
    High-Level Input Sensitivity
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    EV3000D, BAK42BK

    Weight:

    14.60lbs

    Internal SKU:

    ev3000d_bak42

    Internal Product ID:

    192233
