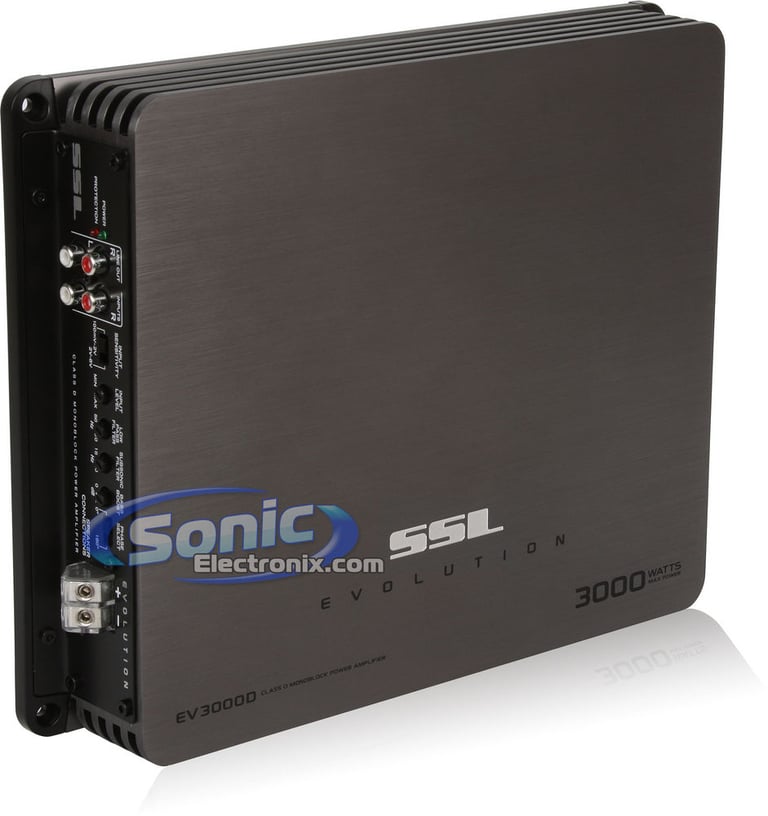

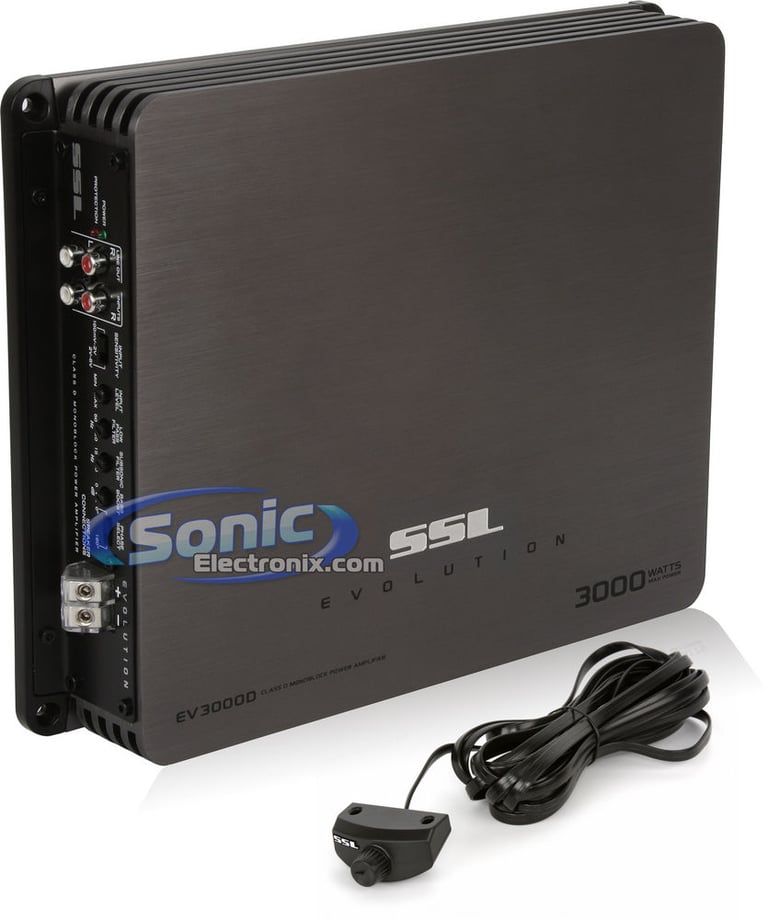

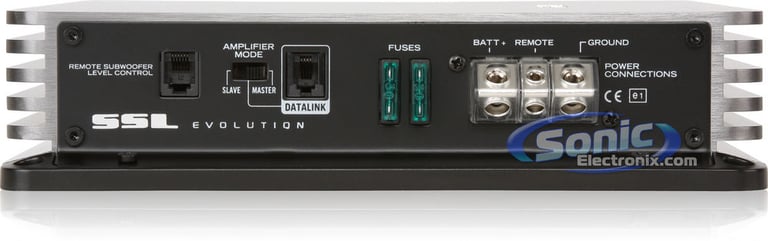

Sound Storm Labs (SSL) EV3000D

3000W Max Evolution Series Class D Monoblock Amplifier with Bass Remote

Product videos
highlight-star-icon

• 563 Watts RMS x 1 @ 4 ohms
• 1125 Watts RMS x 1 @ 2 ohms
• 2250 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 3000 Watts
• Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
• Large aluminum heatsink for excellent heat dissipation
• 12.688"L x 10"W x 2.3"H

Learn more about the ev3000d

We apologize

This item has been discontinued

Product Highlights


• 563 Watts RMS x 1 @ 4 ohms
• 1125 Watts RMS x 1 @ 2 ohms
• 2250 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 3000 Watts
• Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
• Large aluminum heatsink for excellent heat dissipation
• 12.688"L x 10"W x 2.3"H

Description


Sound Storm Labs (SSL)

Authorized dealer



SSL Platinum Dealer

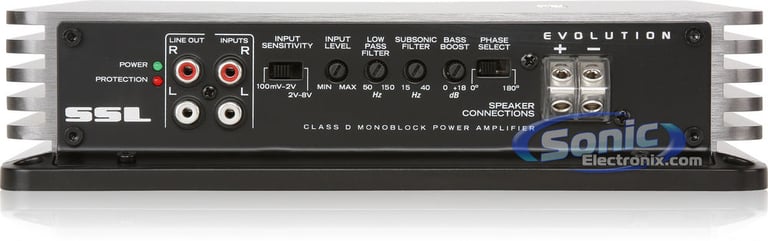

General Features:

  • SoundStormEvolution Series Monoblock Class-D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 563 watts x 1 chan.
    • 2 ohms: 1125 watts x 1 chan.
    • 1 ohm: 2250 watts x 1 chan.
  • Total power output: 3000 watts
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • Power and protection LED indicators
  • Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
  • 1 Ohm stable
  • Single channel monoblock operation
  • Selectable input sensitivity: 100mV-2V or 2V-8V
  • Thermal, overload, and speaker short protection
  • 1 Pair of preamp RCA outputs
  • Soft turn-on circuit
  • Selectable 0/180 phase shift
  • DataLink cable included for connecting two Sound Storm Evolution amplifiers together
  • Variable input gain control
  • Large aluminum heatsink for excellent heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50 - 150 Hz, 12 dB/octave)
  • Subsonic Filter (15 - 40 Hz, 12 dB/octave)
  • Frequency response: 15 -500 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 100 dB
  • Dimensions: 12.688"L x 10"W x 2.3"H
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty


  • Package Includes:

  • Class D Amplifier

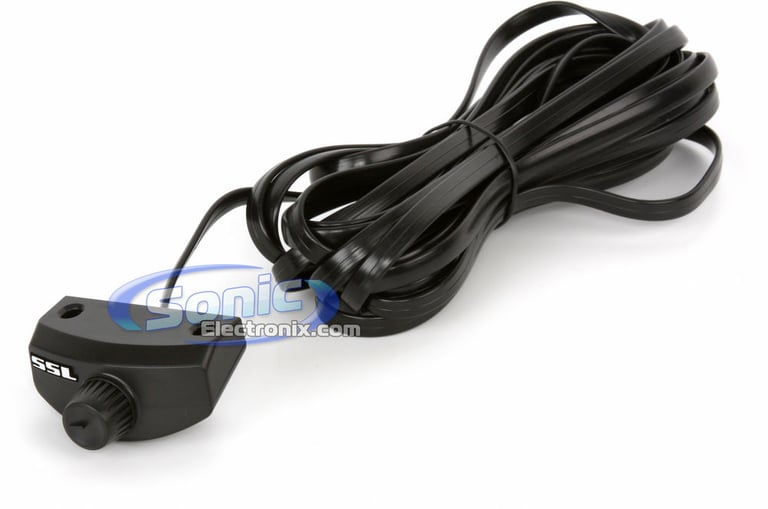

  • Remote subwoofer level control
  • Remote subwoofer control cable

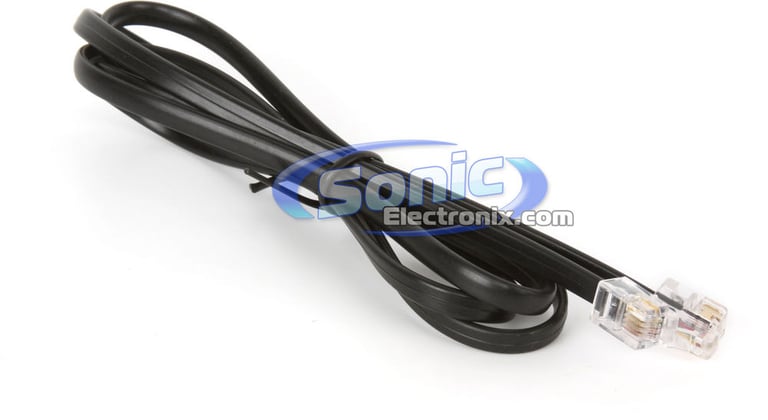

  • DataLink cable
  • Four mounting screws

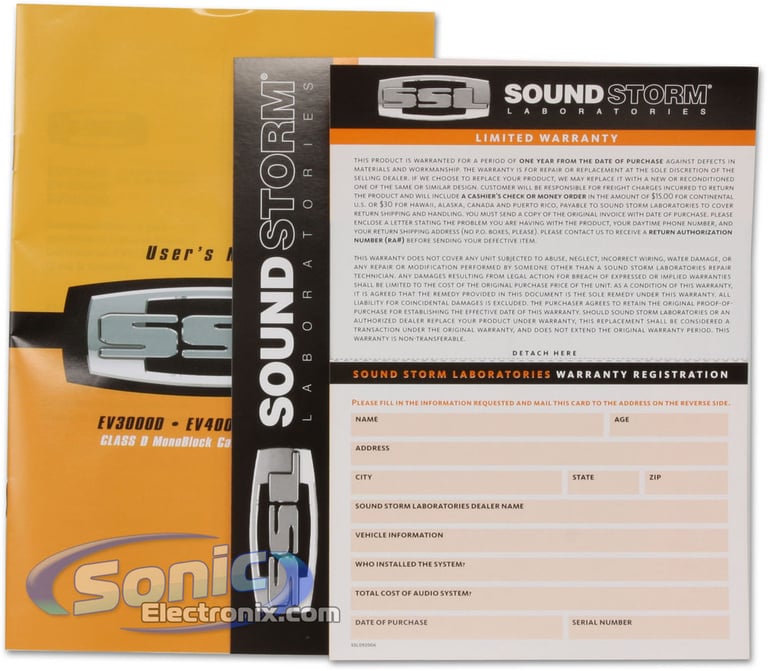

  • Sound Storm Labs (SSL) EV3000D owner’s manual



    Specifications & Details


    Power Specifications - Subwoofer Channel
    RMS Power @ 4 ohms
    563 watts x 1 channel
    RMS Power @ 2 ohms
    1500 watts x 1 channel
    RMS Power @ 1 ohm
    3000 watts x 1 channel
    RMS Power @ .5 ohm
    Power Specifications - Subwoofer Channel
    Peak Power @ .5 ohm
    Amplifier Specifications
    Series
    Evolution Series
    Marine Certified
    No
    Amplifier Class
    D
    Number of Channels
    1 - Mono
    Total Peak Power Output
    3000 watts
    Total RMS Power Output
    2250 watts
    Maximum Input Gauge Size
    Any Gauge with use of Spade Terminal AWG
    Minimum Impedance Unbridged
    1 ohms
    Minimum Impedance Bridged
    Not Bridgeable
    Frequency Response
    THD at Rated RMS Power
    0.01%
    Speaker Level Inputs
    Preamp Outputs
    1 pair
    Built-in Crossover
    Low-Pass (LP)
    Subsonic
    Low-Pass Crossover Frequency
    50 - 150 Hz
    Subsonic Filter
    15 - 40 Hz
    Signal-to-Noise Ratio
    100 dB
    Bass Boost
    0 - 18 dB
    Remote bass/level controller
    Yes
    Fan Cooled
    No
    Fuse Rating
    35A x 2
    Total Fuse Rating
    70
    Strappable
    Yes
    CEA-2031 Compliant
    No
    Sonic Certified Amplifier
    Not Tested
    Amp Bluetooth Connectivity
    No
    Hi-Res Certified
    No
    Low-Level Input Sensitivity
    High-Level Input Sensitivity
    What is in the box?
    Paperwork
    User manual
    WITB: Amplifiers
    Amplifier
    Wired gain knob (wire attached)

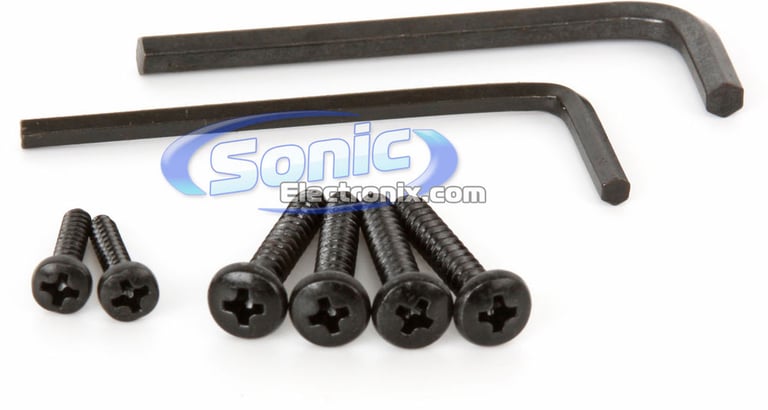

    Mounting screws (6)
    Allen wrenches (2)
    Other Accessory #6
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    EV3000D

    Weight:

    12.00lbs

    Internal SKU:

    ev3000d

    Internal Product ID:

    23049

    Product and How-to Videos


    Customer Ratings & Reviews



    5 star
    71%
    4 star
    21%
    3 star
    4%
    2 star
    0%
    1 star
    4%



    Durability
    4.4
    Value
    4.7
    Features
    4.6
    Design
    4.5
    Usability
    4.9
    Sort by:

    Loading...

    Great little amp...

    I had this amp now for 2 hours its a great little amp, the only thing I would be cautious about is the rating. I "believe" their RMS is actually peak output so when they claim 1200 watt RMS at 4ohms its more like 600 RMS and the peack is 1200 Watts. Nothing wrong just need to understand the ratings they have since some companies will double the value to claim RMS. Either way at the max claim of 2ohms is 2200 watts RMS which it might be only 1100 watts RMS is still good.

    By John on December 26, 2010

    46

    found this helpful.

    Great Amplifier, Great Price!!

    I purchased this amp after reading the reviews, some good and some bad, but in my opinion, for the price, it is great. It delivers great sound with the right set-up, and looks cool. Very easy to set up, very easy to use, and comes with all the hardware required for your install. I would definitely recommend this amplifier for people wanting quality sounds for a bargain price, many thanks to Sonic Electronix for a first class item and service.

    By Alanz on October 1, 2010

    45

    found this helpful.

    3000 watt ssl 1 channel amp

    i have this amp on 2 15s qpower deluxe subs and the amp holds its weight the amp is a very good amp for the price i reccommend to others for those who are on a budget

    By mike on June 26, 2011

    46

    found this helpful.

    cheap and powerful!

    I bought this on a budget (who wouldn't?) and I was surprised that its one ohm stable, I have it hooked at 2 ohms powering a Boss P126DVC 2300 watt max and it kicks the thing. Honestly I don't think either product is true in their power rating so I have the amp turned all the way up and its not getting hot at all. I believe it would power 2 12's very very nicely, I would recommend.

    By jizmloaf on February 15, 2011

    40

    found this helpful.

    EV3000D

    This amp met way beyond my expectations being I was always into higher end amps. This was a great choice. Excellent product...

    By Ceenyl on January 9, 2015

    40

    found this helpful.

    great amp

    i have 2 of these amps had them for almost a year they have a nice size not to big and have the right amount of power to push my 2 audiobahn immortal 15s i have one on each sub at 2 ohms each sub is putting out 2250 a piece mean to amps are playing at 2200 a piece and it sounds great a very good amp for its price worth it will buy this amp before most any day

    By rich on September 14, 2012

    36

    found this helpful.

    good

    Really like the amp. I just got it 2 weeks ago, and man I tell you, it gives me a headache everytime. I got it pushing 2 12"s l5 on a ported box and the thing is a monster. I would recommend. I am just wondering how long it's going to take to break which I hope it does not. For the price, good deal, looks are ok, overall good amp.

    By Edwin Serna on May 10, 2012

    34

    found this helpful.

    Good amp, buuuut

    Good quality amp, used it to power an SPL 15 bridged to 4ohms, worked very well for a month, until I was playing a song that had a lot of highs and it went into protected mode and never came out, contacted SSL and received a return authorization number, had to pay return shipping and am still waiting should be a few more days till i get it back... but I'm glad to know that they would take care of it

    By shane on January 29, 2011

    37

    found this helpful.

    SSL AMP

    Good amp for the price. As easy as all other amps to install and use. I use it daily no problems yet.

    By Dave on December 18, 2012

    33

    found this helpful.

    Great Amp

    I added this amp to my system, as an additional sub amp. I'm running a 12in L5 in a custom enclosure and it sounds great. No issues with set up and looks good. The subwoofer remote switch is a little cheap, but functional. You will not go wrong with this amp, great value for the money.

    By Joe on October 29, 2010

    32

    found this helpful.
