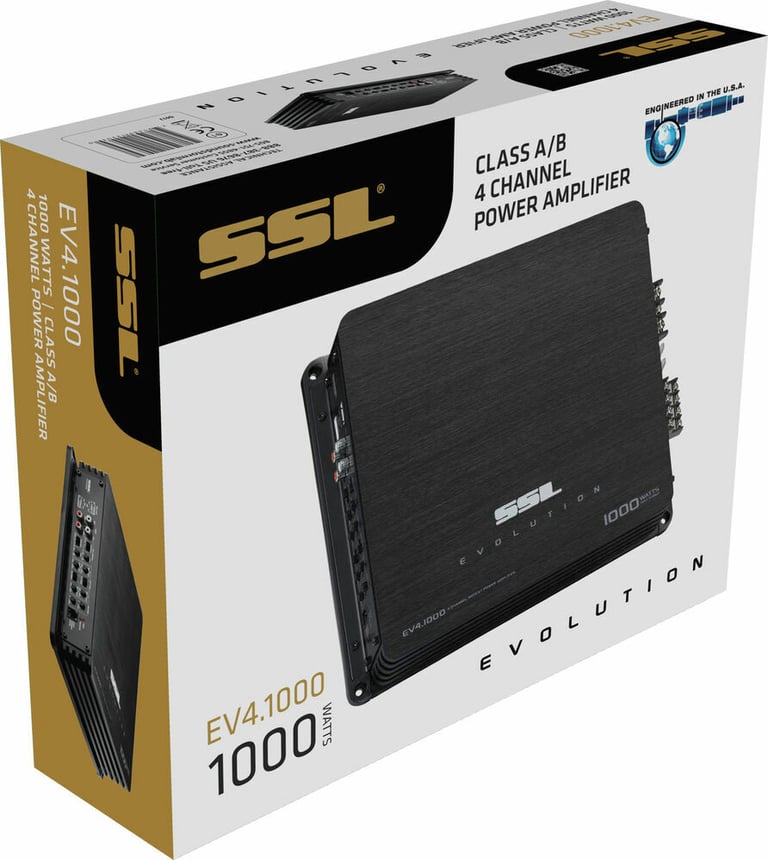

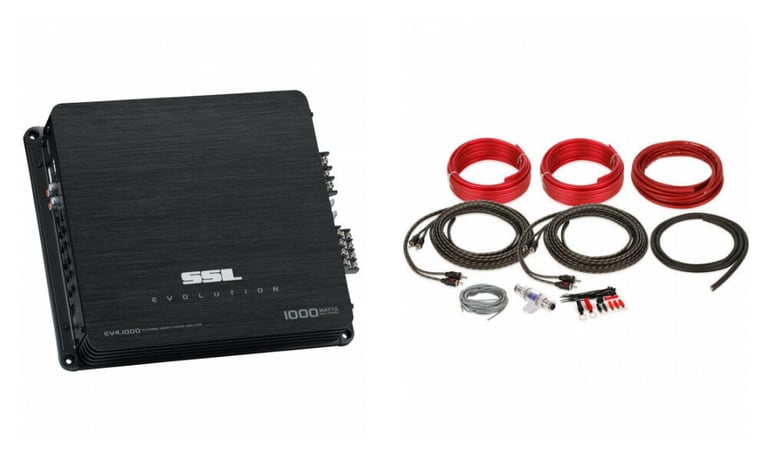

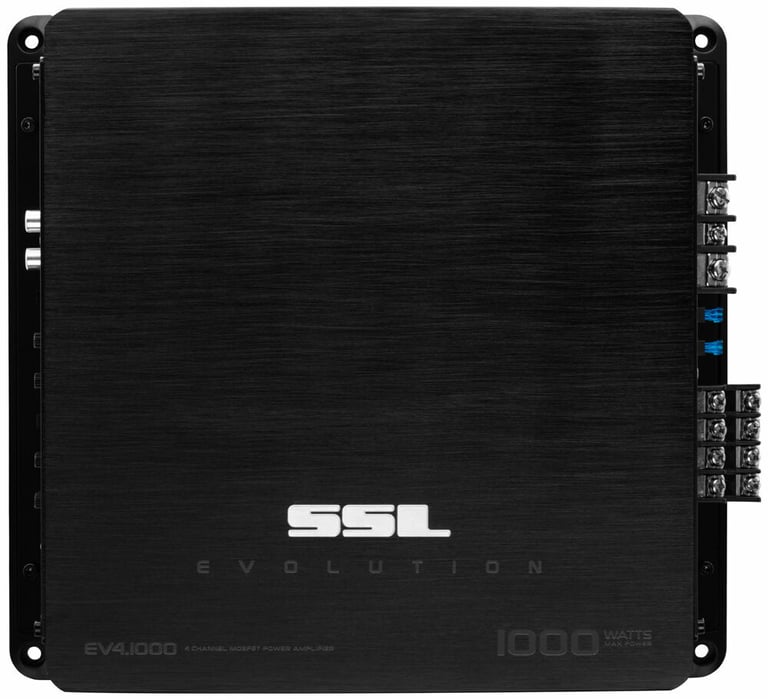

SSL EV4.1000 with Amplifier Wiring Kit

General Features:

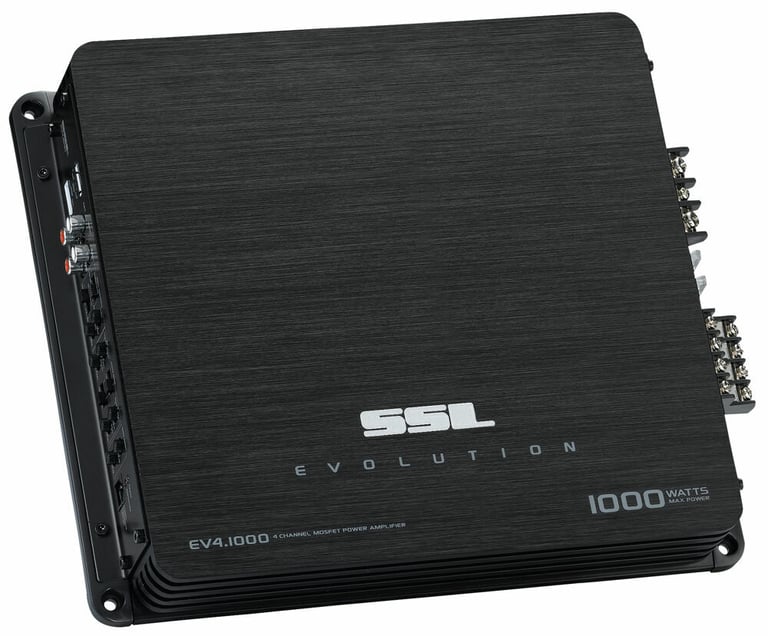

• SoundStorm (SSL) EV4.1000
• Class A/B Full Range 2-Ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 125 watts x 4 chan.
• 2 ohms: 200 watts x 4 chan.
• Bridged, 4 ohms: 400 watts x 2 chan.
• Total power output: 1000 watts
• Pulse Width Modulated MOSFET power supply

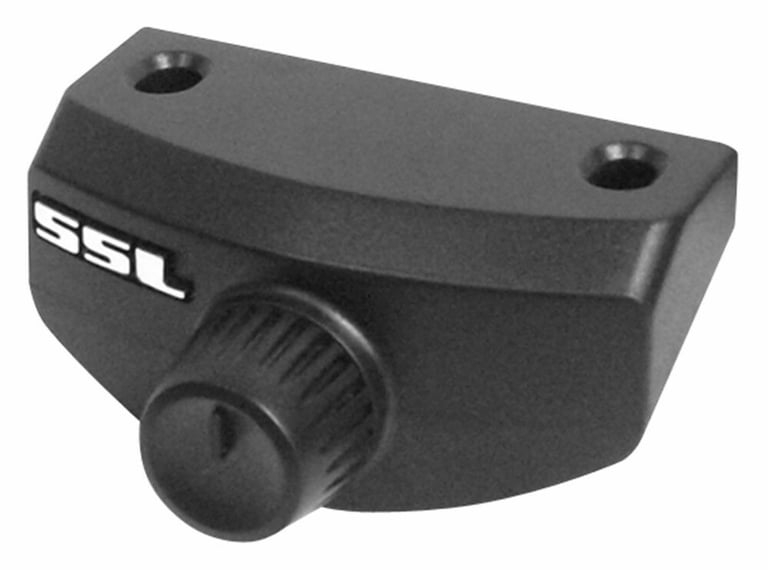

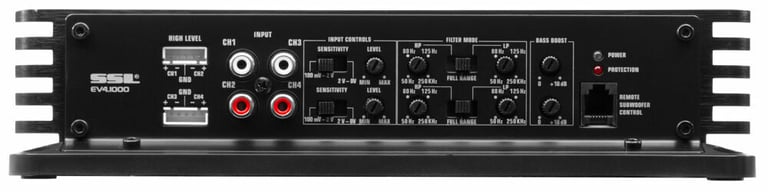

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• 4, 3 or 2 channel operation
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)

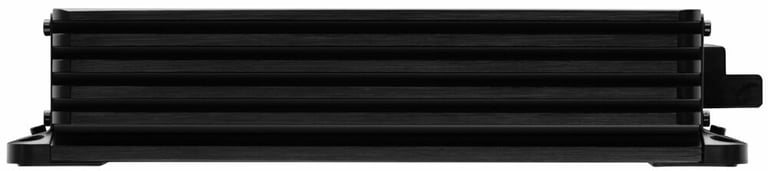

• High-density split-dome convection heat-sink for extreme heat dissipation
• Input sensitivity:
• Low level: 100mV-2V
• High level: 2V-8V
• Frequency Response: 9- 50,000Hz
• Total Harmonic Distortion (THD): 0.01%
• Signal to Noise Ration: 103 dB

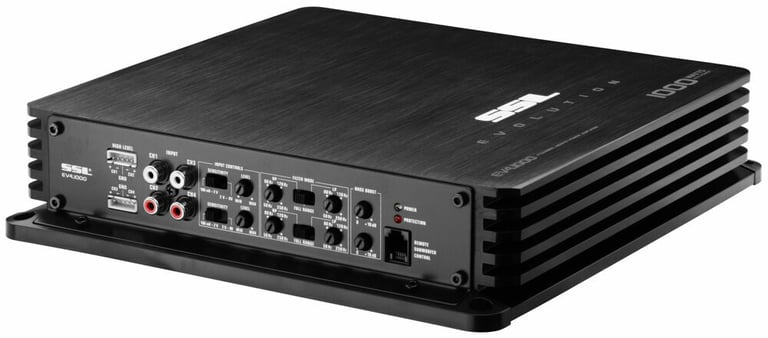

• Selectable Crossover Mode: HPF / Full / LPF
• Variable high-pass filter: 50 - 250 Hz
• Variable low-pass filter: 50 - 250 Hz
• Variable Bass Boost: 0 to +18 dB

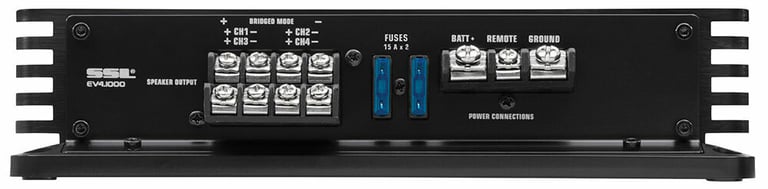

• Fuse Rating: 15 A x 2
• 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 10"W x 10.75"L x 2.3"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Check out the EV41000 Owner's Manual

Product Details:

• Complete 8 Gauge 4-Channel Amplifier Installation Kit
• Designed for car audio systems up to 600 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• MINI-ANL Fuse holder with a 60 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

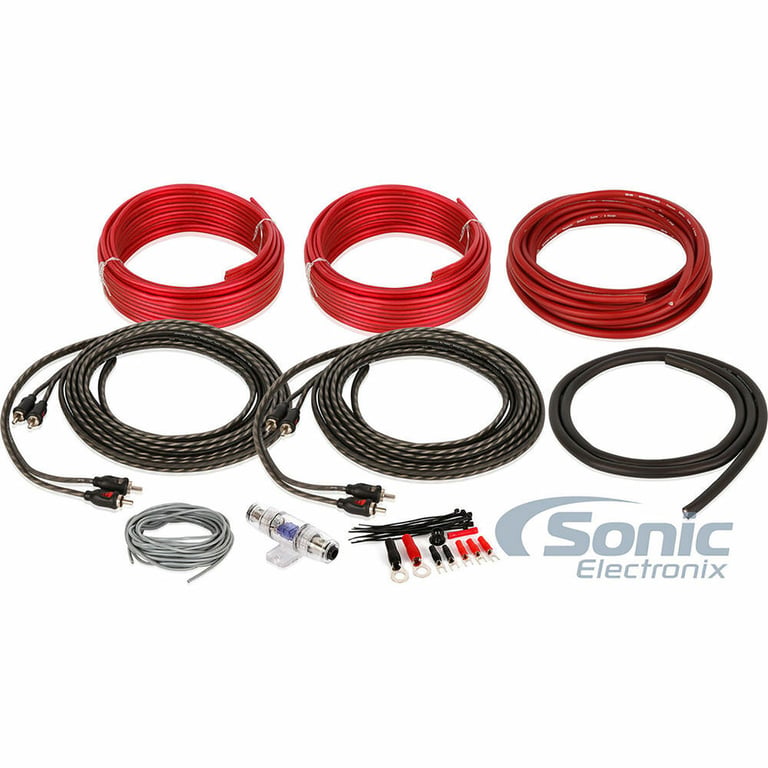

Kit includes:

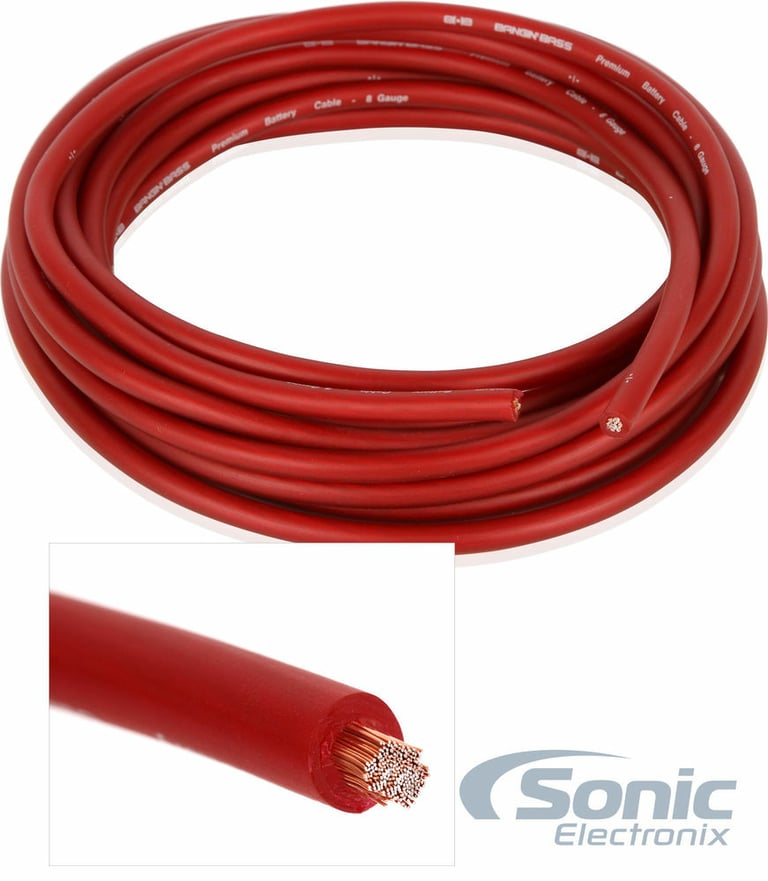

1. 17 ft. (5.2 meters) Red 8 gauge power wire

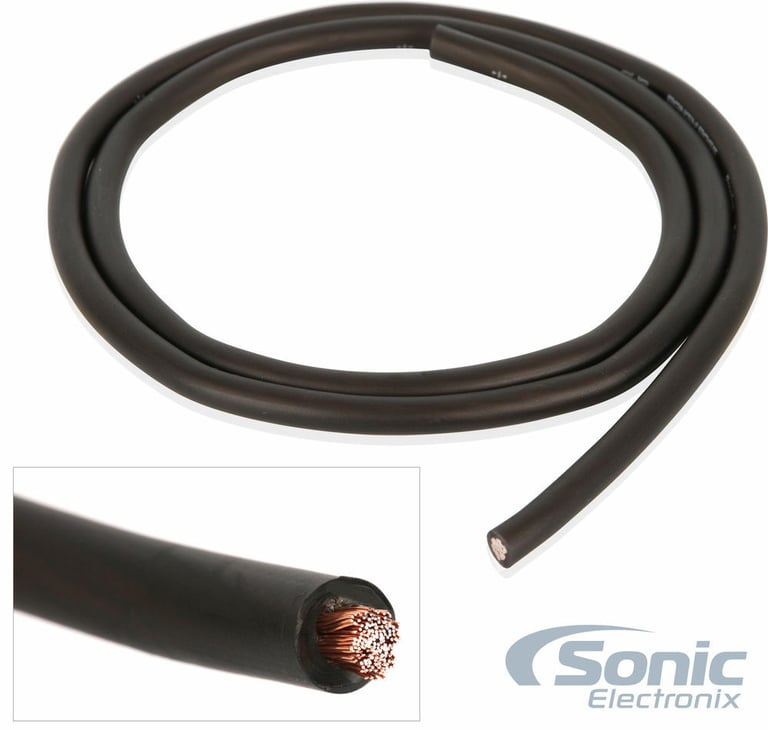

2. 3 ft. (.91 meters) Black 8 gauge ground wire

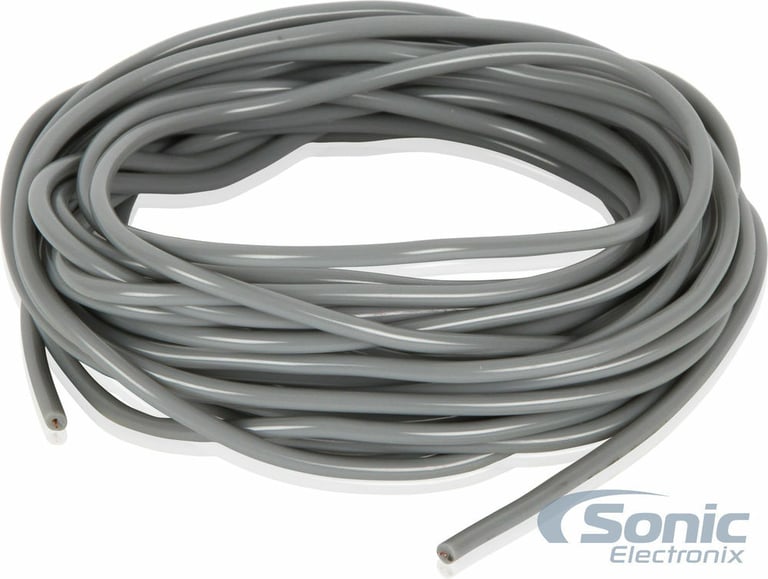

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

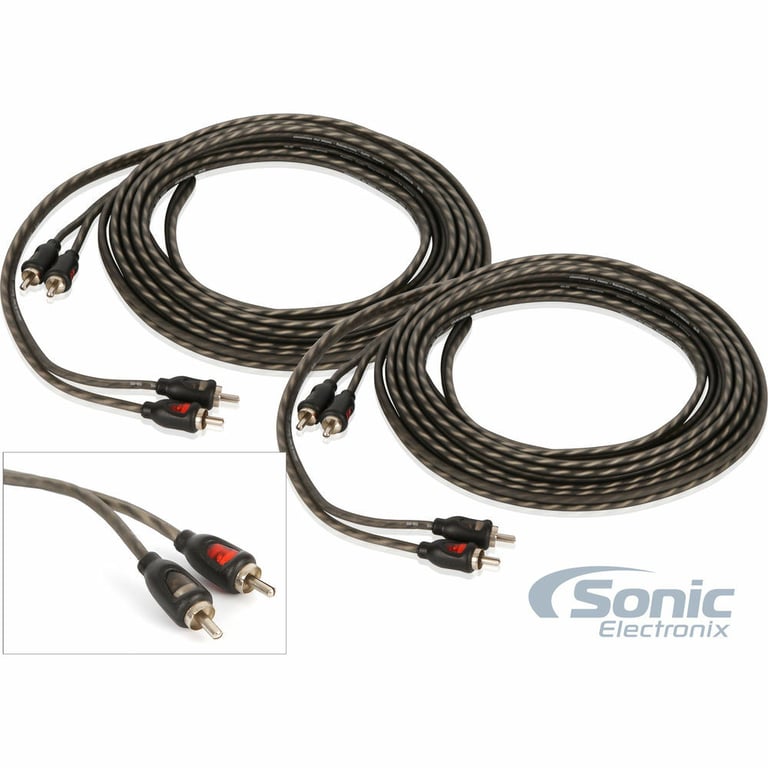

4. 17 ft. (5.2 meters) Helical Twist 4-channel RCA interconnect cable

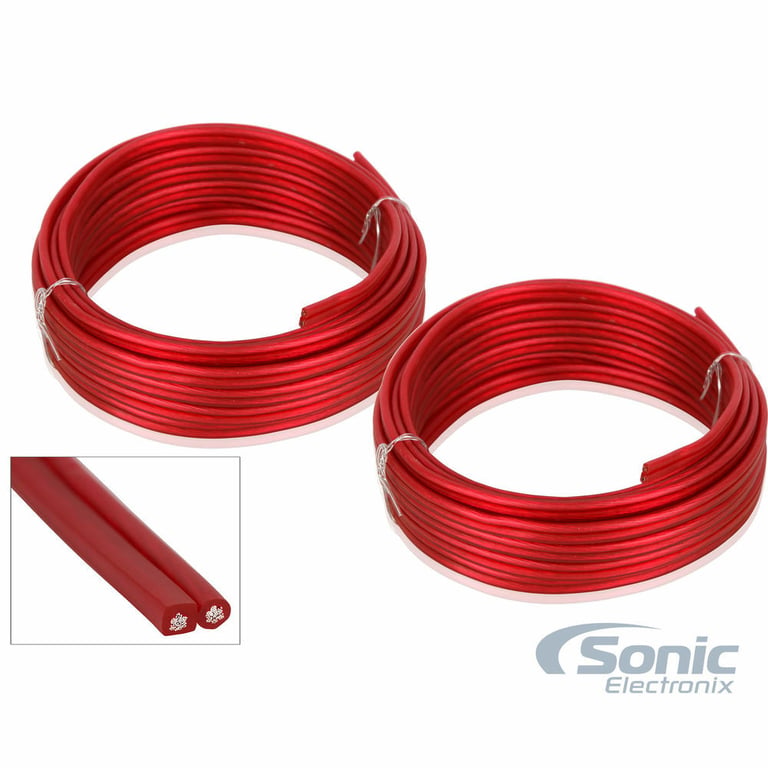

5. 40 ft. (12.2 meters) 16 Gauge Speaker cable

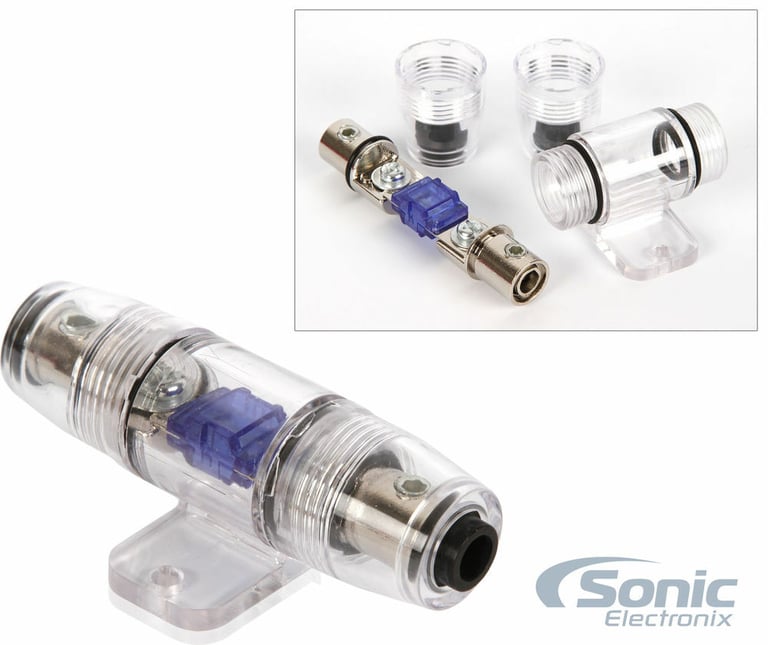

6. One MINI-ANL Fuse Holder with a 60 amp fuse

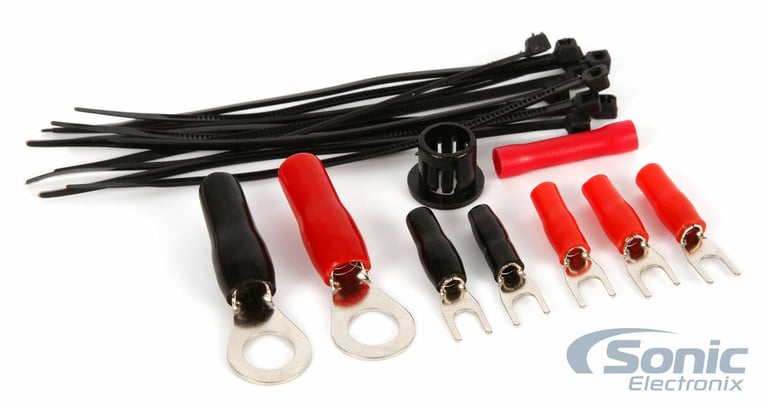

7. One Black rubber firewall grommet
8. One 8 Gauge Red chrome plated ring terminals
9. One 8 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Red Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
