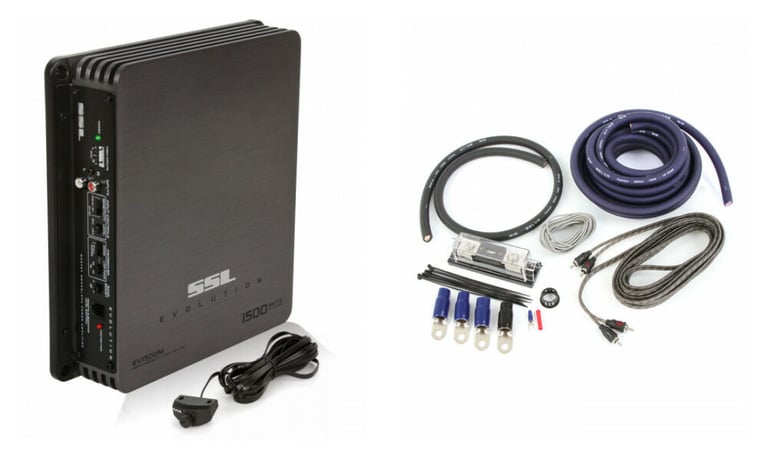

Sound Storm Labs (SSL) EV1500M Amplifier + Belva 1/0 Gauge Amp Kit

1500W Max, Evolution Series Monoblock Class AB Power Car Amplifier

highlight-star-icon

• 600W x 1 Chan. @ 4 Ohms
• 1500W x 1 Chan. @ 2 Ohms
• Speaker Short Protection
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Learn more about the ev1500m_bak02

We apologize

This item has been discontinued

Description


Sound Storm Labs (SSL)

Authorized dealer

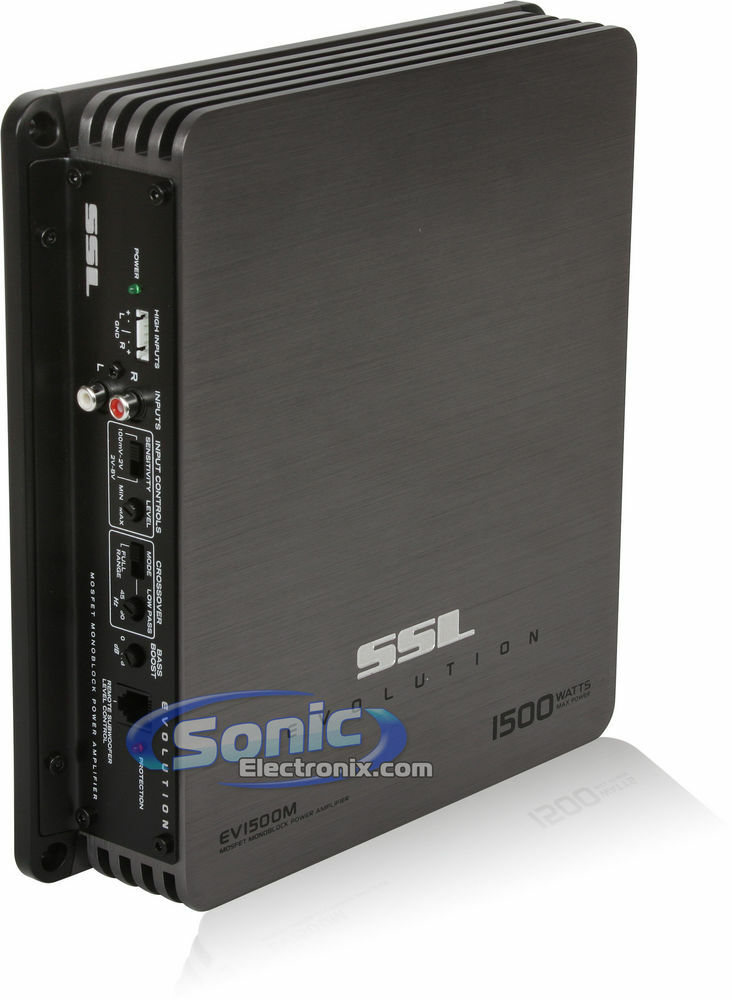

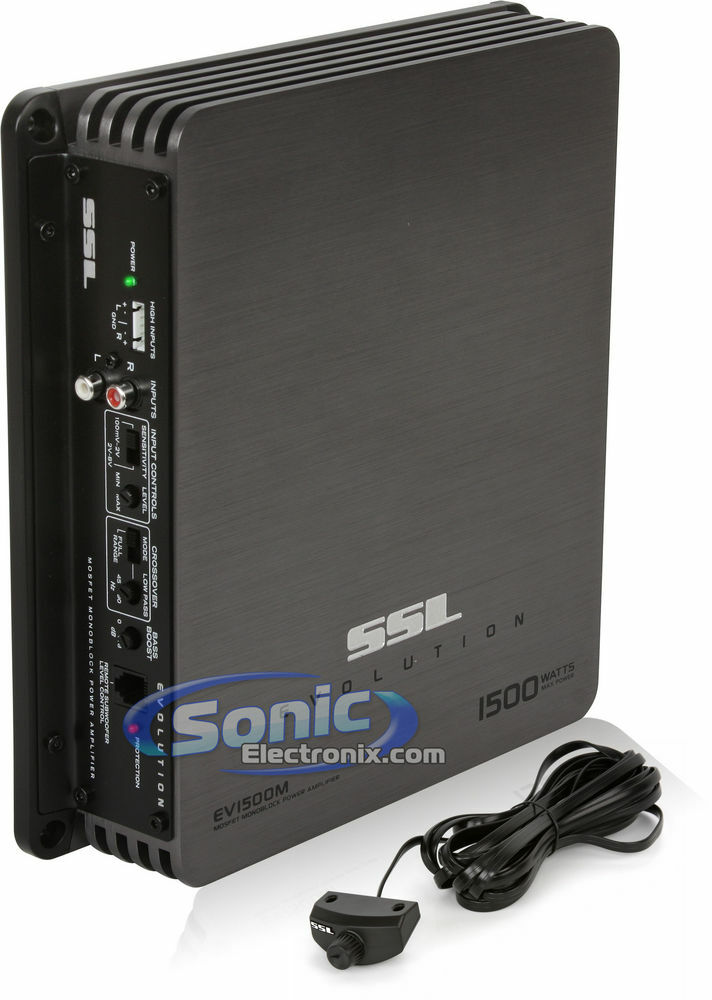

Sound Storm Labs (SSL) EV1500M

1500W Max, Evolution Series Monoblock Class AB Power Car Amplifier
Quantity: 1

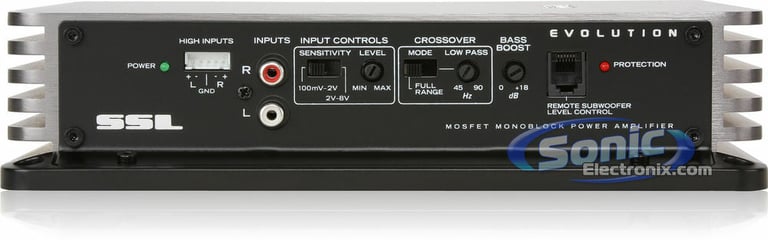

Amplifier Features:

  • Evolution Series Single-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 600 watts x 1 chan.
    • 2 ohms: 900 watts x 1 chan.
  • Max power output:
    • 2 ohms: 1500 watts x 1 chan.
  • MOSFET PWM (Pulse Width Modulated) power supply)
  • Wired remote bass level control included
  • Power and protection LED indicators
  • Variable tuned bass EQ (0-18 dB bass boost)
  • 2 Ohm stable
  • 1 channel monoblock operation
  • Selectable input sensitivity (100mV-2V or 2V-8V)
  • Thermal and speaker short protection
  • Soft turn-on circuit
  • Remote turn-on/turn-off circuit
  • Variable input gain control
  • Dark gray anodized heatsink
  • Large aluminum heatsink for excellent heat dissipation
  • Nickel-plated RCA level inputs

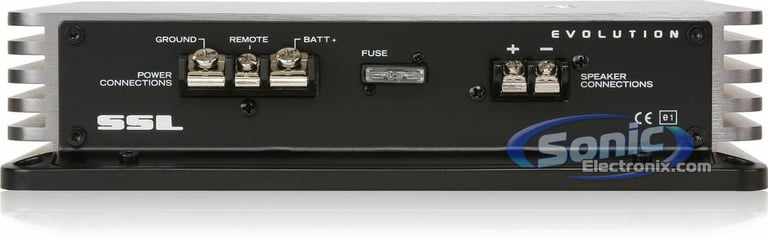

  • Nickel-plated screw terminals
  • Variable low-pass filter (45-90 Hz, 12 dB/octave)
  • Frequency response: 9-90 Hz
  • Dimensions: 10"D x 15-1/2"W x 2-3/8"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Package Includes:
  1. Evolution Series Amplifier

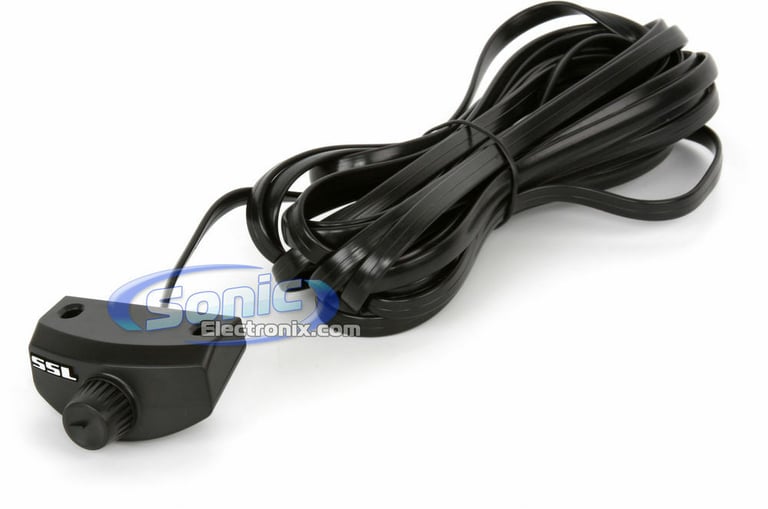

  2. Remote subwoofer level control

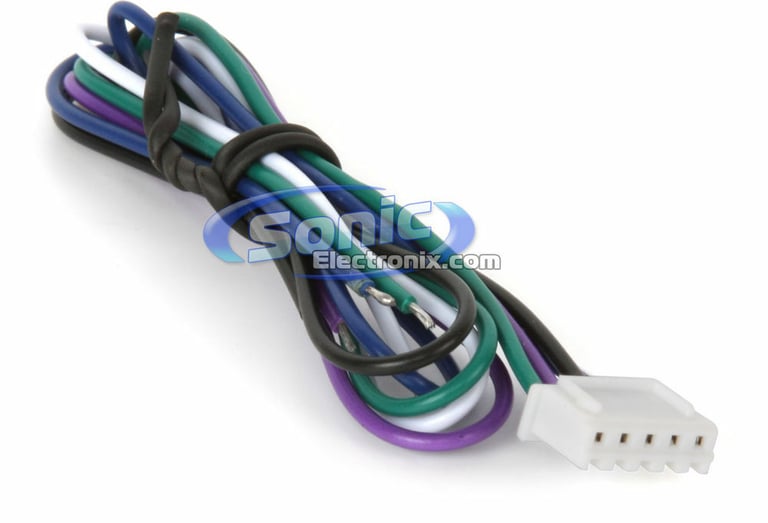

  3. High input cable with connector

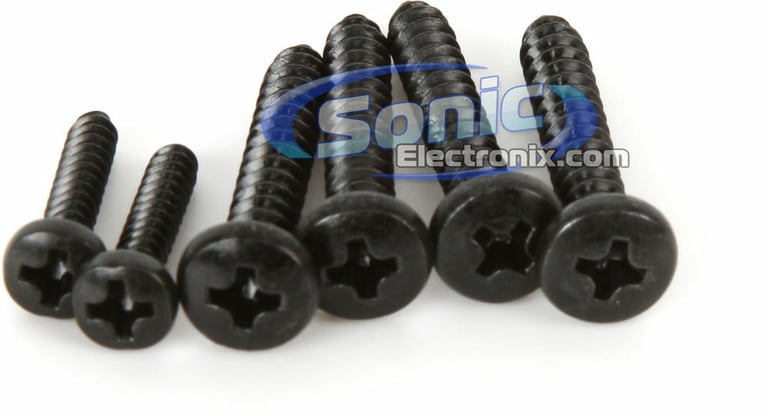

  4. Four mounting screws

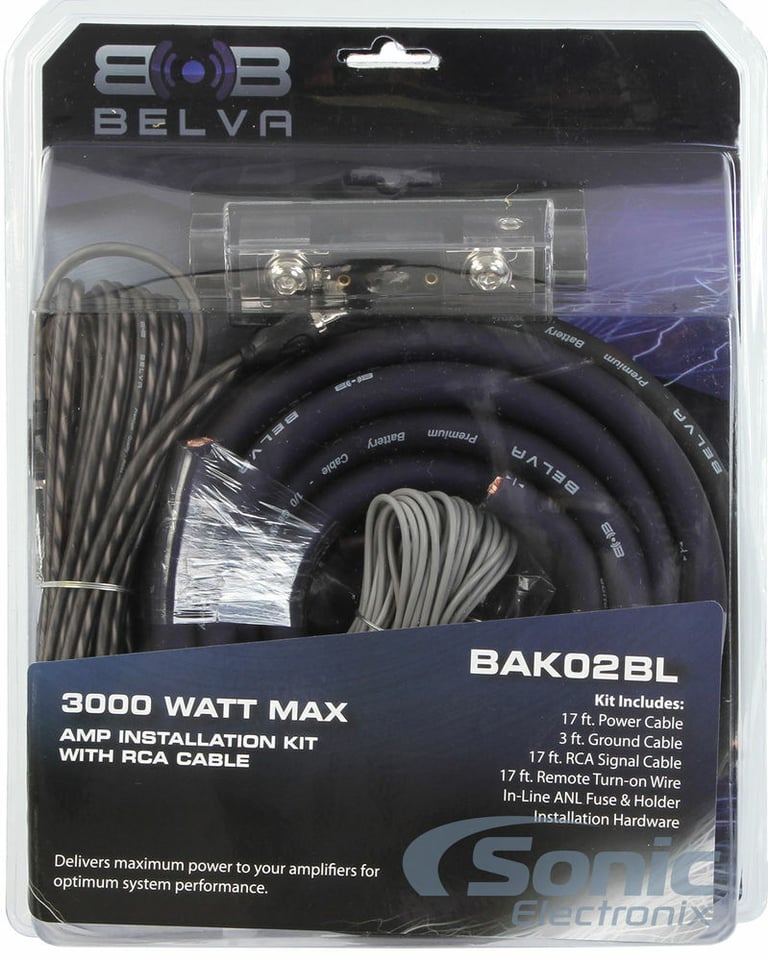

Belva BAK02BL

1/0 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 2000 Watts - BLUE
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 2000 watts RMS

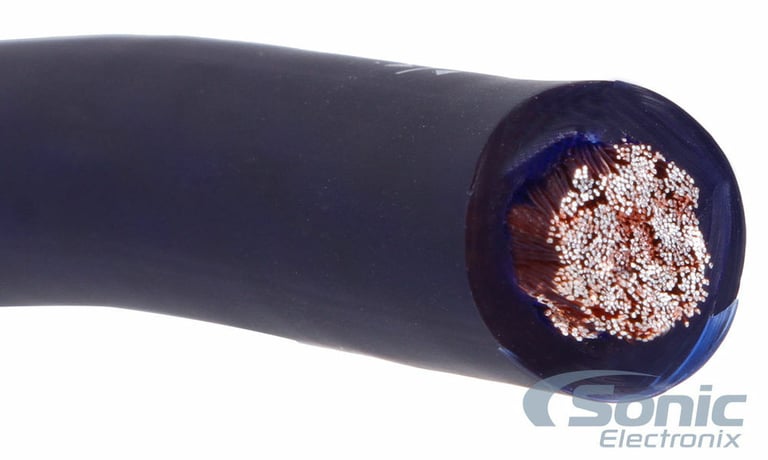

  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • ANL Fuse holder with a 150 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Red
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

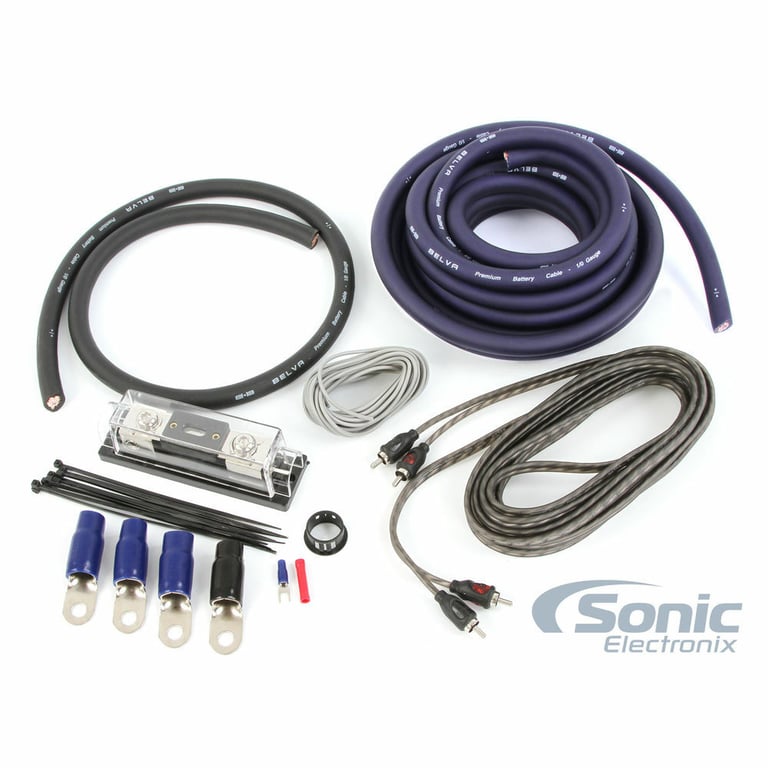

Kit includes:

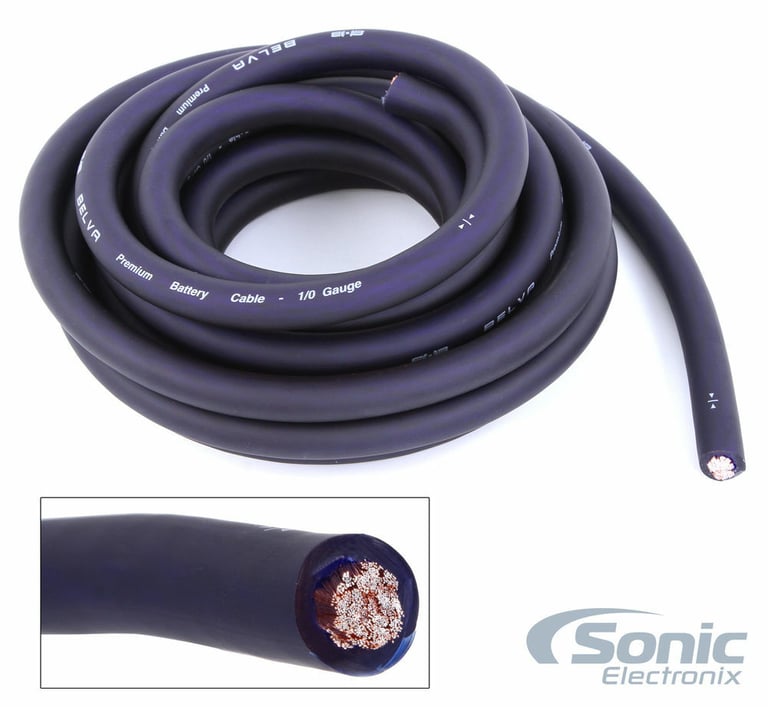

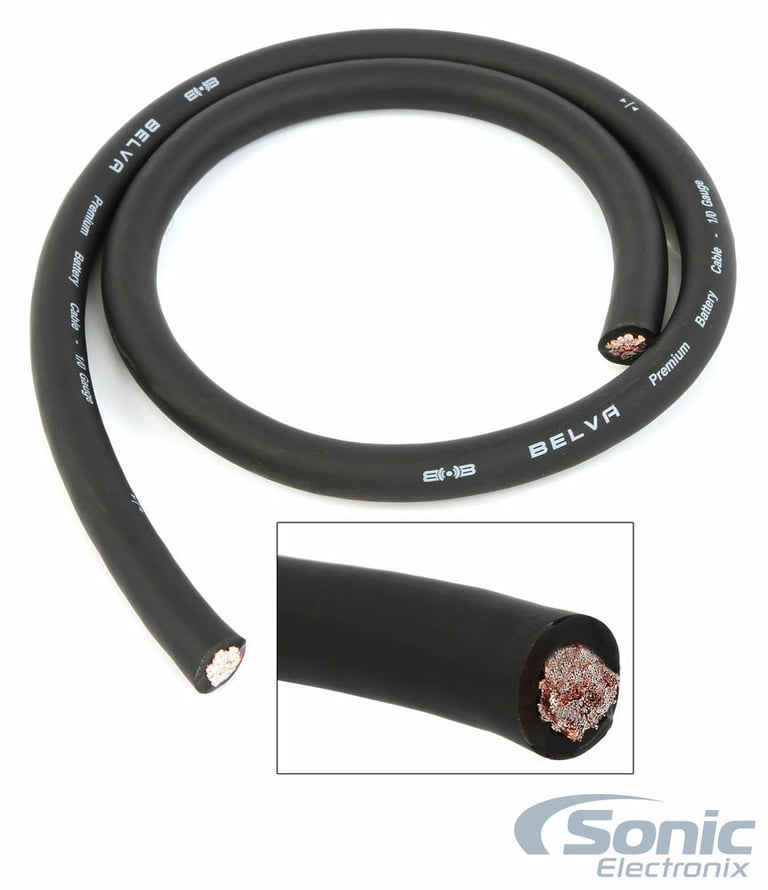

  1. 17 ft. (5.2 meters) Blue 1/0 gauge power wire

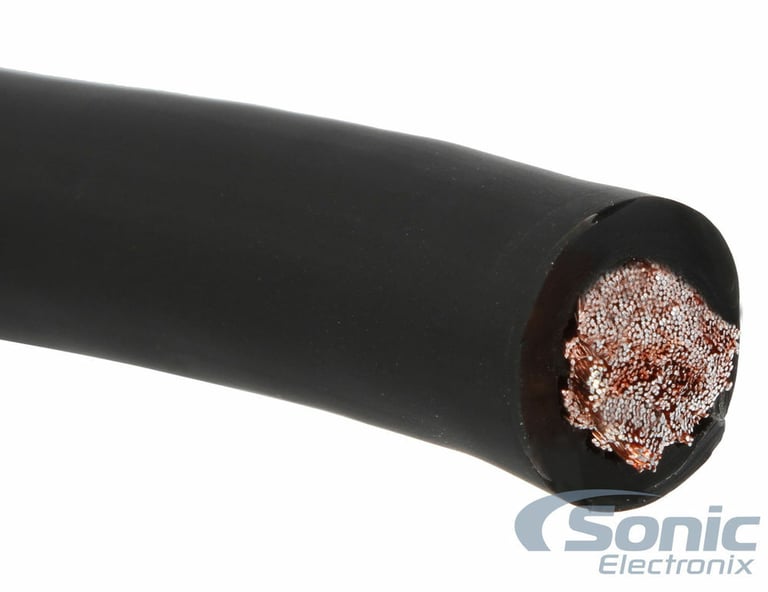

  2. 3 ft. (.91 meters) Black 1/0 gauge ground wire

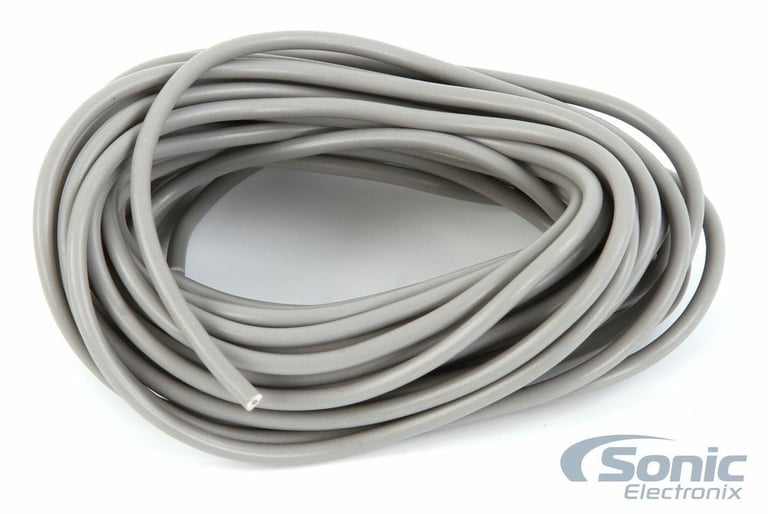

  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

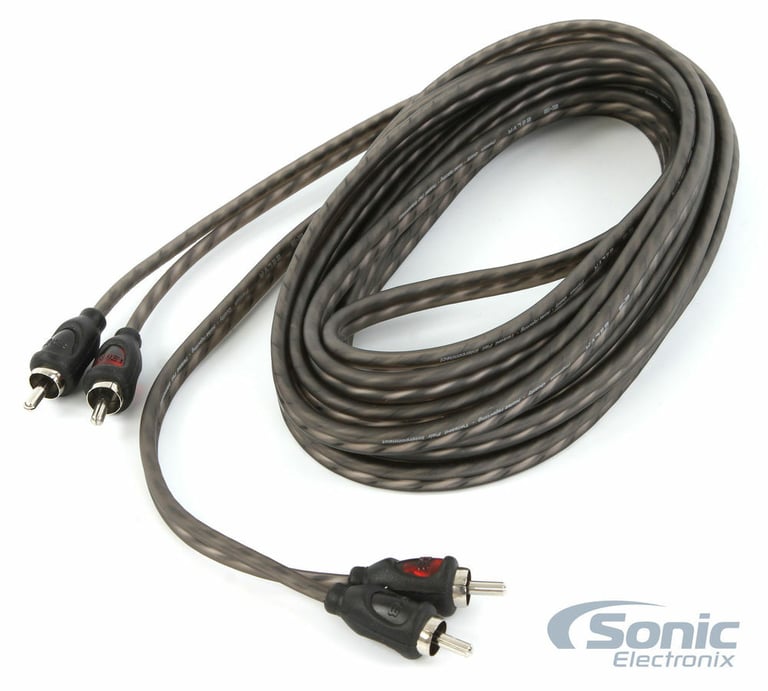

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

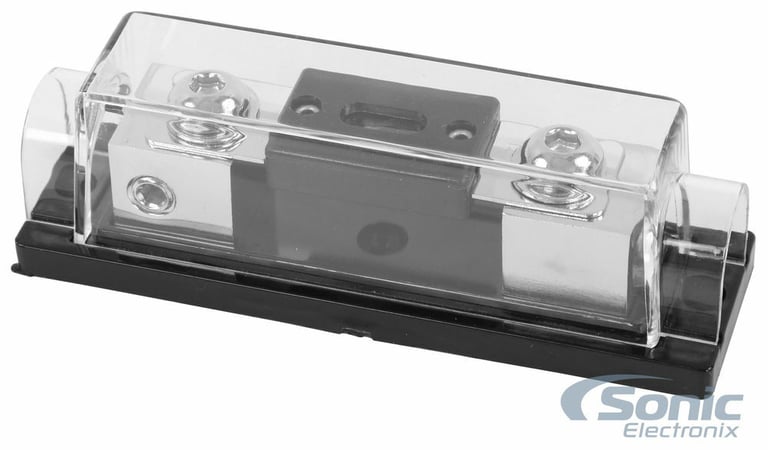

  5. One ANL Fuse Holder with a 150 amp ANL fuse

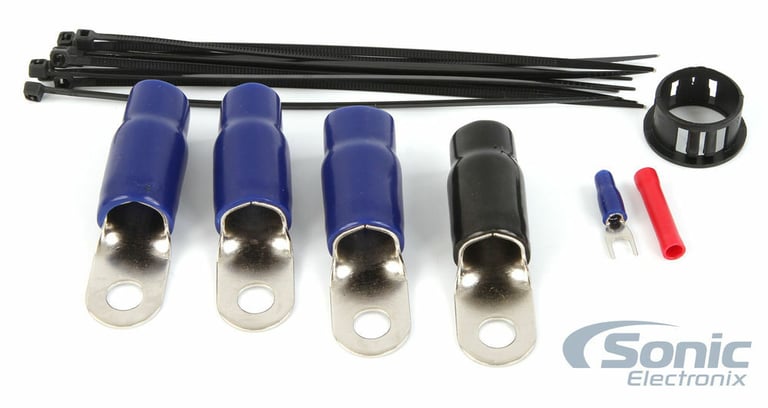

  6. One Black rubber firewall grommet
  7. Three 1/0 Gauge Blue chrome plated ring terminals
  8. One 1/0 Gauge chrome plated ring terminal
  9. One 18 Gauge Blue Spade terminal
  10. One 18 Gauge red butt connector
  11. Eight 6" Black zip ties

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
900 watts x 1 channel
Peak Power Output
1500 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
45 - 90 Hz
Signal-to-Noise Ratio
105 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 2
Total Fuse Rating
50
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EV1500M, BAK02

Weight:

14.10lbs

Internal SKU:

ev1500m_bak02

Internal Product ID:

193405

Customer Ratings & Reviews



5 star
53%
4 star
31%
3 star
6%
2 star
8%
1 star
2%



Durability
4.5
Value
4.6
Features
4.1
Design
4.5
Usability
4.6
Sort by:

Loading...

Nice Amp

The following review is for EV1500M, which is a part of the bundle you are viewing.

I totally recommend this amplifier for its price and for the bass it puts out, I just threw it together for my home system and it hits hard with my Alpine 12" Type R wired @ 2 Ohms in a QLogic 1.27 ported box. It really surprised me because I wasn't expecting it to push it as well as it did. If you're looking to power a single sub in your car around 600w RMS, this will push it hard and put out clean sounding bass and it's a cheap way of throwing together a system. The only thing I didn't like was a few minor aesthetic problems with the amp, though it was brand new there were some scratches in the bottom steel plate that connects to the plastic screw holes. Overall though, extremely happy with this purchase. On another note I knew before buying that it was supposed to come as a 25amp fuse regulated amplifier, although it came with a 30amp fuse, I guess they made some changes.

By Dan on January 28, 2012

35

found this helpful.

NVX MAN IOWA

The following review is for BAK02BL, which is a part of the bundle you are viewing.

I bought this kit for a customer who has 2- Hifonics Amps, a BRX2000.1 & a BRX640.4, the wires were flexible & a ease to run in a 04' Monte Carlo! I was alittle concerned cause of the price but let me tell you, this price is a SUPER STEAL! We are running about 2328watts of actual power & wire is holding up great... Definitely will buy again when I need a big power wire kit! For Sure... I'm a huge NVX fan wires & all, this is great too!! NVX MAN is out!!!

By Nvx 4life on November 28, 2014

41

found this helpful.

ok

The following review is for BAK02BL, which is a part of the bundle you are viewing.

Not as thick as I though but it's good for my 1000 Watt amp. Have bought one for my truck 2 years ago and it seen like that one was big then this one but the same name and guage.

By shawn on March 16, 2015

29

found this helpful.

SSL EV1500M

The following review is for EV1500M, which is a part of the bundle you are viewing.

This was the best amp I have purchased in a long time! And Sonic Electronix has great service! Says delivery in 7 business days, but always comes in 3!

By Joseph hernandez on January 7, 2012

27

found this helpful.

LOVE THIS AMP

The following review is for EV1500M, which is a part of the bundle you are viewing.

I have had it for a while and have hasnt given me any problems. It slams my sub in its ported box!!
Plus the wife likes the bass nob so i dont kill her EARS..

By Matty on January 23, 2013

25

found this helpful.

Amazing what it can do for its price

The following review is for EV1500M, which is a part of the bundle you are viewing.

I currently have 2 10" 4Ohm (sadly, really wanted 2Ohm-er's) Kicker CVR's in an actually under sized sub box and this amp makes them hit hard as hell even when they're in the trunk of my '66 Ford Falcon. it puts out enough power to make those subs hit hard enough to be heard over my enigne with a blown exhust pipe gasket. Only problem i have with it is that it gets hot fast and the pass over adjustment settings.

By Avery on January 9, 2012

23

found this helpful.

Better than expected

The following review is for EV1500M, which is a part of the bundle you are viewing.

This amp is performing quit well. There has been no noise or protection mode for heat. Which after passing 139.6 degree trunk in Texas heat wave says a lot for dependability. I would recommend this amp. Also would recommend a fan or good air movement for amp does run a little warm. This amp is pushin 2 10" JBL 350 watt RMS subs in sealed inclosure. With plenty of power to spare excellent.

By dog24fret on September 22, 2011

21

found this helpful.

Completes the system

The following review is for EV1500M, which is a part of the bundle you are viewing.

Overall the amp is built like a brick house and is a very solid unit has all the variable adjustments that allow you to tweak your sound to perfection. This amp puts out more than enough power to push 3 DVC 4 ohm Polk Audio DXI series to there limits. Some people disagre with the power out put but once you strap this in your hooked. I put ease of use at a 4 just because if you have no idea what these knobs mean or do you will be lost!

By josh on May 4, 2011

20

found this helpful.

Great value!

The following review is for EV1500M, which is a part of the bundle you are viewing.

It is loaded with adjustments to fit your needs and the power to back it up at a great price

By Jr on August 14, 2014

19

found this helpful.

(SSL) EV1500M

The following review is for EV1500M, which is a part of the bundle you are viewing.

Bought this amp due to its power rating and small size. I power a Treo SSI 15" DVC 4ohm wired 2ohm Sub in a slot vented enclosure. This amp makes thunderous, precise bass and pounds my sub! I am more than pleased with this. The price is dirt cheap! I've owned much more expensive amps and this tops them all! My Hummer H3 booms like a high dollar system! Only slight draw back is the power/ground terminals are a little on the cheap side and small for the the proper gauge wire needed to effectively run this amp. But with a little tweaking, worked the connections out. Outstanding value and performance! You won't be disappointed!

By alec on May 17, 2012

19

found this helpful.
