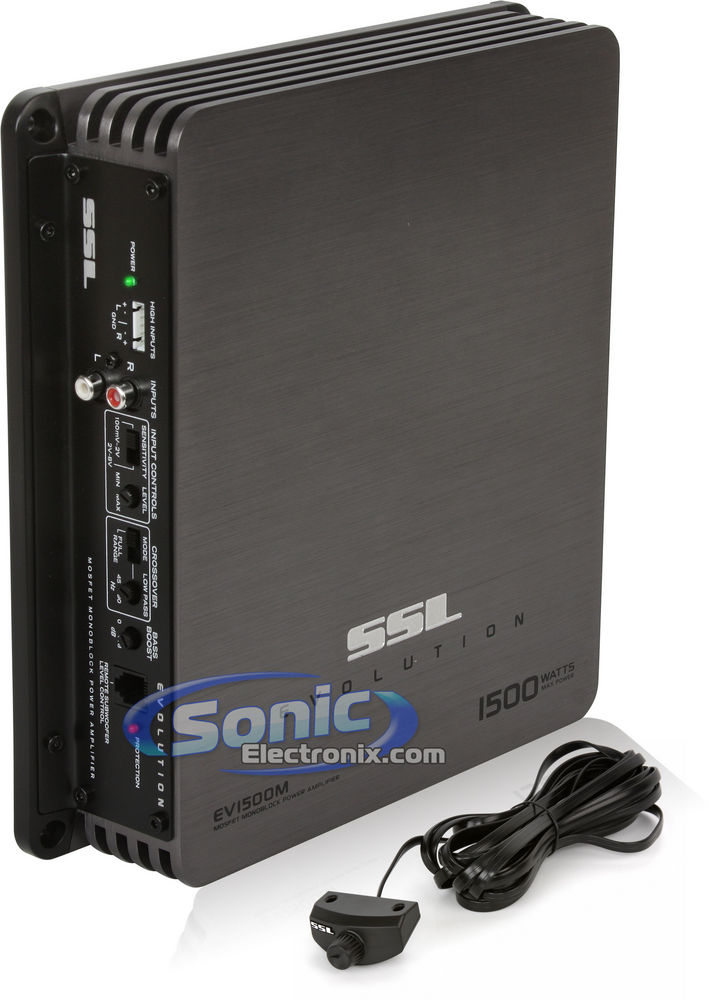

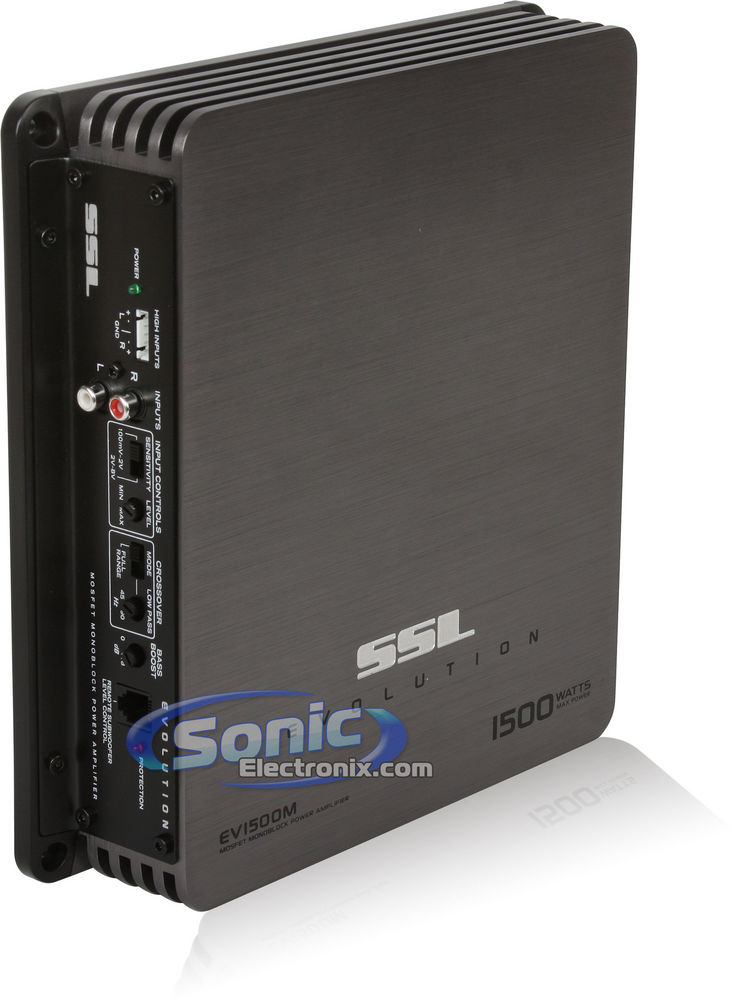

Sound Storm Labs (SSL) EV1500M

1500W Max, Evolution Series Monoblock Class AB Power Car Amplifier

Product videos
highlight-star-icon

• 600W x 1 Chan. @ 4 Ohms
• 1500W x 1 Chan. @ 2 Ohms
• Speaker Short Protection
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Learn more about the ev1500m

We apologize

This item has been discontinued

Product Highlights


• 600W x 1 Chan. @ 4 Ohms
• 1500W x 1 Chan. @ 2 Ohms
• Speaker Short Protection
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Description


Sound Storm Labs (SSL)

Authorized dealer

Amplifier Features:

  • Evolution Series Single-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 600 watts x 1 chan.
    • 2 ohms: 900 watts x 1 chan.
  • Max power output:
    • 2 ohms: 1500 watts x 1 chan.
  • MOSFET PWM (Pulse Width Modulated) power supply)
  • Wired remote bass level control included
  • Power and protection LED indicators
  • Variable tuned bass EQ (0-18 dB bass boost)
  • 2 Ohm stable
  • 1 channel monoblock operation

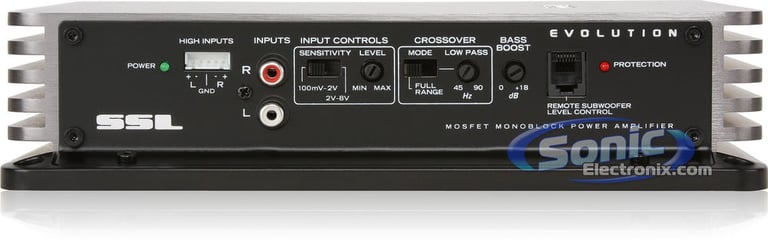

  • Selectable input sensitivity (100mV-2V or 2V-8V)
  • Thermal and speaker short protection
  • Soft turn-on circuit
  • Remote turn-on/turn-off circuit
  • Variable input gain control
  • Dark gray anodized heatsink
  • Large aluminum heatsink for excellent heat dissipation
  • Nickel-plated RCA level inputs

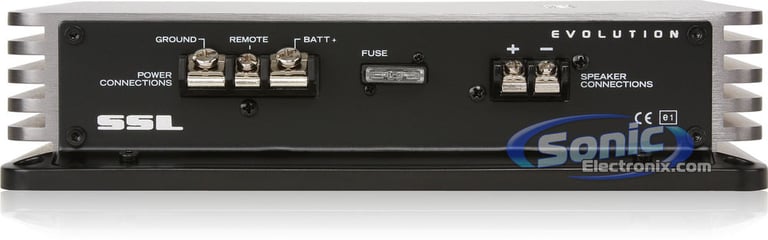

  • Nickel-plated screw terminals
  • Variable low-pass filter (45-90 Hz, 12 dB/octave)
  • Frequency response: 9-90 Hz
  • Dimensions: 10"D x 15-1/2"W x 2-3/8"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Package Includes:
  1. Evolution Series Amplifier
  2. Remote subwoofer level control
  3. High input cable with connector

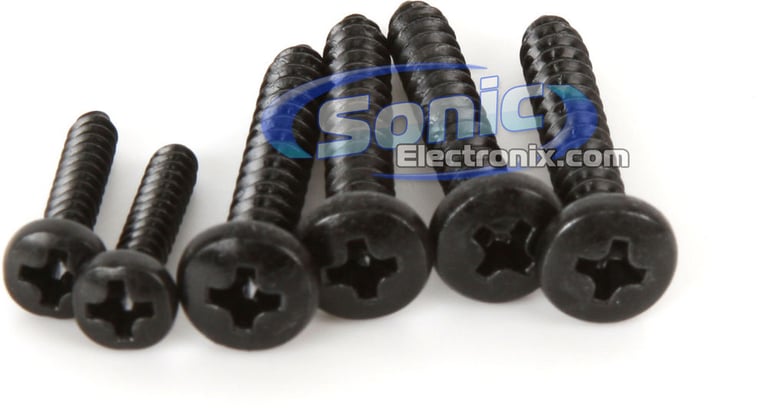

  4. Four mounting screws

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
900 watts x 1 channel
RMS Power @ .5 ohm
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Evolution Series
Marine Certified
No
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
45 - 90 Hz
Signal-to-Noise Ratio
105 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 2
Total Fuse Rating
50
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?

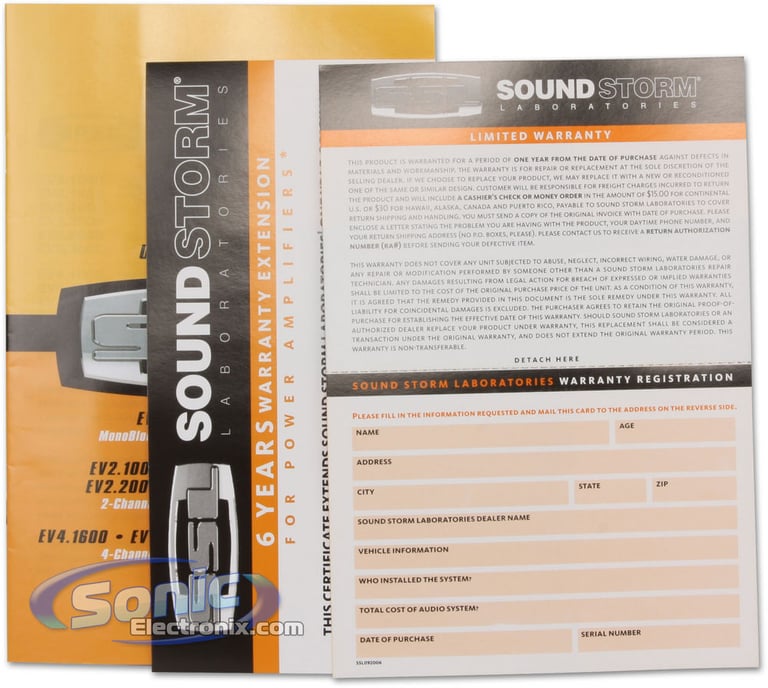

Paperwork
User manual
WITB: Amplifiers
Amplifier

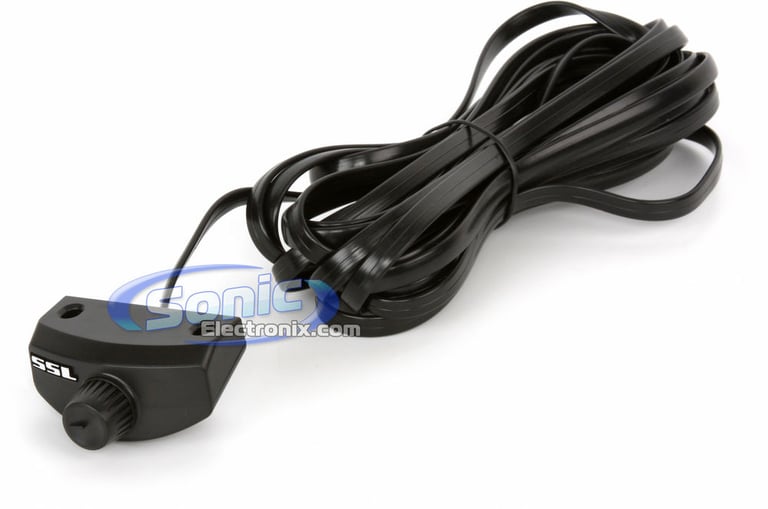

Wired gain knob (wire attached)
Mounting screws (4)

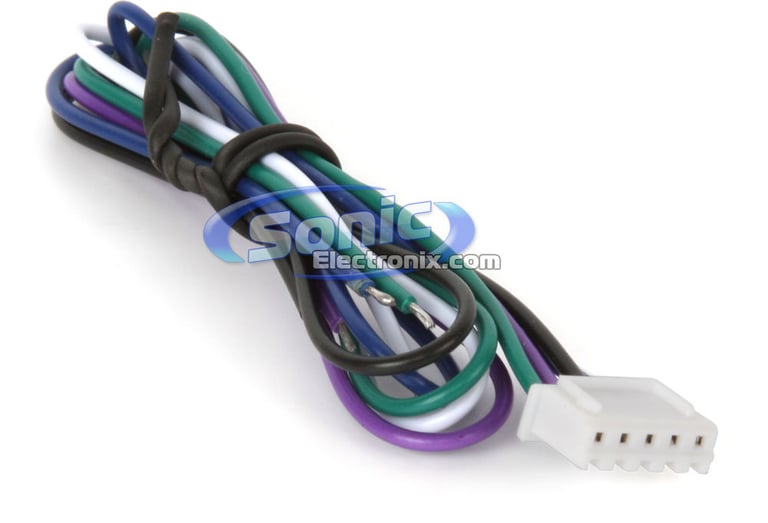

High-level input wiring harness w/ molex connector
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EV1500M

Weight:

10.00lbs

Internal SKU:

ev1500m

Internal Product ID:

23045

Product and How-to Videos


Customer Ratings & Reviews



5 star
53%
4 star
28%
3 star
8%
2 star
10%
1 star
3%



Durability
4.5
Value
4.5
Features
3.9
Design
4.4
Usability
4.6
Sort by:

Loading...

Nice Amp

I totally recommend this amplifier for its price and for the bass it puts out, I just threw it together for my home system and it hits hard with my Alpine 12" Type R wired @ 2 Ohms in a QLogic 1.27 ported box. It really surprised me because I wasn't expecting it to push it as well as it did. If you're looking to power a single sub in your car around 600w RMS, this will push it hard and put out clean sounding bass and it's a cheap way of throwing together a system. The only thing I didn't like was a few minor aesthetic problems with the amp, though it was brand new there were some scratches in the bottom steel plate that connects to the plastic screw holes. Overall though, extremely happy with this purchase. On another note I knew before buying that it was supposed to come as a 25amp fuse regulated amplifier, although it came with a 30amp fuse, I guess they made some changes.

By Dan on January 28, 2012

35

found this helpful.

SSL EV1500M

This was the best amp I have purchased in a long time! And Sonic Electronix has great service! Says delivery in 7 business days, but always comes in 3!

By Joseph hernandez on January 7, 2012

27

found this helpful.

LOVE THIS AMP

I have had it for a while and have hasnt given me any problems. It slams my sub in its ported box!!
Plus the wife likes the bass nob so i dont kill her EARS..

By Matty on January 23, 2013

25

found this helpful.

Amazing what it can do for its price

I currently have 2 10" 4Ohm (sadly, really wanted 2Ohm-er's) Kicker CVR's in an actually under sized sub box and this amp makes them hit hard as hell even when they're in the trunk of my '66 Ford Falcon. it puts out enough power to make those subs hit hard enough to be heard over my enigne with a blown exhust pipe gasket. Only problem i have with it is that it gets hot fast and the pass over adjustment settings.

By Avery on January 9, 2012

23

found this helpful.

Better than expected

This amp is performing quit well. There has been no noise or protection mode for heat. Which after passing 139.6 degree trunk in Texas heat wave says a lot for dependability. I would recommend this amp. Also would recommend a fan or good air movement for amp does run a little warm. This amp is pushin 2 10" JBL 350 watt RMS subs in sealed inclosure. With plenty of power to spare excellent.

By dog24fret on September 22, 2011

21

found this helpful.

Completes the system

Overall the amp is built like a brick house and is a very solid unit has all the variable adjustments that allow you to tweak your sound to perfection. This amp puts out more than enough power to push 3 DVC 4 ohm Polk Audio DXI series to there limits. Some people disagre with the power out put but once you strap this in your hooked. I put ease of use at a 4 just because if you have no idea what these knobs mean or do you will be lost!

By josh on May 4, 2011

20

found this helpful.

Great value!

It is loaded with adjustments to fit your needs and the power to back it up at a great price

By Jr on August 14, 2014

19

found this helpful.

(SSL) EV1500M

Bought this amp due to its power rating and small size. I power a Treo SSI 15" DVC 4ohm wired 2ohm Sub in a slot vented enclosure. This amp makes thunderous, precise bass and pounds my sub! I am more than pleased with this. The price is dirt cheap! I've owned much more expensive amps and this tops them all! My Hummer H3 booms like a high dollar system! Only slight draw back is the power/ground terminals are a little on the cheap side and small for the the proper gauge wire needed to effectively run this amp. But with a little tweaking, worked the connections out. Outstanding value and performance! You won't be disappointed!

By alec on May 17, 2012

19

found this helpful.

QUALITY AMPS

Was looking for budget amps for my ride and thought I would give these SSL EV amps a try, wow!! Great sound and exstream power. Have used Diamond and MA audio and these amps for the price wrip them up!!! Look amazing too! Another home run Sonic!

By MR.HATCHBACK on July 8, 2011

19

found this helpful.

Think Twice Before You Buy!

I bought this amp and I currently have it hooked to 2 dual 2 CVRs wired to 2 ohms. This amp got the subs moving only okay. My car doesn't have any deadening in it and even still there was basically no rattle/flex. So I hooked the amp up to an O-scope to see what the amp was actually doing. And I found that the amp would only push about 130RMS before it would start clipping. I checked to see if my car's electrical was part of the fault but it was running 14 volts solid. It wouldn't dip even when I played tones. So this amp can only do 130RMS at 2 ohms, not the 900RMS that it is "rated" for. Maybe I have a defective unit, but everything else works fine. I mean most smaller companies amps usually don't do their rated power but this is in a different league of BS. Sure its cheap, but for what you get there are way better amps. I would definitely recommend to not get this amp as there are so many better options.

By George on May 27, 2012

18

found this helpful.
