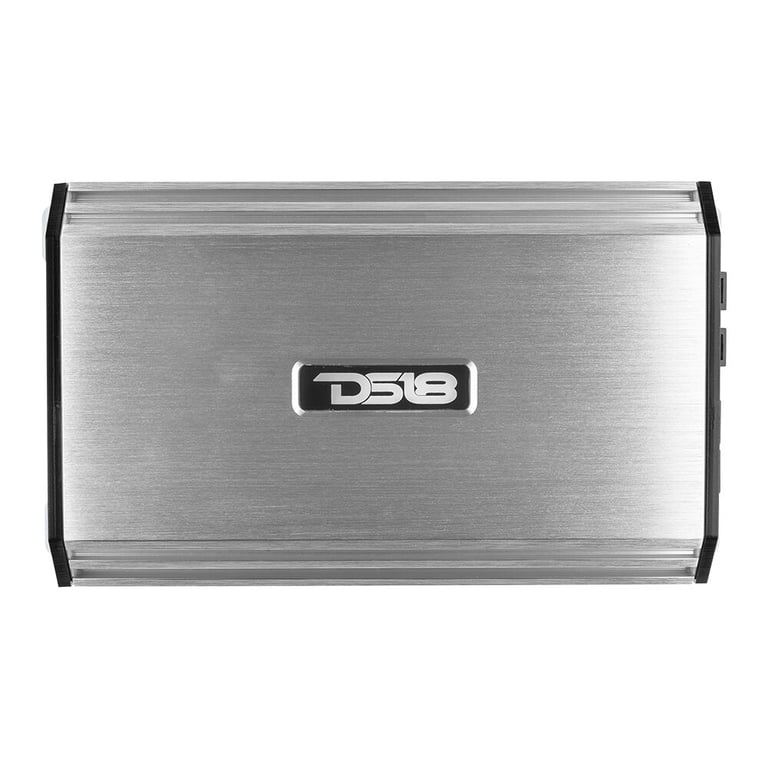

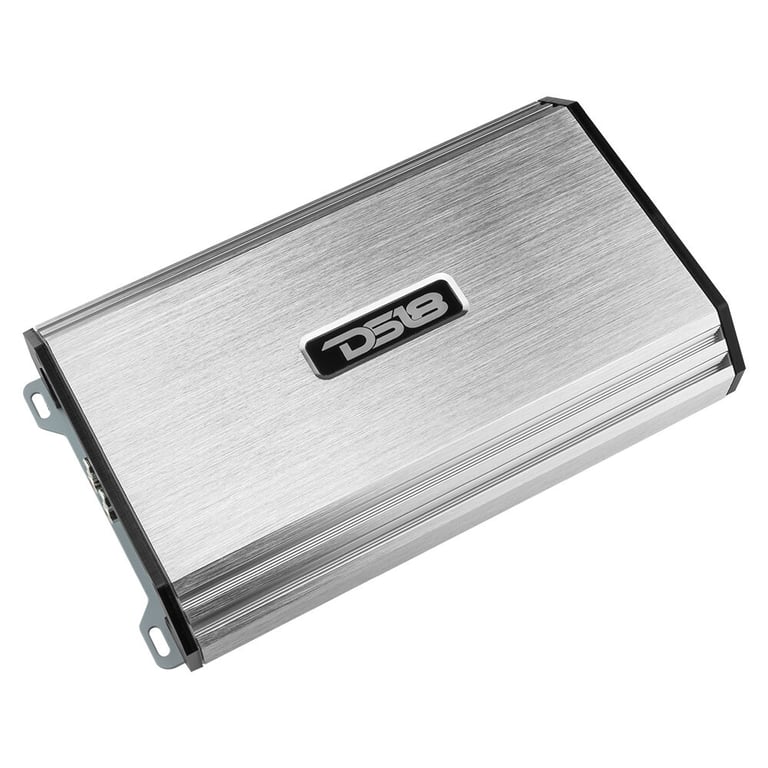

DS18 S-1200.4/SL

1200W R\MS 4-Channel S Series SILVER Full-Range Class A/B Amplifier

DS18
Shop all DS18
highlight-star-icon

• 50 watts x 4 channel @ 4 ohm
• 800 watts x 4 channel @ 2 ohm
• Bridged: 160 watts x 2 channel @ 4 ohm
• Total RMS Power: 1200 watts
• Class A/B 2 ohm Stable 4-Channel-Channel Amplifier

Learn more about the s12004sl

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
99-7006 main

Metra 99-7006 Dash Kit

Install a new Single-DIN car stereo in select 1995-1999 Eclipse and Talon

-10.00%

$35.99

List price $39.99

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

Limited time!
XR-1701 main

Kenwood eXcelon XR-1701

600W Peak (200W RMS) 6.5" eXcelon Reference Series 2-Way Coaxial 3-ohm Car Speakers (Hi-Res Audio Certified)

3
-38.28%

$179.00

List price $290.00

Limited time!
KFC-1066S main

Kenwood KFC-1066S

440W Peak (42W RMS) 4" Sport Series 2-Way Coaxial 4-ohm Car Speakers

4
-38.75%

$49.00

List price $80.00

Description


DS18 brand icon

Authorized dealer

Product Details:

  • Class A/B 2 ohm Stable 4-Channel-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 channel
    • 2 ohm: 800 watts x 4 channel
    • Bridged, 4 ohm: 160 watts x 2 channel
  • Total power output: 1200 watts
  • Surface mount component Technology
  • Audio Precision Quality Control Verification
  • Multilayer PCB Trace Layout
  • Clipping, Power and Protection LED Indicator
  • 3-way protection circuitry (thermal, short circuit, and voltage protection)
  • Input sensitivity:
    • Low level: .2 - 6 volts
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): <0.3%
  • Signal to Noise Ratio: >90 dB
  • Variable high-pass filter: 40 - 400 Hz
  • Variable low-pass filter: 40 - 400 Hz
  • Dimensions: 5.82" W x 10.15" L x 1.87" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • DS18 S-1200.4/SL Manual

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
800 watts x 4 channel
Bridged RMS Power
160 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 20,000 Hz
THD at Rated RMS Power
<0.3%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
>90 dB
Remote bass/level controller
No
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
.2 - 6 volts
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S-1200.4/SL

Weight:

4.00lbs

Internal SKU:

s12004sl

Internal Product ID:

195059
