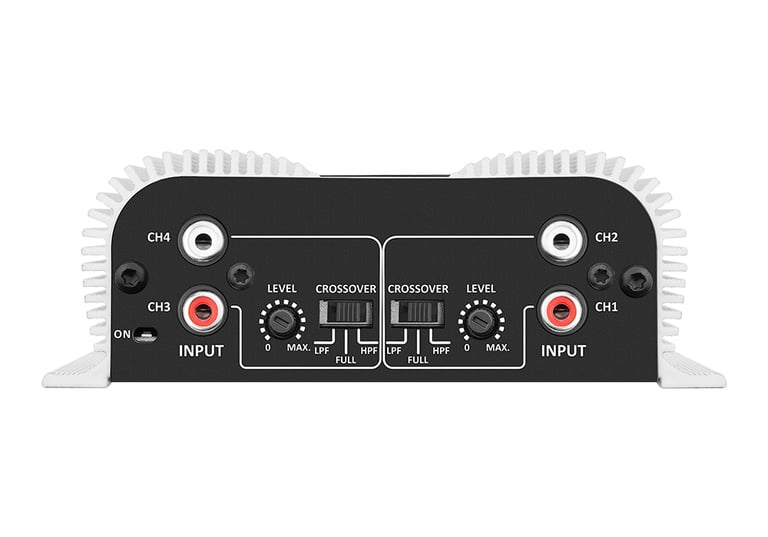

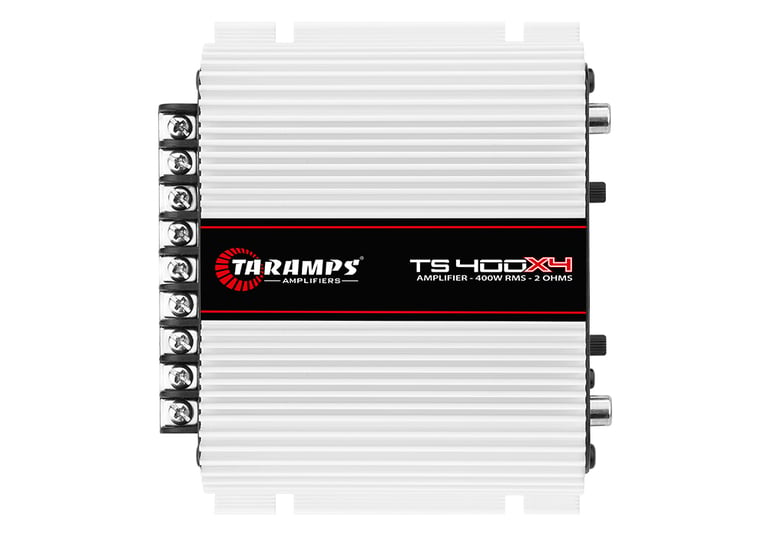

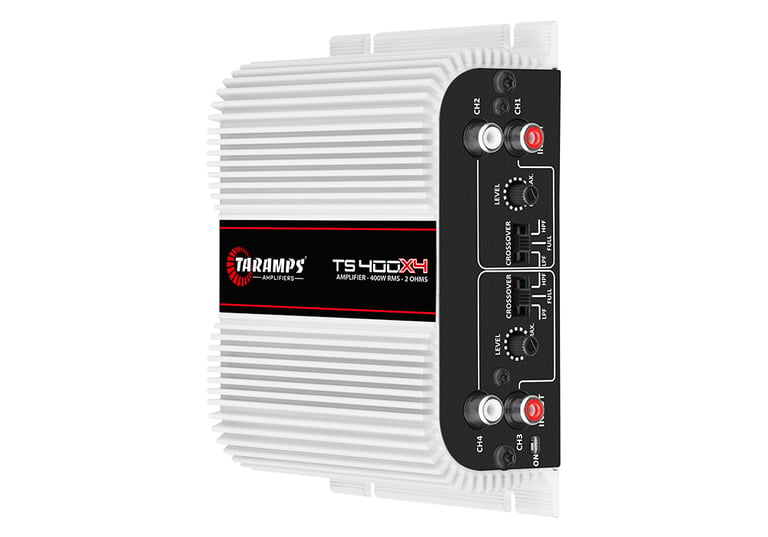

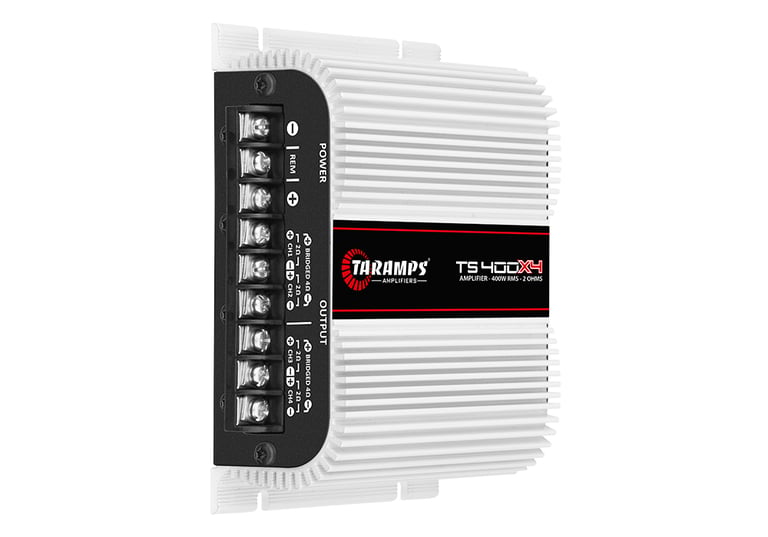

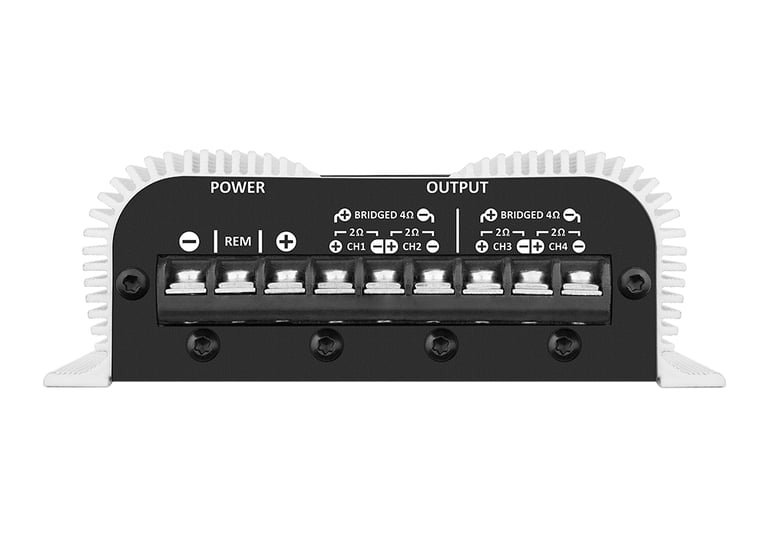

Taramps TS 400X4

400W RMS TS Series Full Range Class D 4-Channel Amplifier

Taramps
Shop all Taramps
highlight-star-icon

• 63 watts x 4 channel @ 4 ohms
• 100 watts x 4 channel @ 2 ohms
• Bridged: 200 watts x 2 channel @ 4 ohms
• Total RMS Power: 400 watts
• Class D 2 ohms Stable 4-Channel Amplifier

Learn more about the ts400x4

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Expert built bundles that save you more (1)

Choose from any of our many bundles that include this product for even more savings!

TS 400X4, BAK84 small

Taramps TS 400X4 + Belva BAK84

400W RMS TS Series Full Range Class D 4-Channel Amplifier + Belva 8 Gauge Amp Wiring Kit

(16)

$123.99

Description

Taramps

Authorized dealer

Product Details:

  • TS Series Class D 2 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 63 watts x 4 channel
    • 2 ohms: 100 watts x 4 channel
    • Bridged, 4 ohms: 200 watts x 2 channel
  • Total power output: 400 watts
  • MOSFET power supply
  • LED Power/Protect Light
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 200mV
  • Frequency Response: 18 - 30,000 Hz
  • Total Harmonic Distortion (THD): .10%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 90 Hz
  • Variable low-pass filter: 90 Hz
  • Fuse Rating: 20A
  • Any Gauge with use of Spade Terminal AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 1.93" W x 4.76" L x 5.43" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
63 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Series
TS Series
Marine Certified
No
Amplifier Class
D
Number of Channels
4
Total RMS Power Output
400 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
18 - 30,000 Hz
THD at Rated RMS Power
.10%
Speaker Level Inputs
No
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
90 Hz
Low-Pass Crossover Frequency
90 Hz
Signal-to-Noise Ratio
90 dB
Remote bass/level controller
No
Fan Cooled
No
Total Fuse Rating
20A
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Mounting screws (6)
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Taramps

Model Number:

TS 400X4

Weight:

1.32lbs

Internal SKU:

ts400x4

Internal Product ID:

196835
