See all parts that fit your 2014 Flex

Taramps DS 800x4 (DS 800x4 - 2 OHM)

800W RMS Class D DS Series 2-ohm 4 Channel Car Amplifier

Taramps
Shop all Taramps
highlight-star-icon

• 136 watts x 4 channel @ 4 ohm
• 200 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 4-Channel Amplifier

Learn more about the ds800x4-2ohm

We apologize

This item has been discontinued


Loading...
KIT-FLX1 main

iDataLink Maestro KIT-FLX1 Dash and Wiring Kit

Double DIN Dash and Wiring Kit for iDataLink-Compatible Car Stereo in select 2013-2019 Flex (Requires Maestro RR)

-17.31%

$429.99

List price $519.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

XBAF68 main

NVX XBAF68

Universal 6x8" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

12
-26.68%

$21.99

List price $29.99

51KSS6804 main

Kicker KSS68 (51KSS6804)

500W Peak (250 RMS) 6x8" KS-Series 2-way 4-ohm Component Speaker System (KSS6804)

-10.71%

$249.99

List price $279.99

NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

ADS-MRR2 main

iDataLink Maestro RR2 Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

5
-18.75%

$259.99

List price $319.99

Description


Taramps brand icon

Authorized dealer

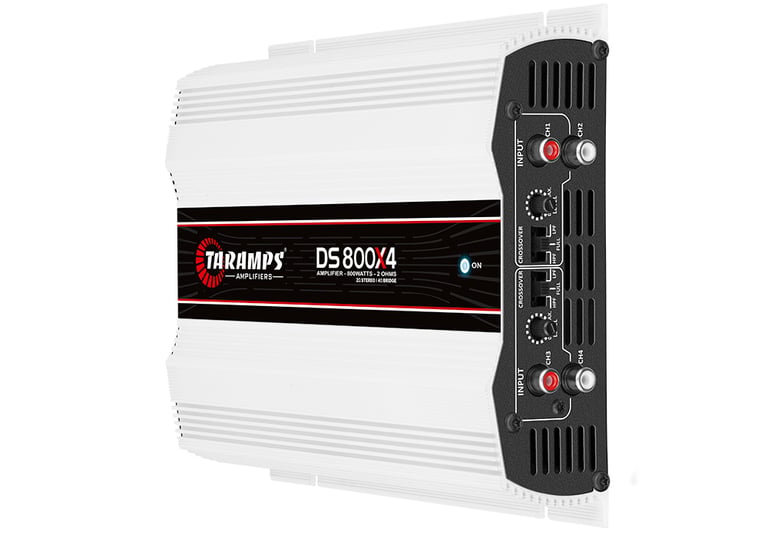

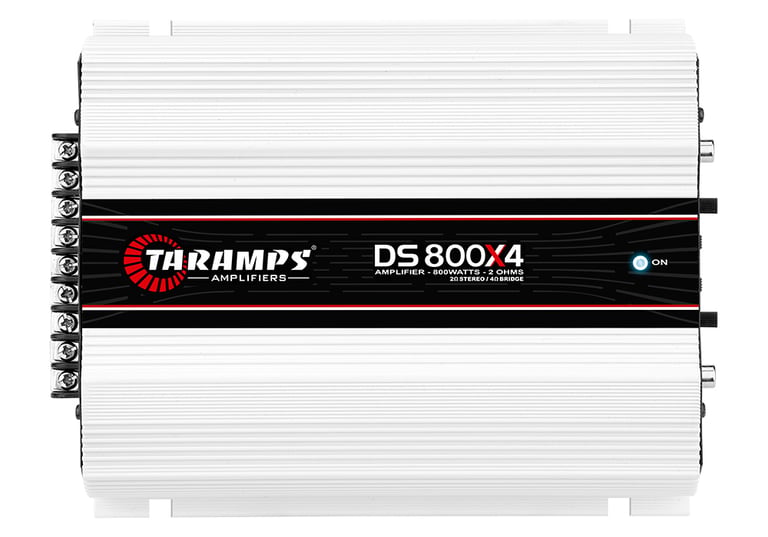

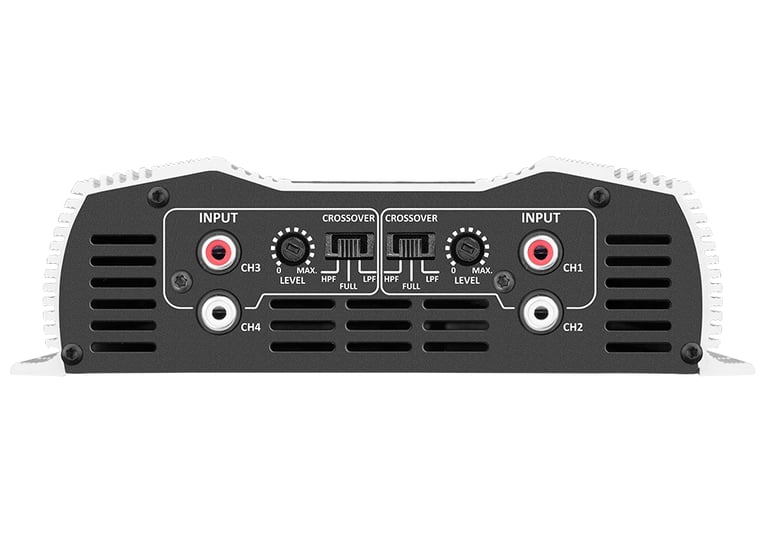

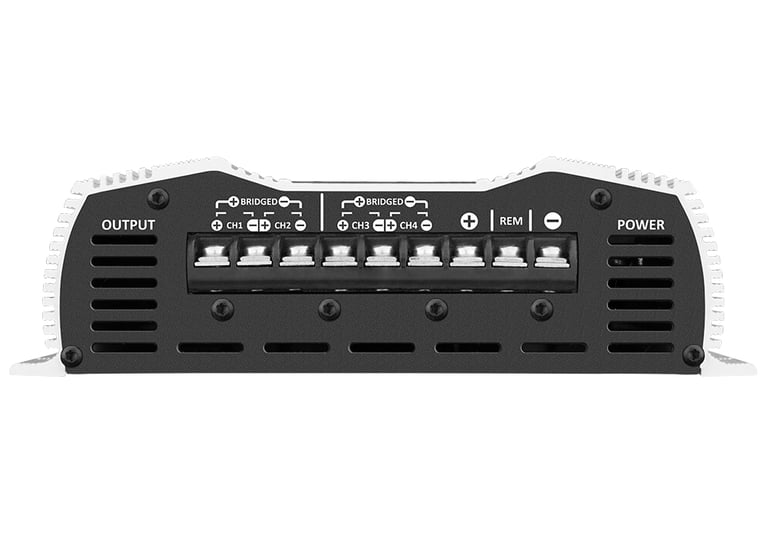

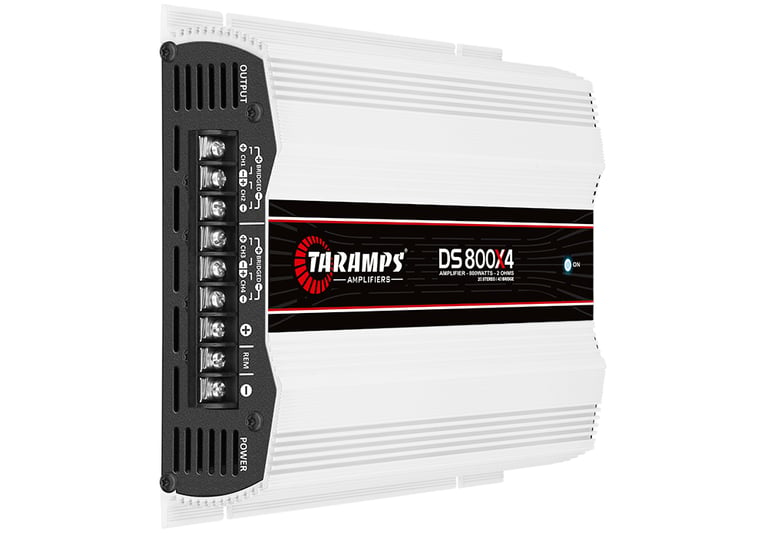

Taramps DS 800x4

The DS 800×4 is a multi-channel amplifier manufactured by Taramps. Full Range, it is suitable for various types of speakers. This means that it can be used to amplify sub-bass, bass, mid-bass, mid-range, high-mid and treble. There are 200W RMS 4 channels, with a maximum power of 800 Watts RMS, with the possibility of bridge connections. Extremely versatile, it features audio inputs via RCA (traditional system) and also high-level audio inputs with automatic audio turn on, ideal for factory and multimedia centers. Versatility, efficiency and quality in a single product.


Product Details:

  • DS Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 136 watts x 4 channel
    • 2 ohm: 200 watts x 4 channel
    • Bridged, 4 ohm: 400 watts x 2 channel
  • Total power output: 800 watts
  • LED indicator power light
  • Output overload protection system
  • Speaker (high-level) input (Requires adapter like Kicker KISL)
  • Automatic audio turn-on
  • Input sensitivity: 0.25 - 6 volts
  • Frequency Response: 10 - 36000 Hz
  • Total Harmonic Distortion (THD): 0.1%
  • Signal to Noise Ratio: >88 dB
  • Variable high-pass filter: 90Hz (-12dB/8a) Fixed
  • Variable low-pass filter: 90Hz (-12dB/8a) Fixed
  • Fuse Rating: 60A
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.24" W x 7.48" L x 2.13" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

DS 1200X4 small

Taramps DS 1200X4

• 192 watts x 4 channel @ 4 ohm
• 300 watts x 4 channel @ 2 ohm
• Bridged: 600 watts x 2 channel @ 4 ohm
• Total RMS Power: 1200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(5)

$219.99

List price $258.00

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

Specifications & Details


Key Features
Amplifier Key Features
Speaker Level Inputs
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
136 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Series
DS Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 36000 Hz
THD at Rated RMS Power
0.1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
0 - 90 Hz
Low-Pass Crossover Frequency
0 - 90 Hz
Signal-to-Noise Ratio
>88 dB
Remote bass/level controller
No
Total Fuse Rating
60
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
0.25 - 6 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Mounting screws (6)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DS 800x4

Weight:

3.52lbs

Internal SKU:

ds800x4-2ohm

Internal Product ID:

196891
