Name: Planet Audio ZR900.1 R/B
Brand: Planet Audio
SKU: LS-zr9001-RB
Price: 109.99 USD
Availability: Discontinued

by Planet Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

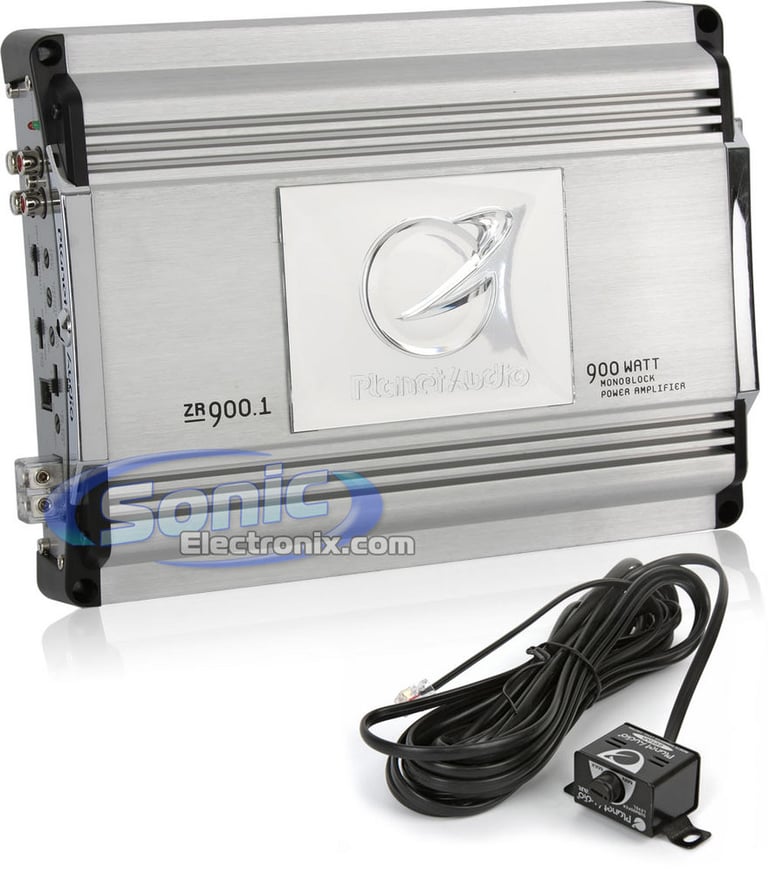

Planet Audio ZR900.1 R/B Image 1 — Planet Audio ZR900.1 R/B

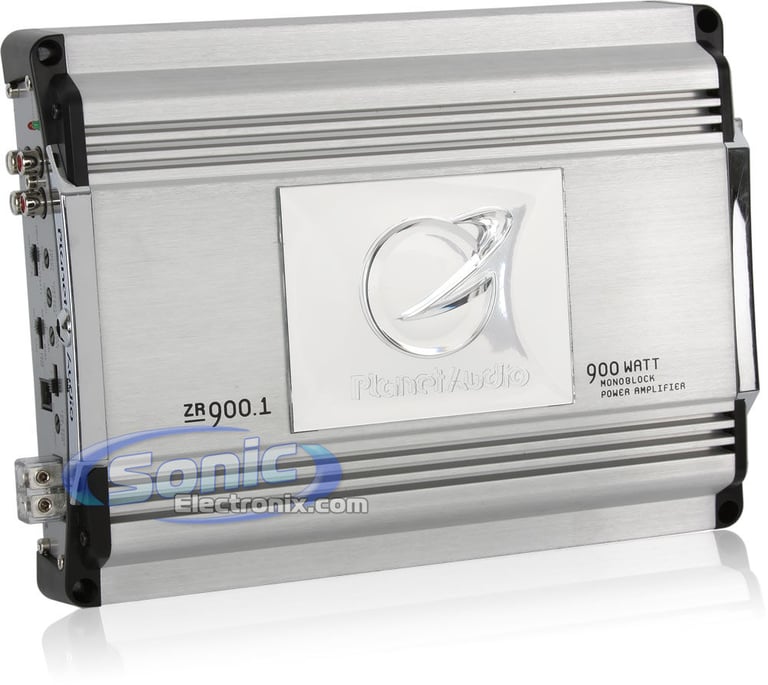

Planet Audio ZR900.1 R/B Image 2 — Planet Audio ZR900.1 R/B

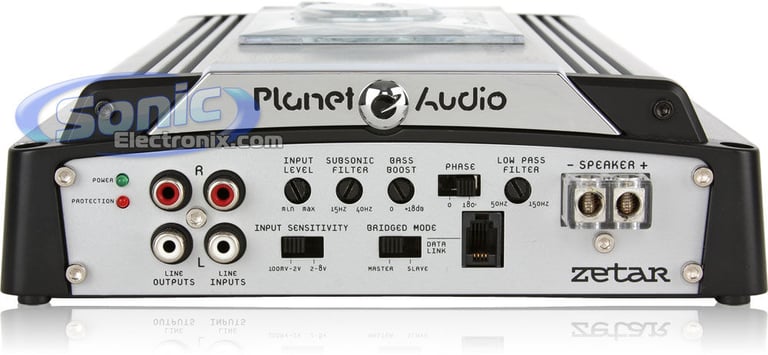

Planet Audio ZR900.1 R/B Image 3 — Planet Audio ZR900.1 R/B

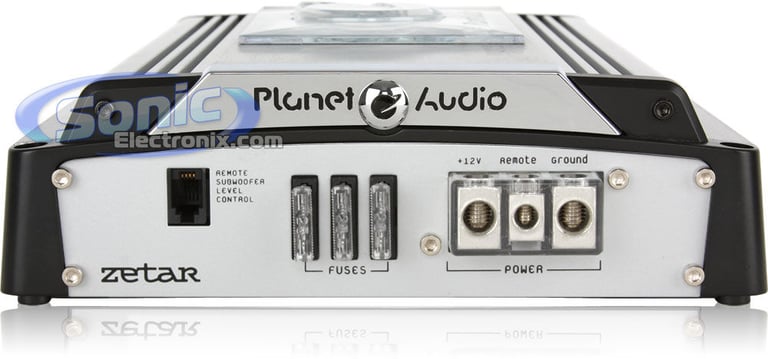

Planet Audio ZR900.1 R/B Image 4 — Planet Audio ZR900.1 R/B

Planet Audio ZR900.1 R/B Image 5 — Planet Audio ZR900.1 R/B

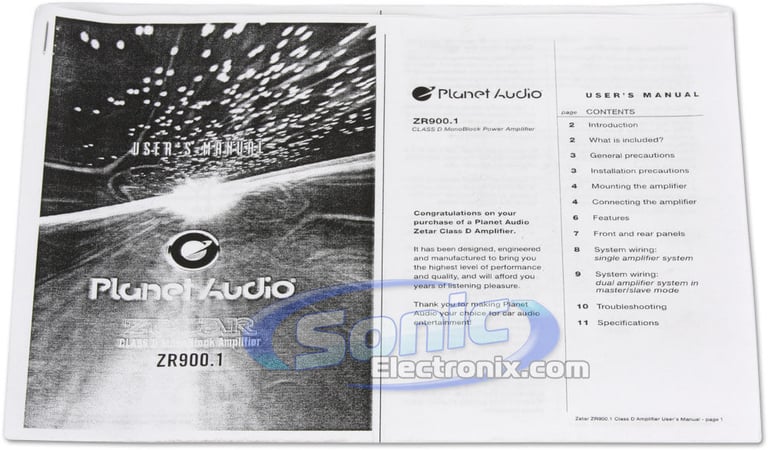

Planet Audio ZR900.1 R/B Image 6 — Planet Audio ZR900.1 R/B

Product videos

Product highlights

Class D Monoblock Subwoofer Amplifier • 900W Max • 525 Watts x 1 Chan. @ 2 Ohm • 300 Watts x 1 Chan. @ 4 Ohm • 35 Nanosecond Rectifiers • Preamp RCA Outputs • Master/Slave Modes • 3-Way System Protection Circuitry

Learn more about the LS-zr9001-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Class D Monoblock Subwoofer Amplifier
RMS Power Rating:

4 ohm: 300 watts x 1 chan.
2 ohm: 525 watts x 1 chan.

Max power output: 900 watts x 1 chan.
Fully-regulated, Pulse Width Modulated (PWM) MOSFET power supply
Custom-designed, multi-polar power transformers

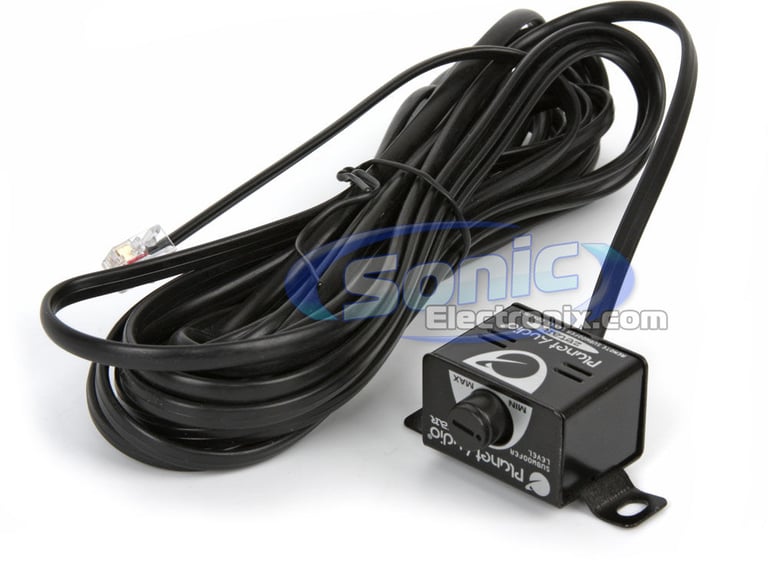

Bass Remote Details (Wired remote bass level control included)
Multiple bypass capacitors on incoming 12V supply, located on the printed circuit board to reduce inductance on ground planes and switching losses
35 nanosecond rectifiers to reduce loss in secondary circuits
Multiple time-delay circuits and optically isolated drive circuits ensure an absolutely quiet turn-on and turn-off cycle
LED power and protect indicators
Bass Boost/EQ details (0-18 dB bass boost)
Phase Selector Switch: 0 - 180º
Mono channel operation
Master/slave mode
Preamp RCA outputs for system building
3-Way System Protection circuitry (thermal, polarity, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Damping factor: 400 at 20Hz, 4 Ohm
Variable low-pass filter (50-150 Hz, 24 dB/octave)
Variable Subsonic Filter (15-60 Hz, 24 dB/octave)
Frequency response: 50-300 Hz
Dimensions: 11-1/8"L x 8"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

300 watts x 1 channel

RMS Power @ 2 ohms

525 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

900 watts

Total RMS Power Output

525 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.3%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 150 Hz

Subsonic Filter

15 - 60 Hz

Signal-to-Noise Ratio

105 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

25A x 3

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
