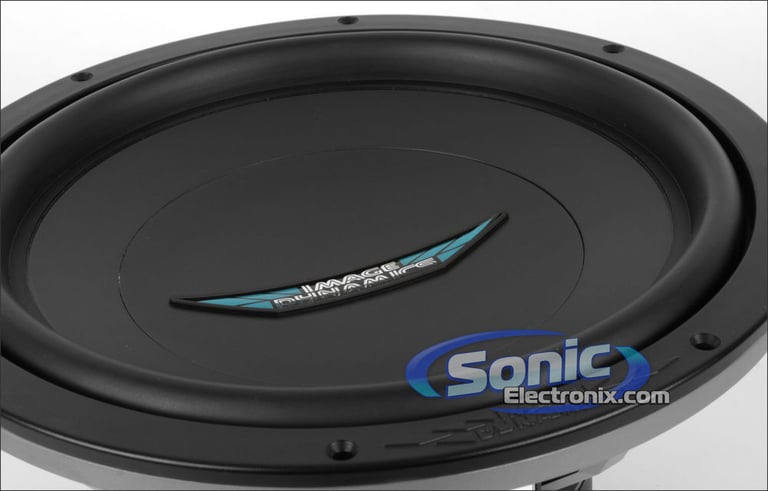

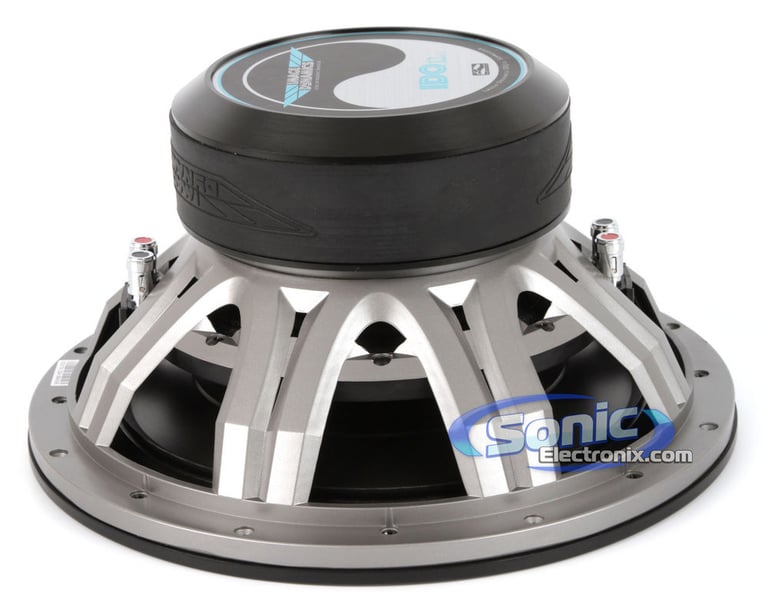

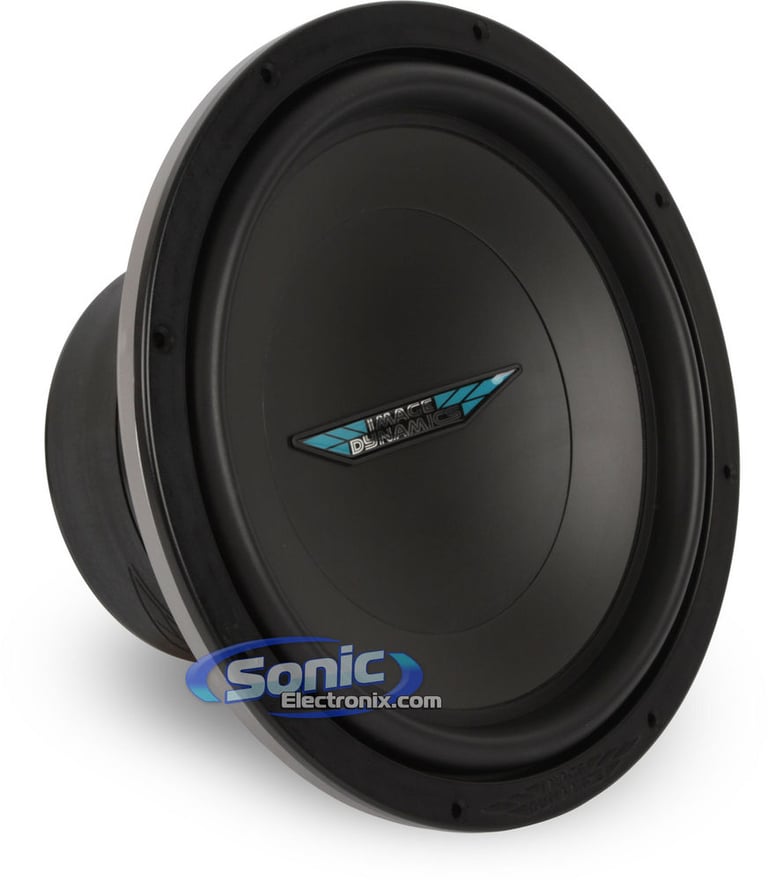

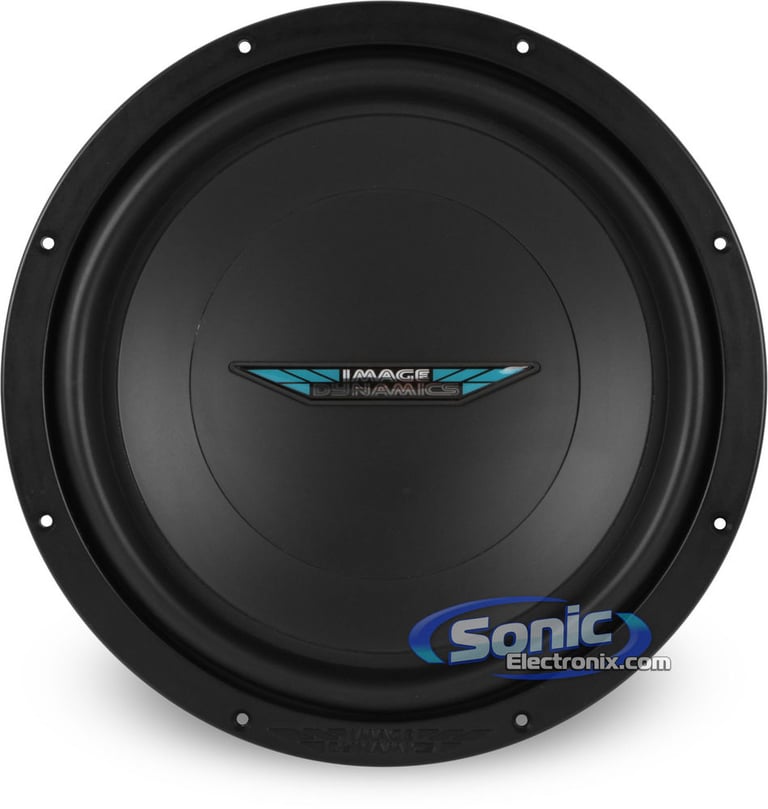

Image Dynamics IDQ10 V.3 D2

10" Dual 2 ohm IDQ V.3 Series Car Subwoofer

Product videos
highlight-star-icon

10" Dual 2 ohm IDQ V.3 Series Subwoofer • 1000W Max • 500W RMS • Mica-Reinforced Cone Woofer • Parabolic Surround • Conex Spider with Integrated Tinsel Leads • Fiberglass Composite Basket • Removable Core Assembly

Learn more about the idq10v3d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

idq10d2v4 thumbnail

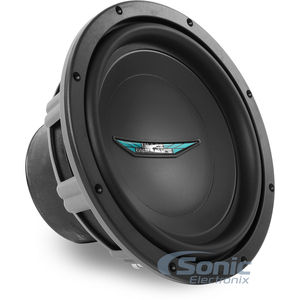

Image Dynamics IDQ10 V.4 D2

OUR PRICE: $198.99

View item

Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

SWR-A main

Crux SWR-A

Steering Wheel Control Retention Interface for Analog SWC

1
-35.71%

$58.05

List price $90.30

70-7552 main

Metra 70-7552 Wiring Harness

Install a new car stereo in select 2007-2024 vehicles from Nissan, Subaru, Suzuki

34
-15.40%

$10.99

List price $12.99

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
82-8901 main

Metra 82-8901

6.5" to 6.75" Speaker Adapter for select 1998-2021 vehicles from Subaru, Audi

3
-55.90%

$14.99

List price $33.99

82-8900 main

Metra 82-8900

6.5" Multi Speaker Adapter for select 2005-2021 vehicles from Subaru

1
-55.90%

$14.99

List price $33.99

72-8105 main

Metra 72-8105

Install New Speakers in select 1993-2018 vehicles from Toyota, Kia, Subaru

2
-13.34%

$12.99

List price $14.99

95-8905B main

Metra 95-8905B Dash Kit

Install a new Double-DIN car stereo in select 2012-2015 Impreza and XV Crosstrek and WRX (Matte Black)

8
-12.50%

$27.99

List price $31.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Product Highlights


10" Dual 2 ohm IDQ V.3 Series Subwoofer • 1000W Max • 500W RMS • Mica-Reinforced Cone Woofer • Parabolic Surround • Conex Spider with Integrated Tinsel Leads • Fiberglass Composite Basket • Removable Core Assembly

Description


Image Dynamics brand icon

Authorized dealer

Dynamic Impact with the IDQ

The IDQ subwoofer series from Image Dynamics offers detailed and articulate accuracy at extreme volume levels. The ability to offer a dynamic impact without increasing the frequency extension makes them perfect for smaller enclosure sizes. IDQ series subwoofers are available in a 10" and 12" size and in a Dual 2 ohm or Dual 4 ohm version. With the ability to handle from 500 watts RMS to 750 watts RMS, makes these subwoofers perfect for the serious car audio enthusiast. Equipped with a mica-reinforced polypropylene wooofer cone and parabolic roll surround for durability and performance. The removable cone assembly allows for quick and easy servicing of the subwoofer whenever needed. The ability to custom match the basket color to your personal preference sets these woofers apart from any other, while adding a sense of self expression. So if you are looking for some bass that will really bump then the IDQ seirs by Image Dynamics is the way to go.

  • 10" Dual 2 ohm IDQ V.3 Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
    • Recommended Power Range: 50-500 watts
  • Mica-reinforced polypropylene cone woofer
  • Parabolic roll surround
  • Removable core assembly for easy and quick replacement
  • Ability to custom match the basket color to your personal installation
  • Conex spider with integrated tinsel leads
  • Fiberglass composite basket
  • High-temperature aluminum voice coil
  • Proprietary voice coil attachment design
  • Also found as: IDQ10D2 V.3, IDQ10 D2 V.3, IDQ10 D2, IDQ10D2, IDQ10V.3 D2, IDQv3
  • Sensitivity: 85dB
  • Mounting depth: 5-3/4"
  • Cutout dimensions: 9-5/8"
  • 1-year Manufacturer's Warranty

Product history:

Image Dynamics IDQ10 D2 V.4 thumbnail
(newest, current model)
Image Dynamics IDQ10 V.3 D2 thumbnail
(previous model, replaced by Image Dynamics IDQ10 V.4 D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics IDQ10 V.3 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics IDQ10 V.3 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics IDQ10 V.3 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics IDQ10 V.3 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
IDQ V.3 Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
85 dB
Xmax (millimeters)
17 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Parabolic Roll
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.55 cubic feet
Maximum Sealed Box Volume
1.10 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/4"
Cutout Diameter
9-5/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

IDQ10 V.3 D2

Weight:

14.00lbs

Internal SKU:

idq10v3d2

Internal Product ID:

19849

Product and How-to Videos


Customer Ratings & Reviews


Image Dynamics IDQ10 V.3 D2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great sub

Great product and sound. Beware cut out hole is greater than 9".

By NCAA on March 4, 2012

17 found this helpful


Amazing Sub

I would recommend this sub for anyone looking for Great Sound quality and lots of bass. This sub in the right enclosure will pound while providing Great SQ.

By natex on August 11, 2011

17 found this helpful


Great Product from an awesome distributor

Bought the IDQ10 v3 knowing it was a great woofer, ID is known for a great product and buying from Sonic was another great choice. Fast, free shipping and knowing its from a reputable dealer made it all the more sweet. This sub is way under rated and I know it will take all the power I give it. Thanks.

By Quacktoduck on February 21, 2012

15 found this helpful


Great Value

I really like these subs. Replaced a sloppy pair of Memphis' with these IDQ10 and am very happy. They are so much tighter and accurate. You won't be disappointed.

By Ardent1 on November 1, 2012

15 found this helpful


Perfect Dynamics IDQ10 V.3 D2

Good product and fast shipping. Easy to contact and always prompt response.

By Boonlue R. on October 24, 2012

15 found this helpful


Awesome Sub

This is the cleanest sounding sub I've ever owned. In the past I've had RF, Polk, Adire/Exodus Audio, and RD Audio which were all great subs. But this IDQ truly is a great SQ sub. Is crystal clear and rediculously accurate.

By James on February 21, 2012

14 found this helpful




No picture

Harman Kardon DP2us -- Drive + Play 2 Open Box

Easy-to-Use Interface for In-Car Portable Devices

$270.00

List price $399.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Subaru WRX

2018 Ram 2500

2003 Dodge Ram 3500 Van

2009 Volvo S60

2016 Cadillac Escalade ESV

2012 Audi Q7

2019 Ford Flex

1982 Ford Bronco

2020 Buick Encore

2004 Lamborghini Gallardo

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
