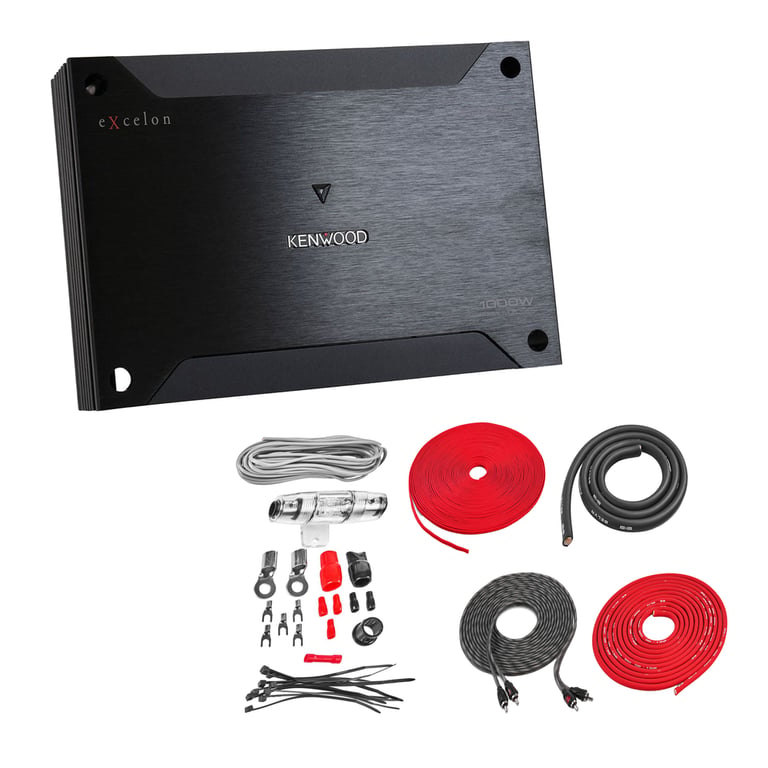

Kenwood Excelon X502-1 with Amplifier Wiring Kit

1000W Max X-Series 2-Ohm Stable "X series" Monoblock Amplifier

Kenwood
Shop all Kenwood
highlight-star-icon

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 1000 Watts
• CTA-2006 Compliant
• Variable low-pass filter: 50 - 200Hz, 24 dB/octave
• Variable Bass Boost: 0 to +18 dB bass boost at 40Hz
• Includes Amplifier Wiring Kit

Learn more about the x5021_bak42

We apologize

This item has been discontinued


Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

72-8104 main

Metra 72-8104 Speaker Harness for 1990-2024 Toyota, Subaru, Mitsubishi

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

95-8202 main

Metra 95-8202 Dash Kit

Install a new Double-DIN car stereo in select 2000-2020 vehicles from Toyota, Subaru, Scion

35
-43.50%

$12.99

List price $22.99

82-8152 main

Metra 82-8152

6×9 Inch Multi-App Speaker Adapter for select 2002-2013 vehicles from Toyota

4
-12.00%

$21.99

List price $24.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

49
-42.51%

$22.99

List price $39.99

Description


Kenwood brand icon

Authorized dealer

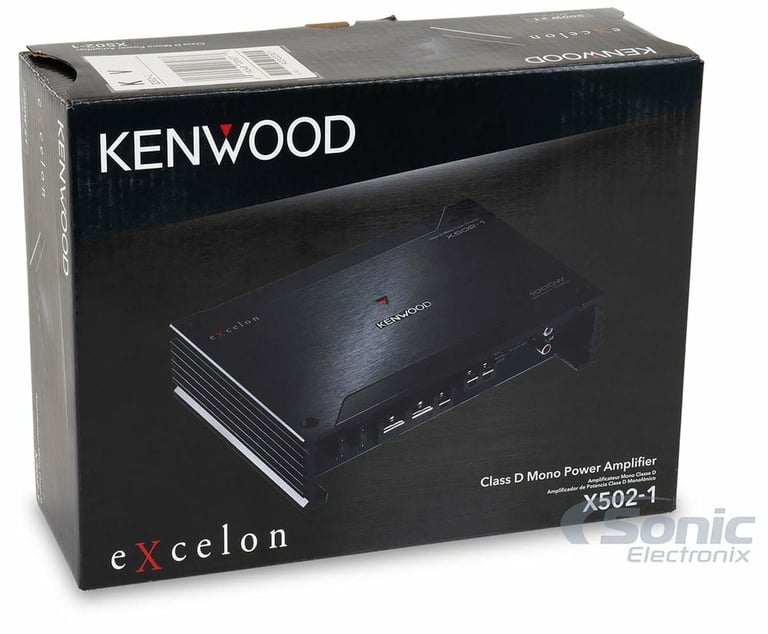

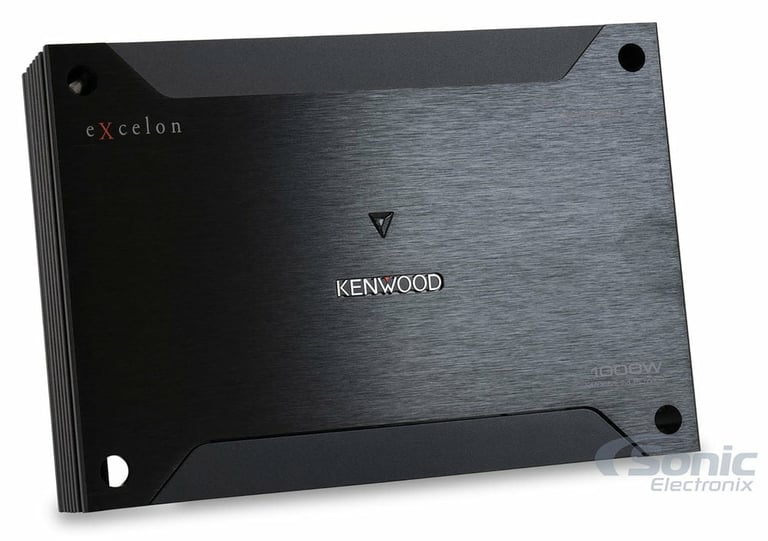

Kenwood Excelon X502-1

1000W Peak (500W RMS) Class D eXcelon Series Monoblock Car Amplifier
Quantity: 1

Product Details:

  • eXcelon Series Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 channel
    • 2 ohm: 500 watts x 1 channel
  • Total RMS power output: 500 watts
  • Wired bass level remote control with optional Kenwood KCA-RC01A

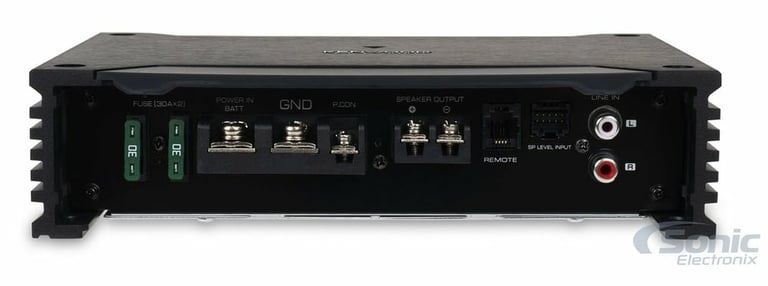

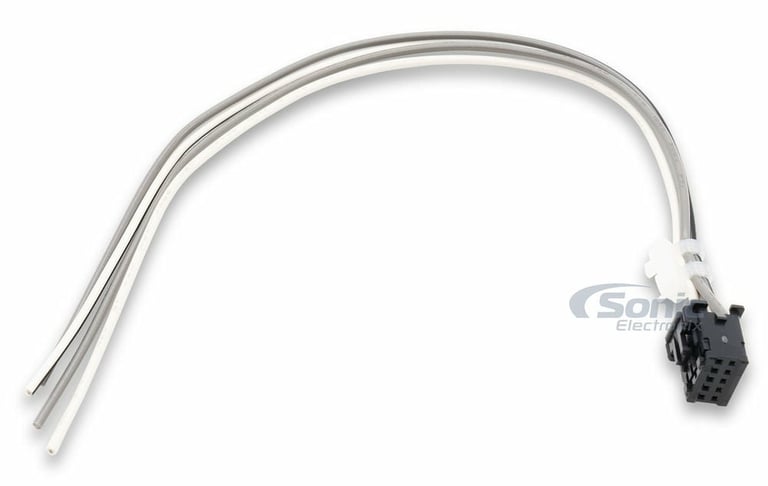

  • Speaker-level (high-level) inputs
  • Sliding terminal
  • Mono output of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Output coil with magnetic shield
  • High quality Polymer multi-layer capacitors

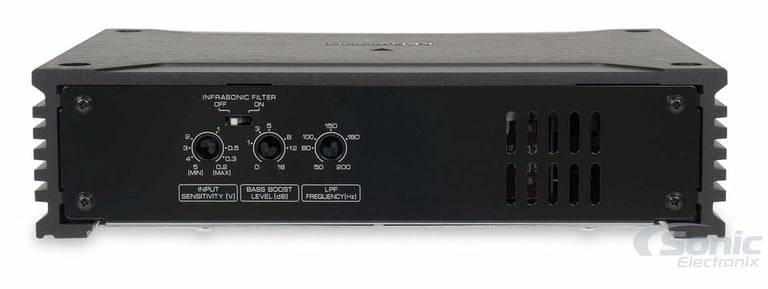

  • Infrasonic Filter cuts off low frequencies below 25 Hz
  • CEA-2006 Compliant
  • Input sensitivity:
    • Low level: 0.2 - 5 volts
  • Frequency Response: 20 - 200 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 85 dB
  • Variable low-pass filter: 50 - 200 Hz
  • Subsonic filter: 0 - 50 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 60
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 8-3/8" L x 5-7/8" W x 2-1/16" H
  • Authorized Internet Dealer
  • 2 Year Sonic Electronix Warranty
  • MFR #: X502-1

Belva BAK42

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

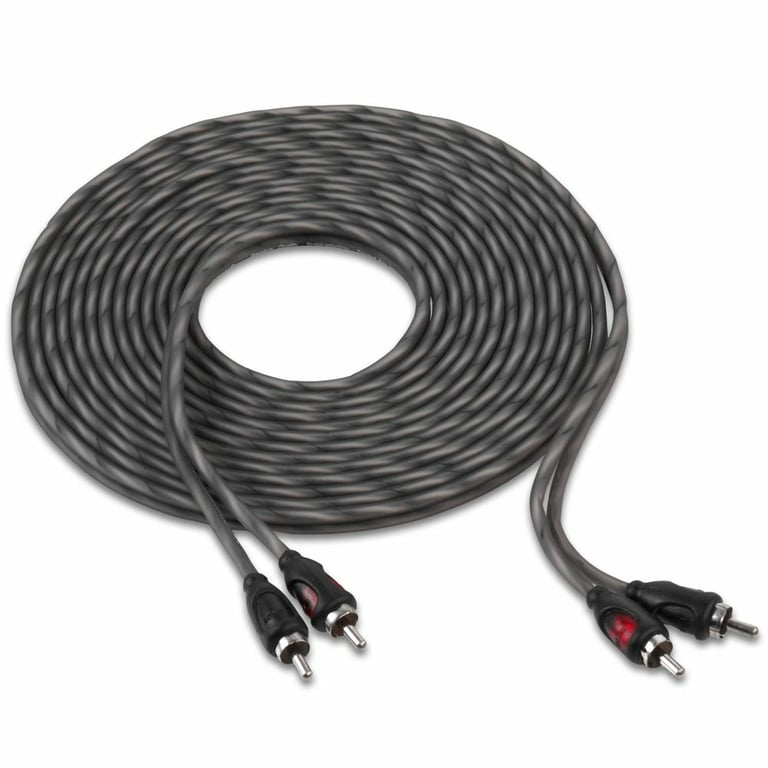

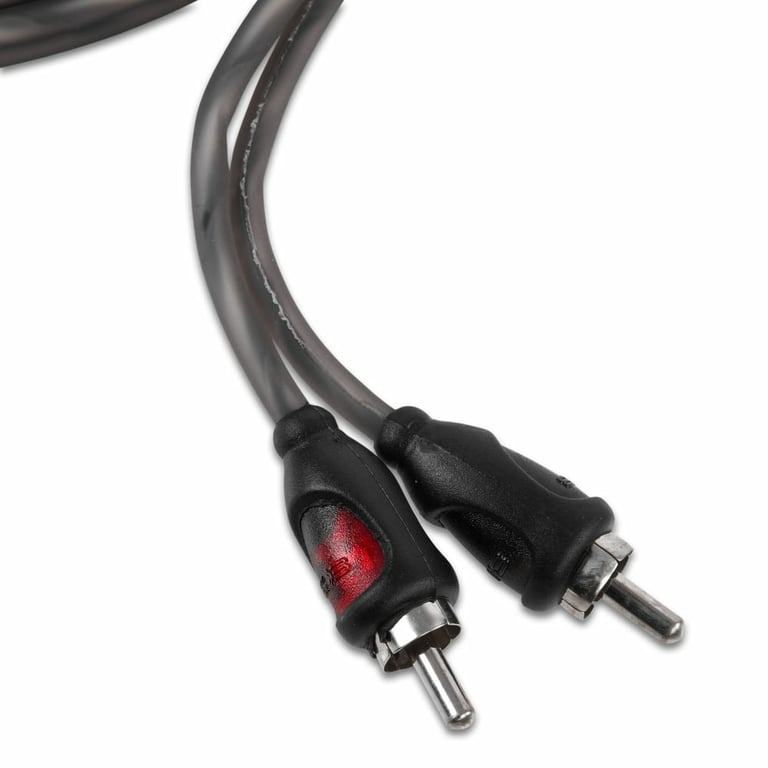

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

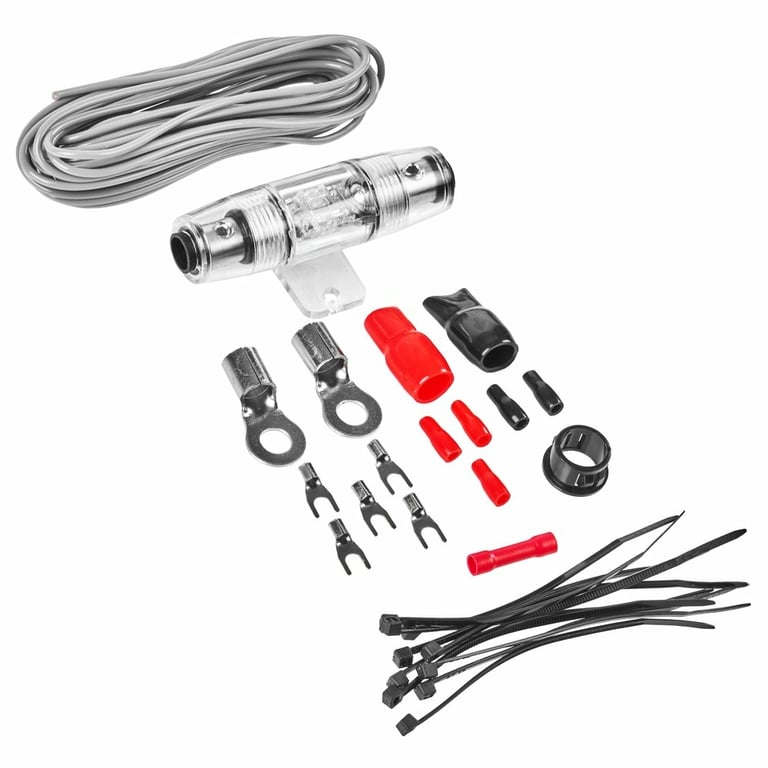

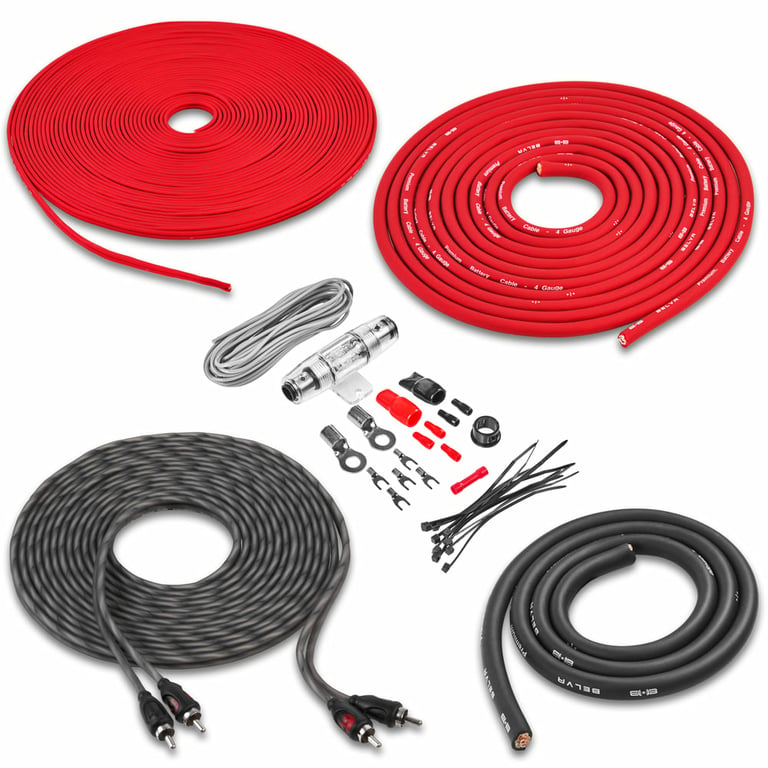

Kit includes:

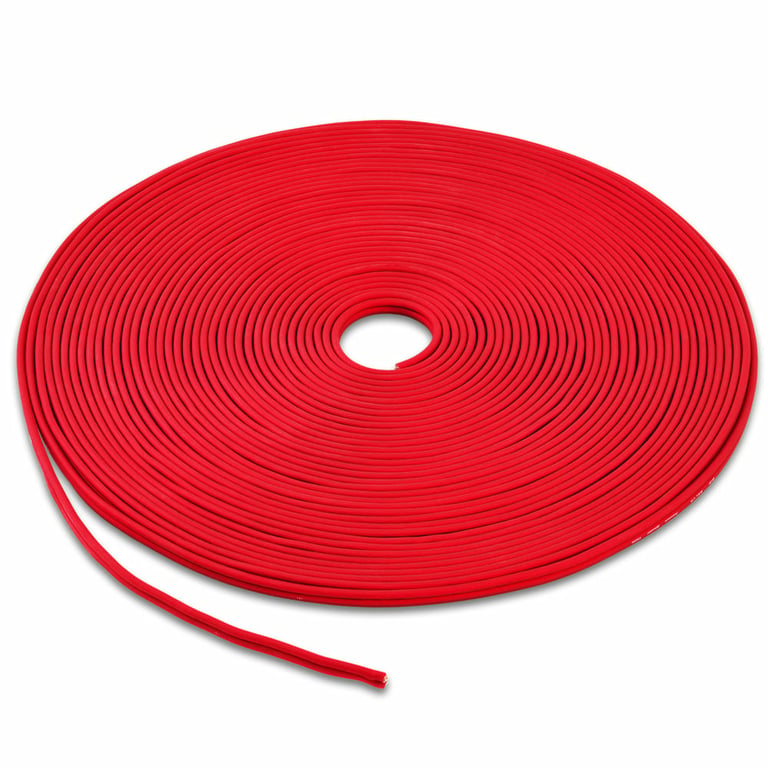

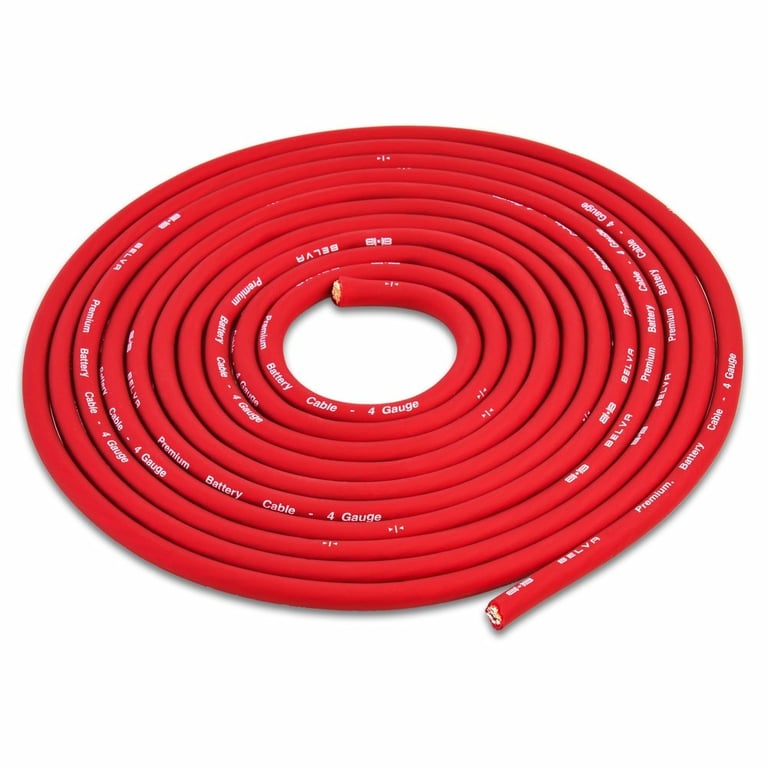

  1. 17 ft. Red 4 gauge power wire

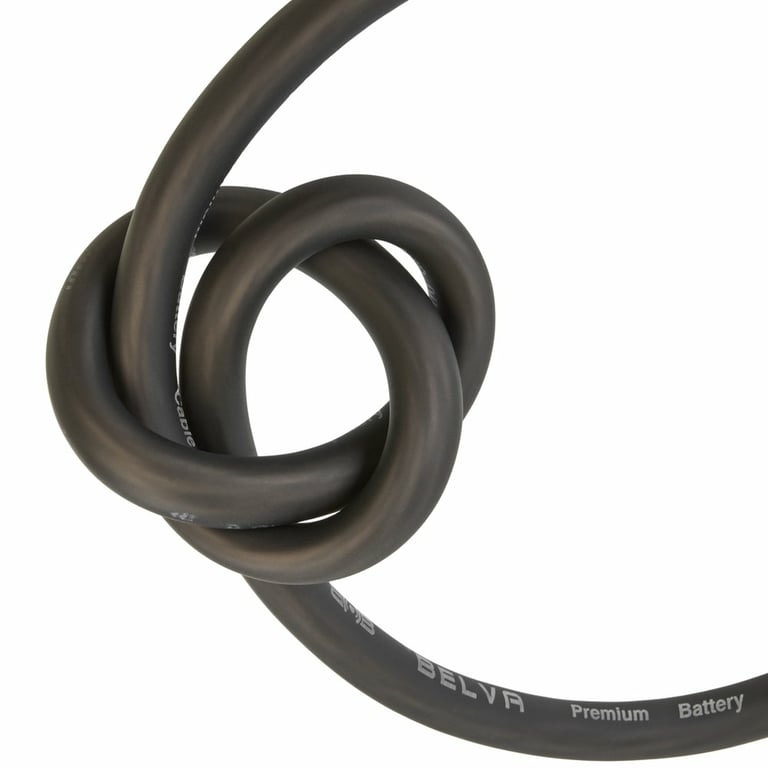

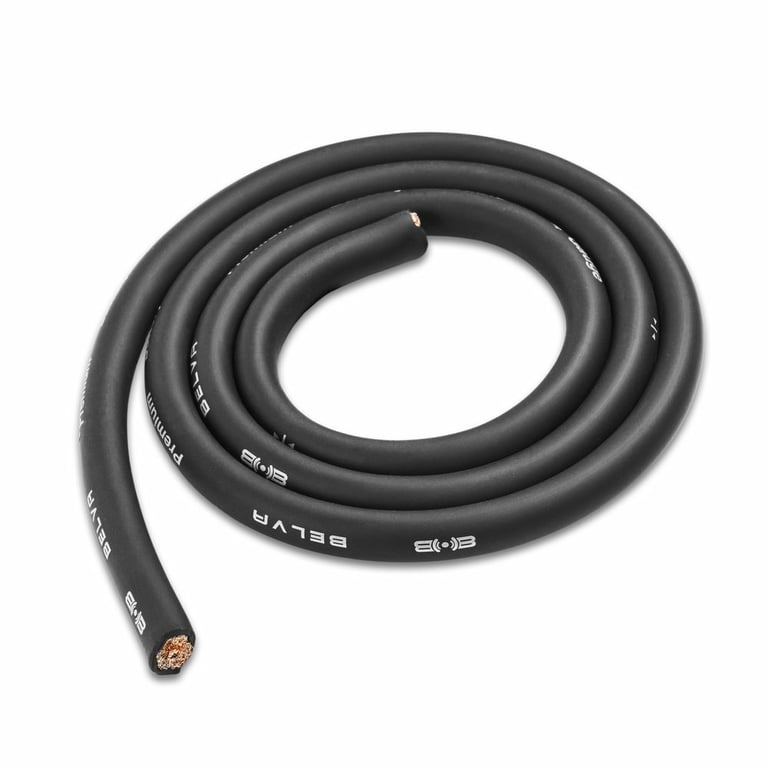

  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Product history:

Kenwood X502-1, BAK42 thumbnail
(newest, current model)
Kenwood X501-1 thumbnail
(previous model, replaced by Kenwood Excelon X502-1 with Amplifier Wiring Kit)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
20 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
Mini ANL
Fuse Size
80A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

X502-1, BAK42

Weight:

5.47lbs

Internal SKU:

x5021_bak42

Internal Product ID:

199177

Customer Ratings & Reviews


Kenwood Excelon X502-1 with Amplifier Wiring Kit thumbnail image

5 star
68%
4 star
21%
3 star
6%
2 star
5%
1 star
1%



Durability
4.5
Value
4.7
Features
4.4
Design
4.7
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Belva bak42

The following review is for BAK42, which is a part of the bundle you are viewing.

This item works okay, easy to install, and good for price.

By Danny on June 6, 2014

195 found this helpful


good package

The following review is for BAK42, which is a part of the bundle you are viewing.

Great value and worth your money as far as what you would need for an amplifier/subs system setup. Quality wires.

By john on January 5, 2015

192 found this helpful


impressed

The following review is for BAK42, which is a part of the bundle you are viewing.

I ordered this kit because it was fairly cheap but I have to say in very impressed with the quality of the wire as well as the thickness of the insulation. It was much thicker than I had anticipated and was pleasantly surprised.

By Bryan on May 20, 2014

194 found this helpful


Wiring kit

The following review is for BAK42, which is a part of the bundle you are viewing.

Very quality wires and very pliable. Will definitely buy again

By Phil on December 25, 2014

188 found this helpful


best bang for your buck

The following review is for BAK42, which is a part of the bundle you are viewing.

hooked up to my amp with ease subs bump all day long no problems installing except finding a good ground the ground wire could be a little longer but not a major problem.

By Hoffman on January 18, 2015

184 found this helpful


Everything you need

The following review is for BAK42, which is a part of the bundle you are viewing.

This package comes with everything you need to install your amp and speakers. Great value.

By Bradford on January 16, 2014

179 found this helpful


Belva

The following review is for BAK42, which is a part of the bundle you are viewing.

Parts came fast, and seems to be a good quality for price.

By Ricke on March 3, 2014

180 found this helpful


Not bad

The following review is for BAK42, which is a part of the bundle you are viewing.

It was pretty nice the wire was a little bigger than i thought (wire is about as fat as a sharpie marker just the wire not the insulation), the grommet that came with it was way to big for the wire so i didn't use it the fuse seems ok the connectors are good didn't have trouble crimping. I had to drill out the ring terminals a little but wasn't bad; wire insulation kind of soft and easy to puncture.

By jeff on December 31, 2013

177 found this helpful


Ok product

The following review is for BAK42, which is a part of the bundle you are viewing.

The product works. Not the best quality though. The cables are pretty lightweight. If I did it again I would spend a little more money and get a higher quality cable.

By JR on April 28, 2014

181 found this helpful


not enough

The following review is for BAK42, which is a part of the bundle you are viewing.

first the terminals are too small for the gauge wire for the power and ground and fuse. a lot of the things that came with the kit didn't seem to have a place with the wires e.g. butt end connectors, cable terminals, all were too small for gauge wire included. im having to run out and buy pieces from my local radioshack. the remote wire has nothing to even connect to my head unit making have to go out and buy more materials to complete my install.

By matthew on March 9, 2014

182 found this helpful




P1S412 small

Rockford Fosgate Punch P1S412 (09P1S412)

12" Single 4 ohm Punch Stage 4 Series Car Subwoofer

(28)

$59.95

List price $119.99

HAS360B small

JVC HAS360B Foldable DJ Headphones (HA-S360B)

Lightweight Portable Foldable DJ Headphones w/ Swiveling Earcups (Black)

$39.95

List price $39.95

HAFX5G small

JVC HAFX5G (HA-FX5-G) Gummy-Plus In-Ear Headphones - Green

Light Weight Rubber Earbuds w/ 3 Sets of Silicone Earpieces (Green)

$8.99

List price $9.99

M550I-SACD-2M small

Monster Cable SACD/DVD-Audio Cable (M550I SACD-2M)

6.56 ft. (2 Meters) of M-Series M550i SACD/DVD-Audio Cable

$59.99

List price $199.99

PTID-8940NR small

Power Acoustik PTID-8940NR

In-Dash 7" Touchscreen TFT-LCD DVD/CD/MP4 Nav Ready Receiver w/ Remote

(16)

$149.99

List price $429.99

TFDVD9109 small

Coby TFDVD9109 9" Portable DVD/CD Video Media Player (TF-DVD9109)

Portable DVD Player with 9" Wide TFT-LCD Screen and Full Function Remote Control

$99.95

List price $139.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Mazda 6

2004 Hyundai Tiburon

2010 BMW 335i

2010 Toyota Yaris

2004 Honda S2000

2007 Pontiac Torrent

2022 Honda Civic

2011 Nissan 370Z

2004 Acura RL

2019 Nissan Pathfinder

Vehicle
Store
Delete

2007 Harley Davidson FLTR Road Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
