Alpine RS-SB10 + Alpine S-A60M + Amplifier Wiring Kit

Product Details:

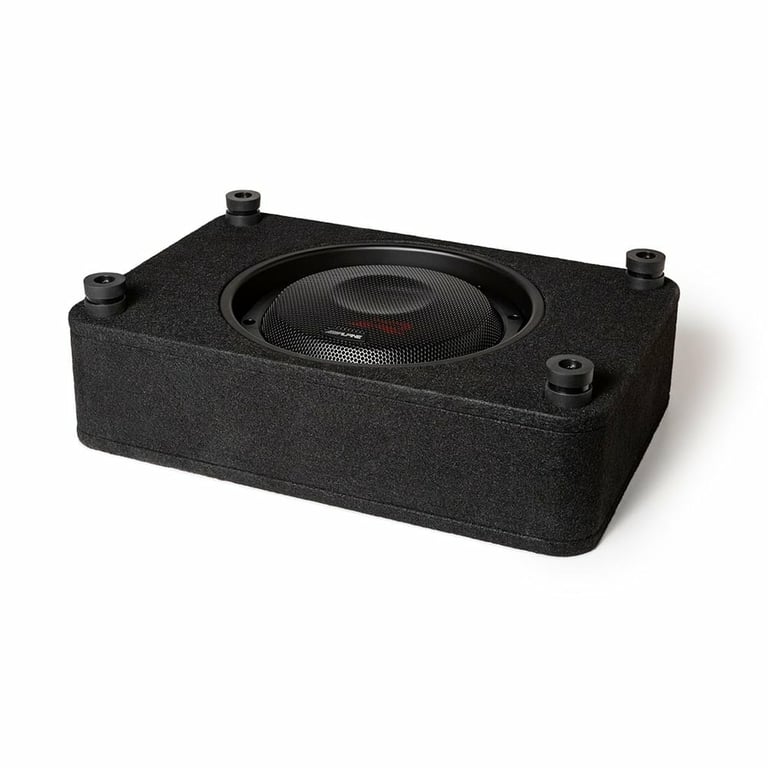

• Sealed shallow enclosure with 1 10" R-Series Subwoofer
• 3/4" medium-density fiberboard construction covered with Carpet
• Power Handling:
• Peak: 1800 watts
• RMS: 600 watts
• Final Impedance: 2-ohm
• Polypropylene subwoofer cone material
• Butyl Rubber subwoofer surround material
• Houses single Alpine RS-W10D4 subwoofer
• Measures a minimal 5.25" deep to fit in most vehicle applications
• Rubber "feet" are adjustable in height to accommodate uneven vehicle floors
• Features the same motor movement (20MM of 1-way excursion) as the full-size R2-Series Subwoofers
• Contains an oversized 4" voice coil that houses a lightweight and powerful neodymium magnet
• Integrated cooling fins dissipate heat generated by rapid subwoofer movement
• Unique CoolMount™ Dual-panel mount subwoofer motor for enhanced cooling
• Utilizes Alpine's Gen2 DD-Linear Magnetic Circuit technology
• Preloaded enclosures use the subwoofer frame as bracing for a more ridged design
• Lightweight yet rigid aluminum dust cap to transition sound quickly
• Includes adjustable mounting brackets for a down-fire mount configuration
• Optimized to perform with Alpine S-A60M and Alpine R-A75M (sold separately)
• Frequency Response: 29 - 200 Hz
• Sensitivity: 84 dB
• Dimensions: 21.15" L x 5.25" H x 16" W
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

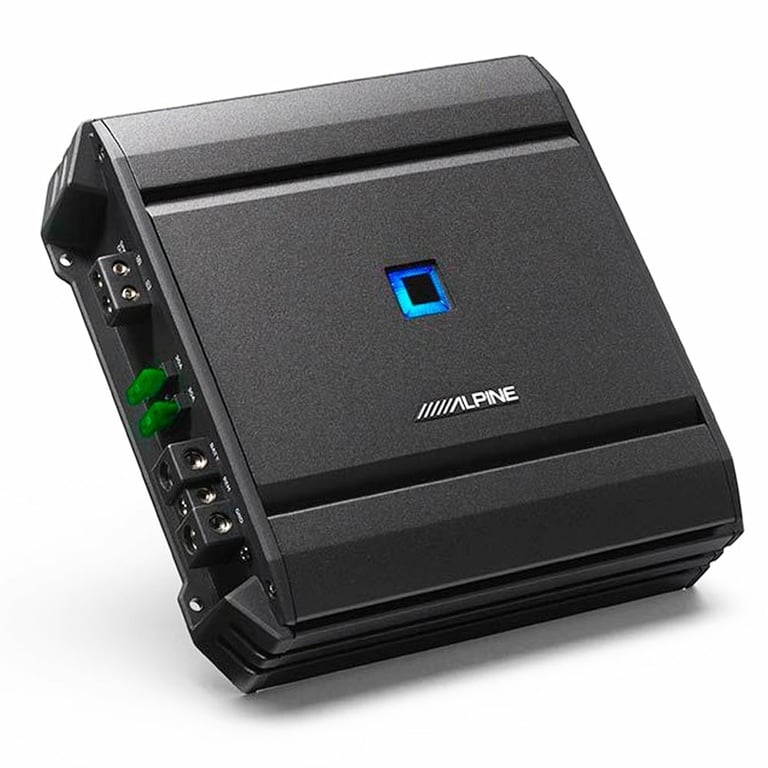

• Alpine S-Series Mono Power Amplifier - S-A60M
• RMS Power Output:
• 400W x 1 @ 4 Ohm (14.4V < 1% THD+N)
• 600W x 1 @ 2 Ohm (14.4V < 1% THD+N)
• S/N ratio: >85dB (ref: 1W into 4 ohm), >105dB (ref: rated power into 4 ohm)
• Remote bass knob compatible (requires RUX-KNOB.2, sold separately)
• CTA-2006 compliant
• THD+N ≤ 0.03% (ref 1W info 4 ohm)
• Frequency Response: 10HZ-400Hz (+/- 3 dB)
• Damping Factor: > 1000
• variable low-pass filter (50-400 Hz, 24 dB/octave)
• variable bass boost (0-12 dB at 50 Hz)
• Speaker-level inputs (Speaker Wire to RCA Adapter Required)
• Preamp Inputs
• Improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback
• Remote Sensing automatic turn-on when using speaker-level inputs
• Approximate Weight: 11 lbs
• Fuse Rating: fuse rating: 30A x 2
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 8” W x 8” H x 2.25” D
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage

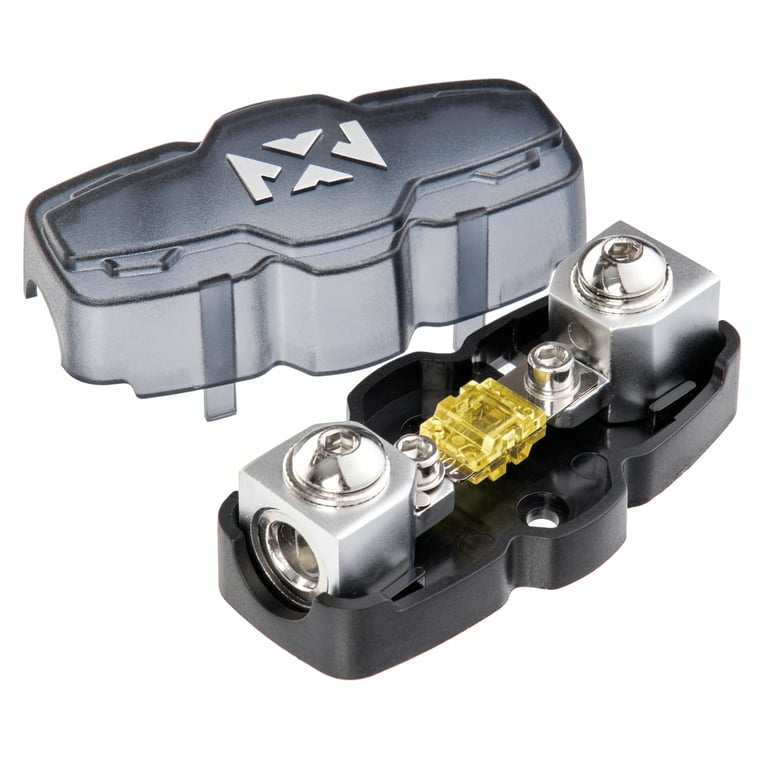

• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant

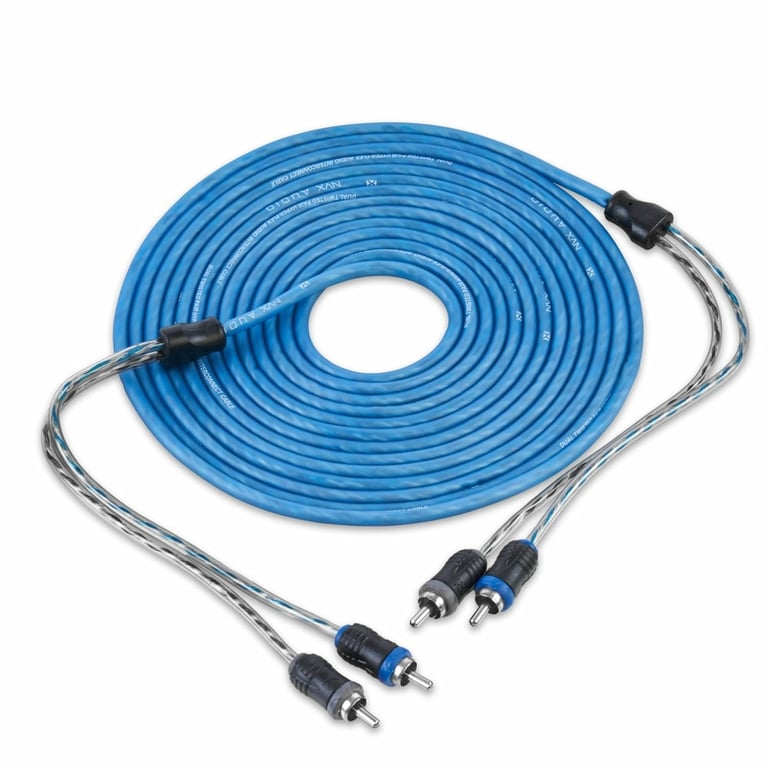

• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

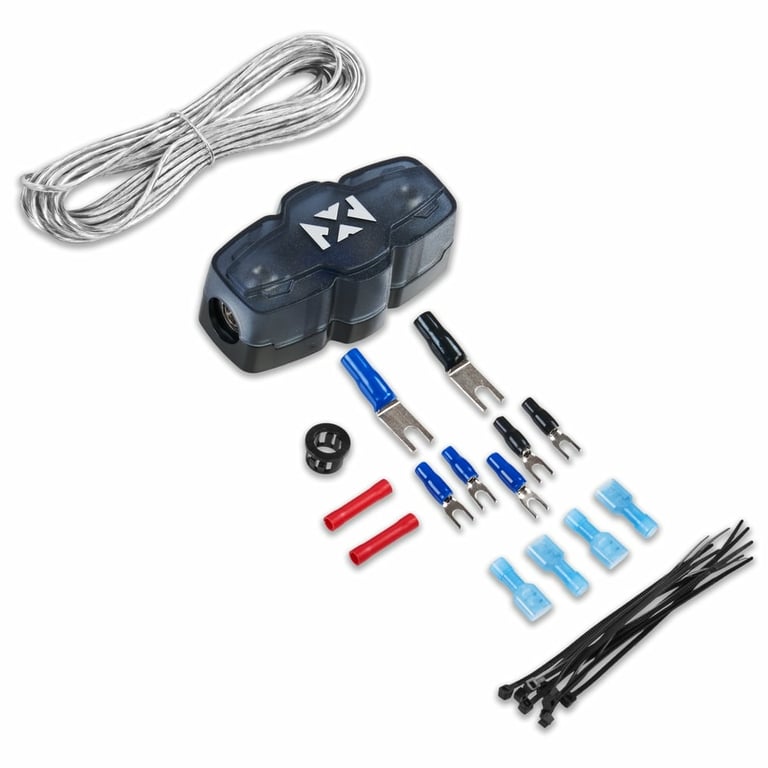

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
