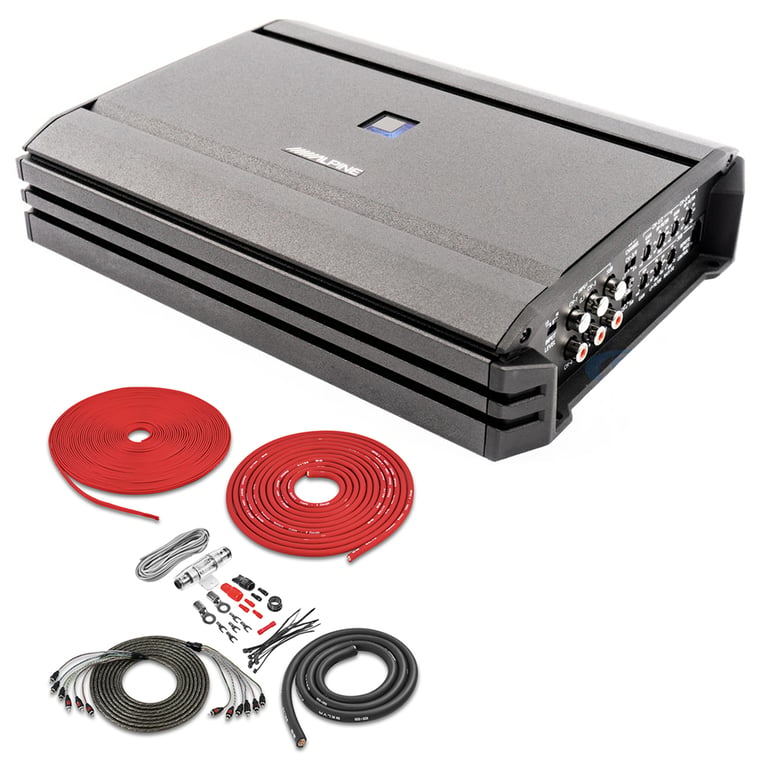

Alpine S-A55V with Amplifier Wiring Kit

S-Series 5-Channel Class D Amplifier (540W RMS)

Alpine
Shop all Alpine
highlight-star-icon

• 5-channel Class D Amplifier
• 40 watts RMS x 4 + 200 watts RMS x 1 at 4 ohm
• 60 watts RMS x 4 + 300 watts RMS x 1 at 2 ohm
• 120 watts RMS x 2 bridged at 4 ohm + 300 watts RMS x 1 at 2 ohm
• CTA-2006 compliant
• High pass and Low pass filters with Bass Boost

Learn more about the sa55v_bak46

We apologize

This item has been discontinued


Loading...
72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

DMH-WC6600NEX main

Pioneer DMH-WC6600NEX

9" Single DIN HD Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (Requires Metra 109-UN02 + accessories at checkout)

-8.33%

$1,099.99

List price $1200.00

PK1-116 main

MB Quart PK1-116

220W Peak (110W RMS) 6.5" Premium Series 2-Way 4-ohm Coaxial Car Speakers

-14.21%

$162.99

List price $189.99

R1T-S main

Rockford Fosgate PRIME R1T-S

160W Peak (80W RMS) 1" PRIME Series Mylar Balanced Dome Car Tweeters

34
GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

MB Quart PS1-216

240W Peak (120W RMS) 6.5" Premium Series 2-Way 4-ohm Component Speaker System

-28.91%

$170.62

List price $239.99

Description


Alpine brand icon

Authorized dealer


Alpine S-Series Amplifiers

S-Series amplifiers are your sound system’s workhorse. With unmatched reliability and budget-friendly prices, these amplifiers are the better choice in performance value.

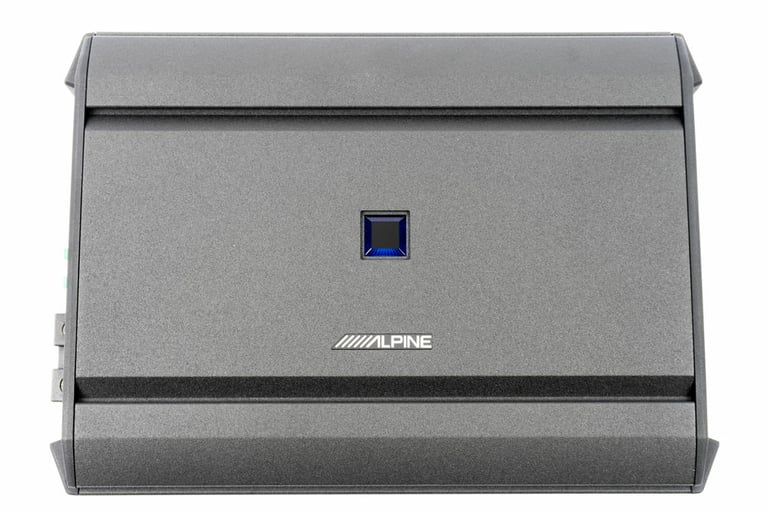

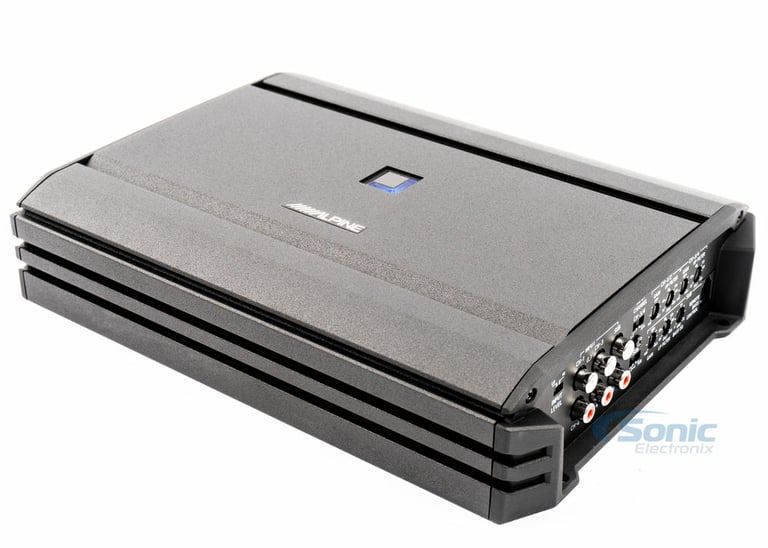

Alpine S-A55V

S-Series 5-Channel Class D Amplifier (540W RMS)
Quantity: 1

Product Details:

  • 5-channel Class D Amplifier
  • Power Output:
    • 40 watts RMS x 4 + 200 watts RMS x 1 at 4 ohm
    • 60 watts RMS x 4 + 300 watts RMS x 1 at 2 ohm
    • 120 watts RMS x 2 bridged at 4 ohm + 300 watts RMS x 1 at 2 ohm
  • CTA-2006 compliant

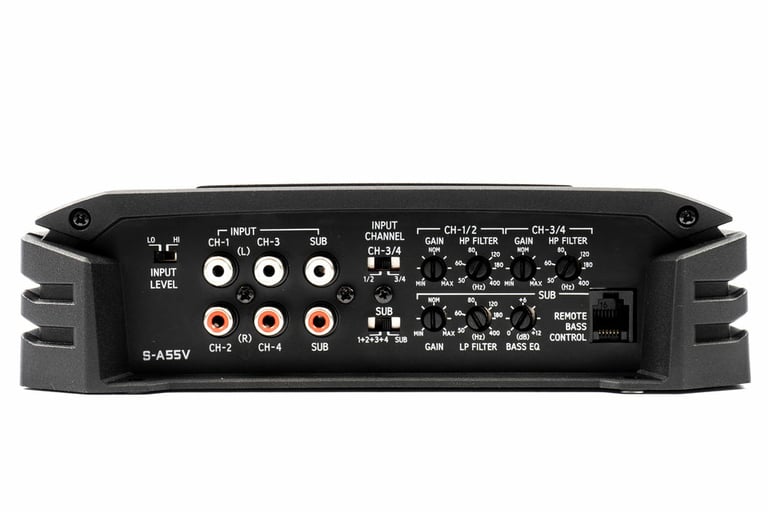

  • Variable high-pass filter (50-400 Hz, 12 dB/octave) on 4-channel section
  • Variable low-pass filter (50-400 Hz, 24 dB/octave) on sub channel
  • Variable bass boost (0-12 dB at 50 Hz) on sub channel
  • Optional RUX-KNOB.2 wired remote level control for sub channel
  • Preamp and speaker-level inputs
  • Wiring and hardware not included with amplifier

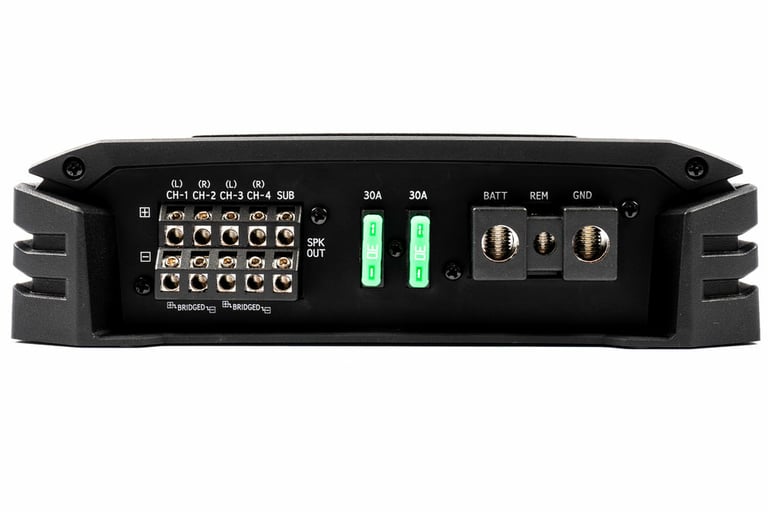

  • Fuse rating: 30A x 2
  • Dimensions: 11-1/4" W x 2-1/4" H x 8" D
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK46

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • Complete 4 Gauge 5/6-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

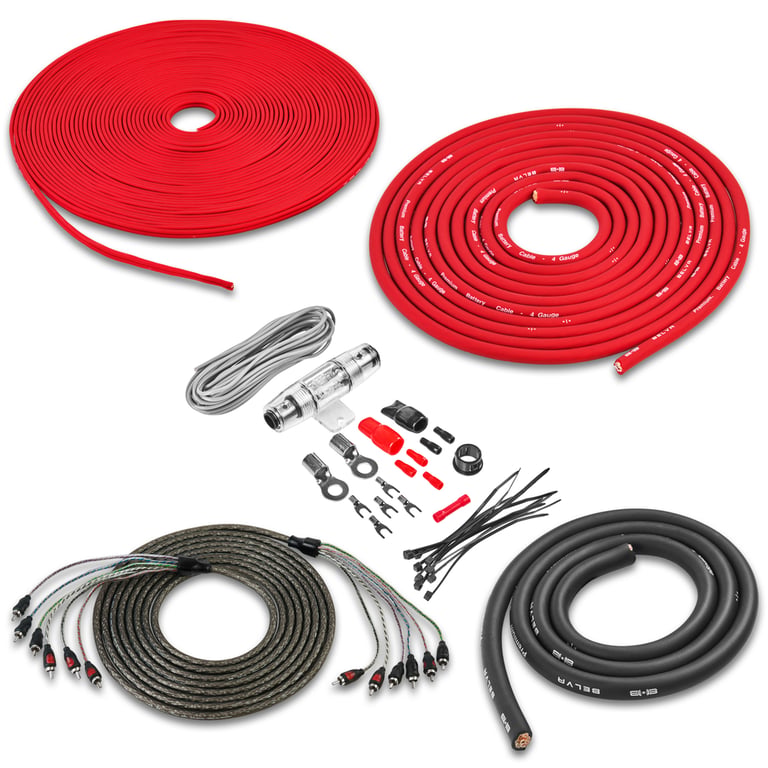

Kit includes:

  1. 17 ft. (5.2 meters) Red 4 gauge power wire
  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 5/6-channel RCA interconnect cable
  5. 65 ft. (12.2 meters) 16 Gauge Speaker cable
  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Red chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$456.68

List price $593.98

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$279.99

List price $369.98

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$279.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

VSW124V3_NDA15001_XKIT42 small

NVX VSW124v3 + NDA15001 + XKIT42

• Two 12" VSW124v3 VS-Series 600W RMS Subwoofers
• 3000W Peak (1500W RMS) Class D NDA15001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(175)

$569.96

List price $743.96

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
160 watts x 4 channel
RMS Power @ 2 ohms
240 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Subsonic
High-Pass Crossover Frequency
50 - 400 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Subsonic Filter
50 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 2
Total Fuse Rating
60
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
65 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
6 Channel / 5 Channel
Fuse Holder
Mini ANL
Fuse Size
80A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S-A55V, BAK46

Weight:

15.43lbs

Internal SKU:

sa55v_bak46

Internal Product ID:

200915

Customer Ratings & Reviews


Alpine S-A55V with Amplifier Wiring Kit thumbnail image

5 star
85%
4 star
11%
3 star
4%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.7
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great Value/perfect Amp install kit for my 5 channel

The following review is for BAK46, which is a part of the bundle you are viewing.

This Amp install kit made it easy as I had 6 in to 1 rca cables on both ends and made it easier to fish in the wires Through the front to the back...

By Abner on January 25, 2018

57 found this helpful


Excellent

The following review is for BAK46, which is a part of the bundle you are viewing.

Everything fit my amp as if they spoke with the manufacturer beforehand. the lengths are correct the RCA's I love them. The quality and feel!! I saw FEDEX coming and I felt like a little kid. Sitting at my dining room table pre-wiring and letting the cables get used to being straight again after being coiled in the package. You WILL NOT BE DISAPPOINTED!!!

By Anonymous on November 18, 2018

55 found this helpful


quality

The following review is for BAK46, which is a part of the bundle you are viewing.

The RCA cable was really convenient. I was even able to cut it in the middle to fit it through a small hole and then solder it back together. (this did take a looong time but its possible)
Wire was quality too

By Sean on October 30, 2017

54 found this helpful


Helpful kit

The following review is for BAK46, which is a part of the bundle you are viewing.

Great kit with everything you need to get your system going and can handle adequate power

By David on February 3, 2020 Checkmark Icon Verified purchase

50 found this helpful


Nice kit

The following review is for BAK46, which is a part of the bundle you are viewing.

The kit is complete with everything you need to install an amplifier and speakers.
Power and ground wire very flexible.

By casper on February 9, 2022 Checkmark Icon Verified purchase

47 found this helpful


Nice kit

The following review is for BAK46, which is a part of the bundle you are viewing.

I bought this kit and am quite happy with it, the 4 gauge cable and RCA's seem to be of high quality along with the rest of the parts. only problem I had was the length of the power cable, in an avalanche I came up about 2ft short mounting the amp in the back of the truck so I had to go to the local shop to get a 2ft cable to make it from the fuse to the battery. would I buy this kit again yes.....

By David on April 2, 2017 Checkmark Icon Verified purchase

50 found this helpful


Just do it ..

The following review is for BAK46, which is a part of the bundle you are viewing.

I questioned whether the installation kit would really be "all that."

It was .. almost everything you need is included ... I opted for getting the quick connect/disconnect adapters for the speakers. Had those been in the kit I would have lost it.

Great quality, great layout, totally worth it.

By MICHAEL on October 5, 2015

47 found this helpful


Great Kit

The following review is for BAK46, which is a part of the bundle you are viewing.

Bought this and am sooo happy I did. Price was great and the quality of all the components is too. Even the speaker was great quality. Highly recommend.

By Brian on October 20, 2016

47 found this helpful


Great price fast delivery

The following review is for BAK46, which is a part of the bundle you are viewing.

Great value for quality products and fast delivery will order again

By Anonymous on October 19, 2019

43 found this helpful


Great value

The following review is for BAK46, which is a part of the bundle you are viewing.

I got this kit free with an NVX amp I ordered and I have to say it's a great kit, the speaker wire worked great as well as the rca's as I had no road noise with them. Would recommend to anyone not looking to break the bank.

By Lucas on January 23, 2022 Checkmark Icon Verified purchase

41 found this helpful



CRT4.14P small

Xscorpion CRT4.14P

2 Piece 4 AWG Copper Ring Terminals 1/4"

$3.99

List price $7.99

Custom One Pro (White) small

Beyerdynamic Custom One Pro - White

Adjustable Over-Ear Professional Headphones with Custom Sound Slider

(2)

$113.06

List price $299.00

GS 6X9-GRAY small

Ground Shaker GS 6X9-GRAY

6 x 9" Single Panda Speaker Box

$11.99

List price $24.95

MP707-8GBLK small

Coby MP707-8G - Black

8GB Portable Video MP3 Player with 2" LCD Screen and FM Tuner

(1)

$29.99

List price $79.99

PAK0 small

Planet Audio Amplifier Wiring Kit (PAK0)

1/0 Gauge Complete Amplifier Installation Kit for Monoblock or 2-Channel Amplifiers

(2)

$36.70

List price $90.00

Q3I-10000 small

AlcoHawk Q3I-10000 Breathalyzer

Breathalyzer ABI Digital Breath Alcohol Tester

$64.99

List price $119.95

No picture

Memphis 16-MC1500D

$649.99

List price $1000.00

MP3848PWH small

Memorex MP3848-PWH (Pink)

Top-Loading Portable AM/FM Radio CD Player Boombox with 3.5mm Auxiliary Input Jack & Battery Option

(1)

$59.99

List price $59.99

No picture

Belva BT8RGB (Open Box, Great)

600W Peak (300W RMS) 8" Marine Tower Speakers with Multi-Color LED Lighting and Remote (Black)

$139.99

List price $399.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2010 MINI Cooper

2003 Isuzu Ascender

2001 Toyota Sienna

2015 Chevrolet Malibu

2004 Mazda B3000

2014 Honda Pilot

2017 Chevrolet Impala

2020 Audi Q5 PHEV

2023 Ford Edge

2017 Ford Mustang

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
