900W RMS MHD Series Class-D 5-Channel Marine Amplifier
Product highlights
• 4 ohm: 100 watts x 4 channel + 500 watts x 1 channel
• 3 to 1.5 ohm: 75 watts x 4 channel + 500 watts x 1 channel
• Bridged: 150 watts x 2 channel @ 4 to 8 ohm + 500 watts x 1 channel @ 4 to 1.5 ohm
• Total RMS Power: 900 watts
• Class D 1.5 ohm Stable 5-Channel Amplifier

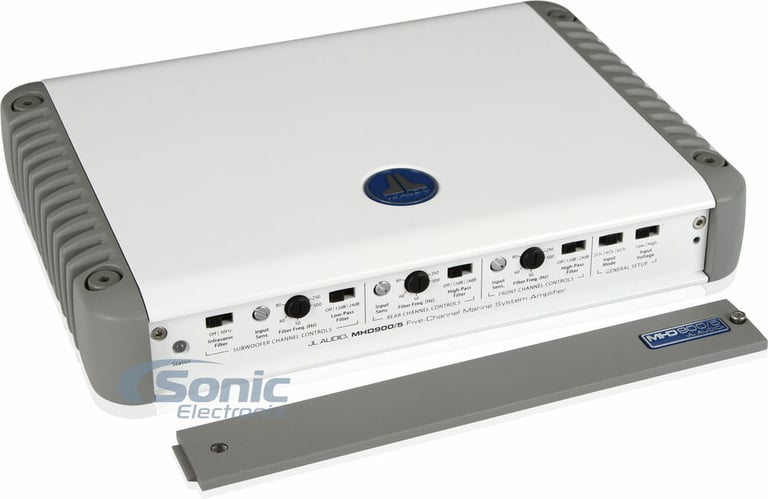

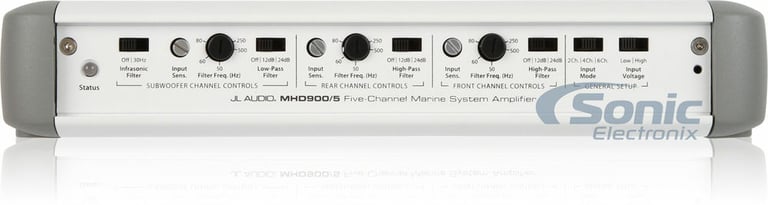

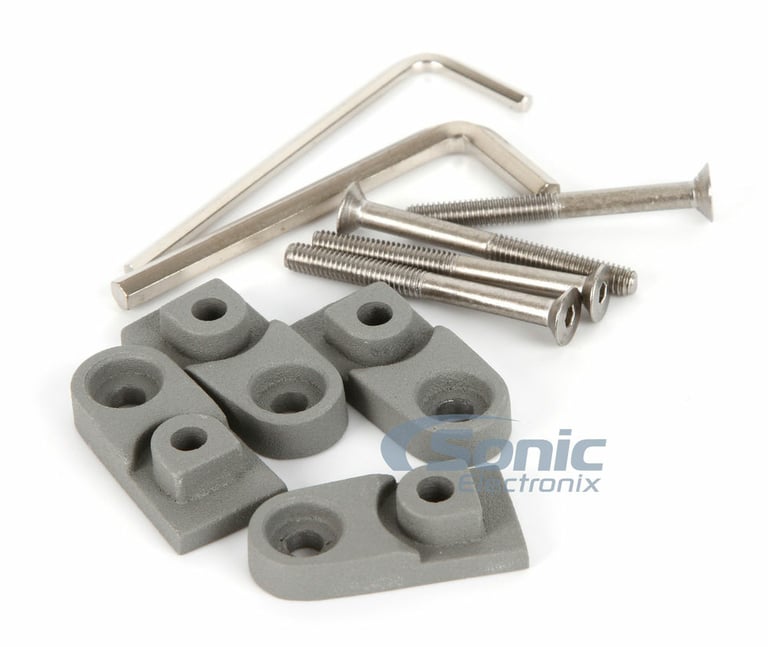

JL Audio's Flagship Series of amplifiers offer unmatched performance from an ultra-compact chassis. These Class D amplifiers require less power, generate minimal heat and take up far less space than the common amplifier design. MHD Series amplifiers reproduce your music with outstanding accuracy, providing high-fidelity sound even under the most demanding conditions, thanks to a number of JL Audio exclusive technologies. Single Cycle Control (U.S. Patent #6,084,450), R.I.P.S System and Advanced Rollback Protection are just a few of the technologies that sets the MHD Series apart from the rest of the market, all designed to deliver top-flight audio performance. In addition, behind every MHD's removable security cover, you will find studio-grade signal processing with fully variable crossover filters to properly tune in your setup and put all the technology under the hood to good use. This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

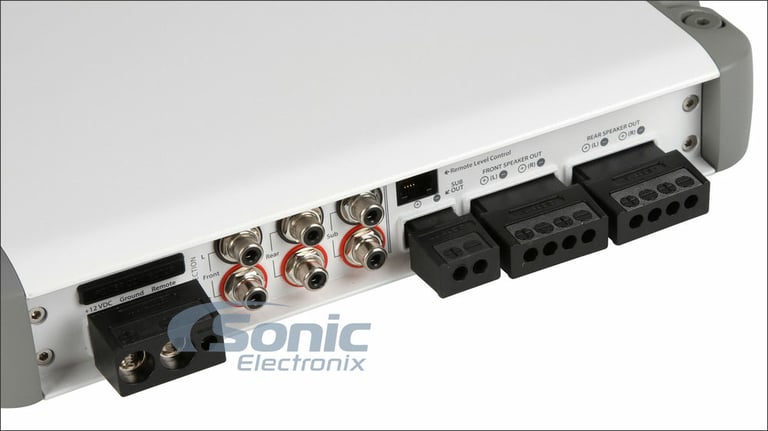

Also included are JL Audio's noise-killing, highly flexible differential-balanced inputs with remote level control capabilities for the subwoofer channel via the HD-RLC remote level control (sold separately).
JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.
The MHD900/5 employs JL Audio's exclusive Regulated, Intelligent Power Supply (R.I.P.S.) design. This sophisticated power supply allows the amplifier to produce high power over a wide range of speaker impedances. Unlike conventional amplifiers that require a specific impedance to produce optimum power, the R.I.P.S.-equipped MHD900/5 gives you the freedom to use a variety of speaker configurations without sacrificing power output or sound quality. The operation of the R.I.P.S. circuitry is entirely automatic and adjusts itself every time the amplifier is turned on according to the lowest impedance present at the speaker load.

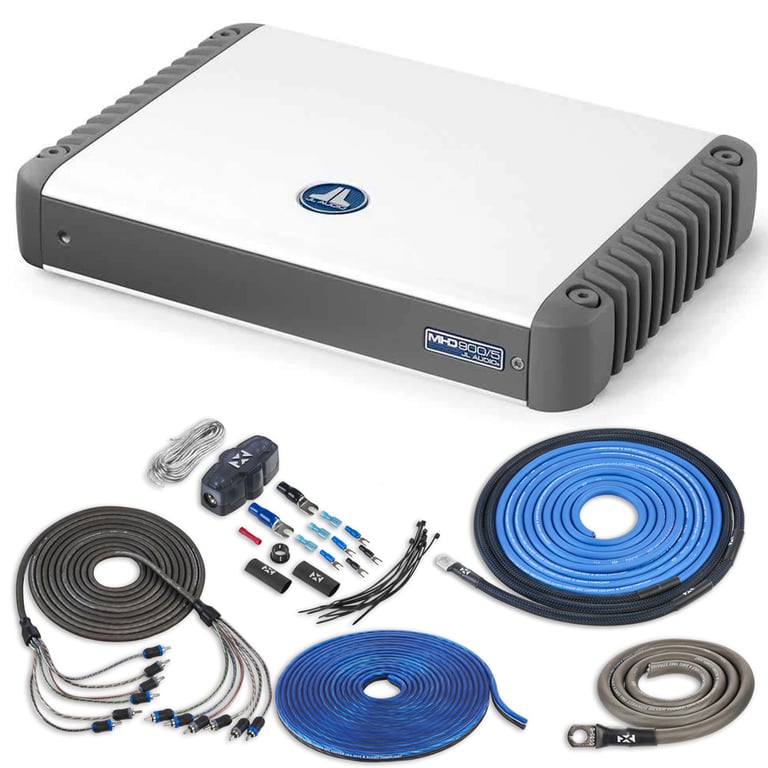

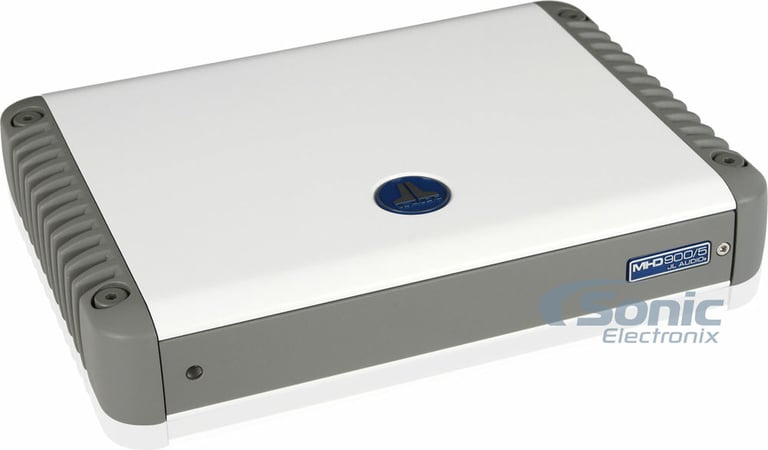

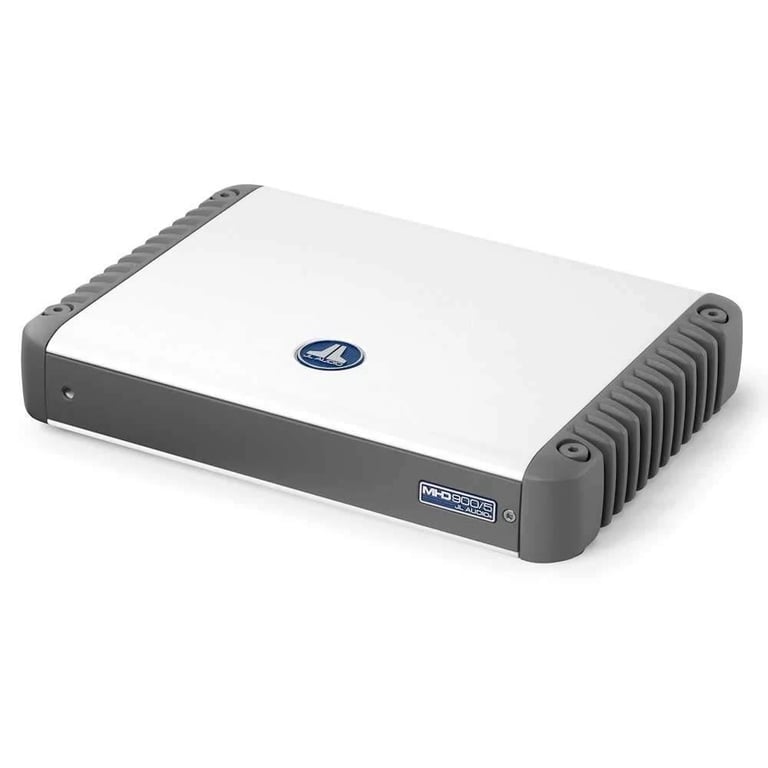

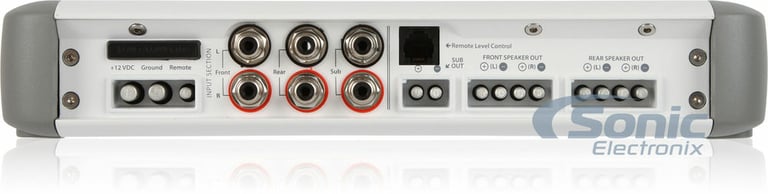

JL Audio MHD900/5
900W RMS Class D MHD Series 5 Channel Marine Amplifier
Quantity: 1
NVX XKIT46
Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1
